Aurora TAVIS TAV-BX1 Bedienungsanleitung

USERS GUIDE

www.auroramm.com

Manual Number: 201115 | Firmware Rev: 0.0.6 or Higher

TAV-BX1

(RXM-1 with TAV-A80)

USERS GUIDE

www.auroramm.com

SAFETY INSTRUCTIONS

Please review the following safety precautions. If this is the first time using this model, then read this manual before

installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for

further instructions.

The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage inside the product that may

be sufficient to constitute a risk of electric shock to anyone opening the case. It is also used to indicate improper installation

or handling of the product that could damage the electrical system in the product or in other equipment attached to the

product

The exclamation point in the triangle is used to alert you to important operating and maintenance instructions. Failure to

follow these instructions could result in injury to you or damage to the product.

Be careful with electricity:

Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord matches the

electrical outlet used to supply power to the Aurora product. Use only the power adapter and power connection cables

designed for this unit.

Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy items.

Lightning: For protection from lightning or when the product is left unattended for a long period, disconnect it from the

power source.

Also follow these precautions:

Ventilation: Do not block the ventilation slots if applicable on the product or place any heavy object on top of it.

Blocking the air flow could cause damage. Arrange components so that air can flow freely. Ensure that there is adequate

ventilation if the product is placed in a stand or cabinet. Put the product in a properly ventilated area, away from direct

sunlight or any source of heat.

Overheating: Avoid stacking the Aurora product on top of a hot component such as a power amplifier.

Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.

Proper Connections: Be sure all cables and equipment are connected to the unit as described in this manual.

Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the cover.

Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.

Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

ESD: Handle this unit with proper ESD care. Failure to do so can result in failure.

FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference.

(2)This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is

iii

USERS GUIDE

www.auroramm.com

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator & your body.

Trademarks

All trademarks in this document are the properties of their respective owners.

USERS GUIDE

www.auroramm.com

TABLE OF CONTENTS

PACKAGE CONTENTS ............................................................................................................................1

INTRODUCTION .......................................................................................................................................3

About ......................................................................................................................................................3

Documentation........................................................................................................................................3

Features..................................................................................................................................................4

Technical Specifications .........................................................................................................................5

Advanced Optional Features..................................................................................................................5

RXM-1 Front...........................................................................................................................................6

RXM-1 Rear............................................................................................................................................7

TAV-A80 Front.........................................................................................................................................8

UNDERSTANDING THE BASICS.............................................................................................................9

Powering on the Device..........................................................................................................................9

First time setupup wizard........................................................................................................................9

Understanding the Display ...................................................................................................................12

Accessing the Settings .........................................................................................................................12

HARDWARE INSTALLATION.................................................................................................................13

Device Placement.................................................................................................................................13

Software Setup.....................................................................................................................................15

SOFTWARE SETTINGS..........................................................................................................................16

TAVIS Settings......................................................................................................................................16

Admin Settings......................................................................................................................................18

Network Settings...................................................................................................................................19

Device Settings.....................................................................................................................................20

System Settings....................................................................................................................................21

Exiting the Menu...................................................................................................................................23

Display Modes......................................................................................................................................24

Remote Operation ................................................................................................................................28

Additional Capabilities ..........................................................................................................................29

ADDITIONAL SOFTWARE .....................................................................................................................30

ReAX™ Core Studio.............................................................................................................................30

Using ReAX™ Core Studio ..................................................................................................................32

TAVIS Central .......................................................................................................................................34

USERS GUIDE

www.auroramm.com

CONNECTOR PIN DEFINITION .............................................................................................................37

HDMI.....................................................................................................................................................37

USB.......................................................................................................................................................37

CAT5e/6/6A ..........................................................................................................................................37

APPENDIX 1............................................................................................................................................38

Frequently Asked Questions.................................................................................................................38

Troubleshooting....................................................................................................................................43

Firmware Update..................................................................................................................................43

Technical Specifications .......................................................................................................................44

Warranty ...............................................................................................................................................46

USERS GUIDE

www.auroramm.com

PACKAGE CONTENTS

Please make sure the following items are included within your package. Contact your dealer if any items are missing or

damaged.

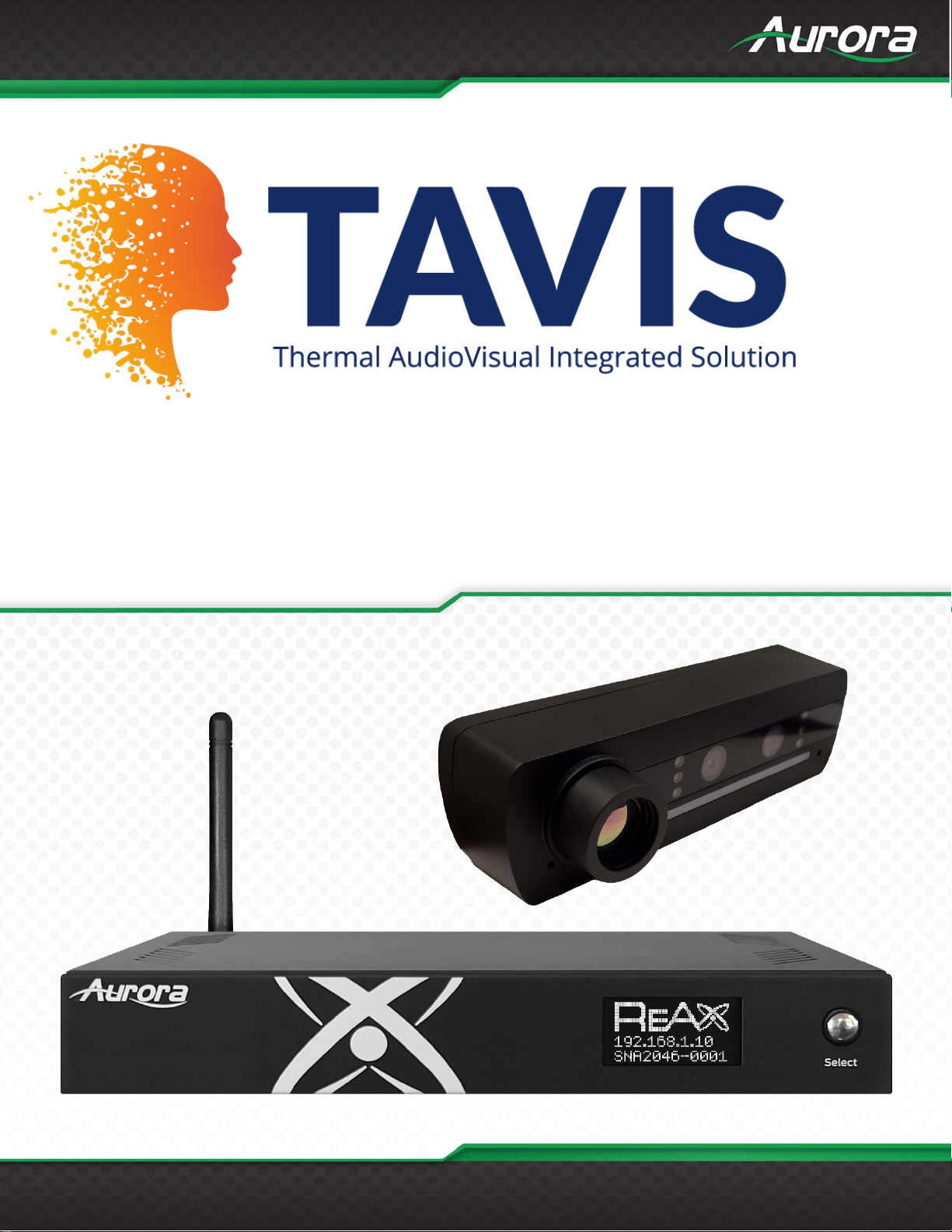

TAVIS Thermal AudioVisual Integrated Solution - TAV Series

TAV-BX1

1 QTY RXM-1 ReAX Media Server Unit with mounting Ears

1 QTY TAV-A80 Thermal Camera Module

1 QTY WIFI Antenna

1 QTY Power Adaptor

1 QTY Power Cable

Note: Go to www.auroramm.com for the latest manual and firmware.

USERS GUIDE

www.auroramm.com

RECOMMENDED CONTROL PORT EXPANSION

LXC-1

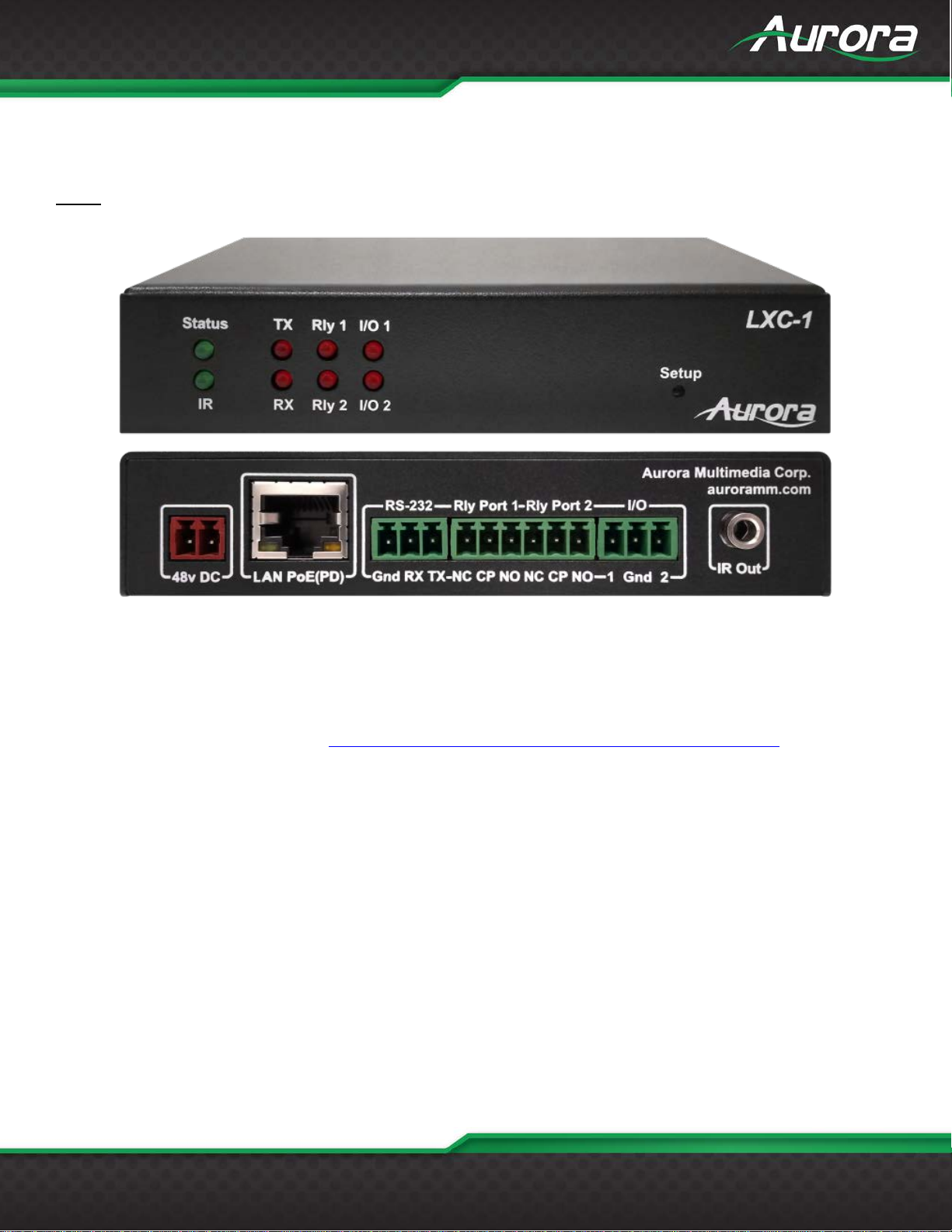

LXC-1 is a IP port expansion that will add RS-232, Relays, IO, and IR to the TAVIS unit.

For all of our latest options, please visit https://auroramultimedia.com/product-categories/control-systems/ .

USERS GUIDE

www.auroramm.com

INTRODUCTION

About

The TAVIS (Thermal AudioVisual Integrated Solution) TAV-BX1 is an all-in-one infrared temperature sensing solution

comprised of the RXM-1 ReAX Media Server and the TAV-A80 Thermal Camera Unit. It is the ultimate way to turn any

display into a full featured temperature sensor and much more. It is a perfect solution for creating custom kiosks or advanced

digital signage with analytics. To ensure that people entering a location are not presenting a high temperature, the TAV-

BX1 will provide alerts when a person is running a high temperature within 1 second from up to 5 feet (1.5 meter) away.

The system uses advanced algorithm for detecting and calculating heat signatures even the tear ducts (Canthus) at close

distances, achieving more accurate readings with IR technology. The highly accurate 80x64 sensor measures with a

tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).

Mask detection has become an important part of screening. TAVIS uses advanced AI algorithms to quickly identify if a

person is wearing masking.

TAVIS + ReAX™ offers state-of-the-art digital signage capabilities, security features and control systems integration.

Beyond the thermal detection features, TAVIS + ReAX™ can be used in conjunction with QR codes to check in employees,

confirm identification with gestures, connect to a secure database, provide on-screen instructions and much more. With

ReAX™, you can import your own HTML, CSS, or JavaScript code to design TAVIS’s interface. Even with no coding

experience, ReAX Core Studio™ allows the average user to create his or her desired interface using the studio’s intuitive

tools.

To compliment the TAVIS hardware, Aurora has developed a Server software TAVIS Central which allows full monitoring of

all TAVIS units at a facility. Reporting, alerts, statistics, firmware updating, remote monitoring, and even recording capabilities

are available.

Documentation

Aurora provides many documents to support the TAVIS Thermal AudioVisual Integrated Solution Series and accessories.

Below is a list of the available documents that can be found on the download tab of the TAVIS Thermal AudioVisual

Integrated Solution products or the customer portal.

TAVIS TAV-BX1 Series Brochure

RXM-BX1 Dimensions, TAV-A80 Dimensions

TAVIS TAV-BX1 Quick Reference Guide

TAVIS Firmware Update Guide

USERS GUIDE

www.auroramm.com

Features

TAVIS – A Generation Ahead

Turn Any Display into an Intellegent Kiosk

Scan Distance: Up to 5’ (1.5m)

2 Person Forehead Scanning

Scan Speed: Less than 1 second

Canthus (Tear Duct) Eye Detection (Highest Possible Accuracy from 12”away)

Mask Detection

Eye Wear Detection

Anti-Spoofing (Prevents Objects Being Utilized to Simulate Pass or Fail)

Future Firmware Upgrades & Options

Facial Recognition (Localized or Centralized)

4K Digital Signage Capabilities

Age, Gender, & Ethnicity Prediction

QR Code Detection

Gesture Responses

Streaming Video for Security

Email Alerts

RGB Color Indicator Bar

Made in the USA

Embedded ReAX Control for Automation & Integration with Third-Party Devices and Access Systems

Customizable Web Pages (Mobile too)

USERS GUIDE

www.auroramm.com

Technical Specifications

Scan Distance: (.3m to 1.5m) 1’ to 5’

Accuracy: +/- 0.3°C (+/- 0.5°F)

80x64 Resolution (5x More than 32x32)

Android 9 and Linux (Q1)

6 Core Processor, 4GB RAM, 32GB Flash

HDMI 4K60 Output

Stereo Mics with Audio Processing

WiFi and 1G Ethernet PoE

Advanced Optional Features

Criminal Database Crosschecking

Centralized Server Software

Centralized Facial Recognition

Two Way Audio Video Support Desk (Q1)

Voice Recognition (Q1)

4G Data Connection
