Austro Flamm Integra II Bedienungsanleitung

MANUAL

INTEGRA II

ENGLISH

Freestanding

Insert

TABLE OF CONTENTS

AUSTROFLAMM INTEGRA II

FREESTANDING

Austroflamm: An Overview 3

Safety Precautions 4,5

Labels 6,7

Main Control Board 8

Parts Illustration 9,10

Specification/Capacity 11

Automatic Safety Functions 12

Assembly 13

Installation Instructions 14,15,16

A New Heating Philosophy 17

What Are Pellets? 18

Storing Pellets 19

Basic Operation 20

Starting Procedure 21,22

Maintenance and Cleaning 23,24,25

Faults/Causes/Solutions 26,27

Key Word Abbreviations 28

Warranty 29

Warranty Registration 30

PELLETS / GENERAL

OPERATING INSTRUCTIONS/FEATURES

MAINTENANCE / CLEANING

QUALITY / WARRANTY

SAFETY NOTICE

IF THIS WOOD PELLET STOVE

IS NOT PROPERLY INSTALLED,

A HOUSE FIRE MAY RESULT.

FOR YOUR SAFETY, FOL

LOW THE

STALLATION DIRECTIONS.

CONTACT LOCAL BUILDING OR

FIRE OFFICIALS ABOUT

RESTRICTIONS AND INSTALLATION

INSPECTION REQUIREMENTS IN

YOURAREA.

PLEASE READ THIS ENTIRE

MANUAL BEFORE INSTALLATION

AND USE OF THIS WOOD PELLET

FUEL-BURNING ROOM HEATER.

FAILURE TO FOLLOW THESE IN-

STRUCTIONS COULD RESULT IN

PROPERTY DAMAGE, BODILY

INJURY OR EVEN DEATH.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

INSTALLATION AND ASSEMBLY

This stove is not intended for

use in commerical installations.

This stove should be installed

by a certified service technician.

WARNING

pellet stove.

Congratulations on your purchase of

a quality Austroflamm wood pellet stove

made by Rika. You are now a member

of a group of over 100,000 Rika owners.

Europe. State of the art processes,

such as; robotic welding, laser cutting,

and complete micro-processor control

Free

leading stove manufacturer in

standing fireplaces and water heater

units.

in the industry.

Rika before your

purchase, please

RIKA was founded over

50 years ago in

Micheldorf, Austria by

Karl Riener and his family.

We appreciate quality

and feel that our company manufac-

turers some of the finest pellet and

wood burning stoves available in

today’s marketplace. From a small

company, specializing in hand made

wrought iron products, grew a large,

well known company known today as

Rika Metallwarengesellschaft.

Unique designs and emphasis on

quality, performance and superior

workmanship have made us a

leading stove manufacturer in

we feel is unequalled.

READ THESE SAFETY

PRECAUTIONS BEFORE

INSTALLING OR USING STOVE

The Austroflamm Integra II Insert

wood pellet stove must be properly

installed in order to prevent the

possibility of a house fire. For your

own safety, you must adhere strictly

to the installation instructions. Con-

tact your local building officials to

obtain a permit and information on

any installation restrictions and

inspection requirement in your area.

Failure to follow these instructions

could result in property damage,

bodily injury or even death.

The word “stove”, as used in this manual,

means the Austroflamm Integra II Insert

wood pellet stove

The stove’s exhaust system works with

negative combustion chamber pressure and

a slightly positive chimney pressure. It is

therefore imperative that the air intake

and exhaust system be air tight and

installed correctly.

BURN WOOD PELLET FUEL ONLY!

NEVER BURN ANY OTHER FUEL

SUCH AS PAPER, SOLID WOOD

OR CHARCOAL!

WARNING

When operated properly, the stove

cannot be over fired. However,

continuous operation at maximum burn

may shorten life of the electrical com-

ponents and is not recommended.

a regular basis.

Do not use gasoline, gasoline-type lantern

fuel, kerosene, charcoal lighter fluid or

similar liquids to start or “freshen up” a

fire in this stove. Keep these flammable

liquids well away from this stove when it is

in use.

Build-up of dust, soot, or creosote in the

chimney connector and in the exhaust vent can

cause a house fire. Although this will be

minimal with correct operation, it is advisable

to inspect the chimney connector and exhaust

vent on a regular basis and clean if necessary.

Ashes removed from the stove may be

hot. Ash must be deposited in a metal

container with a tight fitting lid. The

closed ash container should be placed on

a non-combustable surface and the ash

should be cold pending final disposal.

7’ to 8’

100

OMNI Labs in OR.

AustroflammIntegraFreestanding

Austroflamm Integra II Insert stoves have

been independently tested and listed

with OMNI Labs in Beaverton, OR., an

accredited testing laboratory, in

Avoid direct contact with

stove while in use as sur-

faces are hot and may

cause burns.

Never let unsupervised

children around stove while

in use as children may

contact hot stove surfaces,

which may cause burns.

Do not cook food, hot

beverages or place any-

thing on top of stove.

the combustion air as required.

The auger may start at any time

when the stove is running! Keep

hands and fingers away from

auger at all times as contact with

auger may cause personal injury.

OMNI SAMPLE LABEL FOR AUSTROFLAMM INTEGRA II

Insert

OMNI SAMPLE LABEL FOR AUSTROFLAMM INTEGRA II

Insert

Diagram A

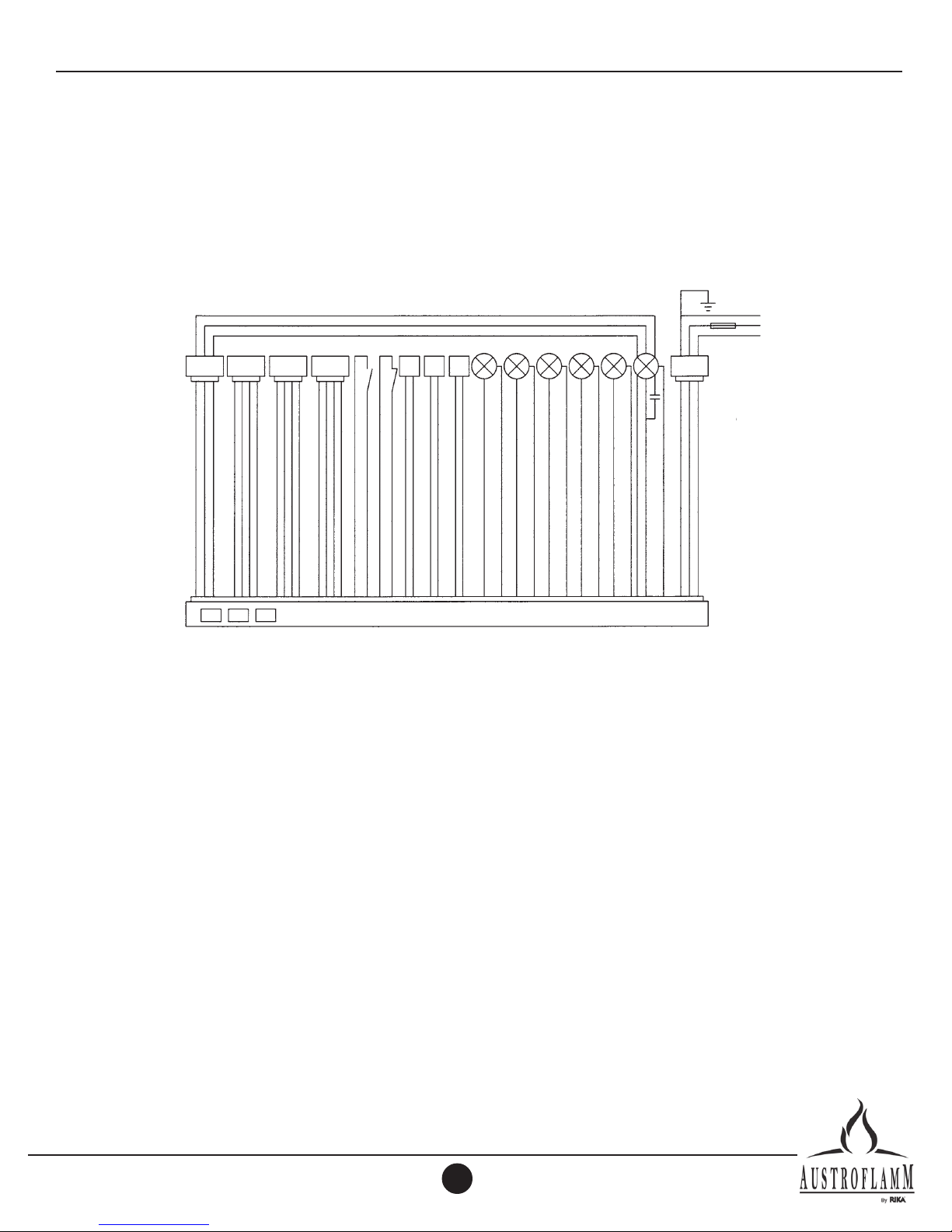

MAIN CONTROL BOARD

A Bus 1

B Bus 2

C Bus 3

a Fine-wire fuse

b Capacitor

1. HAL-RG-fan

2. Control board

3. Tele/Pellet-Control

4. Air sensor

5. UTB

6. OTB

7. FKY 1

8. FKY 2

9. Alarm

I. Network 230VAC 50Hz

II. RG-fan

III Cross flow fan

IV Ignition element

V Auger motor

VI Circulating pump

VII Reserve

MAIN CONTROL BOARD

123456789VII VI VIV III II I

yellow/green

blue

brown

PE yellow/green

ABC

Fig. 6

Hall IC combustion motor

Low limit sensor

Open

User board

Thermostate

High limit sensor

Open

110V power cord

Combustion motor

Convection fan

Fig. 2

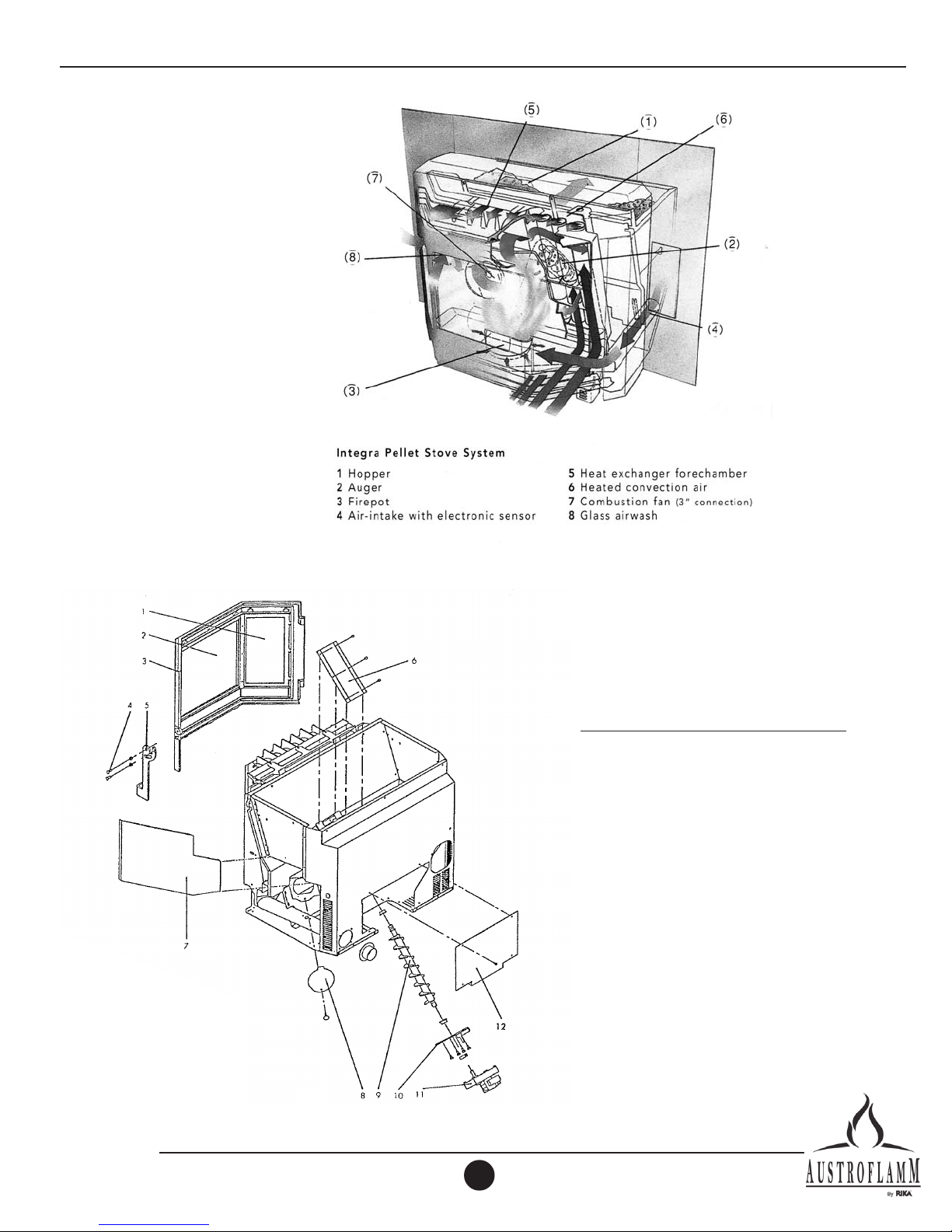

Parts Descriptions (1-12):

Fiqure 2

1. Ceramic Side Glass

2. Ceramic Front Glass

3. Cast Iron Door

4. Door Handle Bolt

5. Door Handle

6. Auger Cover

7. Heat Shield

8. Rear Heat Exchanger Access Plate

9. Auger

10. Auger End Plate

11. Auger Motor

12. Rear Cover Plate

Parts Illustration

Fig. 1

Parts Illustration

Fig. 3

Fig. 4

Parts Descriptions (13-28):

Fiqure 3

15. Hopper Cover

16. Air Sensor

17. Top Grill

18. Ash Pan

19. Burn Pot

21. Lower Cast Wall

22. Lower Cast Wall Gasket

23. Upper Cast Wall

24. High Limit switch

25. Adjustable Door Latch

27. Main Circuit Board

28. Tele-Control (Europe Only)

Parts Descriptions (29-40):

Fiqure 4

29. Power Cord

30. Flue Adapter

31. Connecting Band

32. Low Limit Switch

33. Low Limit Gasket

34. Combustion Motor Housing

35. Combustion Motor

36. Covection Fan

37. Upper Door Hinge

38. Lower Door Hinge

39. Ignitor Element

40. Ignitor Bracket
