AUTEC LSDCMPPT Bedienungsanleitung

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

1 / 11

Remote Control for Solar Charger Driver Model # LSDCMPPT

Dear valued customer:

Thank you for choosing another Autec Power Systems product and please read the

instructions carefully before use.

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

2 / 11

Table of Contents

1. Product Overview………………………………………………………………………………………………………………………………………………3

2. Button Instruction…………………………………………………………………………………………………………………………………………3

3. Operation steps.........................................................................................................................................4

3.1: Confirm controller's model and version........................................................4

3.2: Choose right version ................................................................................................5

3.3: Setting parameters........................................................................................................5

3.4: Input parameters............................................................................................................6

3.5: Reading the Controller’s(Solar Charger/Driver) Settings............7

3.6: Checking status and warning.................................................................................8

4.Related information................................................................................................................8

5.Lock/Unlock remote................................................................................................................10

6.Indicator Light of Controller Conditions...................................................................11

7.Setting battery parameters(For Reference).................................................................11

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

3 / 11

1. Product Overview

PRLCDremote is used for reading and setting parameters for the Autec Power systems series LSDCMPPT. Please verify

thePRLCDmodelversionbeforesettingtheparameters.Requires2AAbatteries,batteriesnotincluded.

2. Button Instruction

LCD Display: Displays all data

PowerButton:PressoncetopoweronLCDdisplay.Topoweroffholddownbuttonfortwoseconds.

UpButton:Pressonceto movethecursorup,and increase the numbers; holdingthe button downlonger will

increasethespeed.

Sending Button: After setting parameters, press this button, new data will be sent to the system and

LCD display will show success when the highlight disappears.

Signal Shutdown Button: Press to set the controller into sleep mode.

Confirm Button: When setting parameters, press this button to select and edit the desired parameter.

To confirm press button again to exit edit mode.(Highlight will disappear)

Test Button: Use this button to text system function.(If all is working well the LED will illuminate)

Down Button: Pressoncetomovethe cursordown,and increasethe numbers; holdingthe button down longer

will increasethespeed.

Return Button: Press to return to home screen.

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

4 / 11

3. Operation Steps

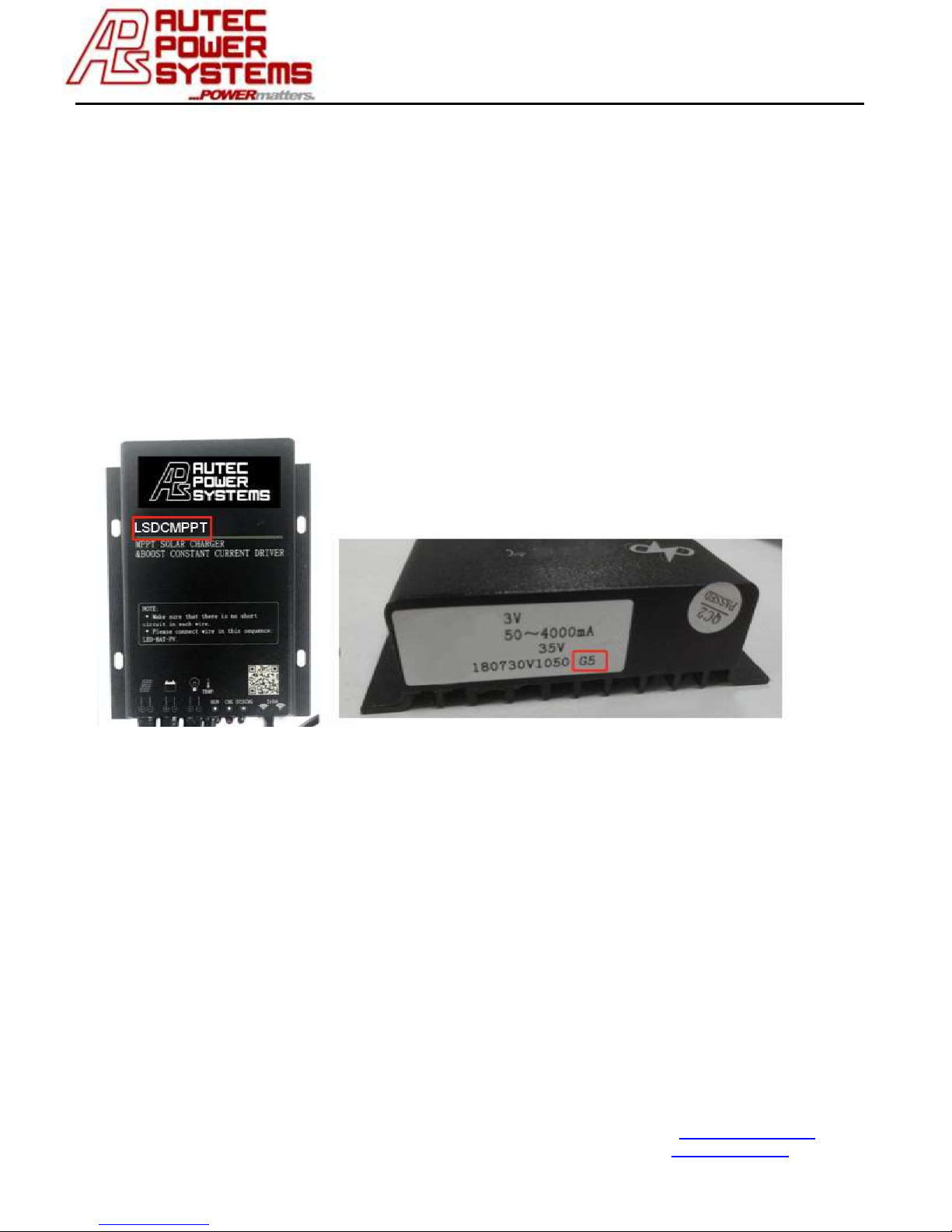

3.1: Confirm controller’s model and version

Method as follows:

1. The model No. is on the part, see image 3-1,

LSDCMPPT is the model number.

2. See label on the side of controller for product

version, reference image 3-2.

Image: 3-1 Model No.

Image: 3-2 Version

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

5 / 11

3.2: Choose right version in remote

Method as follows:

1. Power on the remote.

2. Move cursor to “local” parameter, press “ “, and then press “ “, to

“Device” as image 3-3 shows, then press “ “ again and a highlight will

appear see image 3-4. Later press “ “ to choose model and version.

Then press “ “ to confirm. When the highlight disappears setting is

successful. See image 3-5.

3.3: Setting parameters

Method as follows:

1. Press “return button” to exit the current screen, then press “ “ to

move cursor to “SysConfig”, and then press “ “ to view parameter

setting screen. See image 3-6 and 3-7.

2. Moving cursor on related place, then press “ “, when there are

shadows press “ “ to adjust parameters. After setting press “ “ to

confirm, see image 3-8 and 3-9.

Image: 3-5 Successful

Image: 3-4 Choose Model

Image: 3-3 Into “Local”

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

6 / 11

3.4: Input parameters

Method as follows:

1. Before setting parameters please make sure already connected with

controller(Solar Charger/Driver). The remote should be in the range of

the sensor, otherwise it won’t set properly. See Image 3-10.

2. Important: Align top of remote with IR receiver sensor on the

controller(Solar Charger/Driver). After LCD shows successful set up of

parameters, press ” “, then you will hear a tone, which will indicate

the controller(Solar Charger/Driver) is successfully programmed with the

new settings.

Image: 3-7 Enter “Settings”

Image: 3-9 Setting Successful

Image: 3-6 Choose “SysConfig”

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

7 / 11

3.5: Reading the Controller’s(Solar Charger/Driver) Settings

Method as follows:

1. Press “ “ to move cursor to “SystemInfo” then into submenu of

“Settings”, press “ “ to select, and press “ “ again, then you can

view all current set parameters. As image 3-11~3-14 shows.

Image: 3-13 Press “ “ to adjust parameter

Image: 3-14 Press “ “ to confirm

Image: 3-10 Remote IR Communication

Image: 3-11 Settings Menu

Image: 3-12 Edit Settings

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

8 / 11

3.6: Checking status and warning information(Troubleshooting)

Users can check the status of the LED driver once the remote is successfully

connected by the IR communication.

4. Related information(Definitions)

Battery Under-voltage: When the battery voltage is under the low-voltage

protection setting, the output current will be stopped.

Recovery-voltage: The battery is allowed to output only when the correct voltage

is restored.

Lighting control: PV voltage is under the setting of lighting voltage, light’s on; PV

voltage is above the setting of lighting voltage, light’s off.

Timer control mode: The Timing Control can be set in five different intervals. Each

Interval can be set from 0-9hours. This can help save power/current.

Sensor mode: When infrared or microwave sensor detects movement, the light will

be brighter, otherwise lights will go out once no motion is detected. The lighting

can be adjusted as desired.

Delay sensor mode: During the lighting period, the primary method of lighting is

timer control mode, the secondary method of lighting is sensor mode.

Morning light mode: Lighting before sunrise

Power saving mode: when this mode is activated, the controller will adjust the

output based on battery voltage.

For example:

Assuming the battery setting as below

Average voltage: 12.5V

Under-voltage: 9V

Recovery: 11.1V

Power saving: on

Start saving power: 11V

Super saving power: 10V

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

9 / 11

Power saving model 2: split into 5 levels, each level reduce 10%

10.8-11V:90% on base of original setting

10.6-10.8V:80% on base of original setting

10.4-10.6V:70% on base of original setting

10.2-10.4V:60% on base of original setting

10-10.2V:50% on base of original setting

Power saving model 1: split into 5 levels, each level reduce 15%

10.8-11V:85% on base of original setting

10.6-10.8V:70% on base of original setting

10.4-10.6V:55% on base of original setting

10.2-10.4V:40% on base of original setting 40%

10-10.2V:25% on base of original setting 25%

Attention:

1. For both model 1 or model 2, when the electricity is below 50mA, the

battery will operate.

2. Start Saving Power and Super Saving Power must be above Under-voltage,

Start Saving Power voltage must be above Super Saving Power voltage

settings.

3. Only G3 has “model 1” & “model 2” options. G4 and G5 are “power saving

models”, same as “model 1”.

User Instructions for PRLCD Remote

Technical Sales / Customer Service: +1-818-338-7788 • Email: [email protected]

31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com

10 / 11

5. Lock/Unlock Remote

The remote can be used to program many controllers. Once the controllers are

programmed successfully, the remote can be locked to prevent accidental

reprogramming. The remote can be unlocked and be used again.

Lock/Unlock operation as below:

Press “ “, “ “ and “ “ at same time, when you hear tone it means it’s

locked. Press the three buttons again to unlock.

Note: Under lock condition you can’t revise parameters, but you can read

controller’s parameters.

Image 3-15 lock/unlock remote
