Autodesk Inventor 2010

Getting Started

January 2009Part No. 527B1-050000-PM01A

reproduced in any form, by any method, for any purpose.

Certain materials included in this publication are reprinted with the permission of the copyright holder.

Trademarks

The following are registered trademarks or trademarks of Autodesk, Inc., in the USA and other countries: 3DEC (design/logo), 3December,

3December.com, 3ds Max, ADI, Alias, Alias (swirl design/logo), AliasStudio, Alias|Wavefront (design/logo), ATC, AUGI, AutoCAD, AutoCAD

Learning Assistance, AutoCAD LT, AutoCAD Simulator, AutoCAD SQL Extension, AutoCAD SQL Interface, Autodesk, Autodesk Envision, Autodesk

Insight, Autodesk Intent, Autodesk Inventor, Autodesk Map, Autodesk MapGuide, Autodesk Streamline, AutoLISP, AutoSnap, AutoSketch,

AutoTrack, Backdraft, Built with ObjectARX (logo), Burn, Buzzsaw, CAiCE, Can You Imagine, Character Studio, Cinestream, Civil 3D, Cleaner,

Cleaner Central, ClearScale, Colour Warper, Combustion, Communication Specification, Constructware, Content Explorer, Create>what's>Next>

(design/logo), Dancing Baby (image), DesignCenter, Design Doctor, Designer's Toolkit, DesignKids, DesignProf, DesignServer, DesignStudio,

Design|Studio (design/logo), Design Web Format, Discreet, DWF, DWG, DWG (logo), DWG Extreme, DWG TrueConvert, DWG TrueView, DXF,

Ecotect, Exposure, Extending the Design Team, Face Robot, FBX, Filmbox, Fire, Flame, Flint, FMDesktop, Freewheel, Frost, GDX Driver, Gmax,

Green Building Studio, Heads-up Design, Heidi, HumanIK, IDEA Server, i-drop, ImageModeler, iMOUT, Incinerator, Inferno, Inventor, Inventor

LT, Kaydara, Kaydara (design/logo), Kynapse, Kynogon, LandXplorer, LocationLogic, Lustre, Matchmover, Maya, Mechanical Desktop, Moonbox,

MotionBuilder, Movimento, Mudbox, NavisWorks, ObjectARX, ObjectDBX, Open Reality, Opticore, Opticore Opus, PolarSnap, PortfolioWall,

Powered with Autodesk Technology, Productstream, ProjectPoint, ProMaterials, RasterDWG, Reactor, RealDWG, Real-time Roto, REALVIZ,

Recognize, Render Queue, Retimer,Reveal, Revit, Showcase, ShowMotion, SketchBook, Smoke, Softimage, Softimage|XSI (design/logo),

SteeringWheels, Stitcher, Stone, StudioTools, Topobase, Toxik, TrustedDWG, ViewCube, Visual, Visual Construction, Visual Drainage, Visual

Landscape, Visual Survey, Visual Toolbox, Visual LISP, Voice Reality, Volo, Vtour, Wire, Wiretap, WiretapCentral, XSI, and XSI (design/logo).

The following are registered trademarks or trademarks of Autodesk Canada Co. in the USA and/or Canada and other countries:

Backburner,Multi-Master Editing, River, and Sparks.

The following are registered trademarks or trademarks of MoldflowCorp. in the USA and/or other countries: Moldflow, MPA, MPA

(design/logo),Moldflow Plastics Advisers, MPI, MPI (design/logo), Moldflow Plastics Insight,MPX, MPX (design/logo), Moldflow Plastics Xpert.

All other brand names, product names or trademarks belong to their respective holders.

Disclaimer

THIS PUBLICATION AND THE INFORMATION CONTAINED HEREIN IS MADE AVAILABLE BY AUTODESK, INC. "AS IS." AUTODESK, INC. DISCLAIMS

ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE REGARDING THESE MATERIALS.

Published by:

Autodesk, Inc.

111 Mclnnis Parkway

San Rafael, CA 94903, USA

Contents

Chapter 1 Digital Prototypes in Autodesk Inventor . . . . . . . . . . . . . . 1

Digital Prototype Workflow . . . . . . . . . . . . . . . . . . . . . . . . 1

Components of Digital Prototypes (file types) . . . . . . . . . . . . . . . 3

Associative Behavior of Parts . . . . . . . . . . . . . . . . . . . . . 7

Associative Behavior of Assemblies . . . . . . . . . . . . . . . . . . 7

Associative Behavior of Drawings . . . . . . . . . . . . . . . . . . 8

Chapter 2 Create Digital Prototypes . . . . . . . . . . . . . . . . . . . . . 9

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Single Body Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 10

iParts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Sheet Metal Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Derived Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Multi-body Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Shrinkwrap Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Assembly Substitute Parts . . . . . . . . . . . . . . . . . . . . . . 15

Content Center Parts . . . . . . . . . . . . . . . . . . . . . . . . 16

Content Center Libraries . . . . . . . . . . . . . . . . . . . 18

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Sketched Features . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Sketch Environment . . . . . . . . . . . . . . . . . . . . . 23

Sketch Blocks . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sketch Constraints . . . . . . . . . . . . . . . . . . . . . . 25

iii

2D AutoCAD Data in Sketches . . . . . . . . . . . . . . . . 25

Placed Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

iFeatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Assembly Features . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Work Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Edit Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Place Components . . . . . . . . . . . . . . . . . . . . . . . . . 30

Drag Components into Assemblies . . . . . . . . . . . . . . 31

Assembly Constraints . . . . . . . . . . . . . . . . . . . . . . . . 31

Degrees of Freedom . . . . . . . . . . . . . . . . . . . . . . 32

Top-down Design . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Create Subassemblies In-place . . . . . . . . . . . . . . . . . . . 33

Design Accelerator Components . . . . . . . . . . . . . . . . . . 34

Design Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . 35

Check for Interference . . . . . . . . . . . . . . . . . . . . . . . 37

iAssemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Chapter 3 Document and Publish Designs . . . . . . . . . . . . . . . . . . 39

Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Start Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Types of Drawing Files . . . . . . . . . . . . . . . . . . . . . . . 40

Create Views of Models . . . . . . . . . . . . . . . . . . . . . . . 41

Types of Drawing Views . . . . . . . . . . . . . . . . . . . . 41

Drawing View Operations . . . . . . . . . . . . . . . . . . . 43

Drawing View Tips . . . . . . . . . . . . . . . . . . . . . . 44

Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Annotate Drawing Views . . . . . . . . . . . . . . . . . . . . . . 45

Types of Drawing Annotations . . . . . . . . . . . . . . . . 46

Styles and Standards . . . . . . . . . . . . . . . . . . . . . . . . 50

Studio in Autodesk Inventor . . . . . . . . . . . . . . . . . . . . . . . 51

Publish Designs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Chapter 4 Manage Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Share Files in Work Groups Using Vault . . . . . . . . . . . . . . . . . 55

Autodesk Vault Add-ins for Design Applications . . . . . . . . . . 56

Microsoft Office Add-ins . . . . . . . . . . . . . . . . . . . . . . 57

Copy Designs Using Vault . . . . . . . . . . . . . . . . . . . . . 57

Share Files Externally . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Autodesk Vault Manufacturing . . . . . . . . . . . . . . . . . . . 58

Autodesk Design Review . . . . . . . . . . . . . . . . . . . . . . 58

Import and Export Data . . . . . . . . . . . . . . . . . . . . . . . . . . 59

AutoCAD Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Import Files from Other CAD Systems . . . . . . . . . . . . . . . 61

Export Files to Other CAD System Formats . . . . . . . . . . . . . 62

iv | Contents

Chapter 5 Set Your Environment . . . . . . . . . . . . . . . . . . . . . . . 63

Commands and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Environment Preferences . . . . . . . . . . . . . . . . . . . . . . . . . 65

Application Options . . . . . . . . . . . . . . . . . . . . . . . . . 65

Document Settings . . . . . . . . . . . . . . . . . . . . . . . . . 65

Styles and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Style Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Views of Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Vault Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Default Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

New Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Learning Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

New Features Workshop . . . . . . . . . . . . . . . . . . . . . . . 71

Integrated Help . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Tutorials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Skill Builders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Contents | v

Digital Prototypes in

Autodesk Inventor

Autodesk Inventor®provides a comprehensive set of 3D mechanical CAD tools for producing,

validating, and documenting complete digital prototypes. The Inventor model is a 3D digital

prototype. The prototype helps you visualize, simulate, and analyze how a product or part

works under real-world conditions before it is built. Manufacturers get to market faster with

fewer physical prototypes and more innovative products.

Inventor provides an intuitive 3D design environment for creating parts and assemblies.

Engineers can focus on the function of a design to drive the automatic creation of intelligent

components, such as steel frames, rotating machinery, tube and pipe runs, electrical cables,

and wire harnesses.

Tightly integrated motion simulation and stress analysis in Inventor are easy to use. They

make it possible for engineers to optimize and validate the digital prototype.

Generating manufacturing documentation from a validated 3D digital prototype reduces

errors and associated engineering change orders (ECOs) before manufacturing. Inventor offers

rapid and accurate output of production-ready drawings directly from the 3D model.

Inventor is tightly integrated with Autodesk®data management applications. This integration

enables the efficient and secure exchange of digital design data and promotes earlier

collaboration between design and manufacturing workgroups. Different workgroups can

manage and track all components of a digital prototype with Autodesk®Design Review

software. This software is the all-digital way to review, measure, mark up, and track changes

to designs. You can better reuse crucial design data, manage bills of materials (BOMs), and

collaborate with other teams and partners.

Digital Prototype Workflow

Before you start a design, determine the most efficient workflow. A top down

workflow is often the most efficient way to create a design. In a top down

workflow, you design your components in the context of other components.

This method can greatly reduce errors in form, fit, and function.

Some examples of a top-down workflow are:

■Create new parts or sub-assemblies in the destination assembly.

■Create multiple solid bodies in a part file and then save the individual

bodies as unique parts.

■Create 2D sketch blocks in a part file to simulate a mechanism. You can

use the sketch blocks to create 3D components in an assembly that is

controlled by the layout.

Following are questions to consider before you start:

■Which view of the part best describes the basic shape?

■Is the part a sheet metal part?

■Can this part be used as a part factory (iPart) to generate multiple parts?

■Can a spreadsheet control one or more parts?

■Can I create the part automatically by using a Design Accelerator?

■If the part is a component in a structural steel frame, can I use Frame

Generator to create the entire frame?

■If the part is a common library part, does it exist in the Content Center or

other library?

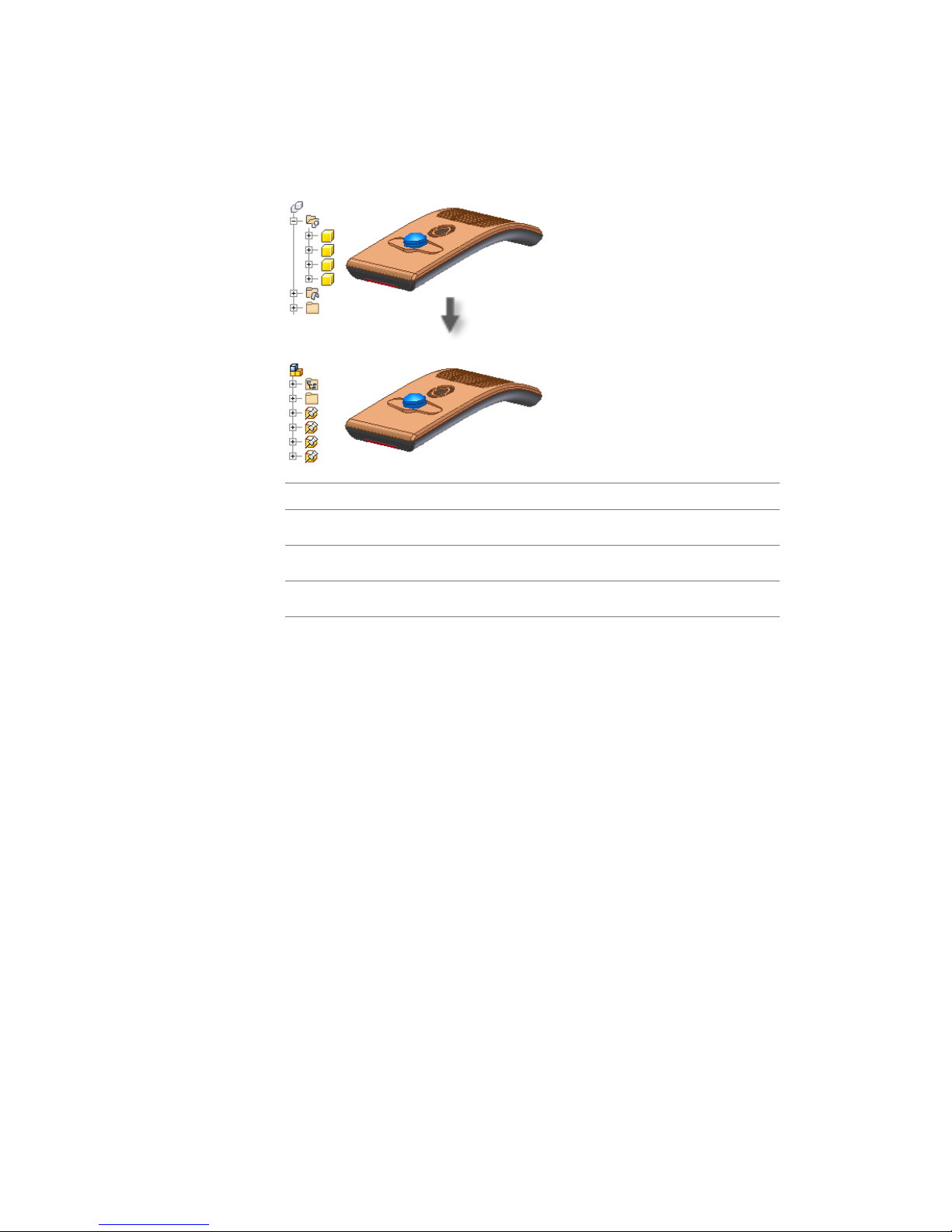

The following image shows a multi-body part file saved as individual parts in

an assembly. Individual bodies in a multi-body part file can share features

with other bodies such as fillets and holes.

2| Chapter 1 Digital Prototypes in Autodesk Inventor

LocationFor more information

Search: “Multi-body parts”Help topic

Parts 1 - Create PartsTutorial

PartsSkill Builders

Components of Digital Prototypes (file types)

Create or activate a project file before you open an existing file or start a new

file to set the file location. Click New to see the New File dialog box with

templates for a new part, assembly, presentation file, sheet metal part,

weldment, or drawing. You can choose from several templates with predefined

units.

A template can contain property information, such as part and project data,

and drawing views. You can see information stored in a file by viewing its

properties.

For more information about templates, see Templates on page 67. For more

information about projects, see Projects on page 68.

For more information about projects, see Projects on page 68.

Components of Digital Prototypes (file types) | 3

Part (.ipt) Files

When you open a part file, you are in the part environment. Part tools

manipulate sketches, features, and bodies which combine to make parts. You

can insert a single body part into assemblies and constrain them in positions

they occupy when the assembly is manufactured. You can extract multiple

part files from a multi-body part.

Most parts start with a sketch. A sketch is the profile of a feature and any

geometry (such as a sweep path or axis of rotation) required to create the

feature.

A part model is a collection of features. If necessary, solid bodies in a

multi-body part file can share features. Sketch constraints control geometric

relationships such as parallel and perpendicular. Dimensions control the size.

Collectively this method is called Parametric modeling. You can adjust the

constraints or dimensional parameters that control the size and shape of a

model, and automatically see the effect of your modifications.

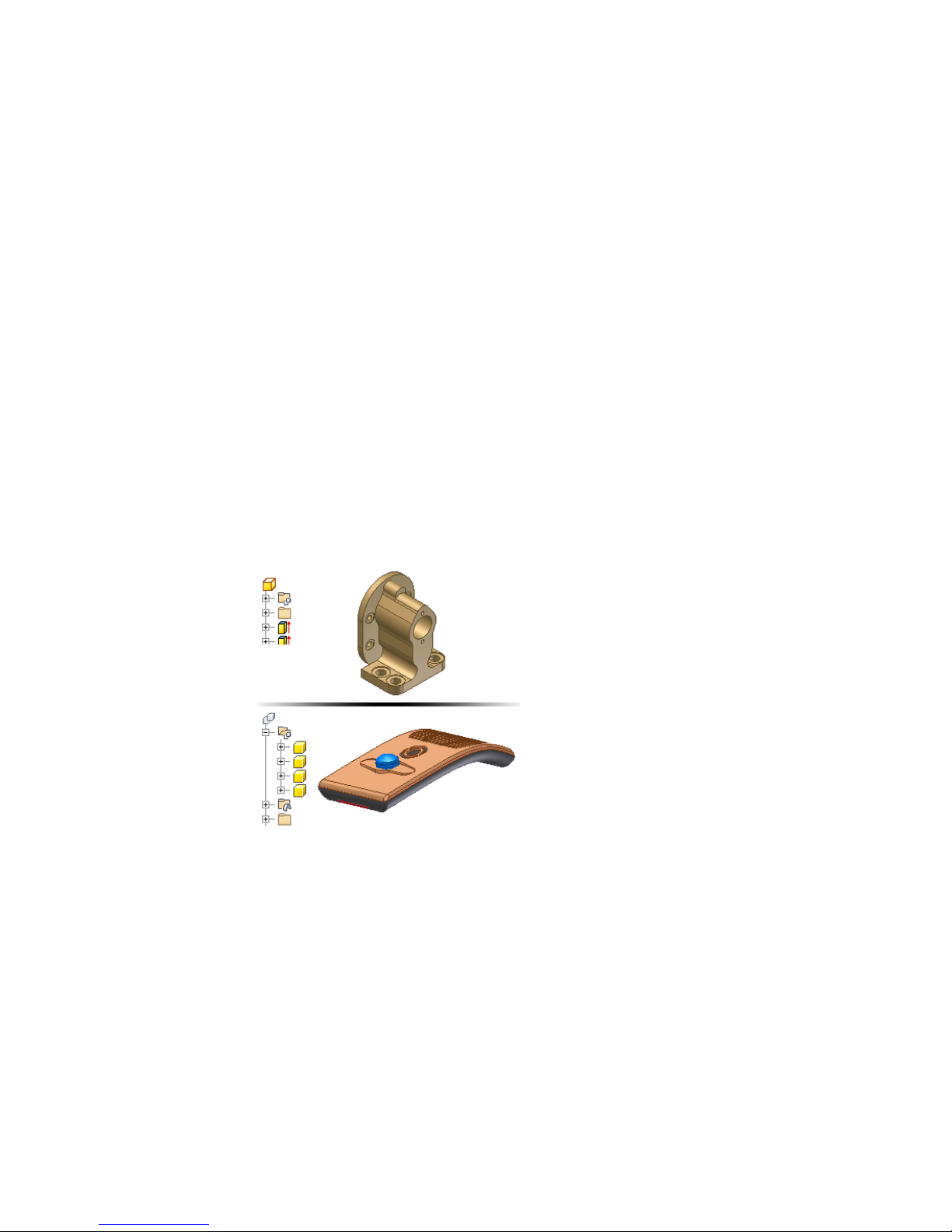

The following image shows a single body part in the upper half of the image,

and a multi-body part in the lower half of the image. Notice the different part

icons in each image.

Assembly (.iam) Files

In Autodesk Inventor, you place components that act as a single functional

unit into an assembly document. Assembly constraints define the relative

position these components occupy with respect to each other. An example is

the axis of a shaft aligning with a hole in a different component.

4| Chapter 1 Digital Prototypes in Autodesk Inventor

Andere Handbücher für 466B1-05A761-1304 - AutoCAD Inventor Simulation Suite...

Inhaltsverzeichnis

Andere Autodesk Software Handbücher

Autodesk

Autodesk 15606-011408-9330 - MAPGUIDE R6.3 SITE LIC-UPG... Bedienungsanleitung

Autodesk

Autodesk LANDXPLORER 2011 - SYSTEM REQUIREMENTS Bedienungsanleitung

Autodesk

Autodesk AUTOCAD MECHANICAL Bedienungsanleitung

Autodesk

Autodesk TOPOBASE Bedienungsanleitung

Autodesk

Autodesk STAND-ALONE LICENSING Bedienungsanleitung

Autodesk

Autodesk 22906-010000-9325 - UPG FROM AUTOCAD 2000I-NET... Montage- und Wartungsanleitung

Autodesk

Autodesk 057B1-41A111-1001 - AutoCAD LT 2010 Bedienungsanleitung

Autodesk

Autodesk 15606-011408-9005 - MAP R6.3 NAMED-10U PK Betriebsanleitung

Autodesk

Autodesk 466B1-05A761-1304 - AutoCAD Inventor Simulation Suite... Bedienungsanleitung

Autodesk

Autodesk TOPOBASE 2011 - SYSTEM REQUIREMENTS Montageanleitung

Autodesk

Autodesk 12812-051462-9011 - 3DS MAX 9 COM LEGACY SLM Referenzhandbuch

Autodesk

Autodesk 235B1-05A761-1301 - AutoCAD MEP 2010 Bedienungsanleitung

Autodesk

Autodesk NAVISWORKS 2010 Bedienungsanleitung

Autodesk

Autodesk AUTODESK MUDBOX 2011 Bedienungsanleitung

Autodesk

Autodesk LandXplorer Server Bedienungsanleitung

Autodesk

Autodesk AUTOCAD 2010 - Bedienungsanleitung

Autodesk

Autodesk AUTOCAD MAP 3D - BROCHURE 2 Bedienungsanleitung

Autodesk

Autodesk 057A1-05A111-10MB - AutoCAD LT 2009 Bedienungsanleitung

Autodesk

Autodesk AUTODESK SHOWCASE 2011 - SYSTEM REQUIREMENTS Montageanleitung

Autodesk

Autodesk Design Suite 3D - Planix Home Design Suite... Bedienungsanleitung

Autodesk

Autodesk CAICE VISUAL ROADS 10 Bedienungsanleitung

Autodesk

Autodesk CAICE VISUAL ROADS 10 - QUESTIONS AND... Leitfaden

Autodesk

Autodesk CAICE VISUAL SURVEY 10 Bedienungsanleitung

Autodesk

Autodesk AUTOCAD 2010 - Montageanleitung

Beliebte Software Handbücher anderer Marken

COMPRO

COMPRO COMPROFM Bedienungsanleitung

Muratec

Muratec OFFICEBRIDGE ONLINE Bedienungsanleitung

Oracle

Oracle Contact Center Anywhere 8.1 Bedienungsanleitung

Adobe

Adobe 65007312 - Photoshop Lightroom Handbuch

Avaya

Avaya NULL One-X for RIM Blackberry Bedienungsanleitung

HP ProLiant BL420c Bedienungsanleitung

PS Audio

PS Audio PowerPlay Betriebsanleitung

Brady

Brady LOCKOUT PRO 3.0 Service-Handbuch

Avaya

Avaya Interaction Center Bedienungsanleitung

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Handbuch

Novell

Novell GROUPWISE 8 - INTERNET AGENT Bedienungsanleitung

Oracle

Oracle Application 9i Bedienungsanleitung

Acer

Acer RDM Bedienungsanleitung

Canon

Canon Vixia HF21 Bedienungsanleitung

Canon

Canon ZR950 Bedienungsanleitung

Samsung

Samsung Auto Backup Bedienungsanleitung

Polycom

Polycom Vortex EF2201 Montage- und Bedienungsanleitung

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Bedienungsanleitung
