XUSB-2

USB CHANGEOVER SYSTEM

USER MANUAL

V2.5

2 | Page

Table of Contents

INTRODUCTION...................................................................................................................................... 3

IMPORTANT SAFETY PRECAUTIONS ............................................................................................... 4

General Safety ....................................................................................................................................... 4

Caution..................................................................................................................................................... 5

Power Safety .......................................................................................................................................... 5

Installation Notes ................................................................................................................................. 5

FRONT & REAR PANEL DRAWINGS ................................................................................................ 6

PANEL DESCRIPTIONS......................................................................................................................... 7

1Front Panel USB............................................................................................................................ 7

2MIDI Present indicator ............................................................................................................... 7

3GPI Indicators................................................................................................................................ 7

4PC2 (Master Changeover).......................................................................................................... 7

5Independent Data Changeover ................................................................................................ 7

6Independent KVM Changeover ................................................................................................ 7

8Mains IEC connection................................................................................................................. 8

9Remote Connector....................................................................................................................... 8

10 VIDEO output A & B................................................................................................................ 8

11...................................................................................... VIDEO inputs 1A&B and 2A&B

12 USB Console Connectors....................................................................................................... 8

13/14 Keyboard & Mouse USB Connections........................................................................... 8

15 GPI Connector........................................................................................................................... 8

16 Joystick Connector................................................................................................................10

17 MIDI link Indicator ................................................................................................................10

18 GPI Link Indicator ..................................................................................................................10

19 OPTION Selection Switch....................................................................................................11

20/21 GPI & MIDI USB Connections...................................................................................12

22 MIDI IN Connector ................................................................................................................12

23 MIDI OUTPUTS ........................................................................................................................12

Installation and Drivers....................................................................................................................12

Windows Installation.........................................................................................................................12

Macintosh OSX Installation.............................................................................................................12

Other Notes: .........................................................................................................................................13

MIDI Flow Drawing: ...........................................................................................................................14

3 | Page

INTRODUCTION

Congratulations on purchasing the Autograph XUSB-2 Changeover system.

The Autograph XUSB-2 is designed for the quick and efficient changeover of two

computer systems incorporating; USB Keyboard and Mouse, Dual Display VGA outputs,

MIDI inputs and output and Contact Closure control.

The system was designed to easily changeover both Macintosh and Windows based PC’s

and incorporates dual redundant midi interfaces and controllers for firing GO, STOP,

PREVIOUS and NEXT messages.

Should you experience any problems with your XUSB-2 please contact:

Service Department

Autograph Sound Recording Ltd

2 Spring Place

London NW5 3BA

United Kingdom

Tel. +44 (0)20 7485 4515

Fax. +44 (0)20 7284 1233

Email. service@autograph.co.uk

4 | Page

IMPORTANT SAFETY PRECAUTIONS

This section contains definitions, warnings, and practical information to ensure a safe

working environment. Please take time to read this section before installing or using

this unit. Please do not dispose of these instructions.

General Safety

Read these instructions.

•Heed all warnings.

•Follow all instructions.

•Do not use this apparatus near water.

•Do not expose this apparatus to rain or moisture.

•Clean only with dry cloth.

•Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

•Do not install near any heat sources such as radiators, heat registers, stoves

or other apparatus (including amplifiers) that produce heat.

5 | Page

•There are no user-adjustments, or user-servicable items, inside this apparatus.

Do not remove the covers of this apparatus; doing so will invalidate your

warranty.

•Adjustments or alterations to this apparatus may affect the performance such

that safety and/or international compliance standards may no longer be met.

Caution

•Hazardous voltages may be present inside this apparatus.

•Do not operate this apparatus with the covers removed.

•To reduce the risk of electric shock, do not perform any servicing other than that

contained in these Installation Instructions unless you are qualified to do so.

Refer all servicing to qualified service personnel and ensure that all power cords

are disconnected when servicing this apparatus.

Power Safety

•This apparatus is fitted with a universal power supply, approved and certified for

operation in this apparatus. There are no user-replaceable fuses.

•Multiple power cords may be supplied with this unit – use only the power cord

appropriate to your local power wiring. Alternative power cords may be used if

rated 2.5A or above and fitted with a 3-pin IEC320 connector.

•An external over-current protection device is required to protect the wiring to

this apparatus. This protection device must be installed according to current

wiring regulations. In certain countries this function is supplied by use of a

fused plug.

•If an extension power cable or adaptor is used, ensure that the total power

rating of the power cable and/or adaptor is not exceeded.

•An external disconnect device is required for this apparatus; a detachable power

cord, as fitted to this equipment, is a suitable disconnect device. The power

socket used for this apparatus should be located nearby and be easily accessible.

•All power cords must be disconnected to isolate this apparatus completely.

•Unplug this apparatus during an electrical storm or when unused for long

periods of time.

Installation Notes

•When installing this apparatus, either fix it into a standard 19" rack or place the

apparatus on a secure level surface.

•When this apparatus is rack mounted, fit all rack screws. Rack shelves are

recommended for this apparatus.

•Do not operate this apparatus whilst it is covered or boxed in any way.

•Ensure that no strain is placed on the cables connecting to this apparatus.

Ensure also that such cables are not placed where they can be stepped on,

pulled or tripped over.

6 | Page

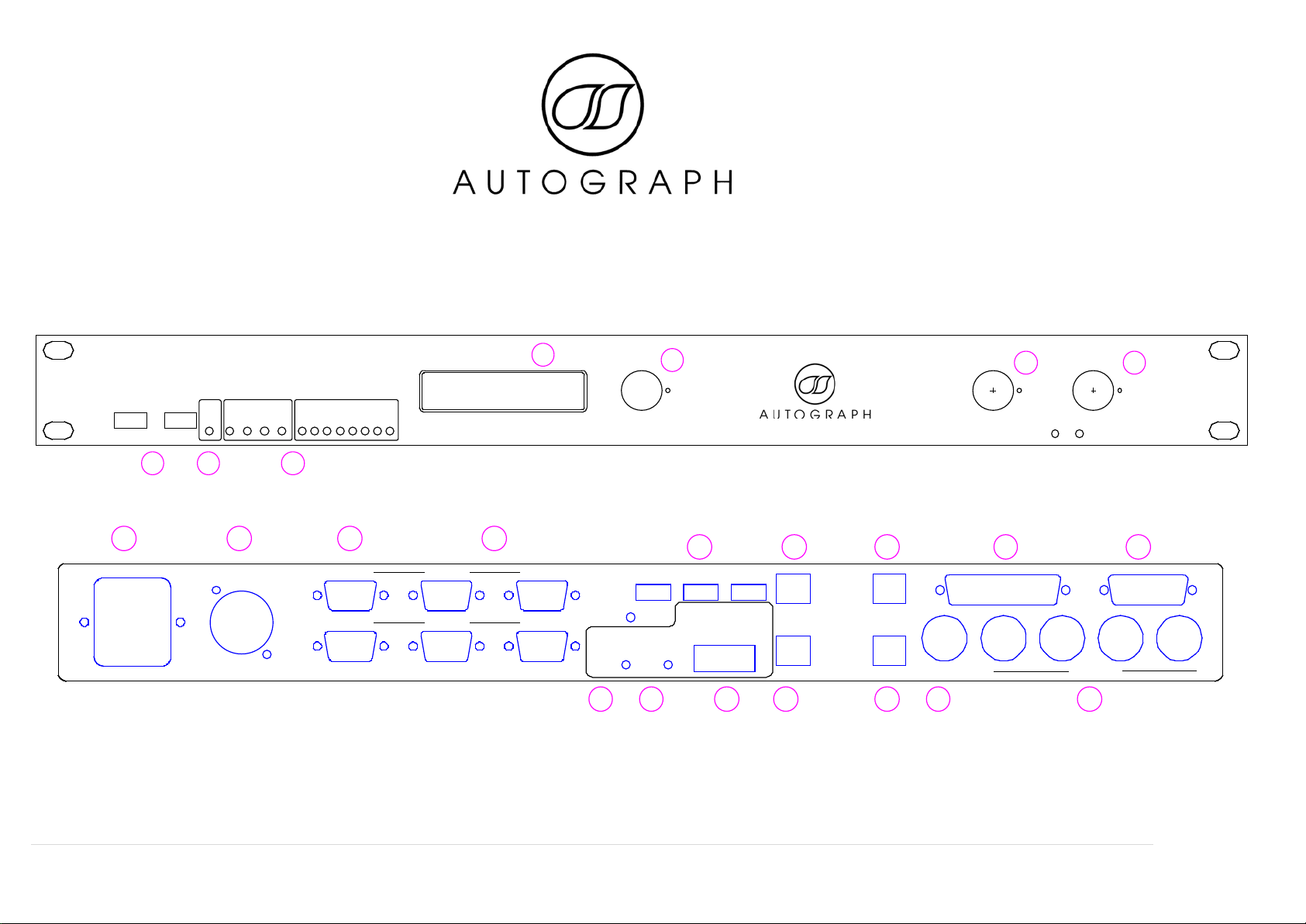

FRONT & REAR PANEL DRAWINGS

PRESENT

STATUS

GO STOP NEXTPREV

1 2 3 4 5 6 7 8

MIDI

PC2

JOYSTICK

PC2 DATA KVM

GPI

+5V +12V PSUINDICATORS

PC1

21 3

5 6

ignature

eries

XUSB-2 USB COMPUTER CHANGEOVER

JSTICK

GPI

PC 2 PC 1

GPI/

MIDI

MIDI IN MIDI OUT

OUT A PC 2A PC 1A

SW 6

GPI L INK

CONSOLE

KEYBAORD/

MOUSE

SW 5

MIDI LINK

PC 2 PC 1

OUT A PC 2A PC 1A

OUT B PC 2B PC 1B

REMOTE

100-240VAC

SW 1 Set MIDI Ch. S witch 1 (1)

SW 2 Set MIDI Ch. S witch 2 (2)

SW 3 Set MIDI Ch. S witch 3 (4)

SW 4 Set MIDI Ch. S witch 4 (8)

SW 7 Not Used

SW 8 Remote Mom./Latch

DIP SW ITCH OPTION S

8 9 10 11 1312 14 15 16

17 18 19 20 21 22 23

7 | Page

PANEL DESCRIPTIONS

1 Front Panel USB

These connectors provide easy access to USB connections of PC1 and PC2 independently

of the changeover system. These ports are available at all times and connect through

the GPI/MIDI connection on the rear panel (21 and 21). Please note that these ports are

USB1.1 compliant only (12Mbps)

2 MIDI Present indicator

This indicator will illuminate when a midi message is sent to the midi output of the

changeover unit

3 GPI Indicators

These indicators will illuminate when a GPI is activated. GO, STOP, PREVIOUS and NEXT

are accessed from the joystick port, GPI 1-8 from the GPI port on the rear of the unit.

4 PC2 (Master Changeover)

Activating this button will result in the unit changing all connections from PC1 to PC2.

When this button is illuminated PC2 is selected. This button changes over KVM, MIDI in

and out and GPI connections. (Subject to status of buttons5 & 6 see below)

5 Independent Data Changeover

This button allows the changeover of MIDI in and out and GPI control without switching

the KVM facilities. When illuminated MIDI and GPI control are active from PC2. This

button operates in conjunction with the PC2 Master Changeover button (4).

6 Independent KVM Changeover

This button allows the changeover of Keyboard, Video Displays and Mouse without

switching the MIDI and GPI facilities. When illuminated KVM is active from PC2. This

button operates in conjunction with the PC2 Master Changeover button (4).

8 | Page

IMPORTANT NOTE:

The Master changeover operates in conjunction with both KVM and DATA

changeover buttons from their current state. Hence when the Master changeover

button is activated both KVM and DATA changeovers change state from their

current position. Because of this it is possible to get out of sync if operating the

unit remotely. Users should make sure before a show that when the PC2 button is

pressed both DATA and KVM buttons are illuminated.

7. Status Display Indicator

This LCD display provides information as to the outputs and health status of the XUSB-

2. Each time an input contact is activated the display registers the MIDI event

generated. The display will also indicate PSU faults and default MIDI channel

assignment.

8 Mains IEC connection

The XUSB-2 requires 110Vac – 240Vac at 50Hz main supply.

9 Remote Connector

This four pin XLR connector allows for remote changeover of the system and an

additional latching relay output for changeover of further connected units.

Pins 1 & 2 provide a momentary contact allowing changeover of the PC2 master

changeover function.

Pins 3 & 4 provide a latching relay output which is closed when PC2 master

changeover is activated.

10 VIDEO output A & B

These 15pin VGA connectors provide dual head VGA outputs from the KVM switch.

11 VIDEO inputs 1A&B and 2A&B

These 15pin VGA connectors provide dual head VGA inputs to the KVM switch. VGA

from PC1 should be connected to 1A and 1B. PC2 connected to 2A and 2B.

12 USB Console Connectors

These connectors allow connection of a USB mouse and Keyboard that will be switched

between PC1 and PC2. Other USB devices may work but are not supported at this time.

13/14 Keyboard & Mouse USB Connections

These connections should be made to PC1 and PC2 respectively. They facilitated the

keyboard and mouse control of both PC’s. DATA control is transported by an additional

USB cable and connected to the DATA/GPI ports (20/21).

15 GPI Connector

This connector allows for additional General Purpose inputs that can be used to control

additional effects. The connector is wired to allow use of standard Analogue Audio

Dtype cables.

Function

9 | Page

GPI 8 (+ve)

GPI 8 (-ve)

GPI 7 (+ve)

GPI 7 (-ve)

GPI 6(+ve)

GPI 6 (-ve)

GPI 5 (+ve)

GPI 5 (-ve)

GPI 4 (+ve)

GPI 4 (-ve)

GPI 3 (+ve)

GPI 3 (-ve)

GPI 2 (+ve)

GPI 2 (-ve)

GPI 1 (+ve)

GPI 1 (-ve)

+5VDC

10 | Page

16 Joystick Connector

This connector accesses the GO STOP PREVIOUS and NEXT buttons. The connector is

wired to be compatible with standard 15pin PC joysticks using SW1-4. Connections are

made by connecting and input to ground. A 5VDC powers rail is supplied for

illumination of buttons.

Joystick Pinout:

Function

GND

STOP

+5VDC

17 MIDI link Indicator

When illuminated activated any midi messages received at the MIDI IN connector to be

passed to the MIDI in of both PC1 and PC2 regardless of Master Changeover Switch.

This facility allows for pseudo tracking via MIDI. See 19 for more details.

18 GPI Link Indicator

When illuminated any GPI messages received by the unit connector to be passed to both

PC1 and PC2 regardless of Master Changeover Switch. This facility allows for pseudo

tracking via GPI. See 19 for more details.

Inhaltsverzeichnis

Andere Autograph Aufnahmegeräte Handbücher

Autograph

Autograph Signature XDA-16 Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
