Module Installation
WARNING: Do not add or remove modules with field power applied.

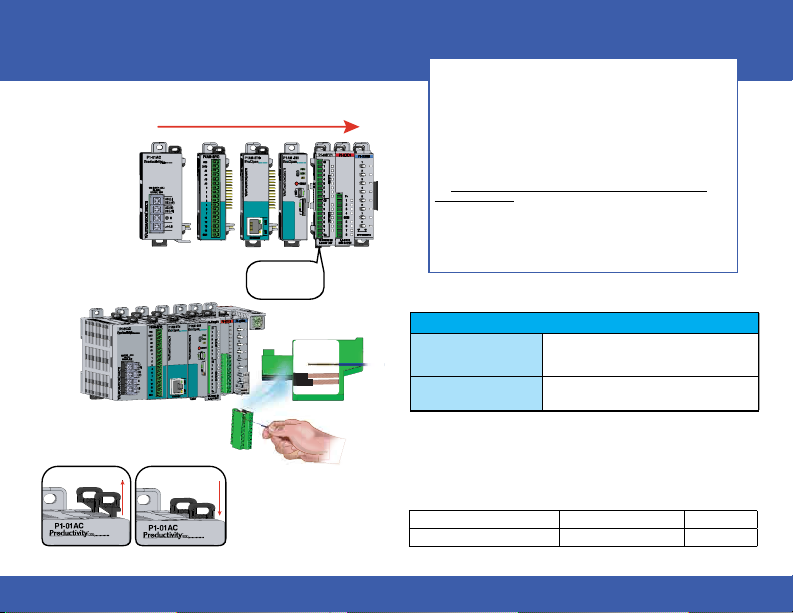

Step One: With latch
in “locked” position, align
connectors on the side of
each module and stack
by pressing together.
Click indicates lock is
engaged.
Step Three: To unstack modules, pull
locking latch up into the unlocked position
and then pull modules apart.
Step Two: Attach field wiring using
the removable terminal block or ZIPLink
wiring system.
Check all latches are
secure after modules
are connected.
WIRE STRIP
LENGTH
MIN
MAX
WARNING: To minimize the risk of potential safety problems, you should
follow all applicable local and national codes that regulate the installation
and operation of your equipment. These codes vary from area to area and
it is your responsibility to determine which codes should be followed, and
to verify that the equipment, installation, and operation are in compliance
with the latest revision of these codes.
Equipment damage or serious injury to personnel can result from
the failure to follow all applicable codes and standards. We do not
guarantee the products described in this publication are suitable for
your particular application, nor do we assume any responsibility for your
product design, installation, or operation.
This device is not intended for personnel, product, or machine
safety applications.
This publication is based on information that was available at the time
it was printed. At AutomationDirect.com®we constantly strive to improve
our products and services, so we reserve the right to make changes to
the products and/or publications at any time without notice and without
any obligation. This publication may also discuss features that may not be
available in certain revisions of the product.
Power Requirements
Base Controller and I/O
Power Requirement¹
24VDC ±2% 1.25 W per I/O module
@ 0.5 W for SAMD and Base Controller
@ 9W for max header power draw²
Recommended Fuse
(External) Edison S506-R, Time Delay, 1A Fuse
1. If you do not use a Productivity1000 power supply, like the P1-01AC, then use a power supply
that has a transformer isolation. Use different 24VDC supplies for the CPU and inductive loads to
keep the CPU power clean and free of voltage spikes caused by switching solenoids, motors and
relay coils.
2. See Header Power Limitations in P1AM User Manual in QR code link to additional resources.
