4KSP14-P
HDMI 2.0 Splitter 1 x 4
User Manual
Disclaimers
The information in this manual has been carefully checked and is
believed to be accurate. AV Access Technology Limited assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
AV Access Technology Limited assumes no responsibility for any
inaccuracies that may be contained in this document. AV Access
Technology Limited also makes no commitment to update or to keep
current the information contained in this document.
AV Access Technology Limited reserves the right to make
improvements to this document and/or product at any time and
without notice.
Copyright
Copy, Reproduce, Distribute and/or Edit of this document or part of it
as well as utilization of its contents and communication thereof to
others without express authorization are prohibited. Offenders will be
held liable for payment of damages. All rights created by patent grant
or registration of a utility model or design patent are reserved.
Copyright ©2016 AV Access Technology Limited All rights reserved.
Trademarks Notice
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Contact Us
Business inquiry: [email protected]om.
Important Safety Instructions
Do not expose this apparatus to rain, moisture, dripping or
splashing. No objects filled with liquids, such as vases, shall be
placed on the apparatus.
Do not install or place this unit in a bookcase, built-in cabinet, or in
another confined space. Ensure the unit is well ventilated.
To prevent risk of electric shock or fire hazard due to overheating,
do not obstruct the unit’s ventilation openings with newspapers,
tablecloths, curtains, or similar items.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not place sources of naked flames, such as lighted candles, on
the unit.
Clean this apparatus only with dry cloth.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Protect the power cord from being walked on or pinched,
particularly at plugs.
Only use attachments / accessories specified by the manufacturer.
Refer all servicing to qualified service personnel.
Table of Contents
Overview...............................................................................................................2
Package Contents.................................................................................................................. 2
Front Panel............................................................................................................................... 4
Rear Panel................................................................................................................................. 5
EDID Management ...............................................................................................6
Installation Instructions.......................................................................................8
Specification .......................................................................................................10
Warranty .............................................................................................................12
www.avaccess.com 1
Overview
Overview
4KSP14-P is a 1x4 HDMI splitter for HDMI 2.0 with 4k@60Hz 4:4:4 8 bit
which reliably distributes one HDMI source signal to 4 HDMI displays.
It also provides auto EDID management and HDCP management
which authenticates HDCP encryption between all devices, ensuring
the HDMI source reliably outputs correct content for display.
Additional features include input cable equalization and signal
regeneration compensation, which reduces the need for additional
signal conditioning equipment by compensating for signal loss when
using a long input cable or cascading multiple units.
Distributes one HDMI sources to 4 HDMI displays
HDMI 2.0 with 4K@60Hz 4:4:4 8 bit and HDCP 2.2 compliant
Input/output HDMI cable length up to 10m for 1080P/4K
Threaded power port for locking or standard 12V DC connection
Front panel LED indicators for I/O and power connectivity
Automatic input cable equalization and signal regeneration
compensation
www.avaccess.com 2
Overview
Package Contents
Before you start the installation of the product, please check the
package contents:
1 x 4KSP14-P Splitter
1 x Power Supply (DC 12V 1A)
1 x User Manual
www.avaccess.com 3
Overview

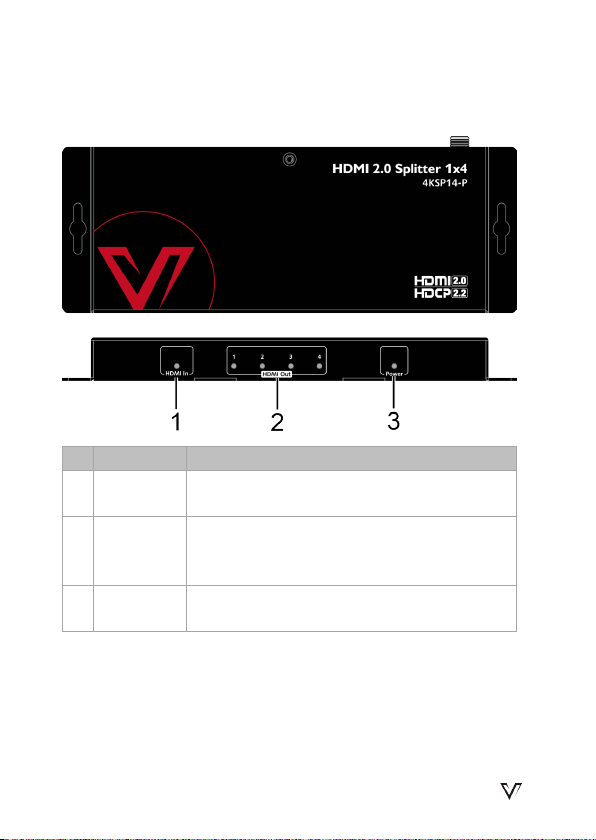

Front Panel
ID Name Description
1 Input LED ON: HDMI source is connected to the splitter.
OFF: No HDMI source is connected to the splitter.
2 Output LED
1~4
ON: HDMI display is connected to the splitter.
OFF: No
HDMI display is connected to the
splitter.
3 Power LED ON: The splitter is on.
OFF: The splitter is off.
www.avaccess.com 4
Overview

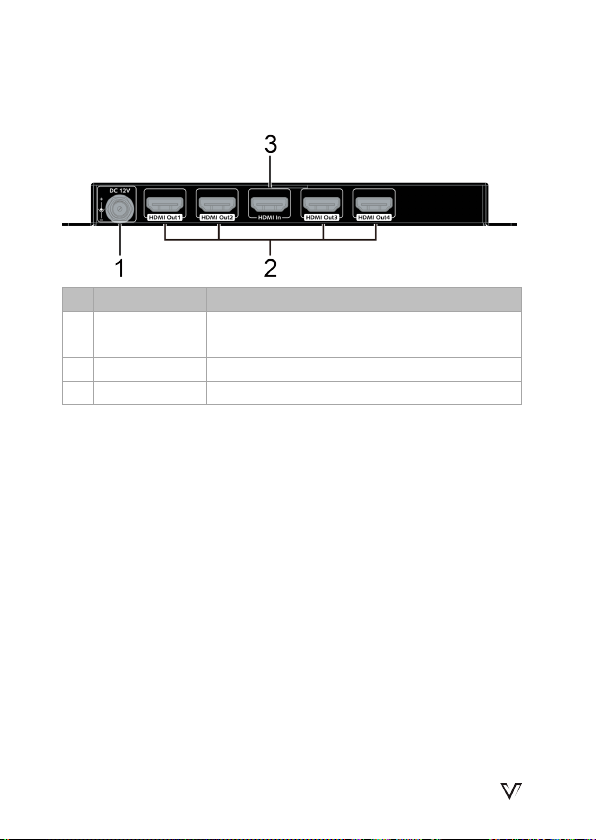

Rear Panel
ID Name Description
1 DC 12V
12V DC power input, threaded port for
standard or locking connection
2 HDMI OUT1~4 Connects to HDMI display devices
3 HDMI IN Connects to HDMI source device
www.avaccess.com 5
EDID Management
EDID Management
EDID (Extended Display Identification Data) is data generated from
each display in the system to communicate the capabilities of the
device.
About Smart EDID function: Splitter is built-in 5 EDID: 4K@60Hz 4:4:4
HDR; 4K@60Hz 4:2:0 HDR; 4K@30Hz 4:4:4 HDR; 1080P@60Hz 2ch and
720P@60Hz 2ch. when the device is power on, it will compares all the
EDID of display devices and choose the lowest resolution to compare
with the 5 EDID that are built-in the splitter, finally select the one from
the 5 EDID which can be supported by the lowest EDID display to the
input source. In addition, the splitter will detect the output signals of
every time plug, unplug, sink standby or sink on to select the
appropriate EDID as above process.
Take 4K as an example:
First, switching a 4k source to 4K TV, the splitter will automatically
output 4K signal to 4K TV.
www.avaccess.com 6
EDID Management

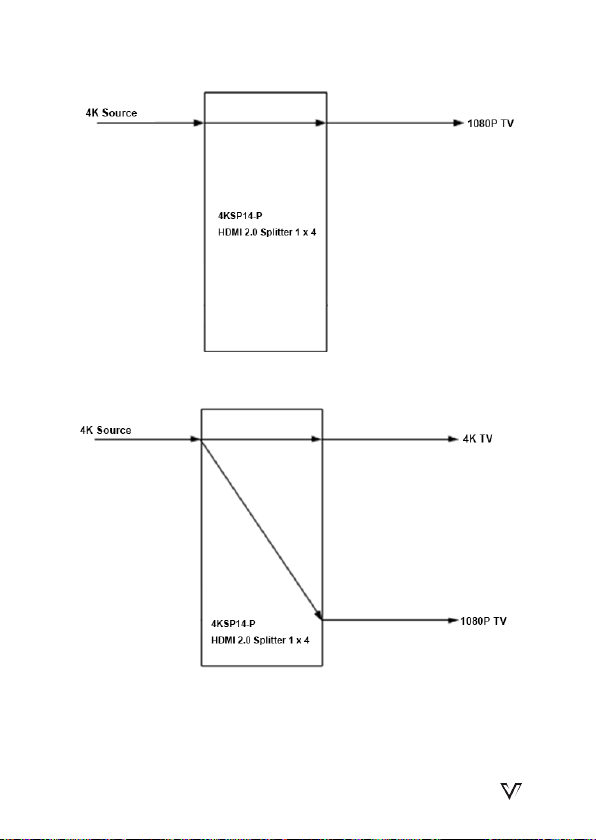

Then, switching a 4k source to 1080P TV, the splitter will automatically
output 1080P signal to 1080P TV
Finally, switching the 4K source to 4K TV and 1080P TV, the splitter will
automatically output 1080P signal to both 4K TV and 1080P TV.
www.avaccess.com 7
