HDEX80-KVM

1080P HDMI KVM Extender with USB2.0

User Manual

Disclaimers

The information in this manual has been carefully checked and is believed to be

accurate. AV Access Technology Limited assumes no responsibility for any

infringements of patents or other rights of third parties which may result from its

use.

AV Access Technology Limited assumes no responsibility for any inaccuracies that

may be contained in this document. AV Access Technology Limited also makes no

commitment to update or to keep current the information contained in this

document.

AV Access Technology Limited reserves the right to make improvements to this

document and/or product at any time and without notice.

Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as

utilization of its contents and communication thereof to others without express

authorization are prohibited. Offenders will be held liable for payment of damages.

All rights created by patent grant or registration of a utility model or design patent

Trademarks Notice

All products or service names mentioned in this document may be trademarks of

the companies with which they are associated.

Business inquiry: services@avaccess.com

Technical problems: support@avaccess.com

Important Safety Instructions

Do not expose this device to rain, moisture, dripping or splashing. No objects

filled with liquids, such as vases, shall be placed on the device.

Do not install or place this unit in a bookcase, built-in cabinet, or in another

confined space. Ensure the unit is well ventilated.

To prevent risk of electric shock or fire hazard due to overheating, do not

obstruct the unit’s ventilation openings with newspapers, tablecloths,

curtains, or similar items.

Do not install near any heat sources such as radiators, heat registers, stoves,

or other device (including amplifiers) that produce heat.

Do not place sources of naked flames, such as lighted candles, on the unit.

Clean this device only with dry cloth.

Unplug this device during lightning storms or when unused for long periods

of time.

Protect the power cord from being walked on or pinched, particularly at

plugs.

Only use attachments / accessories specified by the manufacturer.

Refer all servicing to qualified service personnel.

Introduction

Table of Contents

Introduction..........................................................................................................2

Overview .................................................................................................................................. 2

Features .................................................................................................................................... 2

Package Contents.................................................................................................................. 3

Panel .......................................................................................................................................... 4

Transmitter ..................................................................................................................... 4

Receiver........................................................................................................................... 5

Installation and Application.................................................................................6

Brackets Installation.............................................................................................................. 6

Steps to install the device in a suitable location................................................. 6

Application .............................................................................................................................. 7

Installation requirements........................................................................................... 7

Specifications .......................................................................................................9

Trouble Shooting................................................................................................10

Steps of Regular Troubleshooting Routine......................................................... 10

Typical Questions ....................................................................................................... 10

Warranty .............................................................................................................11

Introduction

Overview

The HDEX80-KVM extends full HD HDMI signal up to 80m/260ft via a single Cat X

cable, without any video loss and time delay. It supports USB 2.0 pass-through.

With USB Host connector in transmitter, and USB Device connectors in receiver, it

provides remote source PC control with keyboard and mouse, interactive display

operation, data transmission and USB streaming over distances up to 80m/260ft. It

has many professional designs which suitable for various application scenario,

especially for engineering project usage. Two-way PoE (Power over Ethernet),

integrates power into the Cat 5e/6 cable, only one power adapter is needed to

either transmitter or receiver.

Features

Extends full HD HDMI signal up to 80m/260ft via a single Cat X cable without

signal loss and delay

Extends high speed USB 2.0 signal (480Mbps) up to 260ft/80m, provides

2xUSB 2.0 ports at display end

Supports two-way PoE (Power over Ethernet), only one power adapter is

needed to either transmitter or receiver

Auto EDID management automatically adjusts to overcome compatibility

issues

Plug and play, no driver needed.

Introduction

Package Contents

Before you start the installation of the product, please check the package

contents:

HDEX80-KVM Transmitter x 1

HDEX80-KVM Receiver x1

Power Adapter (DC 12V 2A) x 1

USB type-A to type-A Cable x 1

Mounting Brackets (with Screws) x 4

User Manual x 1

Introduction

Panel

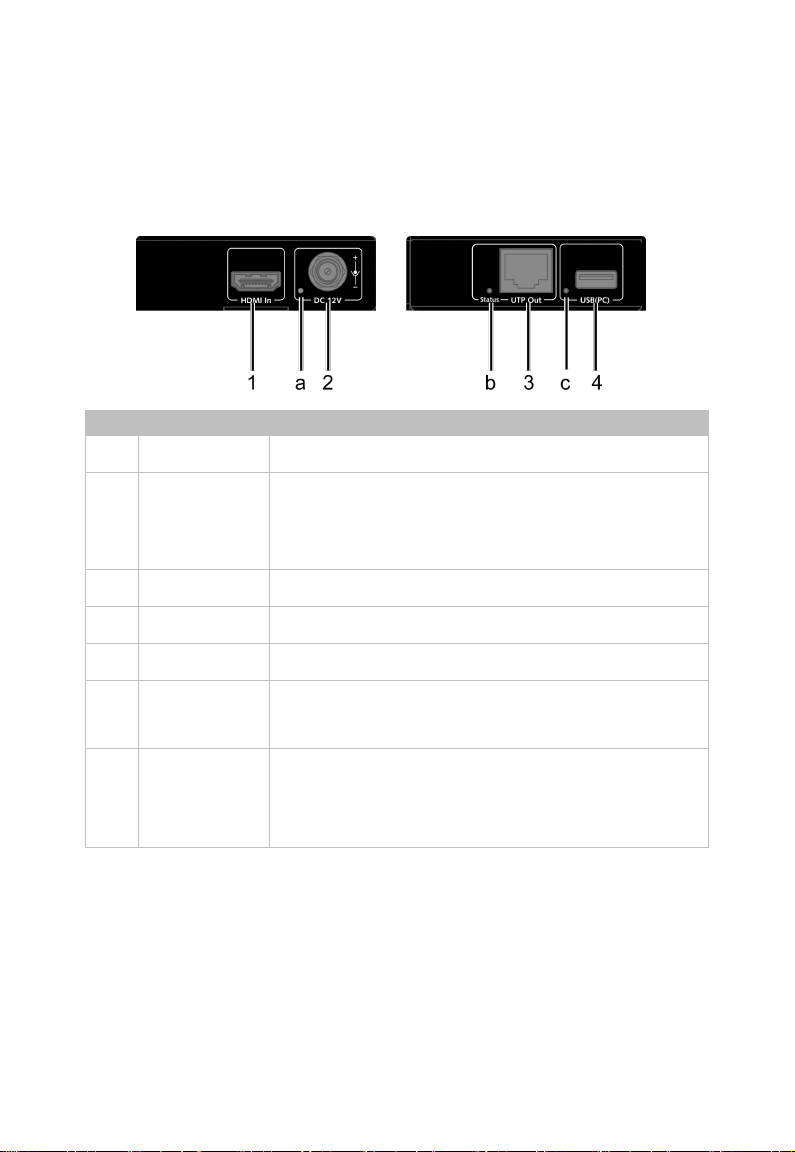

Transmitter

No. Name Description

1 HDMI In HDMI signal input. Connects to an HDMI source device

2 DC 12V

Power input. Connects to the power adapter provided.

Only one power adapter is needed at transmitter or

receiver side.

3 UTP Out Connects to the receiver via Cat X cable.

4 USB (PC) Connects to a computer.

a Power LED Lights on when the device is powered on.

b Status LED On: HDMI data is being transmitted.

Off: No signal.

c USB (PC) LED

Breathing Status:No USB device is connected.

Solid on:USB device is linked.

Flashing:USB data is being transmitted.

Introduction

Receiver

No. Name Description

1 HDMI Out HDMI signal output. Connect to an HDMI display device

2 DC 12V

Power input. Connect to the power adapter provided.

Only one power adapter is needed at transmitter or

receiver side.

3 UTP In Connects to the transmitter via Cat X cable.

4 USB Device Connects to the USB devices.

a Power LED Lights on when the device is powered on.

b Status LED On:HDMI data is being transmitted.

Off:No signal.

c USB Device

LED

Breathing Status:No USB device is connected.

Solid on:USB devices are linked.

Flashing:USB data is being transmitted.

Installation and Application

Brackets Installation

Note: Before installation, please ensure HDEX80-KVM is disconnected from the

power source.

Steps to install the device in a suitable location

1. Attach the installation bracket to the enclosure using the screws that were

provided in the package separately. The bracket height can be adjusted

up/down or bracket face up or down.

2. The bracket is attached to the enclosure as shown.

3. Repeat steps 1-2 for the other side of the unit.

4. Attach the brackets to the surface you want to hold the unit against using

the screws (provided by others).

5. Repeat steps 1-4 to install the receiver.
