Avalue Technology EAX-785E Bedienungsanleitung

Part No. E2017785E00R

EAX-785E

AMD Turion /Athlon II Neo Processor

Quick Installation Guide

1st Ed – February 8th 2011

EAX-785E Quick Installation Guide

2 EAX-785E Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

EAX-785E Quick Installation Guide

EAX-785E Quick Installation Guide 3

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

If you still cannot find the answer, gather all the information or questions that apply to your

problem, and with the product close at hand, call your dealer. Our dealers are well trained

and ready to give you the support you need to get the most from your Avalue’s products. In

fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue’s engineers every business day.

We are always ready to give advice on application requirements or specific information on

the installation and operation of any of our products. Please do not hesitate to call or e-mail

us.

Headquarters and Branch Avalue USA

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei,

Taiwan

Tel:+886-2-8226-2345

Fax: +886-2-8226-2777

Information:[email protected]

Service: [email protected]

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,

NJ 07712

Tel: +1-732-578-0200

Fax: +1-732-578-0250

Information: [email protected]

Service: [email protected]

BCM Advanced Research Avalue Europe

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: [email protected]

Service: [email protected]

Avalue China Avalue Japan

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.china@avalue.com.cn

Service: [email protected]

Avalue Technology Inc.

2F keduka-Bldg, 2-27-3 Taito,

Taito-Ku, Tokyo 110-0016 Japan

Tel: +81-3-5807-2321

Fax: +81-3-5807-2322

Information: [email protected]

Service: [email protected]

EAX-785E Quick Installation Guide

4 EAX-785E Quick Installation Guide

Content

1. Getting Started............................................................................................................5

1.1 Safety Precautions .........................................................................................5

1.2 Packing List ....................................................................................................5

2. Hardware Configuration.............................................................................................6

2.1 Product Overview ...........................................................................................7

2.2 Jumper and Connector List ............................................................................8

2.3 Setting Jumpers & Connectors.....................................................................10

2.3.1 Clear CMOS (CLRTC1).........................................................................10

2.3.2 Amplifier Controller (CN21) ...................................................................10

2.3.3 Power selector Ring/+5V/+12V (JCOMPWR1) .....................................11

2.3.4 Power selector Ring/+5V/+12V (JCOMPWR2/3/4) ...............................11

2.3.5 ATX power connector (ATXPWR1) .......................................................12

2.3.6 AT Power connector (ATX12V1) ...........................................................12

2.3.7 Azalia Front audio connector (AAFP1) ..................................................13

2.3.8 Chassis Fan connector (CHA_FAN1)....................................................13

2.3.9 CPU Fan connector (CPU_FAN1).........................................................14

2.3.10 Serial port 2/ 3/ 4 connector (COM 2/3/4)..............................................14

2.3.11 System Panel connector (F_PANEL1) ..................................................15

2.3.12 Amplifier connector (JAMP1).................................................................15

2.3.13 LCD Inverter connector (JBKL1) ...........................................................16

2.3.13.1 Signal Description – LCD Inverter Connector (JBKL1)) ......................16

2.3.14 General Purpose I/O connector (JDIO1) ...............................................17

2.3.15 LVDS connector (JLVDS1)....................................................................18

2.3.16 Cross fire Power connector (XFIRE_PWR1).........................................19

2.3.17 SPI programming connector (SPI1) ......................................................19

2.3.18 USB connector 56 & 78 (USB56/78) .....................................................20

EAX-785E Quick Installation Guide

EAX-785E Quick Installation Guide 5

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surge. Only experienced electronics personnel should open

the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling could damage to the

motherboard. We suggest not to, in any circumstance remove the heatsink

without the correct instructions. If you really have to do it, please contact us

for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following items have been shipped:

z1 x EAX-785E ATX Main Board

z2 x SATA cable kit(SATA/power)

z1 x COM 9P Cable W/O Bracket PH:2.00mm

z1 x DRIVER CD (CD-R) without printed LOGO

z1 x AMI BIOS label

z1 x I/O Shield

EAX-785E Quick Installation Guide

6 EAX-785E Quick Installation Guide

2. Hardware

Configuration

EAX-785E Quick Installation Guide

EAX-785E Quick Installation Guide 7

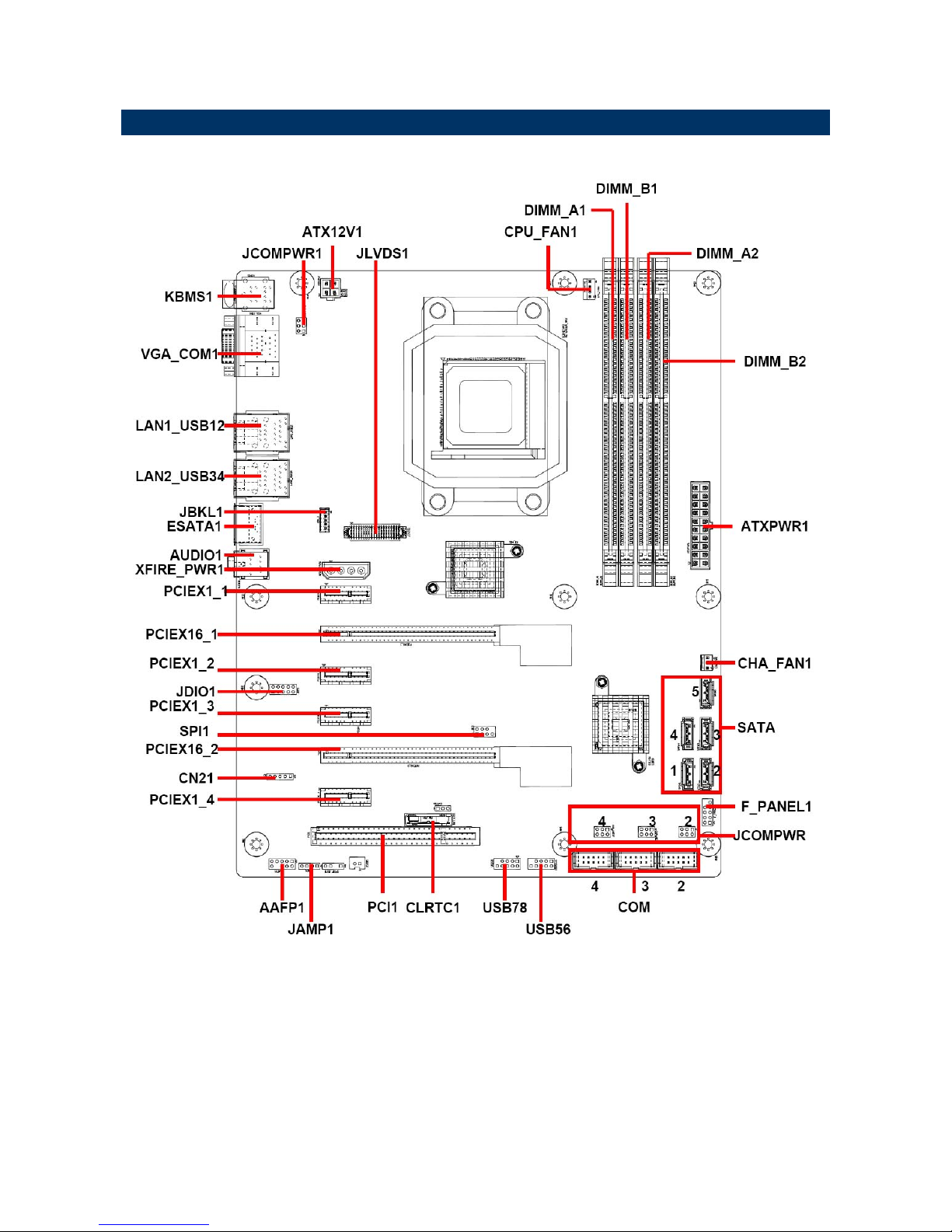

2.1 Product Overview

EAX-785E Quick Installation Guide

8 EAX-785E Quick Installation Guide

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

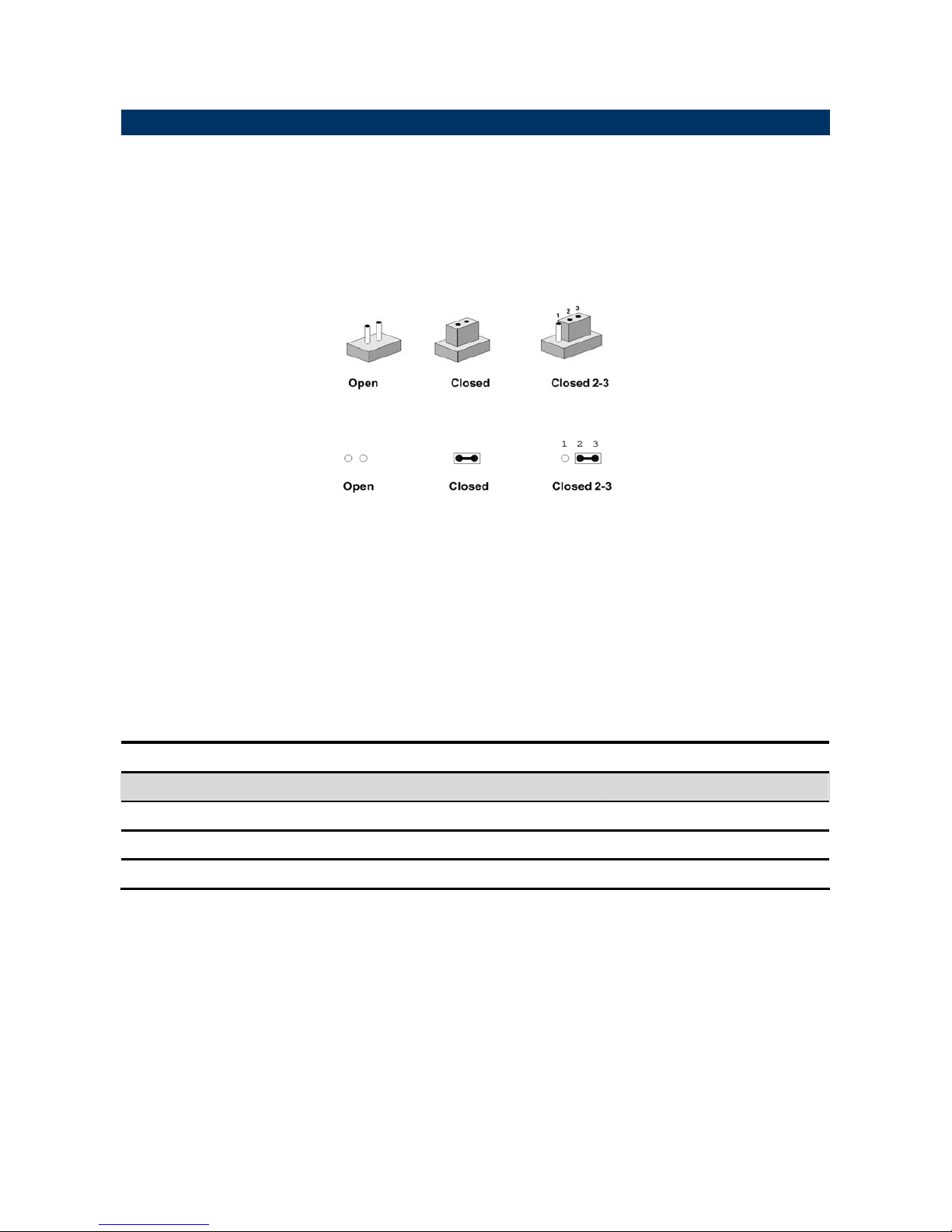

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label Function Note

CLRTC1 Clear CMOS 3 x 1 header, pitch 2.54 mm

CN21 Amplifier controller 5 x 1 header, pitch 2.54 mm

JCOMPWR1/2/3/4 Power Selector Ring /+5V/+12V 3 x 2 header, pitch 2.54 mm

EAX-785E Quick Installation Guide

EAX-785E Quick Installation Guide 9

Connectors

Label Function Note

AAFP1 Azalia Front audio connector 5 x 2 header, pitch 2.54 mm

AUDIO1 Rear Audio Jack Audio Jack

ATXPWR1 ATX power connector 10 x 2 wafer, pitch 4.2 mm

ATX12V1 AT power connector 2 x 2 wafer, pitch 4.2 mm

CHA_FAN1 Chassis Fan Connector 3 x 1 wafer, pitch 2.54 mm

COM 2/3/4 Serial Port connector 2,3,4 5 x 2 header, pitch 2.54 mm

CPU_FAN1 CPU Fan Connector 4 x 1 wafer, pitch 2.54 mm

DIMM_A1 240-pin DIMM slot 1

DIMM_A2 240-pin DIMM slot 2

DIMM_B1 240-pin DIMM slot 3

DIMM_B2 240-pin DIMM slot 4

ESATA1 External SATA connector

F_PANEL1 System Panel Connector 5 x 2 header, pitch 2.54mm

JAMP1 Amplifier Connector 4 x 1 header, pitch 2.54mm

JBKL1 LCD Inverter Connector 5 x 1 wafer, pitch 2.0 mm

JDIO1 General Purpose I/O Connector 10 x 2 header, pitch 2.54mm

JLVDS1 LVDS connector 20 x 2 header, pitch 2.0 mm

KBMS1 PS/2 keyboard and mouse 6-pin Mini-Din

LAN1_USB12 RJ-45 Ethernet Connector x 1

USB Connector 1/2

LAN2_USB34 RJ-45 Ethernet Connector x 1

USB Connector 3/4

PCI1 PCI slot

PCIEX1_1/2/3/4 PCI express x1 slot 1/2/3/4

PCIEX16_1/2 PCI express x16 slot 1/2

VGA_COM1 VGA & Serial port 1 connector D-sub 15-pin, female

D-sub 9-pin, male

XFIRE_PWR1 Cross fire Power connector 4 x 1 wafer, pitch 5.08 mm

SATA1/2/3/4/5 Serial ATA connector 1/2/3/4

SPI1 SPI programming connector 3 x 2 header, pitch 2.54 mm

USB56/78 USB connector 56 & 78 5 x 2 header, pitch 2.54 mm

EAX-785E Quick Installation Guide

10 EAX-785E Quick Installation Guide

2.3 Setting Jumpers & Connectors

2.3.1 Clear CMOS (CLRTC1)

* Default

Normal *

Clear

2.3.2 Amplifier Controller (CN21)

* Default

VR connection*

Signal PIN

PORT_A_R 1

LOUT_RR 2

GND 3

PORT_A_L 4

LOUT_LL 5

Andere Handbücher für EAX-785E

Inhaltsverzeichnis

Andere Avalue Technology Hauptplatine Handbücher

Avalue Technology

Avalue Technology ACP-IMX6POS-B1 Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-CDV Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-H110P Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-TGLP Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-QM77 Bedienungsanleitung

Avalue Technology

Avalue Technology ERX-H61 Bedienungsanleitung

Avalue Technology

Avalue Technology EAX-H81P Bedienungsanleitung

Avalue Technology

Avalue Technology EAX-Q67 Bedienungsanleitung

Avalue Technology

Avalue Technology ERX-W480P Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-Q170KP-B1R Bedienungsanleitung

Avalue Technology

Avalue Technology ACP-PNVDV-A1-ATXR Bedienungsanleitung

Avalue Technology

Avalue Technology HPM-246UA Bedienungsanleitung

Avalue Technology

Avalue Technology RSC-IMX61 Bedienungsanleitung

Avalue Technology

Avalue Technology EAX-Q170P Bedienungsanleitung

Avalue Technology

Avalue Technology ECM-WHL Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-QM57 Bedienungsanleitung

Avalue Technology

Avalue Technology ECMG3-Q170 Bedienungsanleitung

Avalue Technology

Avalue Technology EAX-H110KP Bedienungsanleitung

Avalue Technology

Avalue Technology ECM-QM77 Bedienungsanleitung

Avalue Technology

Avalue Technology ECM-US15WP Bedienungsanleitung

Avalue Technology

Avalue Technology EMX-PNV Bedienungsanleitung

Avalue Technology

Avalue Technology EAX-Q77 Bedienungsanleitung

Avalue Technology

Avalue Technology BBM-BSW A2 Bedienungsanleitung

Avalue Technology

Avalue Technology ECM-PNV Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
