Avantco SS-1R-HC Bedienungsanleitung

Commercial Refrigerator

And Freezer User’s Manual

- 1 -

User Manual

Reach-in Refrigerator And Freezer

Refrigerator model: 178SS1RHC, 178SS2RHC, 178SS3RHC

Freezer model: 178SS1FHC, 178SS2FHC, 178SS3FHC

Glass Door Refrigerator model: 178SS1RGHC, 178SS2RGHC

Half Door Refrigerator model: 178SS1R2HC, 178SS2R4HC

Half Door Freezer model: 178SS1F2HC, 178SS2F4HC

Please read the manual thoroughly prior to equipment set-up,

operation and maintenance.

2/2019

- 2 -

User Manual

Warning

DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY

TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.

PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA

SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA

REFRIGERANTE.

DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES

RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE

FRIGORIGENE.

CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR

MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY

PRECAUTIONS MUST BE FOLLOWED.

ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE

EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE

PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.

ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE

MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE

MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.

CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW

HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.

ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA

REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE

INFLAMABLE UTILIZADO.

ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE

EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST

INFLAMMABLE.

CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW

HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.

ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.

SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA

MUNICIPALIDAD.

ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE

LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION

GOUVERNEMENTALE LOCAUX.

- 3 -

User Manual

Installation

Please read this manual thoroughly prior to equipment set-up, operation and maintenance.

Important!!!Please Read Before Installation

• If the shelf has a raised lip, the lip needs to be installed facing up towards the rear of the cabinet to

promote proper air flow. Failure to install the shelves properly is considered user-error and is not

covered by warranty.

• If the unit has recently been transported on its side, please let the unit stand upright for a

minimum of 24 hours before plugging it in.

• Make sure the unit has reached the desired temperature before loading the unit with products.

• Make sure all accessories are installed (shelves, shelf clips, etc…) before plugging in the unit.

• Do not attempt to remove or repair any component of the unit. Consult an authorized service

technician for servicing / repair.

• Do not hang on doors or stand inside the unit.

• Please read through this manual in its entirety.

Field Convertible Doors

The Avantco 178SS1RHC and 178SS1FHC both ship with a right-hinged door design. If you would

like to convert the reach-in to a left hinged door design (solid door models), you must purchase the

left hinges seperately (Avantco item #178SS1KITFR ) and follow these instructions:

Tools Needed:

Socket Set

Pliers

Adjustable Wrench

Phillips Head Screwdriver

1. Remove the bottom vent, which is held on by loosening the 4 Phillips head screws that hold it on.

You do not need to remove the whole way, as the vent will slide up and out.

2. Remove the top panel next. It is held on with 2 small screws. Once the screws are out, the top

panel will hinge up.

3. Remove the small Philips head screws at the top and bottom door hinge where it attaches to the

brackets. Be careful not to lose the small washers.

4. Next take off the top bracket. It is held on with 3 bolts.

- 4 -

User Manual

5. The door should come off at this point.

- Note:Do not lose the small round brass spacer on the bottom hinge!

6. Remove the bottom bracket. It is held on with 3 bolts.

7. Replace the bottom hinge with the new left hand bottom bracket. It is held on with 3 bolts.

8. At this point, you will need to adjust the top and bottom spring tensioners so the door will close

properly.

9. Put the door on the bottom hinge on the left side. You will need to reuse the brass spacer from

step 5.

10. Next, place the top bracket on the top of the door before bolting it to the unit with the 3 bolts.

11. Replace the small screws on the top and bottom of the bracket and door spring. Make sure the

door is on properly before you do this.

12. Reattach the bottom vent and the top panel

Cabinet Location Guides

• Install the unit on a strong and leveled surface.

- If the surface is uneven, the unit may be noisy.

- The unit may malfunction if the surface is uneven.

• Install the unit in an indoor, well ventilated area.

- For best performance, maintain 6” of clearance on both sides and the back of the unit at all times.

- Outdoor use may cause decreased efficiency and damage to the unit.

- Avoid direct sunlight.

• Avoid installation in a high humidity and / or dusty area.

- High humidity can cause the unit to rust and may decrease efficiency.

- Dust collected on the condenser coil may cause unit to malfunction.

- Malfunction due to high ambient temperatures, humidity, or improperly maintained

condenser coil will void the warranty.

• Select a location away from heat and moisture-generating equipment.

- High ambient temperatures may cause the compressor to malfunction.

- Malfunction due to high ambient temperatures and humidity will void the warranty.

- 5 -

User Manual

Electrical

• Please ensure that the required voltage is being supplied at all times.

• The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate

over-current protection. Please refer to the electrical requirements on the unit’s nameplate.

• The unit should have its own dedicated outlet.

• Do not use extension cords.

• Ensure the unit is not resting on or against the electrical cord.

• If the unit is not in use for a long period of time, please unplug the unit from the outlet.

• To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.

• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could

cause damage to the compressor.

Adjusting the Temperature

Your new refrigerator or freezer is already factory-set to run at optimum temperatures for food

safety and should require no adjustments.

Refrigerators are set to cycle between a minimum temperature of 33 degrees Fahrenheit and a

maximum temperature of 40 degrees Fahrenheit.

Freezers are set to cycle between a minimum temperature of -5 degrees Fahrenheit and a maximum

temperature of 2 degrees Fahrenheit.

Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not

run constantly at this setting. To change it, follow these instructions:

Digital Control Units

• Hold “SET” for 1 sec. The display will flash the current minimum temperature.

• Use the arrow buttons to adjust the minimum temperature you want it to run at.

• Press “SET” again to save your settings

Always remember to calculate the differential if you change the minimum temperature setting. The

cabinet temperature will fluctuate up to +7 degrees over your set minimum temperature as the

compressor runs and shuts off. Setting the temperature too high will result in unsafe maximum

temperatures and possible health code violations.

- 6 -

User Manual

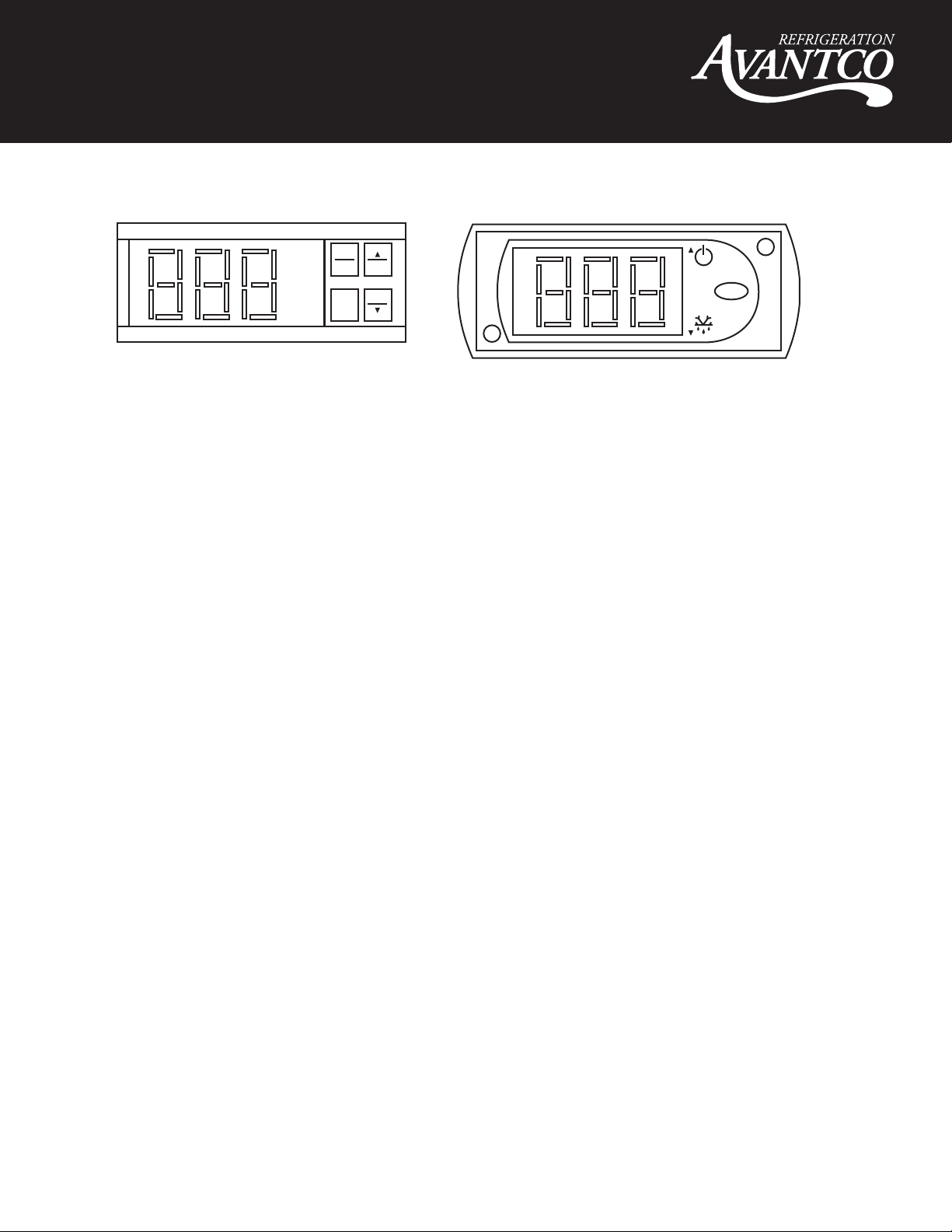

Prg

mute

Set

aux

def

Freezer Control

set

mute

Refrigerator Control

Running a Manual Defrost Cycle

This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you

would like to run a manual defrost cycle at any time, please follow the steps below:

Freezers: Press the defrost button (“def” and down arrow) for approximately 5 seconds. Repeat to

stop the defrost cycle.

Refrigerators: Press the defrost button (snowflake symbol and down arrow) for approximately 3

seconds. Repeat to stop the defrost cycle.

Defrost System

Refrigerator coils are kept below the freezing point (32 degrees Fahrenheit). During compressor

down-time, the evaporator fan continues to circulate air through the evaporator coil. This air

circulation raises the coil temperature above the freezing point, melting any accumulated frost.

Run-off water is drained into the evaporator pan and evaporated. Freezer coils are defrosted

electrically. Automatic defrost timers automatically initiate at pre-set intervals and for a pre-

determined duration.

Operation/Maintenance

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Loading Product

• Do not block the air duct / fan at the top of the unit. Maintain a minimum of 4” of clearance

between products and the fan at all times.

• Ensure all shelves are sitting level and properly secured before loading products.

• Do not store flammable and explosive gas or liquids inside the unit.

Cleaning the Condensor Coil

• For efficient operation, keep the condenser surface free of dust, dirt, and lint.

- 7 -

User Manual

• We recommend cleaning the condenser coil at least once per month.

• Clean the condenser with a commercial condenser coil cleaner, available from any kitchen

equipment retailer.

Cleaning the Fan Blades and Motor

• If necessary, clean the fan blades and motor with a soft cloth.

• If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.

Cleaning the Interior of Unit

• When cleaning the cabinet interior, use a solvent of warm water and mild soap.

• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.

• Wash door gaskets on a regular basis, preferably weekly. Simply remove the door gasket from the

frame of the door, soak it in warm water and soap for thirty (30) minutes, then dry with soft cloth

and replace.

• Check door gaskets for proper seal after they are replaced.

• Periodically remove the shelves and shelf brackets from the unit, and clean them with a mild soap

and warm water.

- 8 -

User Manual

Trouble Shooting

Compressor is Not Running

Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.

Power cord unplugged. Plug in power cord

Thermostat set too high. Set thermostat to lower temperature.

Cabinet in defrost cycle. Wait for defrost cycle to finish.

Cabinet Temperature is too Warm

Thermostat is set too high. Set thermostat to lower temperature.

Airflow is blocked. Re-arrange products to allow for proper air flow.

Make sure there is at least four inches of clearance

from the fan.

Low refrigerant levels. Contact a service technician to check refrigerant levels.

Door is slightly ajar. Make sure door is completely closed.

Interior Light is Not Working

Poor switch connection. Turn off light switch and turn it back on.

Bulb is not connected. Make sure the bulb is correctly inserted in the socket.

Bulb has burned out. Replace the bulb.

Condensation is Collecting on the Cabinet and/or Floor

Gasket is not sealing properly. Clean, repair, or replace the gasket as necessary.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Avantco Kühlschrank Handbücher

Avantco

Avantco 178SSUC27RHC Bedienungsanleitung

Avantco

Avantco TUC Series Bedienungsanleitung

Avantco

Avantco APPT71 Bedienungsanleitung

Avantco

Avantco 178A19RHC Bedienungsanleitung

Avantco

Avantco 360BCSS28HCB Bedienungsanleitung

Avantco

Avantco SCL1 Bedienungsanleitung

Avantco

Avantco 360SC40 Bedienungsanleitung

Avantco

Avantco UBB2448 Bedienungsanleitung

Avantco

Avantco 178APT27HC Bedienungsanleitung

Avantco

Avantco 178CPW47HC Bedienungsanleitung

Avantco

Avantco NP2R-PT Bedienungsanleitung

Avantco

Avantco 178A19RHC Bedienungsanleitung

Avantco

Avantco 178DLC36HCB Bedienungsanleitung

Avantco

Avantco SS-2R-HC Bedienungsanleitung

Avantco

Avantco 178A19FHC Bedienungsanleitung

Avantco

Avantco 178APPT71HC Bedienungsanleitung

Avantco

Avantco 360BCC28HCB Bedienungsanleitung

Avantco

Avantco 178CPSS47HC Bedienungsanleitung

Avantco

Avantco SCL1 Bedienungsanleitung

Avantco

Avantco 360GSM3HCB Bedienungsanleitung

Avantco

Avantco 178UBB378 Bedienungsanleitung

Avantco

Avantco 178UBB36HC Bedienungsanleitung

Avantco

Avantco 178CBE36HC Bedienungsanleitung

Avantco

Avantco GDC10 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
