AVE AF979R-DB Bedienungsanleitung

AF979R-DB Radio control units keypad

The AF979R-DB multifunction keypad allows connecting (totally or partly) and disconnecting the AVE radio

burglar alarm control units (AF926-AF925RF-AF924RS), actuating a panic alarm dialoguing via radio with the

control unit itself, commanding the R1R receivers in bistable or timed mode to control general loads and RT1R

to control roller shutter motors.

Technical features

•Power supply: 3 AA 1.5V batteries

•Absorption: 5µA when inoperative – 70mA in transmission

•Life: more than 2 years with 4 operations per day

•Functions: Commanding the control unit; transmitting panic alarm; controlling R1R and RT1R receivers

•8 function control LEDs

•Dual-band radio transmission

•Bidirectional dialogue with the control unit

•Indication of the system state

•Useable range: more than 80 m outdoors. About 30 m in residential areas

•Container protected against opening and removal

•Dimensions: 145x106x30

Declaration of conformity

The device complies with the essential requirements and with the other inherent provisions provided for by the

1999/5/EC directive.

Buzzer adjustment

Buzzer

Tamper

JP1 excludes anti-

removal contact

Batteries

compartment

Description of the front elements and signals

Description of operation

The AF979R-DB keypad allows the following functions:

TOTAL

CONNECTION Enter the 5 figure code, warning lights A-B-C light-up, press the RED button

PARTIAL

CONNECTION

Enter the 5 figure code, warning lights A-B-C light-up, press buttons A-B-C of the zones

required to be excluded, the respective LED goes off, press the RED button

DISCONNECTION Enter the 5 figure code, warning lights A-B-C light-up, press the GREEN button

Erroneous entry can be cancelled by pressing ESC. After 8 erroneous connection and/or disconnection

attempts the keypad is blocked for 30 seconds and all LEDs blink.

•After each total connection operation, transmission to the control unit and the confirmation response are

displayed; the keypad emits 3 Beeps and all LEDs of the connected zone remain ON for 30 seconds.

•After each partial connection operation, transmission to the control unit and the confirmation response

are displayed; the keypad emits a long Beep and all LEDs of the connected zone remain ON for 30

seconds.

•After each disconnection operation, transmission to the control unit and the confirmation response are

displayed: the keypad emits a Beep and all zone LEDs remain OFF.

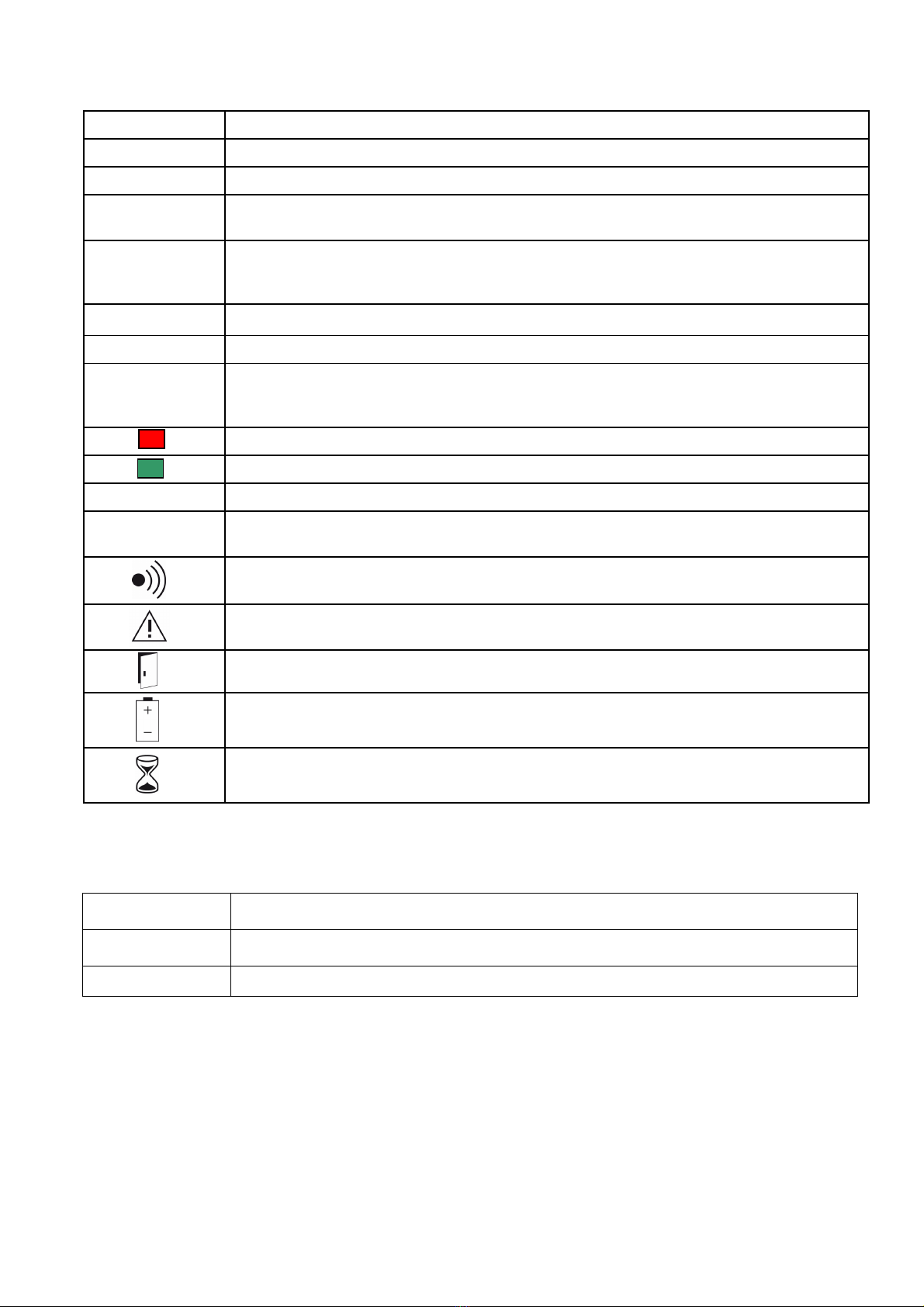

BUTTONS DSCRIPTION

1-9 Numeric buttons for entering codes.

A-B-C Control unit zones buttons for partial connection.

F1 Radio control. Programmed on R1R receivers, it transmits to the latter a

step by step

command.

Radio control. Suitably programmed on the control unit, it allows actuating alarms,

telephone

actuations and/or calls. Programmed on R1R radio receivers, they transmit

to the latter a

monostable (timed) command.

Panic alarm. It sends a panic alarm to the control unit

ESC Escape button. It deletes erroneous code entry

Queries control unit. If pressed it queries the control unit; Upon elapse of the transmission

and response awaiting period, displayed by special red LEDs, the LED

s of the connected

zones light up. If none of the LEDs light up, the system is disconnected.

Connection of the control unit

Disconnection of the control unit

SIGNALS DESCRIPTION

A-B-C They Indicate the three intrusion alarm zones

and light up when the respective zone is

connected

It indicates that the keypad is transmitting radio signals

It indicates, upon disconnection, the presence of a new event. Check t

he control unit events

memory

It indicates, upon connection, the presence of possible protected doors/windows left open

It indicates, upon connection or disconnection, that the keypad batteries are low (to

replaced within 7 days)

It indicates awaiting the confirmation command from the control unit

Programming

•Assigning keypad to the control unit. After supplying power to the keypad the buzzer beeps and all

LEDs blink: (connect and) disconnect the control unit within 60 seconds. Upon disconnection the control

unit is linked to the keypad, confirmed by 6 beeps of the buzzer and by the LEDs going off.

•Programming and deletion of 5 figure codes for connecting and disconnecting the control unit:

the operation is performed on the control unit as indicated in the respective manual.

•Programming Panic and Tamper alarms: set the control unit in programming on zone 24H PANIC or

24H ROBBERY according to the required alarm. Hold the panic button (!) pressed for 10 seconds: the

control unit confirms (beep) successful programming. Also the tamper alarm of the keypad is

programmed in this manner. Opening the keypad or removing it from the wall triggers the control unit

alarm.

•Programming button F2: set the control unit in programming on zone 24H PANIC or 24H ROBBERY

according to the required alarm and press the button for 10 seconds. The control unit confirms (beep)

successful programming

Using the keypad to control radio receivers

The AF979R-DB keypad dialogues via radio with the R1R receivers for controlling general loads, sending step

by step commands through button F1 or monostable (timed) commands through button F2. Furthermore, it

dialogues with RT1R receivers to control roller shutter motors, sending timed commands. The keypad may

serve both purposes (burglar alarm and controlling receivers) in the same system due to a simple choice of

code:

•The five figure code (100.000 combinations) is intended for burglar alarm applications.

•A code with up to 4 figures allows to control up to 10.000 receivers

It is thus possible to associate to the load to be commanded, and hence the respective receiver, an easily

memorisable number of codes. Example, using the R1R receiver: entrance light 1, external lights 20, staircase

lights 600, etc.

After suitably memorising the codes of the keypad in the memory of the receiver, the keypad shall operate as

follows:

•Receiver code (max 4 figures) + Red button: receiver output ON

•Receiver code (max 4 figures) + Green button: receiver output OFF

For all details regarding this application, see the receivers manual.

C0552 01 21-09-09

NOTE

Products should be sold in their original packaging. When this is not the case, the retailer or/and the

installer is obliged to follow, as well as communicate to the user, the instructions for use which are supplied

with the product. After opening the packaging, check that the appliance is undamaged. Do not use the

appliance if there is any doubt, but contact a qualified technician. Even before unpacking, the appliance

should be handled with care and stored in a dry place at temperatures between –5°C and +40°C.

Also note: • The 5 years warranty is applicable for all the goods, except of the goods included in the Safety-Security Division,

Anti-intrusion Systems, Fire Detection Systems and Technical Alarms for which is applicable a 2 years warranty, for any defect in

or failing caused by the manufacturer’s negligence. It doesn’t affect your statutory rights as prescribed by law (art. 1490, 1512

C.C., DL 24/2002, Directive 1999/44/CE, art. 1519 C.C.). The defect must be notified within 2 month from the date it was

discovered. Five years (or two years for the above mentioned series) are intended from the date of delivery of the goods by AVE.

• AVE products are installation products. They must be installed by skilled workers in compliance with the installation regulations.

• Before carrying out any maintenance on the appliance, cut off the mains power. • Special care should be taken in the

preparation of the cable terminals to be inserted into the appliance terminals so as to maintain sufficient isolation distance

between them. • When tightening the terminal screws, special care should be taken to avoid overheating which could start a fire

or damage the cables. •The product must be used in dry, dustfree areas. Suitable products must be used in any other conditions.

• There is the possibility of electric shocks or failure of the device if the device is tampered with. • Install products and accessories

according to the prescriptions of the catalogue and the instructions sheet and in compliance with specific standards and rules. • In

case of products powered by batteries, should they be discharged, they must be replaced with similar batteries and disposed

according to the rules in force. In case of liquid leaks replaced them immediately, clean the battery housing with care wearing

silicone gloves. In case of liquid contact wash your hand carefully. • In case of products powered with lithium batteries, in addition

to the above precautions, remember that they must be replaced by skilled personnel as they present explosion hazard.
