Avenir SOLO Bedienungs- und Wartungsanleitung

VERSION: 2021.04

Installation Guides

VERSION: 2021.04

Installation Guide

SOLO, CUBO, XYLO & ZARA Heated Rails used with In-Wall Kit - 12V

OVERVIEW

Note: Non thermostatically controlled heated towel rails only heat to optimal temperature when covered with a towel.

Thank you for choosing an Avenir heated towel rail - All Avenir products are designed, developed and tested in Australia to last a lifetime and

to exceed your expectations. Its important to understand that with low voltage products the performance of the product can be impeded

signiﬁcantly if not installed correctly and in accordance with this installation guide. Common issues arise from not using the supplied low

voltage wire, installing the transformer too far away or using a low voltage wire with the incorrect speciﬁcations - Please only use the

supplied low voltage wire. Installing SOLO, CUBO and XYLO Heated Rails is done in 2 separate stages.

1. IN-WALL KIT

Assemble the In-Wall Kit as follows:

• Insert the aluminium threaded spigots into the spacing template (max 5 per In-Wall Kit)

• Feed red and black wires in parallel to all installed spigots

• Slide the aluminium C-channel over the spigots

• Install the assembled In-Wall Kit below the wall surface (wall lining or render).

• Install the transformer in a serviceable and ventilated location - usually this is in the ceiling space above - within 2 meters.

• Connect 240V switched supply to the primary of the transformer

• Tile / render over the spigots such that at least 10mm of thread protrudes.

2. SINGLE HEATED RAILS

Install the heated rails as follows:

• Using the supplied double sided tape, stick the Drilling Templates on the wall by locating the large hole over the protruding spigots

• Using the supplied diamond drill bit and the MDF Drilling Template as a guide, drill holes in the wall surface (remove template after)

• Using the supplied plugs screws and washers ﬁt the wall mounting components

• Screw wall mounting a component onto each spigot

Connect and install heated rails

• Using the supplied green connector, connect the element to the red and black supply wire from the spigots

• Feed the looped end of the element wires into the rails

• Fit the rails onto the mounting components

• Test - heating takes 30 minutes to reach full temperature.

WARNING

• This appliance MUST be installed by a licenced registered electrician.

• In order to avoid hazards for children, this appliance shall be installed so that the lowest rail is at least 600mm above the ﬂoor.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualiﬁed persons in order to

avoid a hazard. All pole disconnection in the ﬁxed wiring shall be provided.

• This product should be supplied by an approved transformer which provides 12V~ output voltage and sufﬁcient output power

appropriate to the speciﬁcation of the product - see product rating label. Transformer must not be overloaded.

SOLO, CUBO, XYLO & ZARA Heated Rails used with In-Wall Kit - 12V

WARRANTY

A timer (set to 25% usage or less) MUST be ﬁtted

to prolong the life of the heating elements and the

transformer. Transformer warranty is VOID if not.

A licensed electrician is required to carry out the

installation of Single Heated Towel Rails.

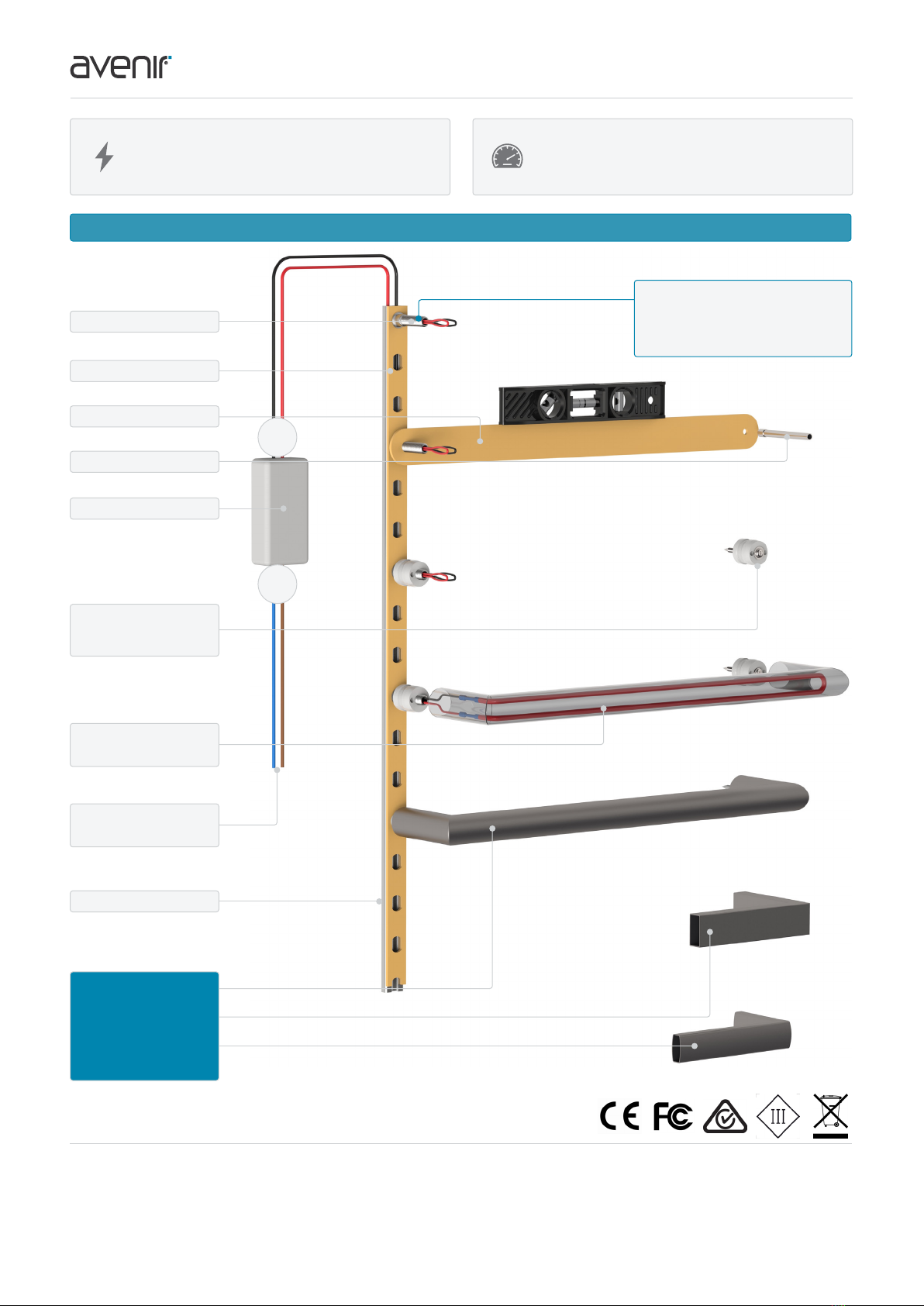

* Spigots

* Transformer

* MDF Spacing Template

* Aluminium C-channel

** MDF Drilling Template

** Heating Element

(Colour may differ)

12V~

240V

Switched Supply

(Timer Preferred)

** Wall Mounting

Component

(Supplied with Rails)

** SOLO Rail

Also applies to:

CUBO Rail

XYLO Rail

ZARA Rail

* Supplied with In Wall Kit (TLCF105) ** Supplied with Single Heated Rail

NOTE: Long version available if

required for thick tiles / stone

(YZF63 - sold separately)

* Diamond Drill Bit

NOTE: This item is also sold as Non-heated or Single Towel Rails - the below In-Wall Kit does not apply.

Avenir warrants all our products against defective materials or workmanship for a period of ten (10) years from the date of purchase. Installation labour

and transformer is covered for the ﬁrst 12 Months only. Transformer warranty is VOID if no timer is installed. Please note this warranty does not cover

installation issues - if you are having difﬁculties with installation we are happy to assist telephonically. For technical support please call +61 0417478029.
