Avenview RKM Series RKM-PS2 Bedienungsanleitung
www.avenview.com
1
RKM Series
User’s Guide
Models
RKM-PS2, RKM-USB
- With KVM options
Models
RKM-PS2-SD, RKM-USB-SD
- Short depth version
- Without KVM options
© 2007 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations
or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to
specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual
property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes
no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied
warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly
prohibited.
www.avenview.com
2
Table of Contents
Section 1 –Getting Started .................................................................................................................... 3
Package Contents............................................................................................................................... 3
Before Installation.............................................................................................................................. 4
Unpacking........................................................................................................................................... 4
Optional Accessories.......................................................................................................................... 4
Peripheral Products............................................................................................................................ 5
Structure Diagram.............................................................................................................................. 5
Installation.......................................................................................................................................... 6
Section 2: Keyboard & Mouse................................................................................................................ 7
Section 3: KVM Options for RKM-PS2 & RKM-USB ................................................................................ 8
Section 4: Dimensions............................................................................................................................ 8
www.avenview.com
3
Section 1 –Getting Started

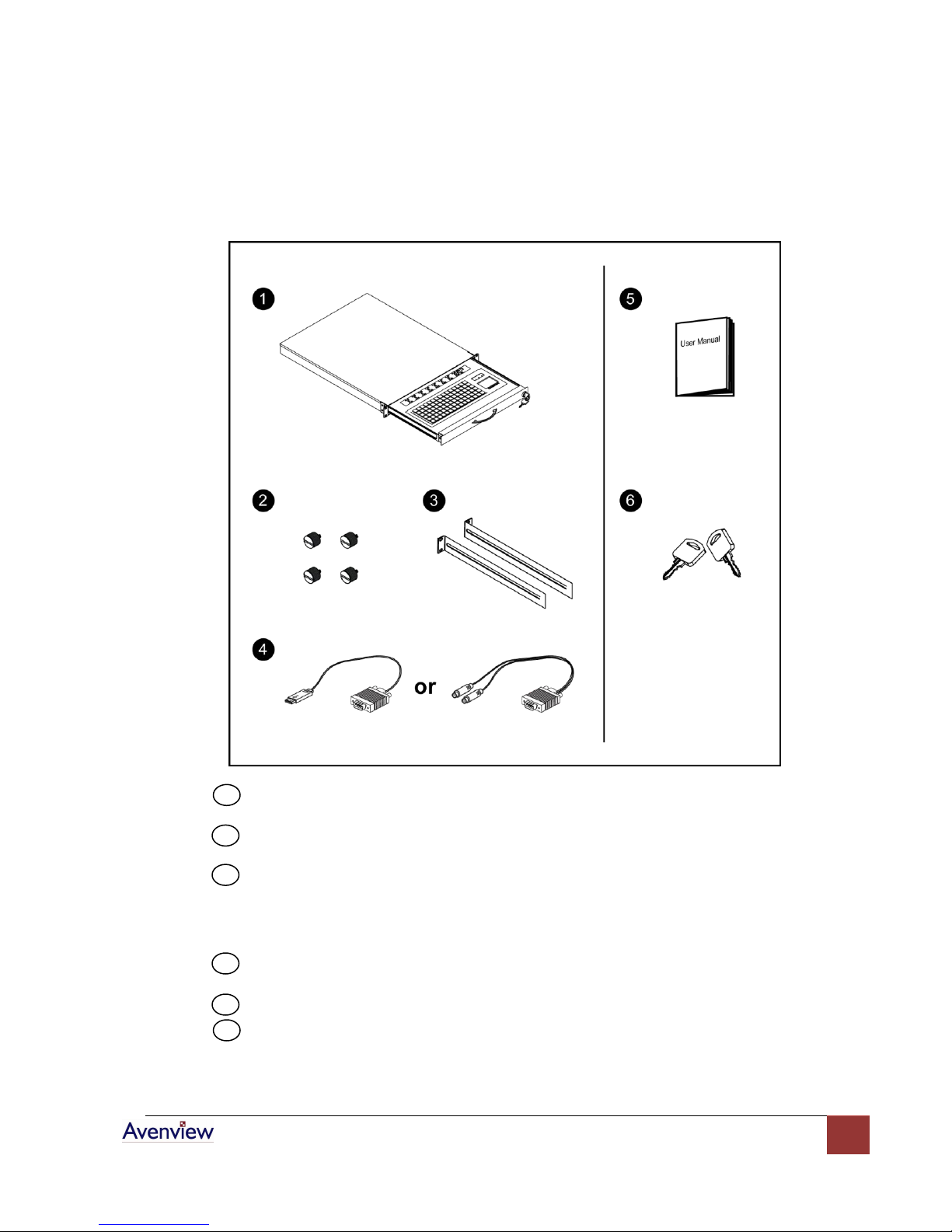

Package Contents
1 Keyboard drawer x 1 pc,
2Fasteners for rear L-bracket x 4 pcs
3330mm rear mounting L-bracket x 1 pair
RKM-PS2 & RKM-USB Series mounting depth-adjustable from 220 to 820mm
RKM-PS2-SD & RKM-USB-SD Series maximum mounting depth is 660mm
4USB keyboard cable x 1 pc or 2-in-1 PS/2 keyboard cable x 1 pc
5User manual x 1 pc
6Key x 2 pcs
www.avenview.com
4
Before Installation
It is very important to locate the Rackmount Keyboard Drawer in a suitable environment.
The surface for placing and fixing the Rackmount Keyboard Drawer should be stable and
level or mounted into a suitable cabinet.
Make sure the place has good ventilation, is out of direct sunlight, away from sources of
excessive dust, dirt, heat, water, moisture and vibration.
Convenience for connecting the Rackmount Keyboard Drawer to the related facilities should
be well considers too.
Unpacking
The Rackmount Keyboard Drawer comes with the standard parts shown on the package contents.
Check and make sure they are included and in good condition. If anything is missing, or damage,
contact the supplier immediately.
Optional Accessories
1. SUN / iMAC USB to PS/2 adapter
1.1 SUN-31
2. Extended rear mounting L-bracket
2.1 430mm (16.9") extended rear L-bracket for :
RKM-PS2, RKM-USB up to 920mm
RKM-PS2-SD, RKM-USB-SD series up to 740mm
*Extended rear L-bracket in tailor-made length on request
www.avenview.com
5
Peripheral Products
Item
Description
DB-15 KVM
8 / 16-port IP PS/2 KVM
8 / 16-port two console PS/2 KVM
4 / 8 / 16-port PS/2 KVM
8 / 16-port USB KVM
Cat5 KVM
16 / 32-port IP Cat5 KVM
16 / 32-port two console Cat5 KVM
16 / 32-port high density Cat5 KVM
KVM Extender
IP KVM extender
Cat5 PS/2 KVM Extender
Cat5 USB KVM Extender
Rackmount LCD Drawer
1U 15" / 17" / 19" LCD drawer
2U 20" LCD drawer
Rackmount LCD Display
6U 15" / 7U 17" / 8U 19" LCD display
9U 20" LCD display
Structure Diagram
1 Adjustable rear mounting L-bracket
2 Membrane switch (for RKM-PS, RKM-USB
with KVM option)
3 Keyboard & mouse
4 Lock with keys
www.avenview.com
6
Installation
Figure 1: Installing the rear L-bracket to the LCD keyboard
drawer.
Install each rear L-bracket using two fasteners shown
in Figure 1.
Leave the fasteners slightly loose
Figure 2: Aligning the rear L-brackets to a suitable length for
the rack.
Measure the front and rear mounting depth of the
rack.
Align each rear L-bracket to a suitable length and
tighten the fasteners shown in Figure 2.
Figure 3: Fixing the LCD keyboard drawer into the rack.
Fix the LCD keyboard drawer into the rack.
* Hardware (screws and cage nuts) for fixing the
mounting bracket to the rack is not provided.
www.avenview.com
7
Section 2: Keyboard & Mouse
Supporting layouts
Notebook type keyboard with
touch-pad mouse
Notebook type keyboard with
trackball
Supporting layouts
Cherry keyboard with trackball
Supporting layouts
Supporting layouts
Compact keyboard integrated
with touch-pad mouse
Compact keyboard integrated
with trackball
www.avenview.com
8
Section 3: KVM Options for RKM-PS2 & RKM-USB
Our KVM is designed to seamlessly integrate into the rear of our full range of keyboard drawer
solutions:
For KVM operation, please refer to "KVM Switch" user manual
Option with high density Cat5 KVM with either 16 or 32 ports
Option with cost efficient DB-15 KVM integration with either 8 or 16 ports
Please ask your supplier for full KVM details
Section 4: Dimensions
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net Weight
Gross Weight
RKM-PS2 &
RKM-USB Series
(with KVM option)
442 x 550 x 44.2 mm
17.4 x 21.6 x 1.74"
581 x 705 x 175 mm
22.9 x 27.8 x 6.9"
8 kg
18 lb
12 kg
26 lb
RKM-PS2-SD &
RKM-USB-SD Series
442 x 430 x 44 mm
17.4 x 14.6 x 1.73"
500 x 582 x 100 mm
19.7 x 22.9 x 3.9"
6 kg
13 lb
8 kg
18 lb
www.avenview.com
9
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the
operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of
Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of
anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the
Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,
function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties
regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and
non-infringement.
