C36i
User Manual
FCC NOTICE (Class A)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by tuning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Class A ITE
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but
not the class B ITE limits. Such equipment should not be restricted in its sale but
the following warning shall be included in the instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
European Community Compliance Statement (Class A)
This product is herewith confirmed to comply with the requirements set
out in the Council Directives on the Approximation of the laws of the
Member States relating to Electromagnetic Compatibility Directive
2014/30/EU.
Warning - This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures to correct this interference.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect
to the contents of this documentation, its quality, performance, merchantability, or
fitness for a particular purpose. Information presented in this documentation has
been carefully checked for reliability; however, no responsibility is assumed for
inaccuracies. The information contained in this documentation is subject to
change without notice.
In no event will AVer Information Inc. be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use this
product or documentation, even if advised of the possibility of such damages.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used
herein for description purpose only belong to each of their companies.
COPYRIGHT
© 2016 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted
in any form or by any means without the prior written permission of AVer
Information Inc. is prohibited. All information or specifications are subject to
change without prior notice.
The mark of Crossed-out wheeled bin indicates that this product must
not be disposed of with your other household waste. Instead, you need
to dispose of the waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic
equipment. For more information about where to drop off your waste
equipment for recycling, please contact your household waste disposal
service or the shop where you purchased the product.
CAUTION
To reduce risk of electric shock only use indoors.
Only adults should move the C36i cart.
Do not allow anyone to sit, stand, or climb on the C36i cart.
Do not lift the C36i cart.
Do not block the ventilation holes used for air circulation.
Do not overload objects on the C36i shelves. (work platform maximum loading
= 45kg / 99.20lbs; each pull-off shelf maximum loading = 27kg / 59.52lbs)
Before moving C36i cart, disconnect the power from the wall outlet.
While moving C36i cart, make sure the power cord is secured and tightly
wrapped.
Contents
INTRODUCTION ...................................................................................................... 1
Package Contents ................................................................................................ 1
Dimensions........................................................................................................... 2
Diagram................................................................................................................ 2
Front ............................................................................................................... 2
Back................................................................................................................ 3
Side................................................................................................................. 3
Door Lock ....................................................................................................... 4
LED Indicators...................................................................................................... 4
INSTALLATION........................................................................................................ 5
Cable Management.............................................................................................. 5
Charging the Cart................................................................................................. 9
Intelligent Timer.................................................................................................. 10
FIRMWARE ............................................................................................................ 10
SPECIFICATIONS...................................................................................................11
TROUBLESHOOTING ........................................................................................... 13
SERVICE AND WARRANTY.................................................................................. 13
1
Introduction
C36i is an intelligent charging cart supporting that allows to charge, secure and
store a variety of mobile devices such as Chromebooks, laptops and tablets up to
14”. The embedded intelligent charging mechanism assures the devices are
safely charged in the most efficient manner. The pull-off shelves, individual
adaptor compartment, innovative plastic partition and other innovations allow
easy device management and easy cable management.

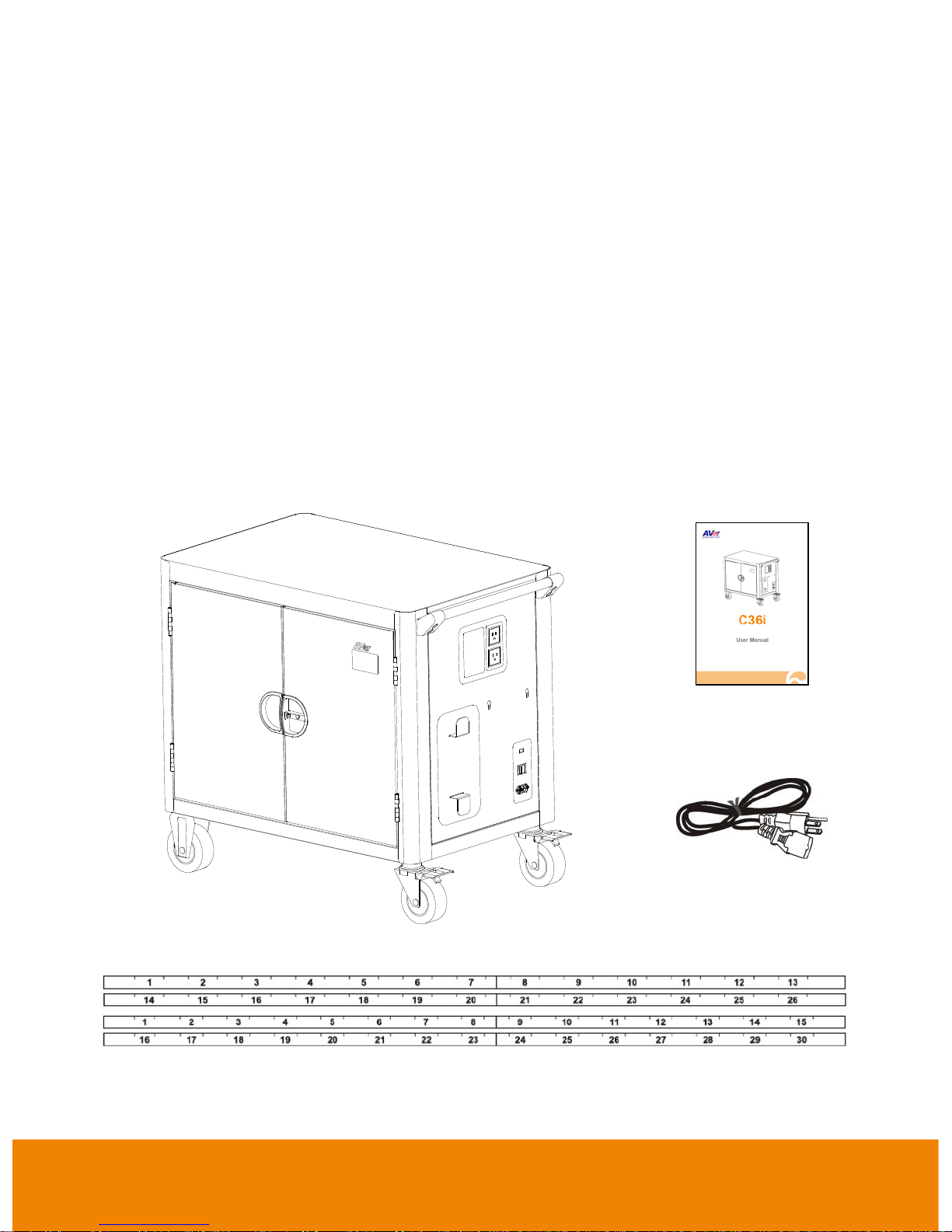

Package Contents
The following items are included in the package. Please check if each item is
available before using.
User Manual
Power Cord
C36i Cart
Slot Number Stickers x 4
2

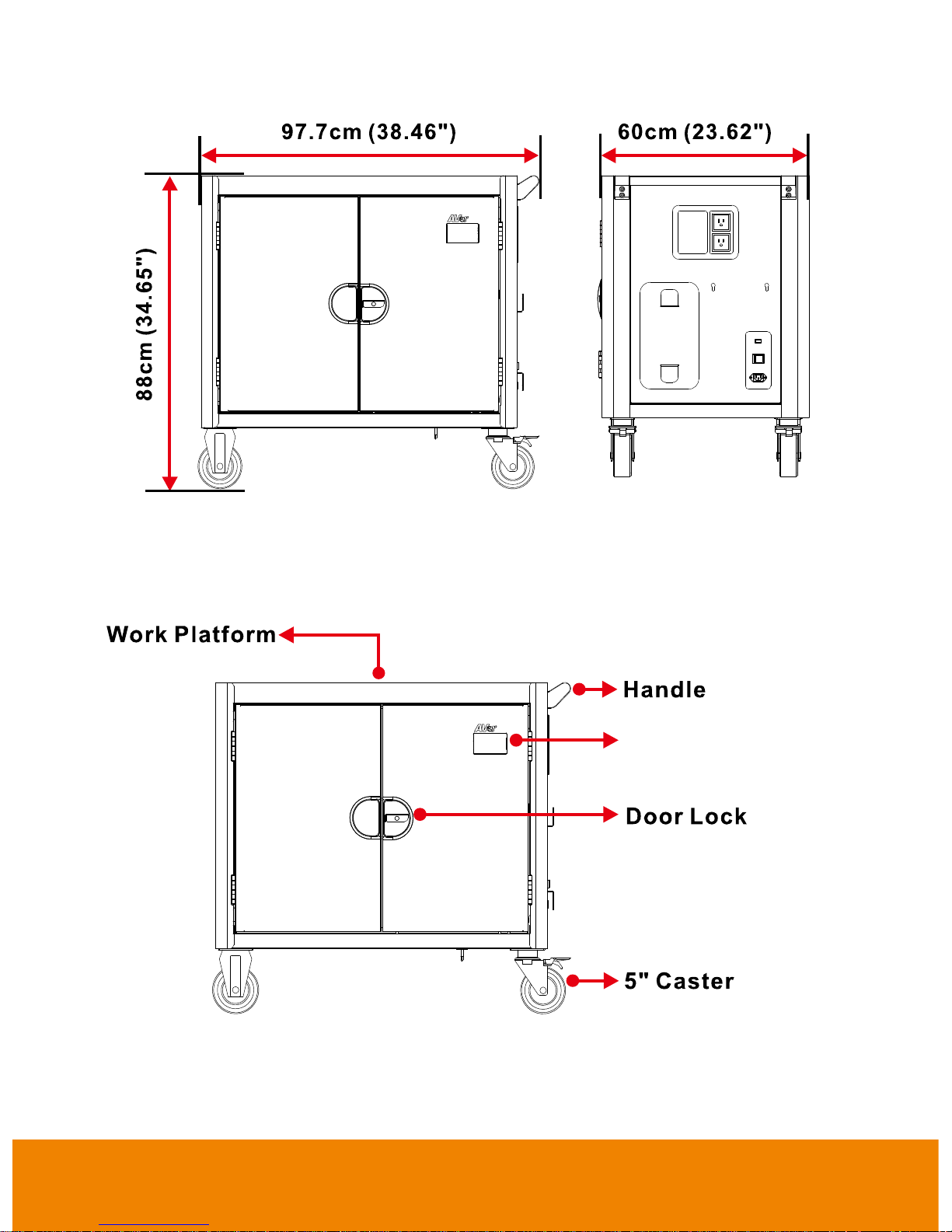

Dimensions
Diagram
Front
Name Card Holder
3

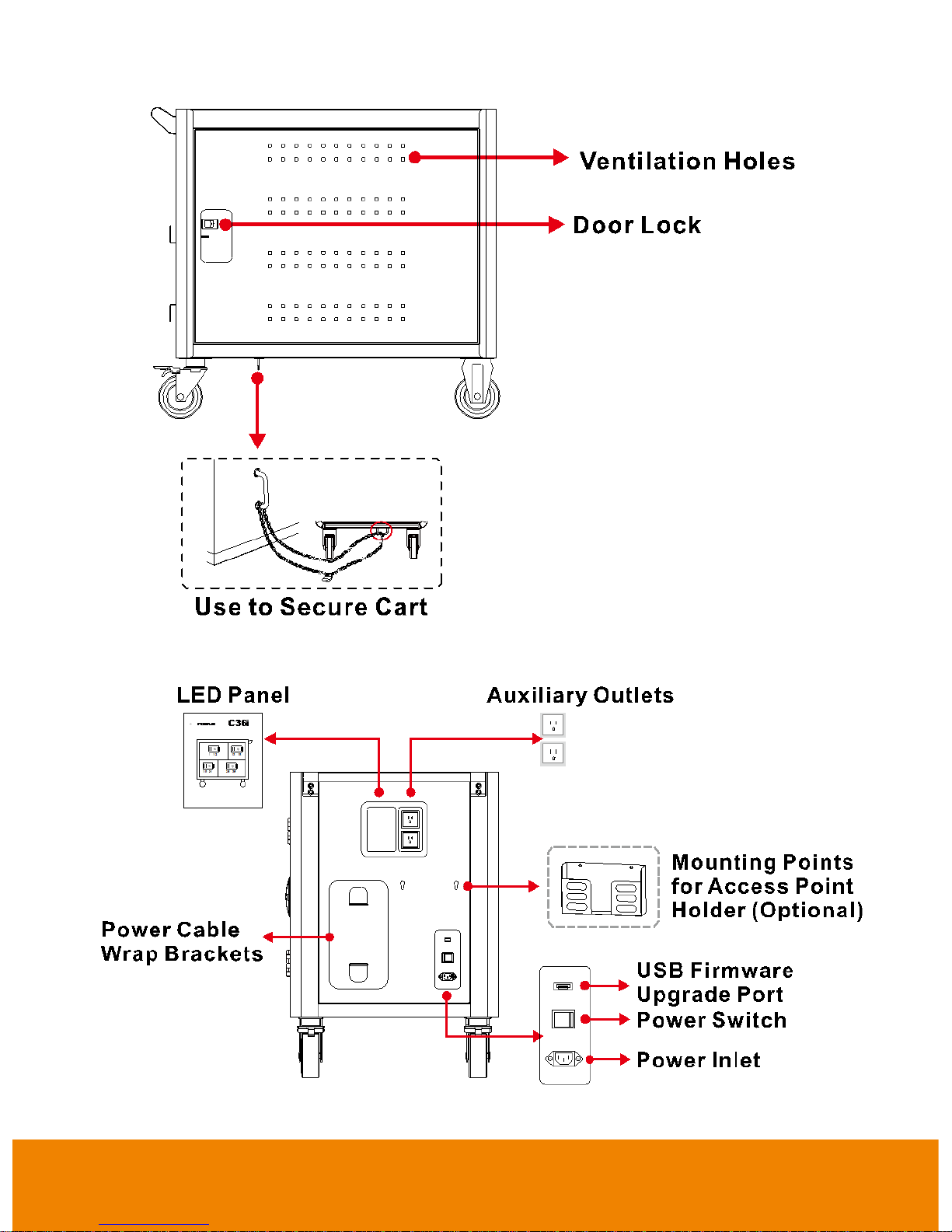

Back
Side
4
Door Lock
[Note]
The shackle dimension of front and back doors are limited to Ø 8mm (0.31”).
LED Indicators
LED
Signal
Power x1
1. Solid Green: ON
2. Solid Orange: Over Current
3. Red Blink: abnormal
(Call Support)
Device Status x4
1. OFF: No Charging
2. Solid Blue: Charging
5
Installation
[Note]
1. It is recommended to use cable ties (optional) to secure and manage cables.
2. It is recommended to allocate 2 human resources for efficient device cabling.

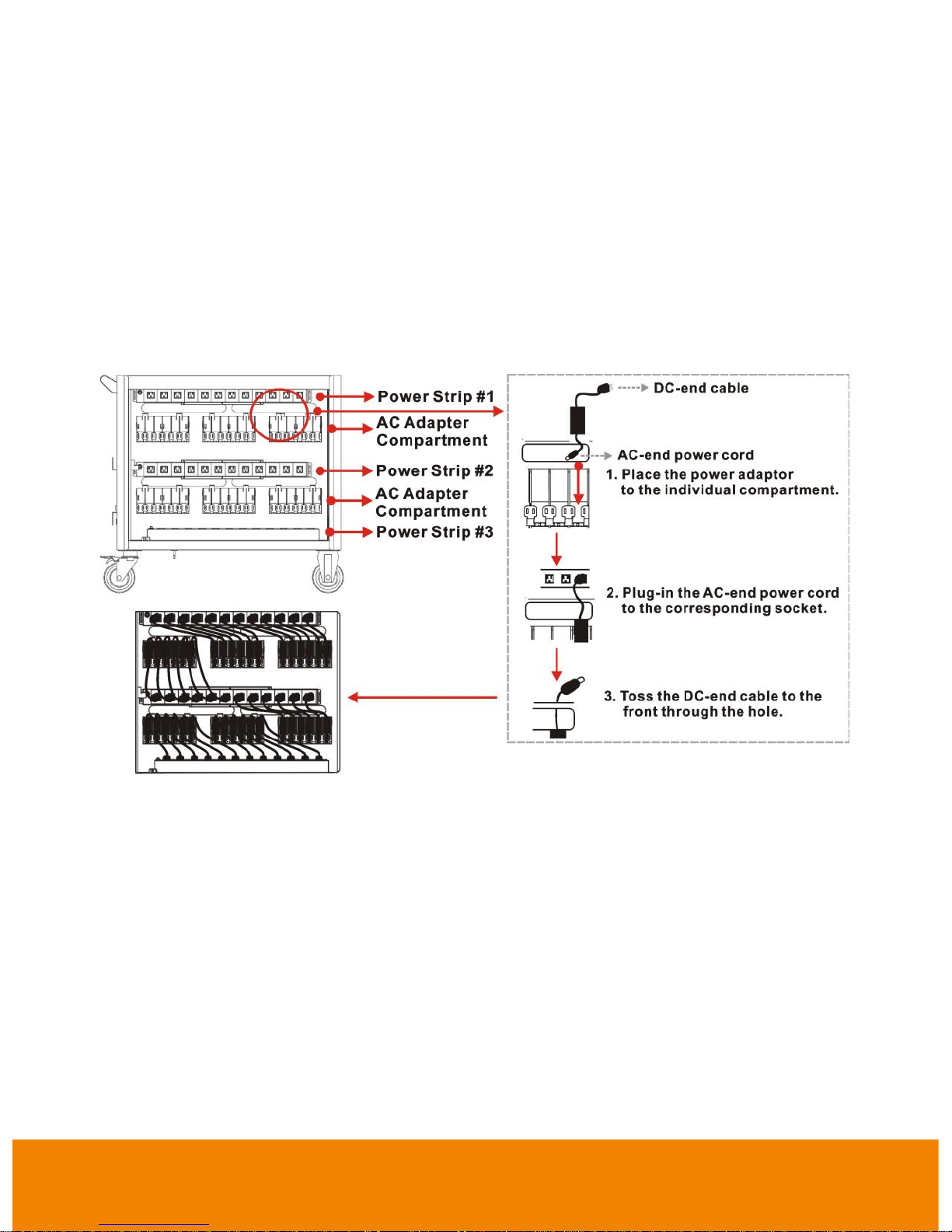

Cable Management
Back
1. Open rear door.
2. Pre-route the power adaptor cables to leave approximately 100cm (39.37”)
excess DC-end cable and 25cm (9.84”) excess AC-end power cord. Secure
the bundle cables with existing cable tie or zip-tie (not supplied).
3. Place the power adapter in to the individual adapter compartment.
4. Plug-in the AC-end power cord to the corresponding power AC socket.
5. Pass the DC-end of the adapter cable to the front of the cart through the
space provided.
[Note]
To be compatible with different power adaptor types, the bottom power strip #3 is
adjustable if necessary.
6

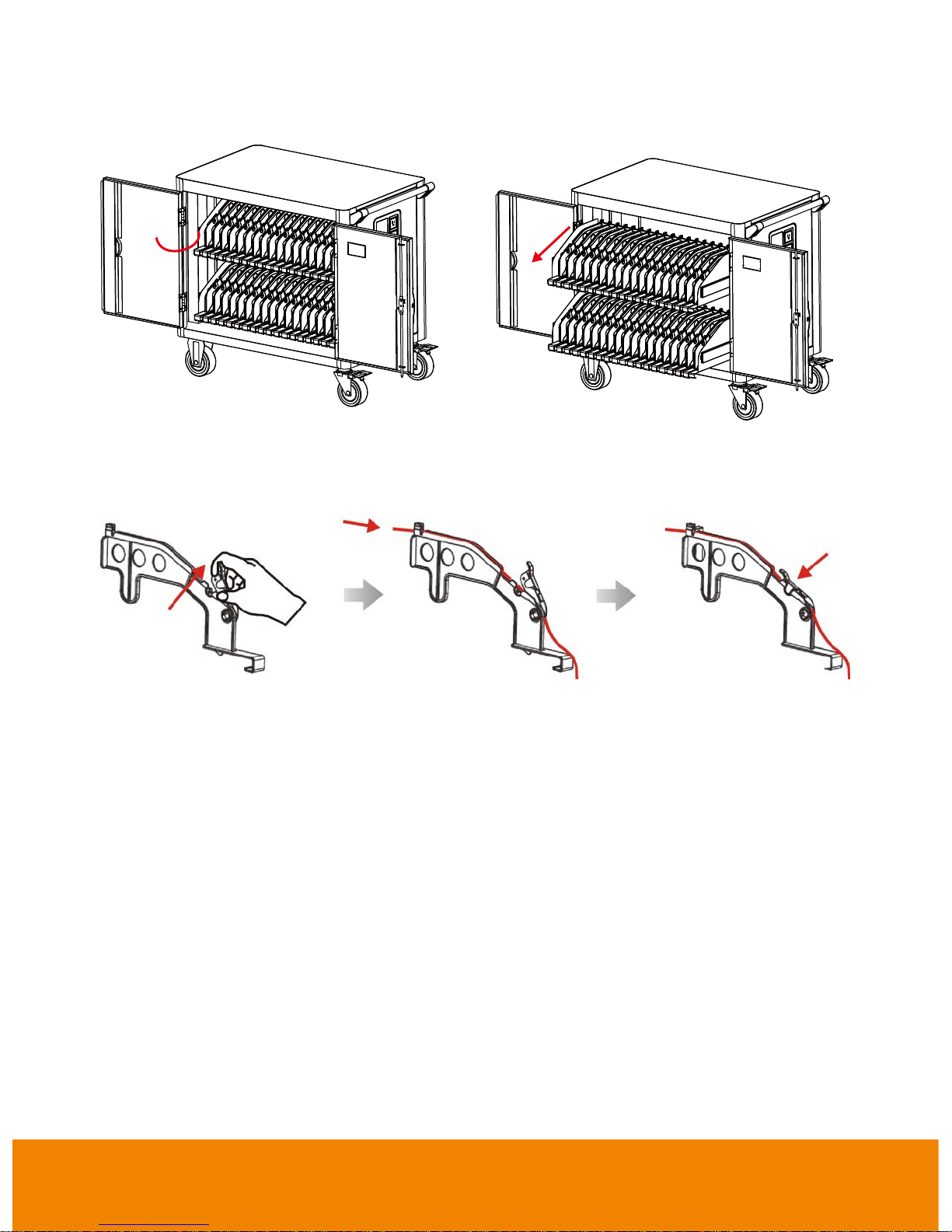

Front
180°
1. Open front double doors
2. Pull out each shelf until it is fully extended.
3. Release the Partition locking piece.
4. Route the adaptor DC-end cable. Along with the V-shape routing groove.
5. Snap the locking piece to firmly secure the DC-end cable.
6. Place the mobile device into the bay.
7. Plug in the DC-connector to the mobile device.
