Avery Dennison AP4.4 Bedienungsanleitung

04/09 Rev. 5.02-01 USER MANUAL

AP4.4 – AP5.4

Setup

Winding Diagrams ......................................... 2

AP4.4/AP5.4 Standard ............................. 2

AP5.4 with Internal Rewinder ................... 3

AP5.4 Dispenser ....................................... 4

Selecting Consumables ................................ 5

Label Stock ............................................... 5

Thermotransfer Ribbon ............................. 5

Inserting Label Stock ....................................6

AP4.4/AP5.4 Standard ............................. 6

AP5.4 Internal Rewinder ........................... 9

AP5.4 Dispenser ..................................... 10

Inserting Ribbon ..........................................11

If the roll is used up .....................................13

Material Stock End ...................................13

Ribbon End ..............................................13

Setting Printhead Support ...........................14

Parameter Settings ......................................15

Setting the Label Stock Parameters ........15

Index ............................................................16

04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

Winding Diagrams

The diagrams show the material and ribbon path through the AP4.4/AP5.4

under the following preconditions:

•Label stock is wound with the labels facing outwards

•Thermotransfer ribbon is wound with the colour side facing inwards.

¯CAUTION!-Inserting/Changingofribbonorlabel stock mayonly be done

by specially trained personnel!

AP4.4/AP5.4 Standard

Fig. 1: Material and Ribbon path in AP4.4/AP5.4.

No. Description

1 Ribbon rewinding mandrel

2Ribbon unwinding mandrel

3 Material strain relief

4Guide disk

5 Material roll

6Material guide

7 Light barrier fitting

8Print roller

9 Adjusting wheel for printhead support

10 Pressure lever

11 Ribbon deflection axis

Tab. 1:Operating parts of the AP4.4/AP5.4.

Bild_3/Z0194.cdr

04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

AP5.4 with Internal Rewinder

Fig. 2: Material and ribbon path through AP5.4 with internal rewinder.

No. Description

1 Ribbon rewinding mandrel

2Ribbon unwinding mandrel

3 Material strain relief

4Guide disk

5 Material roll

6Clip

7Rewinder

8Deflection tube

9 Material guide

10 Light barrier fitting

11 Deflection plate

12 Print roller

13 Adjusting wheel for printhead support

14 Pressure lever

15 Ribbon deflection axis

Tab. 2: Operating parts of the „AP5.4 Internal Rewinder“.

Bild_3/Z0194.cdr

91011

04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

AP5.4 Dispenser

Fig. 3: Material and ribbon path through „AP5.4 Dispenser“.

No. Description

1 Ribbon rewinding mandrel

2Ribbon unwinding mandrel

3 Material strain relief

4Guide disk

5 Material roll

6Clip

7Rewinder

8Deflection tube

9 Material guide

10 Light barrier fitting

11 Deflection plate

12 Dispensing edge

13 Adjusting wheel for printhead support

14 Pressure lever

15 Ribbon deflection axis

Tab. 3: Operating parts of the „AP5.4 Dispenser“.

Bild_3/Z0194.cdr

910

04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

Selecting Consumables

Label Stock

You need to pay attention to three factors when selecting a material:

– The abrasive wear behaviour of the material surface.

– The properties of the chemical reaction for colour transfer printing.

– The temperature necessary for colour transfer.

Abrasive

behaviour If the material is very abrasive, then the printhead will be abraded more

quickly than usual. This criterion is especially important in thermoprinting.

This is not so critical for thermotransfer printing, because here you can select

a ribbon that is wider than the material. This means that the printhead is pro-

tected over the entire width of the material.

Printhead

temperature Similar behaviour is found with high printhead temperatures. The material

and ribbon require longer to cool down, the print quality is more critical and

the printhead wears out more quickly.

Papers with a grammage greater than 240g may require corrections to the

application pressure and the position of the printhead.

Thermotransfer Ribbon

The following recommendation is made for ribbons:

– The reverse of the ribbon must have an antistatic and friction-reducing coa-

ting (backcoating).

– The ribbons must be specified as suitable for use with ‘flat head type’ prin-

theads.

– The ribbons should also be designed for speeds up to 8inch/sec

(200mm/s).

¯CAUTION!-Ribbonwithout thesepropertiescanreduce theperformance

of the printer and the print quality and also damage the printhead!

04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

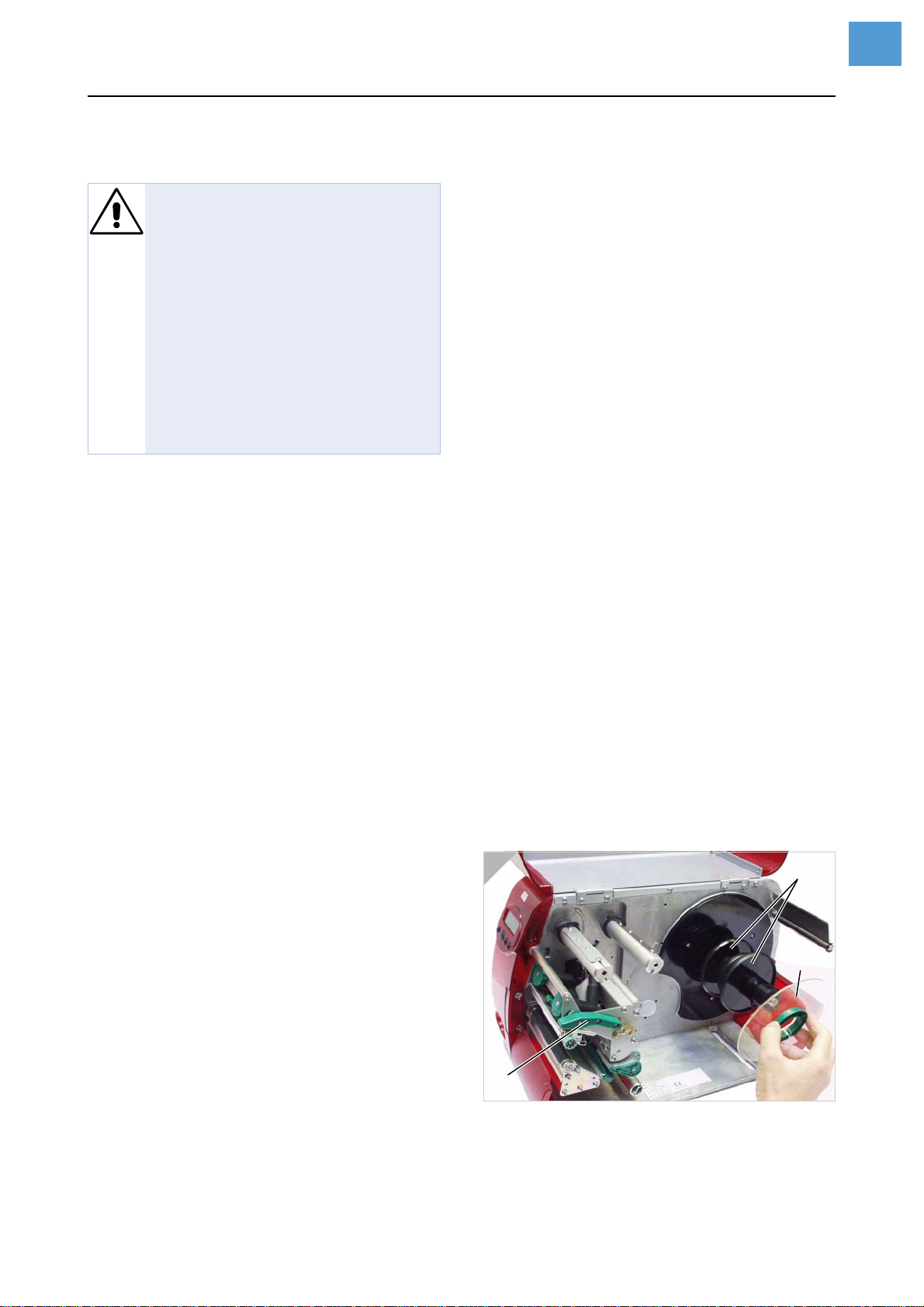

Inserting Label Stock

The AP4.4/AP5.4 can process both roll

and fan-folded material. Below is a descrip-

tion of how to insert material into the prin-

ter.

When using „AP5.4 Internal Rewinder“ or

„AP5.4 Dispenser“, the label web, respec-

tively the backing paper, must be threaded

back to the rewinder.

AP4.4/AP5.4 Standard

Inserting Roll Material

PYou can find the dimensions for suitable

material rolls listed in topic section “Speci-

fications” in paragraph “Technical Specif-

ications” / “Label Material”.

1. Open the front cover.

2. Release the printhead pressure lever (1) .

3. Pull off the external guide plate (2) from

the material roller.

4. Push the material roll onto the correctly

sized adapter disc (3) on the dispensing

roller. Push the guide plate back on.

¯The material roll must turn anti-clock-

wise when unwinding!

PContinued overleaf

WARNING!

Rotating shafts! – these can trap

and tear hair, clothes, and

jewellery.

«Keep long hair, loose clothing,

jewellery etc. away from the

machine!

«Close printer cover bevore printing.

During operation, the printhead

can become hot!

«Care should be taken when tou-

ching the printhead.







04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

5. Insert the material as shown (fig. 2).

¯Besuretoroutethematerialaroundthe

material stain relief (4) as well!

6. Push the material guide (5) up to the edge

of the material, without pinching the

material (fig. 3).

7. Slide the light barrier fitting using the grip

(6) until the pointer (7) is located above the

material perforations (fig. 4).

¯The optional reflex sensor is located

5mm to the right of the pointer below the

material!

8. Thermodirect printing: Close the pressure

lever. Thermotransfer printing: Insert rib-

bon next.

PSee the Abschnitt Inserting Ribbon auf

Seite 11.







04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

Inserting Fan-folded Material

As an alternative to roll material, you can

use fan-folded material:

1. Open the front cover.

2. Release the printhead pressure lever (1).

3. Position the fan-folded material behind the

printer (fig. 1).

4. Guide the material over the material

unwinder roller. Push the material guideup

to the edge of the material, without pin-

ching the material.

5. Continue by following steps 6 to 8 as des-

cribed above in section Inserting Roll

Material on page 6.

04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

AP5.4 Internal Rewinder

1. Insert the label web, as described further

above (section Inserting Roll Material on

page 6).

2. Thread the end of the label web to the

rewinder (1) as illustrated and fix it with the

clip (2) (fig. 1).

3. Choose the rotation direction of the rewin-

der (face inside or outside): Select para-

meter REWINDER PARA > Rewind

direction.

After switching the printer on, the rewinder

rotatesslowlyintothesetrotationdirection,

until the label web is pulled tight.

Possibly, the status message

appears, before the web is pulled tight.

«If this happens, press the online button to

acknowledge the message (if necessary

several times).

Status 5004

Rewinder mat. tear





04/09 Rev. 5.02-01 USER MANUAL Setup

AP4.4 – AP5.4

AP5.4 Dispenser

1. Insert the label web, as described further

above (section Inserting Roll Material on

page 6).

2. Pull the labels off the backing paper over a

stretch of 30cm from the end of the web

(fig. 1).

3. Press the red button (1) at the dispensing

edge to release the dispensing roll (fig. 1).

4. Take off the dispensing roll, feed the label

web through as illustrated (fig. 1) and

press the roll back between its bearings.

5. Thread the backing paper backwards to

the rewinder (2) as illustrated (fig. 2).

6. Fix the end of the backing paper web using

the clip (3).

7. Turn the rewinder counter clockwise, until

the backing paper is pulled tight.

After switching the printer on, the rewinder

rotates slowly, until the material web is pul-

led tight (fig. 3).

Possibly, the status message

appears, before the web is pulled tight.

«If this happens, press the online button to

acknowledge the message (if necessary

several times).

Status 5004

Rewinder mat. tear



2


