This Quick Reference contains supply loading and general care and maintenance

procedures. For more detailed information, the Operator’s Handbook is on the

enclosed CD-ROM or can be downloaded from our Web site (www.monarch.com).

Check our Web site for the latest release/addendum information.

Connecting the Cables

The power supply automatically switches between 115V or 230V. There are no

operator settings required.

1. Plug the power cable into the socket. Plug the other end of the cable into a

grounded electrical outlet.

2. Connect the communication cable into the appropriate

port. Secure the cable with the connecting screws (serial)

or spring clips (parallel).

If you are communicating with the host through the serial

port, make sure the printer's communication values match

those at the host. The factory default values are 9600

Baud, 8 bit data frame, 1 stop bit, no parity, and DTR flow

control. Set the communication values on the printer to

match those at the host.

The printer also has a USB (Universal Serial Bus)

version 2.0 communications port, which is compatible with

version 1.1. Drivers are available on our Web site

for a variety of operating systems. These drivers

provide a Virtual Communications Port (VCP),

which looks like a normal serial port (for

example, COM1-4). After installing the

drivers, change the communications port

to the one allocated by the VCP driver.

USB Port

Serial Port

Parallel Port

Power Cable

Goes Here

3. Turn on the printer. Press ( I ) to turn on

and ( O ) to turn off the printer.

Loading Tags or Labels

1. Open the cover.

2. Unlock the printhead by turning the retaining latch.

3. Lift printhead assembly using the printhead tab until the assembly locks into

place.

4. Place the roll of supply on the supply holder. For tags, make sure the supply

unrolls from the bottom, because tag rolls are wound face in. For labels, the

supply unrolls from the top or the bottom. Do not pick up the printer by the

supply holder.

5. Adjust the supply holder guides so the sides barely touch the roll. Make sure

the supply roll turns freely.

6. Push down on the supply lever to unlock the supply guides.

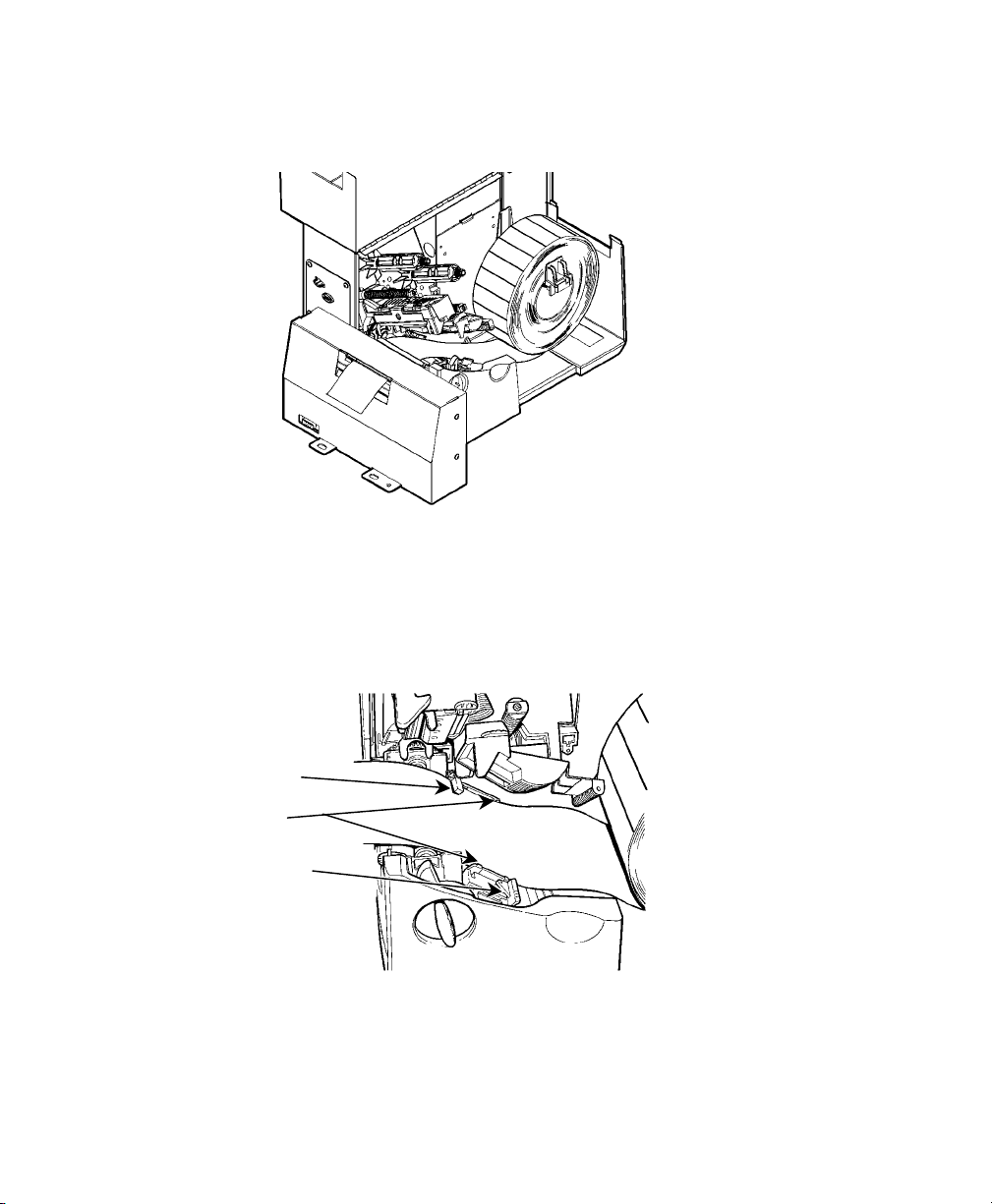

7. Lay the supply into the feed path. Tuck the supply under the nibs and in

between the die cut sensor. Do not feed supply between the supply roller

and deflector.

8. For tags or labels, feed the supply between the upper and lower knife guides

with at least 0.5 inches of supply through the knife.

For labels, your System Administrator should use cut mode 5 to cut in strips.

Refer to the Operator’s Addendum for more information. There may be one or

two blank labels left between the printhead and knife after the last batch.

Die Cut Sensor

Nibs

Supply Lever

9. Adjust the supply guides so they touch the supply. Push up on the supply lever

to lock the supply guides into place.

10. Hold the printhead assembly by the printhead tab while pressing down on the

printhead release.

11. Close the printhead by pressing down on the thumb well until you hear it click

into place.

12. Close the cover.

13. On the keyboard, press Feed (F) to position the supply under the printhead

and through the knife.

Adjusting the Wide/Narrow Knobs

You may need to adjust the two wide/narrow knobs according to the width of your

supply. For supply that is more than two inches, adjust the knobs to the wide

setting. For supply that is two inches or less, adjust the knobs to the narrow

setting.

You must adjust both of the knobs to the

same position.

If you experience ribbon smudging in

cold, dry environments, adjust the

wide/narrow knobs to the wide setting.

For wide supplies, push down and turn

the wide/narrow knobs clockwise with a

screwdriver.

For narrow supplies, turn the

wide/narrow knobs counter-clockwise

with a screwdriver until it pops back up.

The adjustment is shown in the wide

position.

Loading Ribbon

1. Open the cover.

2. Unlock the printhead by turning

the retaining latch.

Printhead

Tab

Deflector

Tab

3. Lift printhead assembly using the

printhead tab until the assembly locks

into place.

4. Push the deflector tab down.

5. Slide the extra ribbon core on

the take-up reel as far as it will

go with the "This End Out" writing

facing out. Use your empty ribbon core

as the take-up core. The take-up core

only fits on the take-up reel one way.

6. Remove the new ribbon from the package. Do not wrinkle or crush the new

ribbon.

7. Slide the ribbon onto the back reel as far as it will go. The ribbon roll only fits

on the reel one way. Carefully unwind a few inches of ribbon from the bottom

of the roll.

Note: Make sure the “Monarch This

End Out” writing is facing out.

The ribbon roll only fits on the

reel one way.

8. Carefully feed the ribbon under

both ribbon rollers and printhead.

9. Align the ribbon and make sure it is

straight and centered throughout

the path.

10. Tape the ribbon to the take-up

Do not tape the ribbon to the

take-up reel.

Rotate the ta

core.

11. ke-up core until the leader is past the printhead.

ckwise.

Ribbon

Rollers

Take-up

Reel

Take-up

Core

12. Remove any slack in the ribbon by turning the take-up reel clo

13. Hold the printhead assembly by the printhead tab while pressing down on the

printhead release.

14. Close the printhead by pressing down on the thumb well until you hear it click

into place. Close the cover.

Printing

Before you print, make sure the printer is connected and ready to receive data.

1. Turn on the printer. The printer is ready to receive and print batches when you

see “PRINT MODE Ready” on the keyboard.

2. Download a format and a batch. Refer to the optional Packet Reference

Manual for information on downloading print jobs.

3. The printer prints the format.

4. Remove the printed supply. If the printer will be unused for extended periods

of time, we recommend leaving the printhead unlatched.

Clearing Jams

When you are printing and a jam occurs, an error appears on the keyboard.

1. Turn off the printer and open the cover and printhead assembly.

2. If necessary, remove the supply roll and ribbon.

3. Remove the jammed supply and reload the supply roll.

4. Close the printhead assembly and turn on the printer.

5. On the keyboard, press Feed (F) to position the supply under the printhead.

Knife Maintenance

The knife alerts you when it requires maintenance. When the knife reaches three

million cuts and the printer is turned on, the keyboard briefly displays

Service Knife Soon

Each time you turn on the printer, this message appears and then disappears. Call

Service to schedule an appointment for knife maintenance.

If you ignore this message, the printer eventually displays “Knife Jam” and the knife

stops working. You must press Escape (E) to clear the error and the knife may

cut a few more tags before it stops working.

Cleaning

You must clean the printhead as described below to maintain printhead life.

CAUTION: Do not use sharp objects to clean the printhead or touch the printhead.

This may damage the printhead and require a service charge.

The rate and frequency at which you print determines how often you must clean the

printer. You may need to clean the printhead, sensor, and platen roller:

♦ if there is any adhesive build-up in the supply path.

♦ after printing approximately 3 rolls of thermal transfer/thermal

direct supplies or after each ribbon.

♦ daily if your printer is in an excessively dirty, hot, or humid

environment. Voids

♦ if you frequently receive supply error codes or when you see

voids or streaking in the print as shown.

1. Turn off the printer and open the cover and printhead assembly. Streaks

2. Remove the label roll and ribbon (when cleaning the printhead).

3. Clean the platen roller when you see significant adhesive build-up or a label is

wrapped around the platen roller. Use a dry, soft-bristle brush, such as a

toothbrush, to clean either the standard (black) or linerless (red/orange

textured) platen roller.

If the brush does not remove all the adhesive

♦ use isopropyl alcohol ONLY on the standard (black) platen roller.

Moisten a cotton swab with isopropyl alcohol and run the cotton swab

across the platen roller. Turn the platen roller with your finger to

make sure the platen roller is clean all the way around.

After cleaning, feed several inches of supply through without printing

to remove any remaining isopropyl alcohol.

♦ call Service to clean the linerless (red/orange textured) platen roller.

Note: Do not use alcohol or solvents on linerless (red/orange textured) platen

rollers.

4. Rub the cotton swab moistened with isopropyl alcohol across the peel bar and

remove any build-up.

Andere Avery Dennison Etikettendrucker Handbücher

Avery Dennison

Avery Dennison FRESHMARX 9415 Bedienungsanleitung

Avery Dennison

Avery Dennison Monarch 1115 Bedienungsanleitung

Avery Dennison

Avery Dennison ALS 341 Bedienungsanleitung

Avery Dennison

Avery Dennison TTX 450 Fehlerbehebungshandbuch

Avery Dennison

Avery Dennison PB-XL Bedienungsanleitung

Avery Dennison

Avery Dennison AP3.4 Fehlerbehebungshandbuch

Avery Dennison

Avery Dennison FRESHMARX 9415 Bedienungsanleitung

Avery Dennison

Avery Dennison Monarch FreshMarx 9417+ Solution Service-Handbuch

Avery Dennison

Avery Dennison 230 RH Leitfaden

Avery Dennison

Avery Dennison ALS 230 Bedienungsanleitung

Avery Dennison

Avery Dennison Label Printer Bedienungsanleitung

Avery Dennison

Avery Dennison SNAP 500 Bedienungsanleitung

Avery Dennison

Avery Dennison Pathfinder 6059 Bedienungsanleitung

Avery Dennison

Avery Dennison SNAP 700 Bedienungsanleitung

Avery Dennison

Avery Dennison Monarch 9844 Service-Handbuch

Avery Dennison

Avery Dennison Monarch 1130 Series Bedienungsanleitung

Avery Dennison

Avery Dennison SNAP 500 Bedienungsanleitung

Avery Dennison

Avery Dennison 221 RH Bedienungsanleitung

Avery Dennison

Avery Dennison ALS 204 Bedienungsanleitung

Avery Dennison

Avery Dennison Monarch ADTP2 EcoCut Bedienungsanleitung

Avery Dennison

Avery Dennison AP5.4 Gen II Fehlerbehebungshandbuch

Avery Dennison

Avery Dennison Labelers 1103-1110 Bedienungsanleitung

Avery Dennison

Avery Dennison ALX 92x Bedienungsanleitung

Avery Dennison

Avery Dennison AP5.4 Bedienungsanleitung

Beliebte Etikettendrucker Handbücher anderer Marken

Brother

Brother P-Touch 2420PC Bedienungsanleitung

newell

newell Dymo LabelManager 210D Bedienungsanleitung

Brother

Brother TD-4000 Bedienungsanleitung

U-Line

U-Line BROTHER H-8754 Bedienungsanleitung

Tharo Systems

Tharo Systems H-435+ Bedienungsanleitung

Brother

Brother E300 Bedienungsanleitung

Godex

Godex RT700 SERIES Bedienungsanleitung

ID Technology

ID Technology 252 Bedienungsanleitung

Labelmate

Labelmate MC-11 Bedienungsanleitung

CAB

CAB XD4M/300 Bedienungsanleitung

Brother

Brother P-touch PT-9700PC Bedienungsanleitung

TSC

TSC PEX1000 Series Bedienungsanleitung

Adkins

Adkins Label Master Bedienungsanleitung

Epson

Epson LabelWorks LW-400 Bedienungsanleitung

Primera

Primera 510212 Bedienungsanleitung

Brady

Brady BradyPrinter S3100 Bedienungsanleitung

DuraLabel

DuraLabel LabPRO Bedienungsanleitung

Novexx Solutions

Novexx Solutions XLP 604 Bedienungsanleitung
