Avery Dennison Monarch 9864 Bedienungsanleitung

Quick

Reference

Quick

Reference

Monarch

Printer

98 4™

Each product and program carries a respective written warranty, the only

warranty on which the customer can rely. Avery Dennison reserves the right to

make changes in the product, the programs, and their availability at any time

and without notice. Although Avery Dennison has made every effort to provide

complete and accurate information in this manual, Avery Dennison shall not be

liable for any omissions or inaccuracies. Any update will be incorporated in a

later edition of this manual.

publication may be reproduced, transmitted, stored in a retrieval system, or

translated into any language in any form by any means, without the prior written

permission of Avery Dennison Corporation.

WARNING

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for radio noise

emissions from digital apparatus set out in the Radio Interference Regulations

of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de la classe A prescrites dans

le Réglement sur le brouillage radioélectrique édicte par le ministère des

Communications du Canada.

Trademarks

Monarchand 9864 are trademarks of Paxar Americas, Inc.

Avery Dennison® is a trademark of Avery Dennison Corp.

Avery Dennison Printer Systems Division

170 Monarch Lane

Miamisburg, OH 45342

Visit www.monarch.com for sales, service, supplies, information, and telephone

numbers for our International locations.

TOLL FREE:

1-800-543-6650 (U.S.A.)

1-800-363-7525 (Canada)

06/08 Rev. AA QUICK REFERENCE Getting Started

9864

Using the Printer

This Quick Reference contains supply loading and general care and

maintenance procedures. For more detailed information, refer to the

Operator’s Handbook on the CD-Rom included with your printer.

«Review the safety information in the Regulatory Compliance document on the

CD-Rom before you begin.

Connecting the printer

1. Turn the printer power switch to “0” (off).

2. Connect the printer to the power supply using the cable provided.

3. Using the data cable supplied, connect the Centronics interface on the

printer to the host computer.

[1] Sockets for the Centronics cable (A) and power cable (B) on a 9864.

4. Turn on the printer using the power switch (set to position “1”). You see the

following sequence of messages:

WARNING!

Touching live electrical parts causes exposure to hazardous electrical

currents and may lead to burns.

«Turn off the printer before connecting the power cable.

«Only operate the printer using the system voltage indicated on the

nameplate.

«Only connect the printer to a grounded power socket fitted to authorized

standards.

«Connect the power cable so that

– no one trips or steps on it

– the power plug can be easily removed if necessary.

System start... The boot loader is starting.

System start...

Start user prog

Valid firmware recognized, program starts.

06/08 Rev. AA QUICK REFERENCE Getting Started

9864

¯When the parameter SYSTEM PARAMETER > Active Mode is set to Offline, the printer

switches directly to offline mode when turned on.

¯CAUTION! - Wait at least 10 seconds between turning the printer off and on,

because any modified parameter settings are not saved.

9864

V 4.10

Printer type

Version number of the printer firmware

Memory: 64 MB

Flashcard: 32 MB

Internal RAM (for example: 64 MB)

Optional RAM on the Compact Flash card (for

example: 32 MB) – only displayed when a Compact

Flash card is in use.

OFFLINE 0 JOBS

Initialisation

Offline mode

ONLINE 0

JOBS

Online mode. The unit is ready for printing.

06/08 Rev. AA QUICK REFERENCE Getting Started

9864

Using the operator panel

[2] Operator panel

Display With 32 digits and two lines, the display shows the operating conditions

(modes) for parameters, values, status and errors. You can select the display

language. Backlighting ensures good legibility.

Button functions The buttons offer a multitude of operating functions. A logical menu structure

is used for operation. The meaning of each button varies according to the

operating mode and the menu item. Additionally, special functions have been

programmed for certain button combinations.

Online button ySwitches between online and offline mode.

yConfirms entries, menu items and messages.

ySelects print jobs and enters values in standalone mode.

Cut button yTriggers a cut. Requirements:

– Cutter installed and activated.

– Printer offline.

yScrolls down through the menu and selects menu items.

yDecreases values.

Feed button yFeeds the material when the device is offline.

yStarts printing once the feed has been stopped (in online mode).

yScrolls up through the menu and selects menu items.

yIncreases values.

Prog button yAccesses the parameter menu when offline.

yReturns to previous menu item and/or exits the menu.

Display

Cut button

Online button

Feed button

Prog button

06/08 Rev. AA QUICK REFERENCE Getting Started

9864

yFor more detailed descriptions of the button functions, see “Creating a print

job” or refer to Info-Printouts and Parameters section on the CD-Rom.

Remote operator

panel

The printer can be equipped with a remote operator panel. The printer must

provide the appropriate optional connector. Refer to the Operator’s

Handbook for more information.

The button functions are the same as those on the standard operator panel.

Exception: The on/off switch is not available at the remote control panel.

With the remote control panel connected, both panels are active and show

the same information.

[3] Remote operator panel (article number 160005)

CAUTION!

Using both operator panels at the same time can cause malfunctions.

«Use only one operator panel at a time to operate the printer.

CAUTION!

If the connection cable is longer than 2.5 m, EMC-caused disturbances can

occur.

«Only use the factory-installed cable.

«Do not extend the cable.

06/08 Rev. AA QUICK REFERENCE

9864

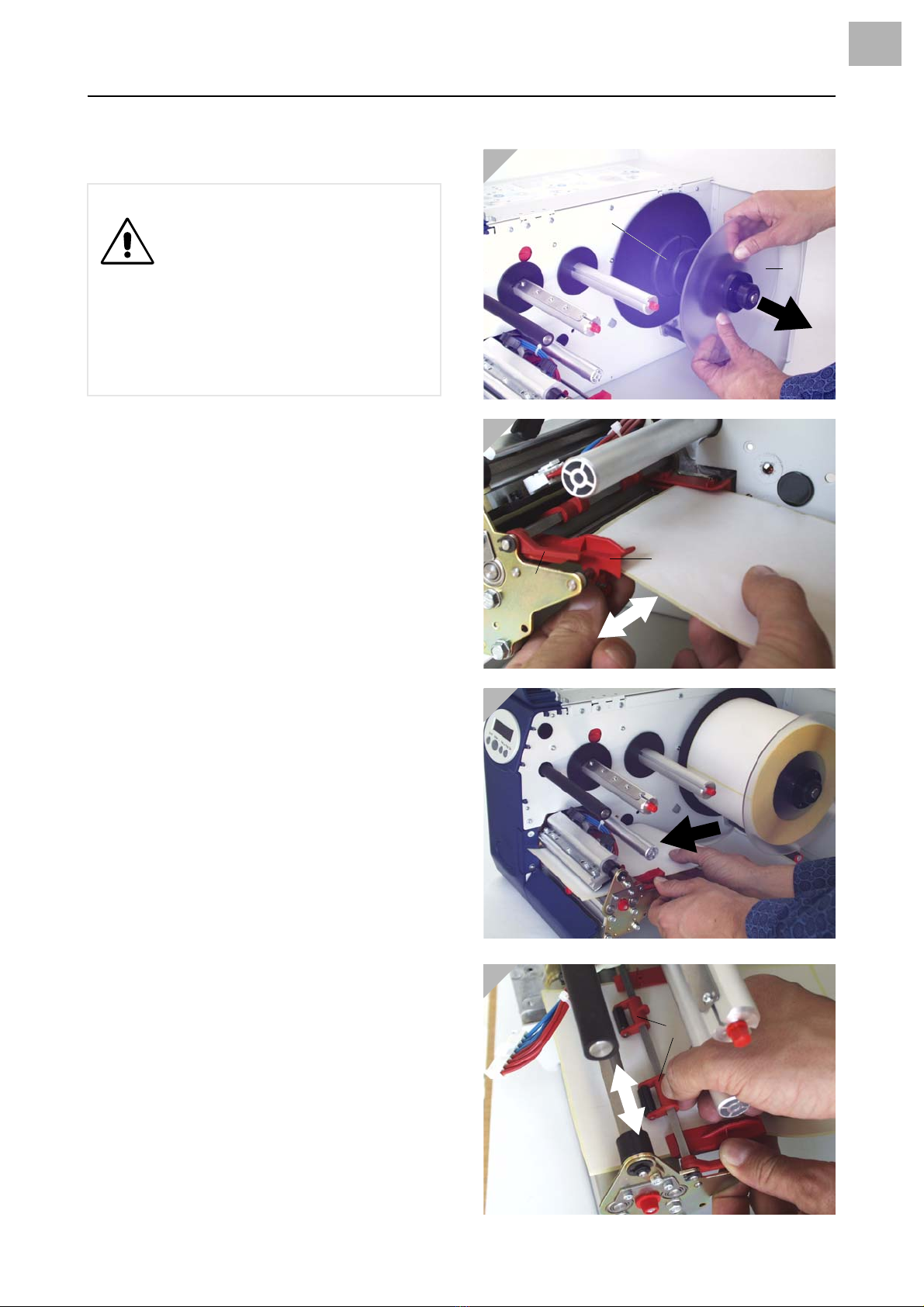

Loading material

1. Open the cover.

2. Pull off the outer guide disk (1) of the

unwinder (2).

3. Place the material on the unwinder with

the corresponding adapter rings. The

material roll should turn counter-clockwise

when unwinding.

4. Replace the outer guide disk of the

unwinder.

5. Lay the material around the dancer arm.

6. Set the material guide to the material

width. Loosen the thumb screw on the

underside of the front material guide (3).

Push the material guide sideways. Tighten

the thumb screw (Fig. 2).

7. Press the red or green opener (4) of the

intake to raise the pad rollers. Press and

hold the opener and push the material

through the material guide until it is below

the printhead (Fig. 3).

8. Align the material so that it is straight.

While holding down the loading lever,

position the pad rollers so that both rollers

(5) sit symmetrically on the material. (The

printhead has been removed in Fig. 4 to

allow a better view).

CAUTION!

Rotating axles! These can pull

in and tear off hair, clothing

and jewelry.

– Do not operate the printer with

the cover open!

– Keep long hair, loose clothing,

jewelry etc. away from the

printer!











06/08 Rev. AA QUICK REFERENCE

9864

Dispensing model only:

9. Guide the material under the dispenser

roller (1).

10. Remove the labels from the first 10 inches

of backing paper (Fig. 1).

11. Press down on the locking lever (Fig. 2)

and turn it half a revolution to the rear.

12. Pull the drawing module (2) all the way out

(Fig. 3).

13. Guide the backing paper under the print

module to the rear (Fig. 4).

PContinued on next page.





06/08 Rev. AA QUICK REFERENCE

9864

14. Guide the backing paper around the feed

roller (1) and guide pins (2) of the drawing

module to form an S shape (Fig. 1).

15. Replace the drawing module (Fig. 2).

¯When replacing, the

locking lever must point to the

right (half a revolution open).

Do not lock it until the drawing

module has been pushed in all the way!

16. Wrap the end of the backing paper

clockwise around the takeup reel (3) and

secure it with the clip (4) (Figs. 3 and 4).

17. Position the block bearing and the

pressure roller (5) in the middle of the

backing paper.

¯This keeps the backing paper in place

around the dispensing edge!

18. Lock the locking lever (Fig. 4).











06/08 Rev. AA QUICK REFERENCE

9864

Loading fan-folded material

1. Set the outer disk of the material unwinder to the material width.

2. Pull the material through the inlet opening (1) to the material guide

printing side up.

3. See “Loading material” to continue.

[1] Pull the fan-folded

material through the inlet

opening in the rear side

and see “Loading

material” to continue.


