Avid Technology KeyRig 49 Referenzhandbuch

PROCEDURE

Procedure P/N:

1069-65019-00

Title:

KeyRig 49 Testing Procedure

Revision: A Page 1 of 4

UNCONTROLLED DOCUMENT when printed or copied

Date Printed: 3/16/2010

Form: 0150-30027-01 Rev C

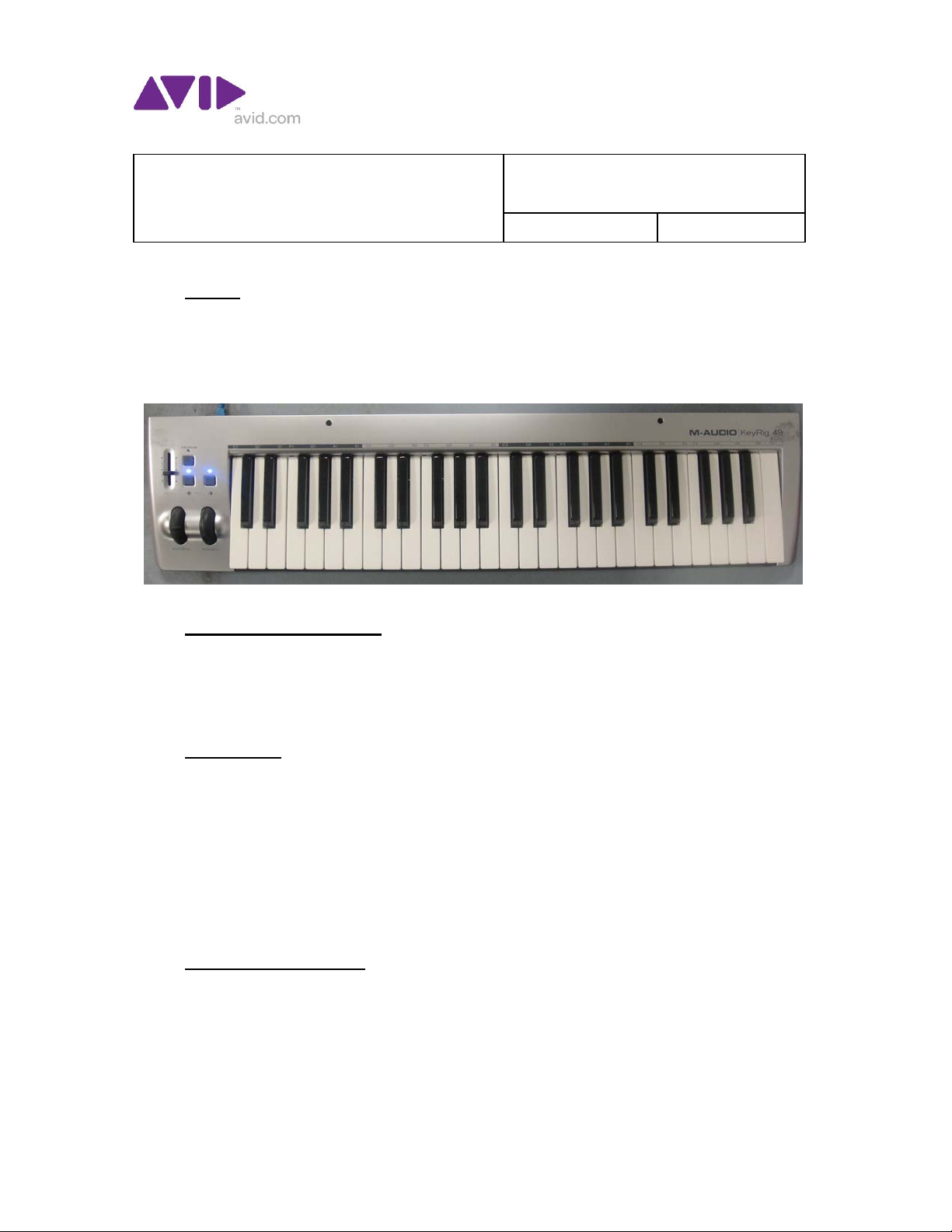

1.0 Scope

This procedure defines the method required to test:

•9900-52239-10 KeyRig 49 – No Power

•8250-10009-31 KeyRig 49 – No Power - ROHS

2.0 Reference Documents

2.1 M-Audio Dealer Check in sheet

2.2 M-Audio Scrap log

2.3 M-Audio RTV Log

3.0 Equipment

3.1 Software (Midi OX)

3.2 Midi cable x2

3.3 Oxygen 8v2

3.4 MIDISPORT 2x2

3.5 SP-2 sustain pedal

4.0 Process Description

4.1 The KeyRig 49 needs to be in the “like new” state: all buttons

released, in the up position, all knobs turned to the left, and the

product turned OFF.

4.2 The KeyRig 49 is OFF.

PROCEDURE

Procedure P/N:

1069-65019-00

Title:

KeyRig 49 Testing Procedure

Revision: A Page 2 of 4

UNCONTROLLED DOCUMENT when printed or copied

Date Printed: 3/16/2010

Form: 0150-30027-01 Rev C

4.3 The computer is ON.

4.4 Connect the KeyRig to the computer with a USB cable.

4.5 Press and hold the 2 Octave buttons on the front left of the KeyRig

while powering on the unit to reset the KeyRig 49. The 2 blue lights

above the Octave buttons should come on.

4.6 Launch the MIDI OX program on the computer.

4.7 In the top Nav bar select OPTIONS – MIDI Devices.

PROCEDURE

Procedure P/N:

1069-65019-00

Title:

KeyRig 49 Testing Procedure

Revision: A Page 3 of 4

UNCONTROLLED DOCUMENT when printed or copied

Date Printed: 3/16/2010

Form: 0150-30027-01 Rev C

4.8 In MIDI Devices – in the MIDI Inputs field, select 1) KeyRig 49 In.

4.9 In the MIDI Outputs field, select 2) Microsoft GS Wavetable SW

Synth.

4.10 In the Port Mapping field, it should display Microsoft GS Wavetable

SW Synth.

4.11 Click OK.

4.12 Test each key on the keyboard with multiple taps. Check for sound

and corresponding data output in MIDI OX on the computer.

4.13 Test MODULATION wheel: hold down a key and slide the wheel up

and down. The sound should modulate. Check for data output in

MIDI OX.

4.14 Test PITCH BEND wheel: hold down a key and slide the wheel up

and down. The sound should vary in pitch. Check for data output in

MIDI OX.

4.15 Test the OCTAVE buttons: tap a key simultaneously with buttons to

hear the note ascend and descend. Check for data output in MIDI

OX.

4.16 Test the Volume slider for sound response.

4.17 Push the Edit Mode button.

4.18 Press the F2 key on the keyboard.

4.19 Check all keys on the keyboard for alternate percussion sounds.

4.20 Press Edit Mode button.

4.21 Press any key on the keyboard to exit the alternate Edit Mode.

4.22 On the computer, close MIDI OX.

4.23 Unplug the USB cable.

4.24 Turn off the KeyRig 49.

5.0 Revision History

Rev

Change Description Created/

Revised By

Date

PROCEDURE

Procedure P/N:

1069-65019-00

Title:

KeyRig 49 Testing Procedure

Revision: A Page 4 of 4

UNCONTROLLED DOCUMENT when printed or copied

Date Printed: 3/16/2010

Form: 0150-30027-01 Rev C

Inhaltsverzeichnis

Andere Avid Technology Aufnahmegeräte Handbücher

Avid Technology

Avid Technology Mbox Pro Bedienungsanleitung

Avid Technology

Avid Technology Stage 48 Bedienungsanleitung

Avid Technology

Avid Technology AvidDock Bedienungsanleitung

Avid Technology

Avid Technology Artist Series Bedienungsanleitung

Avid Technology

Avid Technology Nitris Leitfaden

Avid Technology

Avid Technology MEDIArray ZX4 Bedienungsanleitung

Avid Technology

Avid Technology Pro Tools HD Native Thunderbolt Bedienungsanleitung

Avid Technology

Avid Technology Stage 48 Bedienungsanleitung

Avid Technology

Avid Technology Artist DNxIV Betriebsanleitung

Avid Technology

Avid Technology MC Transport Bedienungsanleitung

Avid Technology

Avid Technology Dock Handbuch

Avid Technology

Avid Technology M-Audio Fast Track Bedienungsanleitung

Avid Technology

Avid Technology Pro Tools MTRX Bedienungsanleitung

Avid Technology

Avid Technology Pro Tools Carbon Bedienungsanleitung

Avid Technology

Avid Technology S3 Bedienungsanleitung

Avid Technology

Avid Technology M-Audio ProFire 610 Bedienungsanleitung

Avid Technology

Avid Technology Fast Track Solo Bedienungsanleitung

Avid Technology

Avid Technology Pro Tools S6 Master Post Module Bedienungsanleitung

Avid Technology

Avid Technology Pro Tools SYNC X Bedienungsanleitung

Avid Technology

Avid Technology Pro Tools S6 Master Post Module Bedienungsanleitung

Avid Technology

Avid Technology KeyRig 25 Bedienungsanleitung

Avid Technology

Avid Technology DigiDesign Surround Panner Option Bedienungsanleitung

Avid Technology

Avid Technology VENUE S6L Bedienungsanleitung

Avid Technology

Avid Technology Digidesign USD Bedienungsanleitung
