AVLink HDMI-LN Bedienungsanleitung

HDMI EXTENDER

HDMI-LN

(Local)

HDMI-RN

(Remote)

USER MANUAL V1.3

Package Contents for HDMI-EN

1x HDMI-LN Local Unit

1x HDMI-RN Remote Unit

1x User manual

2x Power adapter DC 12V/600mA

1x HDMI 1.2M cable

1x IR Blaster (Peak Wavelength 940nm)

<<HDMI-EN supports 38KHz Infrared-Rays signal only; not compatible with all IR

Remote Controllers.>>

1x IR BOX

Package Contents for HDMI-RN

1x HDMI-RN Remote Unit

1x User manual

1x Power adapter DC 12V/600mA

1x HDMI 1.2M cable

1x IR BOX

Any thing missed, please contact with your vendor.

Features

Through the HDMI Extender, you can use one DVD to display identical image and extension

of HDMI signal up to 100 meter on HDTV.

HDMI compliant.

HDCP compliant.

High-performance encoder and decoder.

Use CAT.5 cable to install easily.

Specifications

Function HDMI-LN HDMI-RN

HDMI In/Out Connector HDMI A-Type Female x 1

RJ-45 Connector 1

IR BLASTER 3.5ψStereo Jack x 1 None

EXT. IR None 3.5ψStereo Jack x 1

Max. Resolution 1080P 60Hz

Cable Distance 100 m (Max.)

Power Adapter (Min.) DC 12V 600mA

Housing Aluminum

Weight 135g 140g

Dimensions (LxWxH) 135.5x130x25 mm

LOCAL FRONT VIEW

1. Link LED

2. Data LED

3. Power LED

LOCAL REAR VIEW

1. Power jack

2. CAT.5 (RJ-45 Connector)

3. IR BLASTER

4. HDMI In

5. Reset Button

REMOTE FRONT VIEW

1. IR Receiver

2. Link LED

3. Data LED

4. Power LED

REMOTE REAR VIEW

1. Power jack

2. CAT.5 (RJ-45 Connector)

3. EXT. IR

4. HDMI Out

5. Reset Button

Installation

1. Turn off the DVD and HDTV.

2. Connect the HDMI extension cable between the DVD and the “HDMI In” port of HDMI-LN.

3. Connect the HDMI extension cable between the HDTV and the “HDMI Out” port of HDMI-RN.

4. Connect the CAT.5 cables between the HDMI-LN “CAT.5” port and the HDMI-RN “CAT.5” port

of extender.

5. Connect the power cord and turn on the extender.

6. Turn on the DVD and HDTV.

IR-BOX Directions:

Put it into the HDMI-RN “EXT. IR” port and place the IR-BOX, so that you can point to it easily

with your IR remote controller.

IR BLASTER Directions:

Plug IR blaster plug into HDMI-LN “IRBLASTER” port, It sits in front of the DVD receiver’s IR

sensor, which is located on the front-panel.

Additional Options

Select any additional options you may require.

1. IR-BOX

GND

Sig

2. IR BLASTER

P+

N-

Support Resolution

Resolution Frequency(Hz)

720x400 70

640x480 60 / 67 / 72 / 75

848x480 60

800x600 56 / 60 / 72 / 75

832X624 75

1024x768 60 / 70 / 75

1152x864 75

1152x870 75

1280x960 60

1280x1024 60 / 75

1360x768 60

1440x900 60 / 75

1440x1050 60

1680x1050 60

480p 60

576p 50

720p 50 / 60

1080p 24 / 25 / 30 / 50 / 60

Technical Specifications

Input/Output Signal

Pin # Signal Pin # Signal

1 TMDS Data 2+ 11 TMDS Clock Shield

2 TMDS Data 2 Shield 12 TMDS Clock -

3 TMDS Data 2- 13 CEC

4 TMDS Data 1+ 14 Reserved

(N.C. on device)

5 TMDS Data 1 Shield 15 SCL

6 TMDS Data 1- 16 SDA

7 TMDS Data 0+ 17 DDC/CEC Ground

8 TMDS Data 0 Shield 18 +5 Power

9 TMDS Data 0- 19 Hot Plug Detect

10 TMDS Clock+

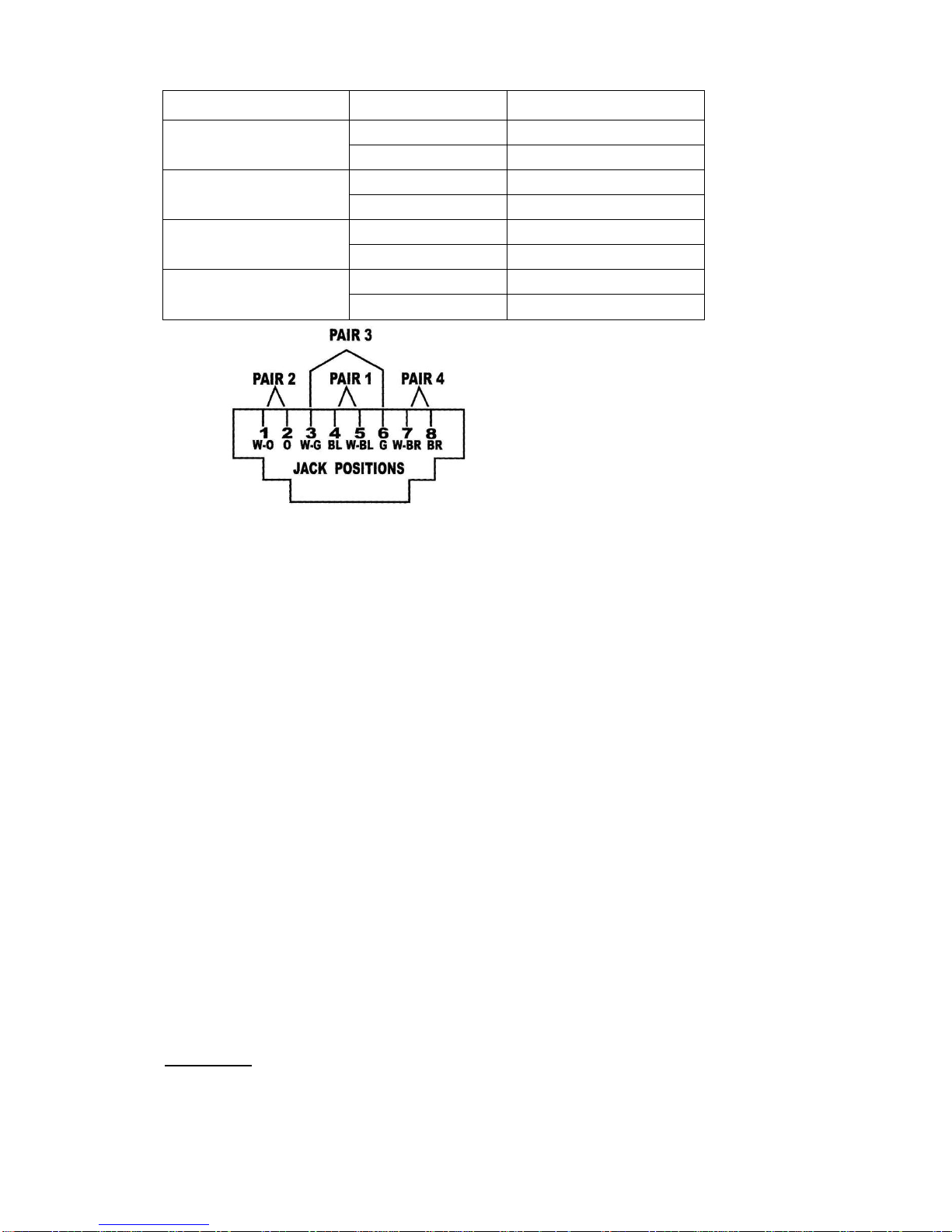

Wiring Information & Coding

Conductor Identification RJ45 Pin Assignment Color Code for Conductor

5 White-Blue

Pair 1 4 Blue

1 White-Orange

Pair 2 2 Orange

3 White-Green

Pair 3 6 Green

7 White-Brown

Pair 4 8 Brown

Trademarks:

All the companies, brand names, and product names referred to this manual are the

trademarks or registered trademarks belonging to their respective companies.
