Avnet AVT9152 EVB Bedienungsanleitung
Page 1
AVT9152 EVB
Quick Start Guide
v1.0 –December 04, 2020
Page 2
Document Control
Document Version:
1.0
Document Date:
04 Dec 2020
Document Author:
Jennifer Sy
Document Classification:
Public
Document Distribution:
Public
Version History
Version
Date
Comment
1.0
04 Dec 2020
First Release
Page 3
Contents
1 Introduction ..........................................................................................................................................4
2 Kit content.............................................................................................................................................4
3 eUICC.....................................................................................................................................................4
4 AVT9152 EVB demo web portal............................................................................................................5
4.1 Sign up for an account ..................................................................................................................5
4.2 Add AVT9152 EVB to demo web portal ........................................................................................6
4.3 Dashboard view ............................................................................................................................8
4.3.1 Latest measurements............................................................................................................9
4.3.2 Historical data .....................................................................................................................10
4.4 Devices view................................................................................................................................10
4.4.1 Device latest information....................................................................................................11
4.4.2 Live data..............................................................................................................................11
5 Set up AVT9152 EVB ...........................................................................................................................12
5.1 Make sure the following jumpers are in place............................................................................12
5.2 Connect the following pins with jumper wires...........................................................................13
5.3 Attach provided GPS and LTE antenna .......................................................................................14
5.4 Insert LTE CAT-M1 or CAT-NB1 SIM card....................................................................................14
5.5 Turn on AVT9152 EVB.................................................................................................................15
5.6 Connect to PC..............................................................................................................................15
Page 4
1Introduction
This document provides step-by-step guide to connect AVT9152 EVB to the demo web portal.
2Kit content
An AVT9152 EVB kit includes:
1) AVT9152 evaluation board
2) External paddle LTE antenna
3) Active GPS/GALILEO ceramic patch antenna
4) Global eUICC plastic card
5) Wall mount universal AC-DC 5V power adaptor
6) 6-pin rainbow jumper cable
7) 10-pin header J-link ribbon cable
3eUICC
The eUICC provided comes with FREE subscription plan. This plan expires 3 months after first
connection to the network or when 50MB of data quota is consumed whichever comes first. You will
need to activate it through https://www.avnet.com/wps/portal/silica/solutions/technologies/wireless-
connectivity/e2c-euicc-to-connect/.
It provides LTE CAT-M1 coverage in these regions. Please source your own SIM card if your region is not
covered or you would want to test using LTE CAT-NB1 network.
6
1
5
2
3
4
7
Page 5
4AVT9152 EVB demo web portal
This section shows the user how to register to and access AVT9152 EVB unit from AVT9152 demo web
portal.
4.1 Sign up for an account
Proceed to add AVT9152 EVB to demo web portal if you already have an account with the demo web
portal.

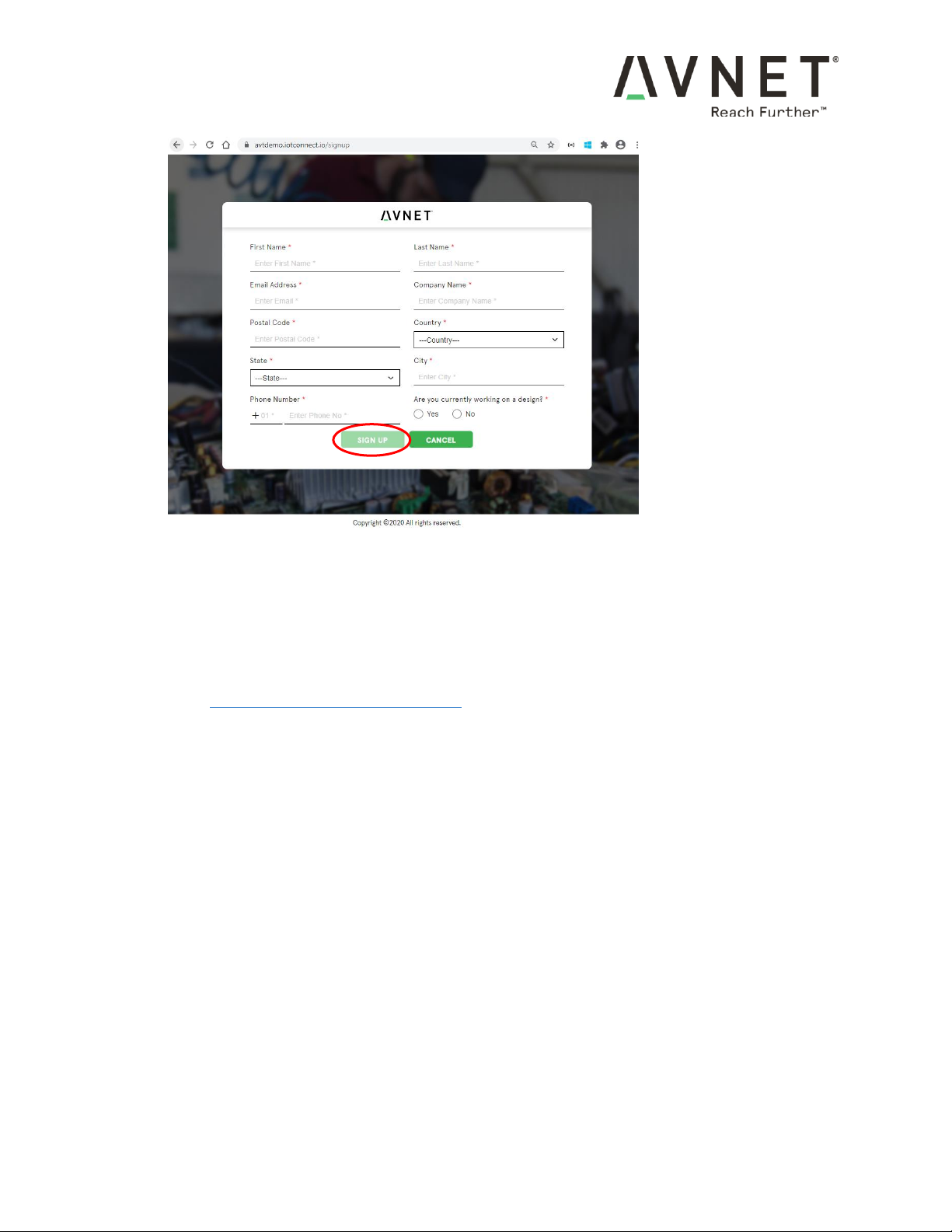

1) Open https://avtdemo.iotconnect.io/login.
2) Click SIGN UP.
3) Fill up the form and click SIGN UP to send the request.
Page 6
4) Wait for the AVT9152: Successful Sign Up email from AVT9152
<smtp@softwebopensource.com> for the temporary password.
Check your Junk Email folder if you haven’t received it after a few minutes.
5) Use the temporary password provided to login for the first time then replace with own
password for subsequent login.
4.2 Add AVT9152 EVB to demo web portal
1) Open https://avtdemo.iotconnect.io/login.
2) Fill in your account login details and click LOGIN.
Page 7

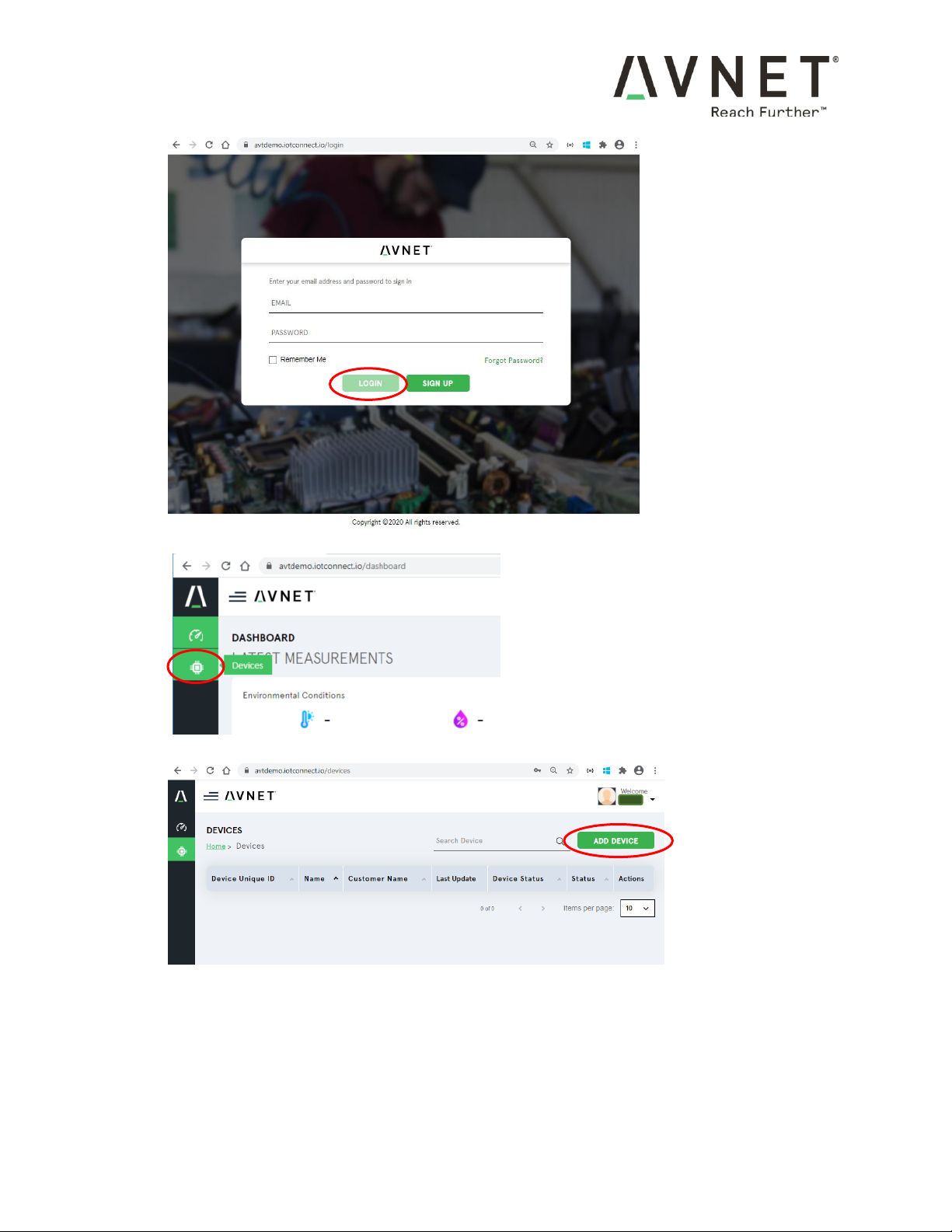

3) Click the Devices icon to switch to Devices view.
4) Click ADD DEVICE.

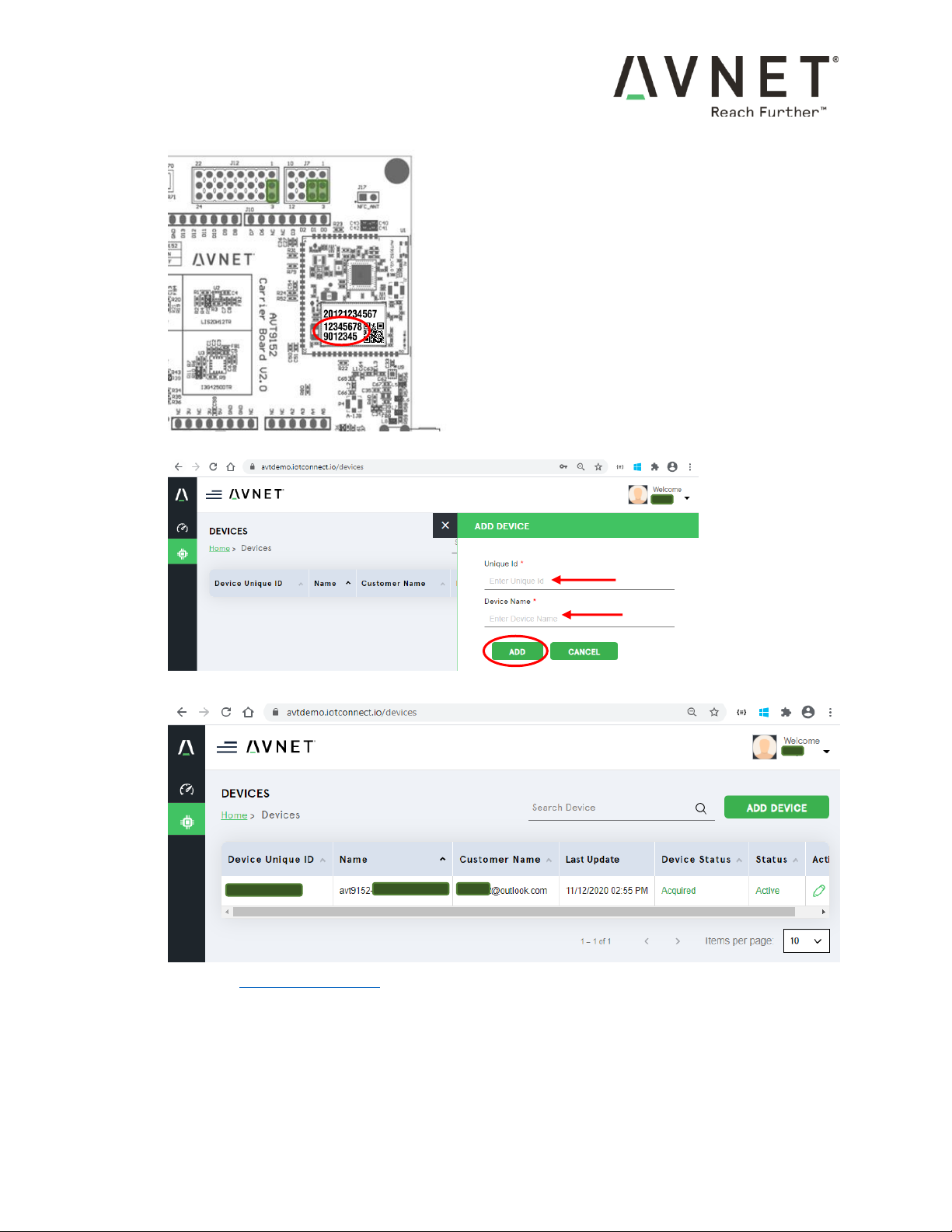

5) Locate your AVT9152 EVB’s 15-digit IMEI number.
Page 8
6) Fill in Device details and click ADD.
7) AVT9152 EVB successfully added.
8) Complete set up AVT9152 EVB to start collecting data.
4.3 Dashboard view
Dashboard view presents the latest data from the selected unit as well as the daily average
environmental data for the past 7 days.
Name to identify the
device. For example,
avt9152-<IMEI>
Your EVB’s IMEI
Page 9

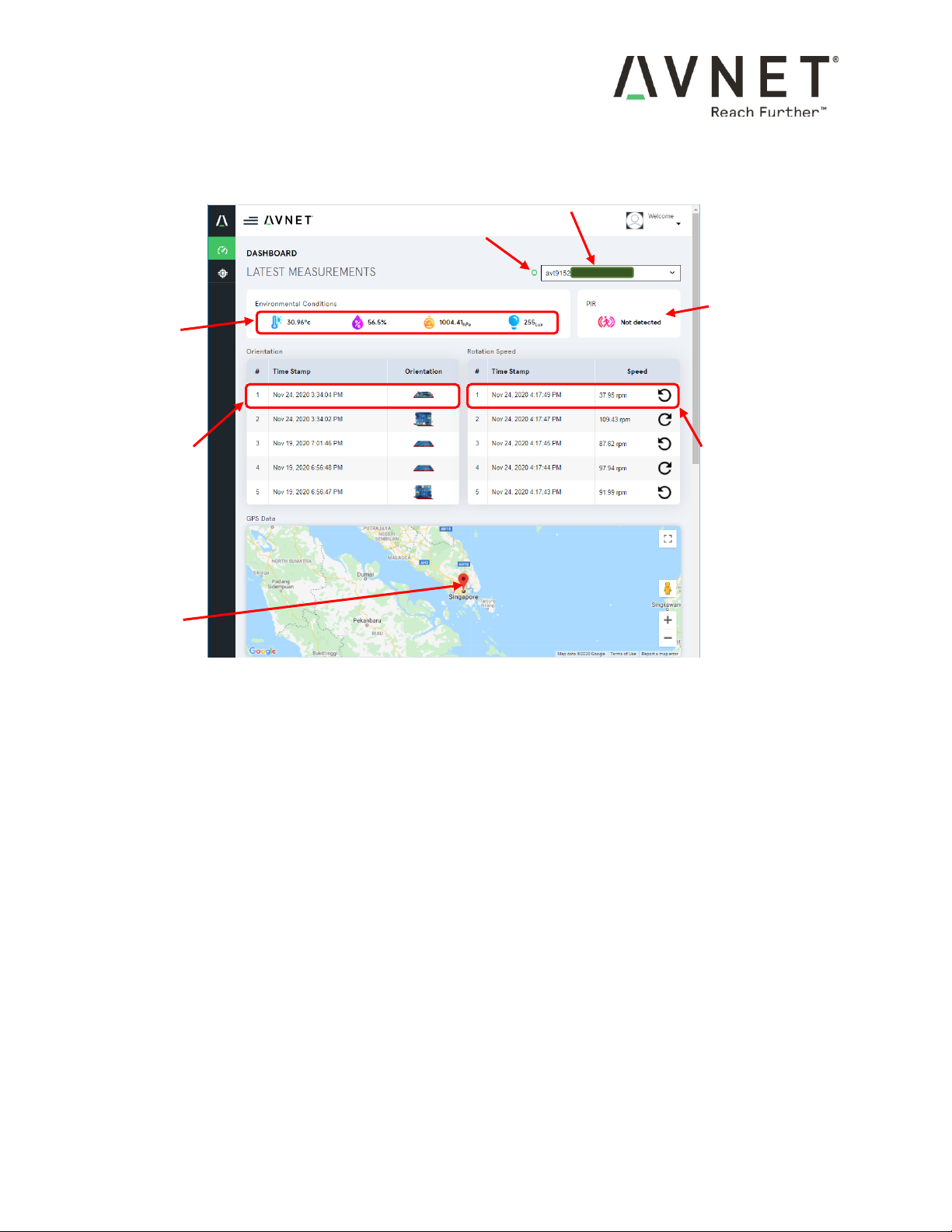

4.3.1 Latest measurements
* A green circle on the right of the selected unit’s display name indicates the device is connected while a
red circle indicates the device is not connected.
** Rotation speed is calculated from the biggest angular change on the z-axis triggered by rotating
clockwise or counterclockwise the AVT9152 EVB in a face up position.
Last
reported
location
Last
reported
orientation
Last
reported
rotation
speed **
Temperature
Humidity
Pressure
Light
Motion
(PIR)
Selected
unit
Connection
status*
Page 10
4.3.2 Historical data
4.4 Devices view
Devices view shows the latest data from the selected device as well as a line chart of the last 20 (max)
data points of the selected attribute received from the time this view is loaded.
It allows the user to enable/disable the motion (PIR) detection and the GPS location tracking. Both
functions are disabled by default from power up/reset.
To switch to Devices view,
1) Click the Devices icon located on the left side of the page.
2) Click the Device Unique ID of the device of interest.
Devices
