Avocent AMX Switch Series Bedienungsanleitung

AMX: Smarter, Simpler Multi-User

KVM Switching

AMX5000 • AMIQ • AMX5100 • AMWorks

Foryears Avocent has built KVMswitching solutions

that help many of the world's most successful

companies reduce the complexities of growing IT

infrastructures. Avocent’s field proven KVM

switching and connectivity solutions provide

smarter access and simpler manageability for

“real world” IT environments. Our advanced KVM

switching technologies continue to provide the

solutions and the reliability you’ve come to expect

from the industry leader.

KVM Brief

KVM stands forKeyboard,Video and Mouse.

A KVM solution allows multiple sets of keyboards,

monitors andmice to be replaced with a single setof

control peripherals. KVM technology provides easy

access and control to any connected device.

O U R H I S TO R YO F

innovations

MECHANICAL Height Width Depth Weight

AMX5000 Matrix Switch: 1.7”(4.3cm) 17.2”(43.2cm) 11.1”(28.1cm) 9.3 lbs (3.7kg)

AMIQ-PS2 Cable Interface: 0.8”(2.0cm) 2.4”(6.1cm) 14.1”(36.0cm) 0.8 lbs (0.3kg)

AMX5100 UserStation: 1.74”(4.4cm) 10.9”(27.9cm) 11.5”(29.2cm) 5 lbs (2.0kg)

ENVIRONMENTAL/ POWER / HARDWARE

Operating Temperature 32º (0ºC)to 122º (50ºC)

Storage Temperature -4º (-20ºC)to 122º (50ºC)

PowerRequirements 100 - 240 VAC, 50 - 60 Hz

Supported Hardware - Computer AMIQ-PS2 Cable Interface: IBM PC/AT, PS/2and 100% compatibles

Supported Hardware - Video Modes VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hzresolution

Supported Hardware - Peripherals AMX5100 UserStation: PS/2 keyboard, PS/2mouse,

IntelliMouse (PS/2only), Sun Type 5 and Type 6

Supported Cable Types Unshielded twisted pair, including CAT 5, CAT 5e, CAT 6

Warranty Two Years

ORDERING INFORMATION

AMX5000-EU 8 output ports, 32input ports, rack mount switch

AMIQ-PS2 Single server, CAT 5 connection, cable interface

AMX5100-EU Single user, CAT5 connection, desktop userstation

AMWorks System administration software included

The AMXadvances Avocent’s field proven technology and market

leadership in analogue matrix design by providing smarterKVM switch-

ing solutions.The AMX delivers powerful analogue matrix switching,

simple installation and advanced administrative tools to help net-

work administrators efficiently manage their IT environment.

Designed to support growing server installations, this analogue

matrixsolution brings switching intelligence and flexibility to your net-

work. With this smart solution, ITmanagers easily reduce installation

time and expense while increasing network manageability.

The AMX supports multi-user, multi-platform, multi-rack server

environments and provides end-to-end CAT 5 connectivity for

access from the desk to the server.The AMXincludes the AMX5000

analogue matrix switch, the AMIQ CAT5 cable interface, the

AMX5100 user station and the AMWorks advanced system adminis-

trative software tool.

S W I T C H I N G S O L U T I O N S

smarter AMX

AMX5000 • AMIQ •AMX5100 •AMWorks

SPECIFICATIONS

S W I T C H I N G S O L U T I O N S

flexible

AMX5000, AMIQ &AMWorks

Built on Avocent’s superior analogue switching technology, the AMX5000 matrix

switch

is particularly effective in evolving server installations.The AMX5000 highly

scalable architecture easily accommodates additional servers and users.

This matrix switch allows access from a single point or simultaneous access for up

to eight users throughout the data centre.

The AMIQ enhanced CAT5 cable interface is the new choice for flexibility and

performance in robust ITenvironments.The CAT 5 design and video technology

eliminates bulky cabling connections and delivers real-time, high bandwidth video for

KVM switching up to 1,000 feet away from the server.The AMIQ’s built-in memory

eases configuration by assigning and retaining unique server identification codes for

each attached server.This cable interface intelligence enhances security and

prevents

unauthorized access to a server through cable manipulation.

AMX features the OSCAR on-screen management tool, which lets you conveniently

switch between connected devices.If you require centralised administration of the

AMX, AMWorks management software is included with each switch.The AMWorks

Java-based system administration tool supports customised userprofiles and multi-

level security. The AMWorks allows system administrators to build a user database

with assigned access and password protection for each server.Administrators can

view all activities that take place on the KVM system, including user login, switches

made to servers and changes made to the system connections or setup. The data-

base is centrally stored and can be downloaded to the switch via the network

connection port available on all AMX5000 units.

R E L I A B L E T E C H N O L O G Y , A D V A N C E D D E S I G N

Avocent’s advanced switching solution

provides the best combination of

flexibility and performance in today’s

IT environment.

FEATURES & BENEFITS

• Access –

Full non-blocked, each switch supports eight users and 32servers

•Expandability/Scalability – Architecture makes it easy to add and support

more servers

•Connectivity – End-to-end UTPcable, including CAT 5, CAT5e, CAT 6

•AMIQ Cable Interface – Assigns and stores unique server identification code

for easier configuration and enhanced security

• Multi-platform – PS/2 and Sun server support

• Keep Alive – Allows attached servers to continue operating in the event of

power failure to the switch

•Flash Upgrade – Simultaneous flash updates for all connected devices

•AMWorks – AdvancedJava-based system administration tool

• Event Log – AMWorks tool used to maintain a record of user logins and

switching activity

UNIVERSAL AC POWER

AMWorks

NETWORKCONNECTION

AMIQ CABLE CONNECTION

USING ENHANCED CAT 5 TECHNOLOGY

USER CONNECTION USING

CAT 5 TECHNOLOGY

S W I T C H I N G S O L U T I O N S

simpler

AMX5100

The AMX5100 user station simplifies access at the desk by increasing user

control and delivering optimal real-time video to the user’s desk. The AMX5100

connects to the user’s multi-platform KVM peripherals and sends the KVM

signals over an industry standard CAT 5 cable to Avocent’s AMX5000

analogue matrix switch. This CAT 5 connectivity and analogue switching

technology provide multi-user access and control to any server in yournetwork.

The AMX5100’s design automatically compensates for varying cable types and

lengths and adjusts for signal losses each time a switch is made to the server.

The AMX5100 works with the patented On-Screen Configuration and Activity

Reporting (OSCAR) interface.OSCAR uses multi-lingual, intuitive menus for

point and click system configuration and server selection.This full system

management tool supports switching in share, private and scan modes.

Avocent’s solutions address the

challenges facing “real world” IT

environments. Our solutions provide

simpler network manageability.

M A X I M U M P E R F O R M A N C E F O R “ R E A L W O R L D ” I T E N V I R O N M E N T S

FEATURES & BENEFITS

• Video Display – Optimal video resolutions up to 1900x1600

•Connectivity – End-to-end UTPcable, including CAT 5, CAT 5e, CAT 6

•

Compact Design – AMX5100 doubles as a monitorstand with zero footprint on the desk

• Multi-platform – Supports PS/2 and Sun peripherals

•On-screen Management – Point and click intuitive menus with multi-lingual support

•Flash Upgrade – Simultaneous flash updates for all connected devices

• High Quality Video - Automatically compensates for varying cable types and

lengths and adjusts for signal losses each time a switch is made to a server

UNIVERSAL AC POWER

VIDEO PORT

ANALOGUE CONNECTION

FOR KVM ACCESS

CONNECTION TO AMX5000

USING CAT 5 TECHNOLOGYSERIAL PORT

FOR DIAGNOSTICS

OSCAR

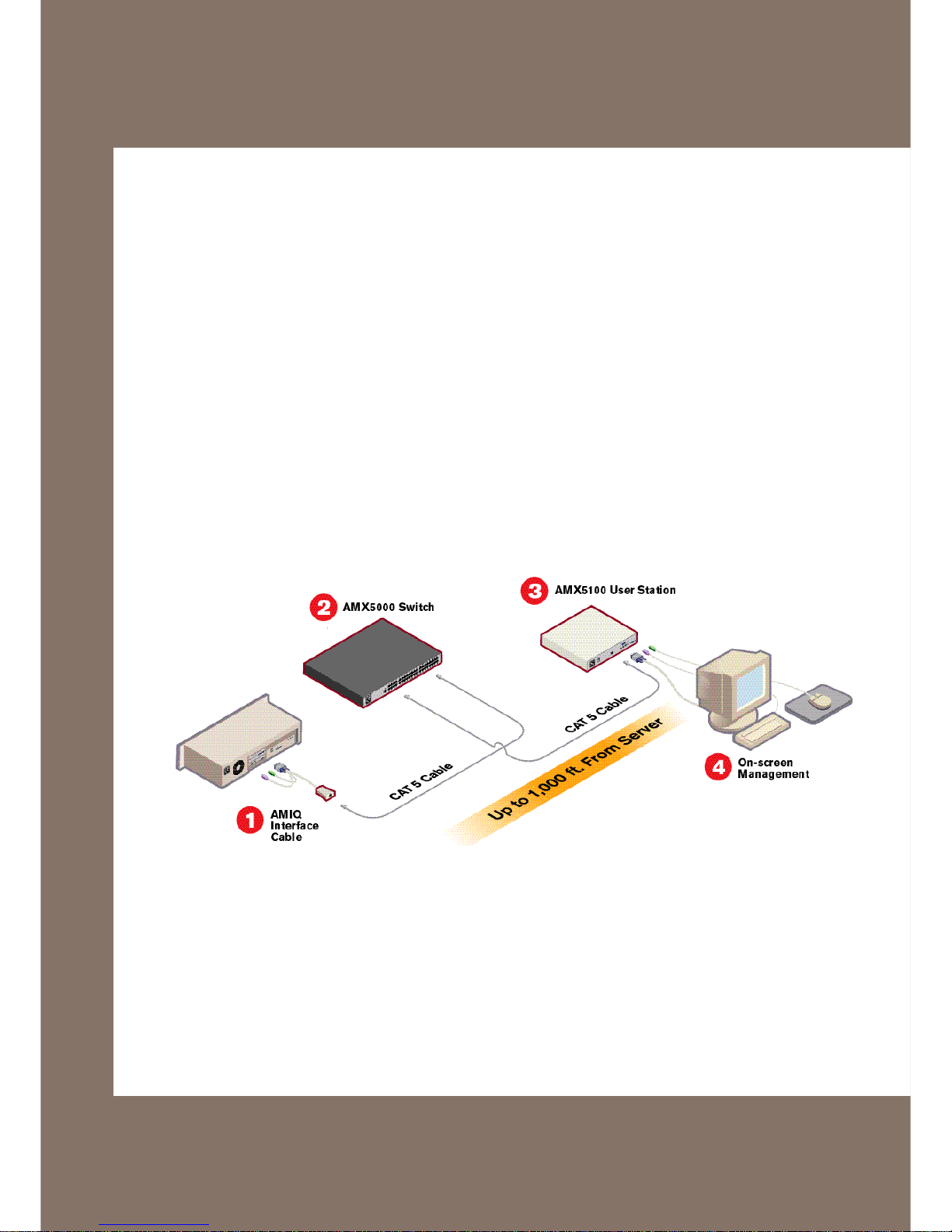

IN S TA L L AT I O N

easy

From the server to the desktop, the AMX

provides the easiest analogue matrix installation

for today’s contemporary data centres.

1. Connect the AMIQ CAT 5 cable interface to the appropriate ports on the target server.

2. Connect the AMIQ CAT5 cable interface to one of the 32 server ports on the rear of AMX5000 matrix switch

using CAT 5 cabling.

3. Connect the AMX5000 matrix switch to the user connection on the rear of AMX5100 user station using CAT 5 cabling.

4. Connect the user’s KVM peripherals to the KVM ports on the rear of the AMX5100 user station.

E X P A N D A B I L I T Y

simple

• END-TO-END CAT5 CONNECTIONS

•MULTI-USER,MULTI-RACK, MULTI-PLATFORM ACCESS

•REDUCED CABLEBULK

• REAL-TIME, HIGH BANDWIDTH VIDEO

• PATENTED ON-SCREEN MANAGEMENT

• CONVENIENT SYSTEM ADMINISTRATION

• EASY INSTALLATION

• HIGHLY SCALABLE

Avocent’s reliable, proven

technologies offer smarter, simpler

server management solutions.

Avocent, the Avocent logo, The Power of Being There and AMX are

trademarks of Avocent Corporation. OSCAR is a registered trademark

of Apex Inc. All other marks are the property of their respective owners.

0502-AMX-VER1

Avocent International – UK

Building A

Trinity Court

Wokingham Road

Bracknell

Berkshire, RG42 1PL

Tel: +44(0) 1344668 049

Fax: +44(0) 1344668 149

European Headquarters

Avocent International Limited

Avocent House

Shannon Free Zone

Shannon, Co Clare

Ireland

Tel: + 353 61 471 877

Fax: + 353 61 471 871

www.avocent-europe.com

Avocent International – France

Regus Roissy

Bâtiment Le Dôme

1, rue de la Haye – BP 10910

95731 Roissy CDG Cedex

France

Tel: + 33 (0) 1 4919 2644

Fax: + 33 (0) 1 4919 2100

www.avocent.fr

Avocent International – Sweden

Box 10026

SE 121 26

Stockholm – Globen

Stockholm

Sweden

Tel: + 46 (0)855 672 672

Fax: + 46 (0)855 672 671

Avocent International – Netherlands

Brainpark II

Lichtenauerlaan 102-120

3062MERotterdam

The Netherlands

Tel: + 3110 2045700

Fax: + 31 10 2045867
