Avocent DSR 1021 Bedienungsanleitung

The following instructions will help you

to connect your DSR switch.

Should you require further assistance, please

consult your installer/user guide.

Avocent, the Avocent logo, The Power of Being There and DSR are registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2004 Avocent Corporation. All rights reserved. 590-428-603A

Check our web site at www.avocent.com/support to search the knowledge base or use the online request.

Plug in the keyboard,

monitor and mouse for

your local connection.

Server

SPC Power

Control Device

Local Connection

Server

Modem

Connect your

SPC device to

the target servers.

Plug in the

external modem.

Connect the switch

to the network.

Connect DSRIQ

modules to the

DSR switch.

The Power of Being There

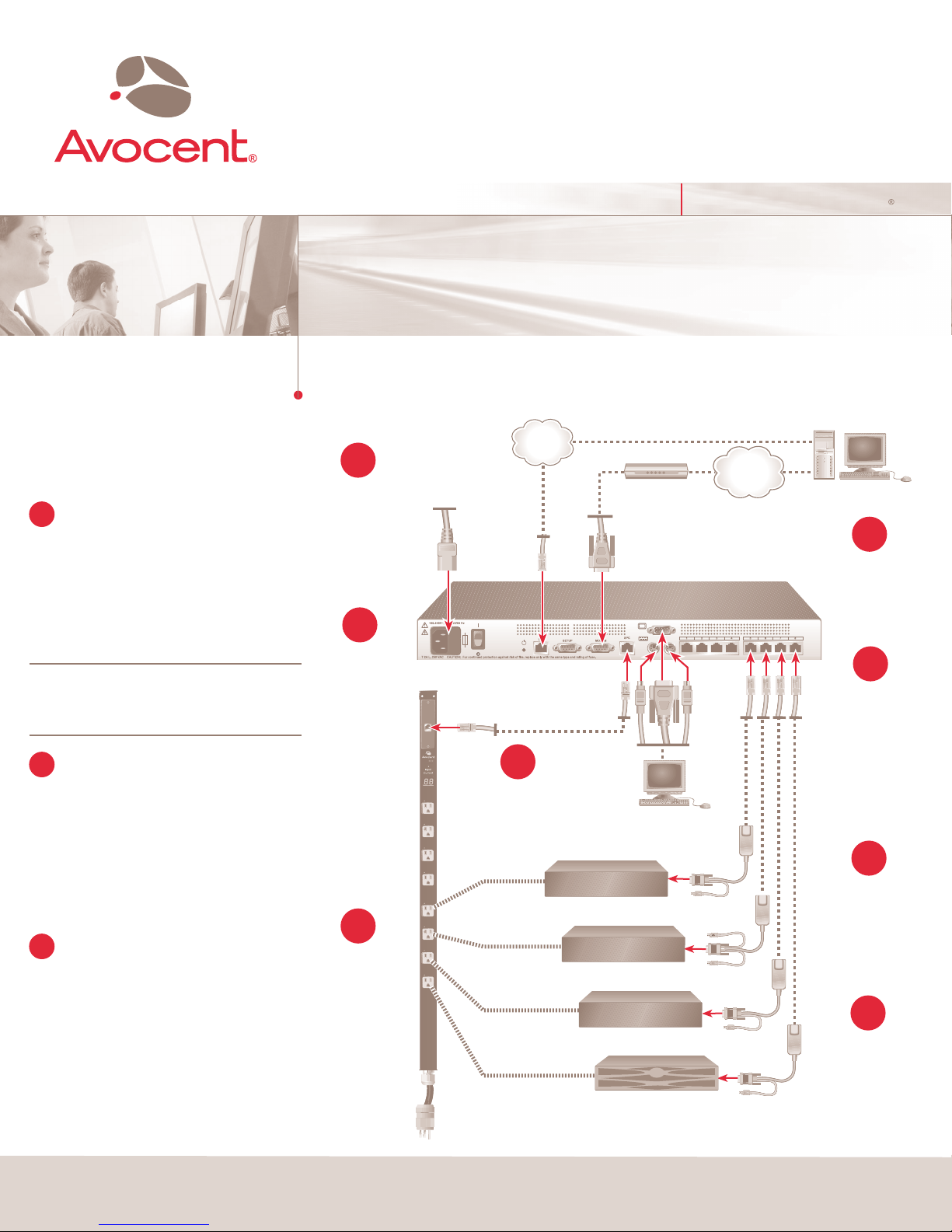

To connect a DSR switch

Power down all

servers and attach

the appropriate

power cord to the

DSR switch.

Power up target

servers and then the

DSR switch.

Connect servers to

the DSRIQ modules.

Quick Installation Guide

DSR®

1021/1022 Switch

Ethernet

Telephone

network

Connecting power to the

DSR switch

Power down all servers that will be part of your DSR

switching system. Locate the power cord that came

with the DSR switch. Plug one end into the power

socket on the rear of the DSR switch. Plug the other

end into an appropriate AC wall outlet.

Connecting the local port

Plug a VGA monitor and the PS/2 keyboard and

mouse cables into the appropriately labeled

DSR ports.

Connecting a DSRIQ module to

the DSR switch

Choose an available port on the rear of your DSR

switch. Plug one end of a CAT 5 cable (4-pair, up to

10 meters) into a numbered port and plug the other

end into the RJ-45 connector of a DSRIQ module.

Connecting a server to the

DSRIQ module

Plug the DSRIQ module into the appropriate ports on

the back of the server. Repeat this procedure for all

servers that are to be connected to the DSR switch.

Connecting network users

Plug a CAT 5 cable from your Ethernet network into

the LAN connector on the back of your DSR switch.

Network users will access the DSR switch through

this port.

(Continued on reverse side)

DSR1021 Switch

The following instructions will help you

to connect your DSR switch.

Should you require further assistance, please

consult your installer/user guide.

Connecting an external

modem (optional)

The DSR switch may also be accessed using an

ITU V.92, V.90 or V.34-compatible modem. Plug one

end of a 9-pin serial cable into the MODEM connector

on the back of your DSR switch. Plug the other end

into the connector on the back of the modem.

NOTE: Using a modem connection instead of a

LAN connection will limit the performance capability

of your DSR switch.

Connecting the SPC device to the

DSR switch (optional)

Plug one end of the cable supplied with the SPC

power control device into the SPC connector on the

DSR switch and plug the other end into the SPC

device. Plug the power cords from the target servers

into the SPC power outlets. Plug the SPC device

into an appropriate AC wall outlet.

Power up targets and switch

Power up each target server and then power up the

DSR switch.

For additional information

For further instructions on DSR switch connection,

software setup and security configuration, please

refer to the installer/user guide included with the

switch. Check http://register.avocent.com for the

latest DSR software and firmware updates.

Check our web site at www.avocent.com/support to search the knowledge base or use the online request.

Plug in the keyboard,

monitor and mouse for

your local connection.

Server

SPC Power

Control Device

Local Connection

Server

Modem

Connect your

SPC device to

the target servers.

Plug in the

external modem.

Connect the switch

to the network.

Connect DSRIQ

modules to the

DSR switch.

The Power of Being There

To connect a DSR switch

(continued from reverse side)

Power down all

servers and attach

the appropriate

power cord to the

DSR switch.

Power up target

servers and then

the DSR switch.

Connect servers to

the DSRIQ modules.

Quick Installation Guide

DSR®

1021/1022 Switch

Ethernet

Telephone

network

DSR1021 Switch

The Power of Being There
