AVPro Edge AC-CXWP-KVM-KIT Bedienungsanleitung

User Manual

Dual Gang 40m/131ft@4k 60 4:4:4 & HDR HDBaseT Kit

with PoH and

Bi-Directional USB

AC-CXWP-KVM-KIT

INTRODUCTION ��3

FEATURES ��3

WHATS IN THE BOX ��3

SPECIFICATIONS ��4

KEY BENEFITS ��5

DEVICE OVERVIEW - TRANSMITTER FRONT ��6

DEVICE OVERVIEW - TRANSMITTER TOP ��7

DEVICE OVERVIEW - TRANSMITTER BACK ��8

DEVICE OVERVIEW - RECEIVER FRONT ��9

DEVICE OVERVIEW - RECEIVER BACK �� 10

RS-232 CONFIGURATION �� 11

USB PORTS �� 11

EXAMPLE APPLICATION DIAGRAMS �� 12

EXAMPLE APPLICATION DIAGRAM USB EXTENSION �� 14

MAINTENANCE �� 16

DAMAGE REQUIRING SERVICE �� 16

SUPPORT �� 17

WARRANTY �� 17

Introduction

The AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps supported HDBaseT wall plate extender kit over single CAT UTP/STP.

This device can take in any HDMI signal and transfer it long distances; simultaneously, it’s able to send a USB 2.0 sig-

nal (bi-directionally) through the same cable. This makes for the ideal solution for classrooms and conference rooms

to work with modern laptops and desktop computers.

Features

·HDMI 2.0(a/b)

·Bi-Directional USB Support

·Sleek Wall Plate Finish

·18Gbps Bandwidth Support

·4K --> 1080P Down-scaling for mixed systems

·EDID Management and EDID emulate

·2Ch Audio Extraction on the Transmitter

·40M 4K (up to 4K60 4:4:4, HDR) (Cat6a)

·Full HDR Support (HDR, HDR10+ and HLG)

·Audio Return Channel on HDMI

·4K & HD Test Patterns built into Tx and Rx for trouble-

shooting

·HDCP 2.2 (and all earlier versions supported)

·CEC Pass Through

·3D Support

·Bi-directional 48v PoH (Power Over HDBaseT, only one

Power Supply Needed)

·Bi Directional RS232 Transport

·LED Status, Link, Power indication lights

·Use single UTP/STP LAN cable (Cat6a) with substitute

HDMI cable to achieve long distance transmission

·Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1,

Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master

Audio, Atmos on HDMI

·ESD protection circuitry (Inputs & Outputs) to 7KV

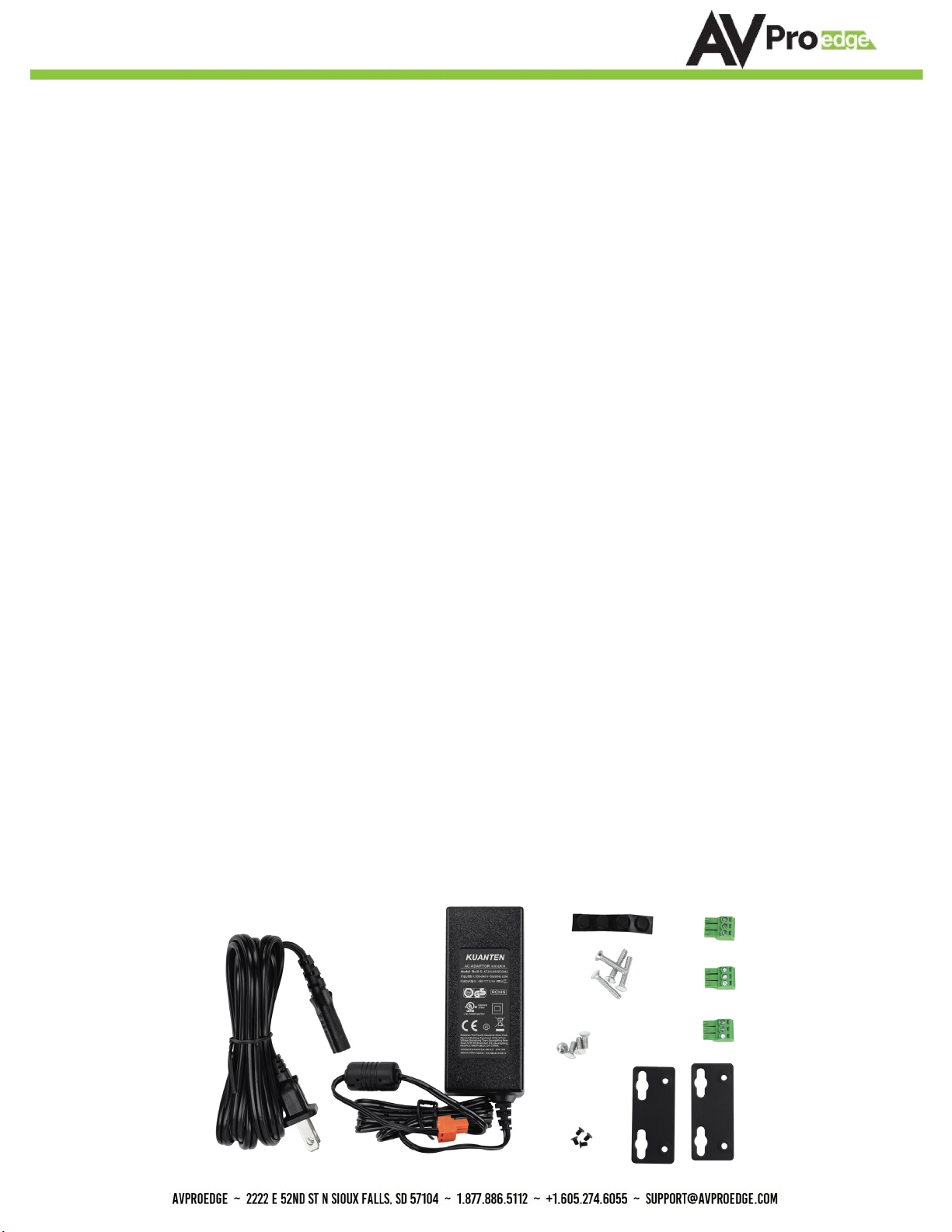

Whats in the box

·AC-CXWP-KVM-T (Transmitter)

·AC-CXWP-KVM-R (Receiver)

·48V Power Supply (One supplied)

·3 Pin Terminal blocks for Audio and RS232 Ports

·Mounting Ears and hardware for HDBaseT Receiver

Specications

Key Benets

·Invisible Compression Technology: ICT is a revolution in HDMI extension technology, it allows AVPro Edge

Products to deliver high bandwidth 4K signals over category cable. Normally when this is done, the video is

left with compression artifacts and banding. Using AVPro Edge’s proprietary ICT solution allows us to deliver a

stable picture without any degradation.

·USB 2.0 and KVM Integration: The AC-CXWP-KVM-KIT supports the extension of USB signals, which may be

switched and routed over the HDBaseT link along with the other AV signals and can be managed separately

via a control system. USB 2.0 host and device ports are provided on both the TX and RX units, allowing you to

connect a USB mouse, keyboard, USB microphone, or any other USB device to be connected at one unit and

routed to a computer or other host at another unit.

·Down Scaling: The AC-CXWP-KVM-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K

to 1080P. Essential when working with projectors or displays that are only 1080p.

·Total EDID Management: The AC-CXWP-KVM-KIT has robust EDID control. EDID management allows you

to manage the input device and request specic video resolutions and/or audio codecs. The following EDID

options are available:

·EDID Bypass

·1080P 2CH Audio

·1080P 8CH Audio

·4K60 4:2:0 2CH Audio

·4K60 4:2:0 8CH Audio

·4K60 4:4:4 HDR 2CH Audio

·4K60 4:4:4 HDR 8CH Audio

·USER EDID – EDID Copy

·The EDID Copy Function allows you to copy and save from any display or projector you want to.

·Audio Return Channel (ARC): The Audio Return Channel in HDMI 1.4 and 2.0 enables a TV, via a single HDMI

cable or Toslink, to send audio data “upstream” to an A/V receiver or surround audio controller, our extender

will continue the upstream audio all the way to the Transmitter. There it can be connected via HDMI ARC.

·On Board Troubleshooting: This unit allows you to generate a 1080P test pattern to identify external problems

(source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of

problems quickly should they arise, without having to worrying if the source or sink is working properly. You

can generate a test pattern from the Transmitter so you can verify total system infrastructure integrity

·Both the Transmitter and Receiver are compatible with the AC-CX42-AUHD, AC-CX62-AUHD, and AC-CX100-

RAMP.

Device Overview - Transmitter Front

Video/Audio Control

HDMI IN

• For connecting to an HDMI source.

RS-232

• 3 pin terminal for device control and RS-232 pass-

through.

Audio Out

• 3 pin terminal for extracting 2Ch audio.

Audio Extraction

• Audio Source selectable switch. Choose where you want

the extracted audio to originate from. The HDMI Source

device or ARC (Audio Return Channel) from sync device.

Note the extracted audio port is 2Ch only, this unit does

not down-mix.

Activity Lights

Power

• Red LED indicates if power is present (on)

• Red LED o means no power

HDMI

• Green LED indicates connection to HDMI source (on)

• Green LED o means no HDMI source detected

HDBT Link

• Green LED indicates connection to HDBaseT Receiver (on)

• Green LED o means HDBaseT Receiver is not detected

*NOTE: ARC must be enabled on the display/sync, and the

output should be set to PCM.

USB Ports

USB Host

• Type B for connecting to Host Device typically a PC

USB Device-1

• Type A for connecting USB devices like Mice, Keyboards, etc. Provides 5V

USB Device-2

• Second type A for connecting USB devices like Mice, Keyboards, etc. Also

supplies 5V power

*NOTE: See USB SELECT under Device Overview - Receiver Back on page 10

*NOTE: See page 12-14 for diagram/application examples.

Device Overview - Transmitter Top

Micro USB Port for Firmware updates

EDID Selection Dial

0 - BYPASS (default)

1 - 1920x1200 -2CH

2 - 1920x1200 DVI

3 - 1080p-2Ch

4 - 1080p-8Ch

5 - 4k@60Hz-YC420-3D-2Ch

6 - 4k@60Hz-YC420-3D-8Ch

7 - 4k@60Hz-YC444-3D-2Ch

8 - 4k@60Hz-YC444-3D-8Ch

9 - USER EDID

A - 4k@60Hz-YC420-3D-2Ch Downscaled to 1080p

B - 4k@60Hz-YC420-3D-8Ch Downscaled to 1080p

C - 4k@60Hz-YC444-3D-2Ch Downscaled to 1080p

D - 4k@60Hz-YC444-3D-8Ch Downscaled to 1080p

E - USER EDID Downscaled to 1080p

F - Test Pattern (1080P Checkerboard Pattern)

2 Pin Terminal Block

There are two options for power, you can power the

Transmitter and the Receiver will be powered over the

Category cable. Or you can power the Receiver and

power will be provided to the Transmitter over the

Category cable.

*NOTE: See “Power From” under Receiver for more details Pg 9

Available EDIDs that correspond to the EDID Selection

dial on the top of the Transmitter are printed here.

RJ45 For HDBaseT

Connect a category cable to this port and the other

end to the HDBaseT IN port of the Receiver.

Device Overview - Transmitter Back

Device Overview - Receiver Front

System Status LED Indicator Lights

Power

• Red LED indicates if power is present (on)

• Red LED o means no power

AV System ACT

• Blue LED will ash along with the Amber LED light on the HDBaseT IN port on the back.

HDBT Link

• Blue LED indicates a solid link with the HDBaseT Transmitter (wall plate). It corresponds to the

Green LED light on the HDBaseT IN port on the back.

HDMI Signal Monitor

• Blue LED on indicates a solid link with the HDMI Display. Light is o, no display is detected

Audio Input Selection Switch

• Use this switch to select where you want the Extracted 2Ch audio (on the Transmitter) to originate

from. ARC (TV) will use the ARC enabled port of the display, if the display does not have ARC but

has Toslink select TOS and connect a Toslink cable from the Display to the AUDIO IN port on the

back of the Receiver

Power From Selection Switch.

• Here you select where the power is originating from. If you are plugging powering into the Trans-

mitter select “TX”. If you are plugging powering into the Receiver select “RX”.

Micro USB Port

• Micro USB port for Firmware updates

RS-232

• 3 pin terminal for device control and RS-232 pass-through.

HDMI OUT

• For connecting to an HDMI Display.

SPDIF / AUDIO IN

• Connect a Toslink cable to this port and on the front move the AUDIO IN SELECT switch

to TOS

HDBaseT IN

• Connect a category cable to this port and the other end to the HDBaseT OUT port on the back of

the Transmitter.

USB SELECT

• Use this switch (3 positions) to select what you want the Receiver to be. Auto is the default (mid-

dle position) this will automatically detect what ports you are using. If there are any issues try

selecting one of the other two options, Host or Device.

• Select HOST if you are plugging into the USB HOST port on the Receiver (Type B)

• Select DEVICE if you are plugging into the USB DEVICE port (Type A)

Device Overview - Receiver Back
