Owner’s Manual_V1.0
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 3/20
There are no user-serviceable components inside the device so please do not
take apart or repair the unit by yourself.
The device repair must be done by qualified specialists only.
Do not expose this product to direct sunlight, heat or humid conditions.
Please use a sun shade outdoors if necessary.
WARNING! To avoid possible malfunctions the device must not be
exposed to rain or moisture. Prevent water or other liquids from
getting inside the device.
Do not use any damaged or leaking batteries and please replace the battery
immediately if its working life becomes significantly short
Keep away from strong light while using this product so as to obtain the
clearest and the most colorful picture.
Please use the supplied power sources.
Do not use chemical solutions to clean this unit. Simply wipe with a
clean soft cloth to remove fingerprints or smudges.
Please avoid heavy impact or drop on the ground.
Please do not cover the vents and holes on the device to ensure good
ventilation. Otherwise it will lead to overheating and reduces the service life.
FCC (Federal Communications Commission)
This equipment has been tested and found to comply with the limits for class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interface when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential to correct the interference at his own expense
CAUTION: Change or modifications not expressly approved by the manufacturer responsible
for compliance could void the user’s authority to operate the equipment.
Important Safety Instructions
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 4/20
1. Overview
Thank you for purchasing the AVtec XFD057 Full HD On-camera monitor. This
5.7” color LCD monitor is a great tool for focusing, composing, and viewing
images/video clips directly from your digital camera/video camera. It has
advanced integrated digital signal processing circuits and a IPS LED Panel
which makes it high brightness with low power consumption, stable
performance and low radiation. It is conveniently sized for easy
transportation, and it is perfect for difficult shooting situations. To obtain the
best results with your new XFD057, please take the time to read this manual.
2. Features
•5.7” IPS LCD Panel
•3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz)
• 1920x1080 Full HD screen
• Supports 4K UHD HDMI input and output
• Built-in speaker & integrated jack port for headphones
• Firmware upgradable through USB
• Supports a variety of battery types (F970/ LP-E6/ U60)
•AC/DC Adapter with EU, UK, US & AU plugs included
• Detachable sun hood attachment & foldable sun hood
• Two assignable function buttons
• Focus Assist, Center Marker, Safe Frames, Check Field
• Image Freeze, Image Flip & Pixel-to-Pixel
• Histogram, Exposure (Zebras) & False Colors
• Analog stereo L/R
•Image Zoom function, Image Nine Grid and Anamorphic Mode
•Brightness, Contrast, Tint, Saturation and Color Temperature adjust
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 5/20
3. Included in this box
1x AVtec XFD057 Full HD Monitor
3x Battery bracket for NP-F, BP-U & LP-E6 batteries
1x AC/DC Combi adapter with EU, US, UK & AU plugs
1x Sun hood attachment & detachable sun hood
1x Ball head with 1/4" camera screw
1x HDMI cable
1x Owner’s Manual
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 6/20
3.1 Battery brackets & AC/DC Adapter
Battery brackets
The battery bracket for Sony NP-F batteries is installed on the monitor.
You can easily change the battery bracket by unscrewing the 4 small screws
on the back of the battery bracket. Unplug the bracket connector from the
slot, plug in the connector of the bracket you would like to install and fasten
the 4 screws.
The following table will give you an idea which brackets you are able to use
for the Sony and Canon battery types.
Item:
For use with:
NP-F bracket
Sony NP-F970, NP-F960, NP-F950, NP-F930, NP-F770, NP-
F750, NP-F730, NP-F570, NP-F550, NP-F530, NP-QM91D,
NP-QM91, NP-QM90D, NP-QM90, NP-QM71D, NP-QM71,
NP-QM70D, NP-QM70, NP-QM51D, NP-QM51, NP-FM71 &
NP-FM70 series.
BP-U bracket
Sony BP-U30, BP-U60 & BP-U90
LP-E6 bracket
Canon LP-E6
NOTE: Please remove the battery from the bracket before changing the
battery bracket itself.
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 7/20

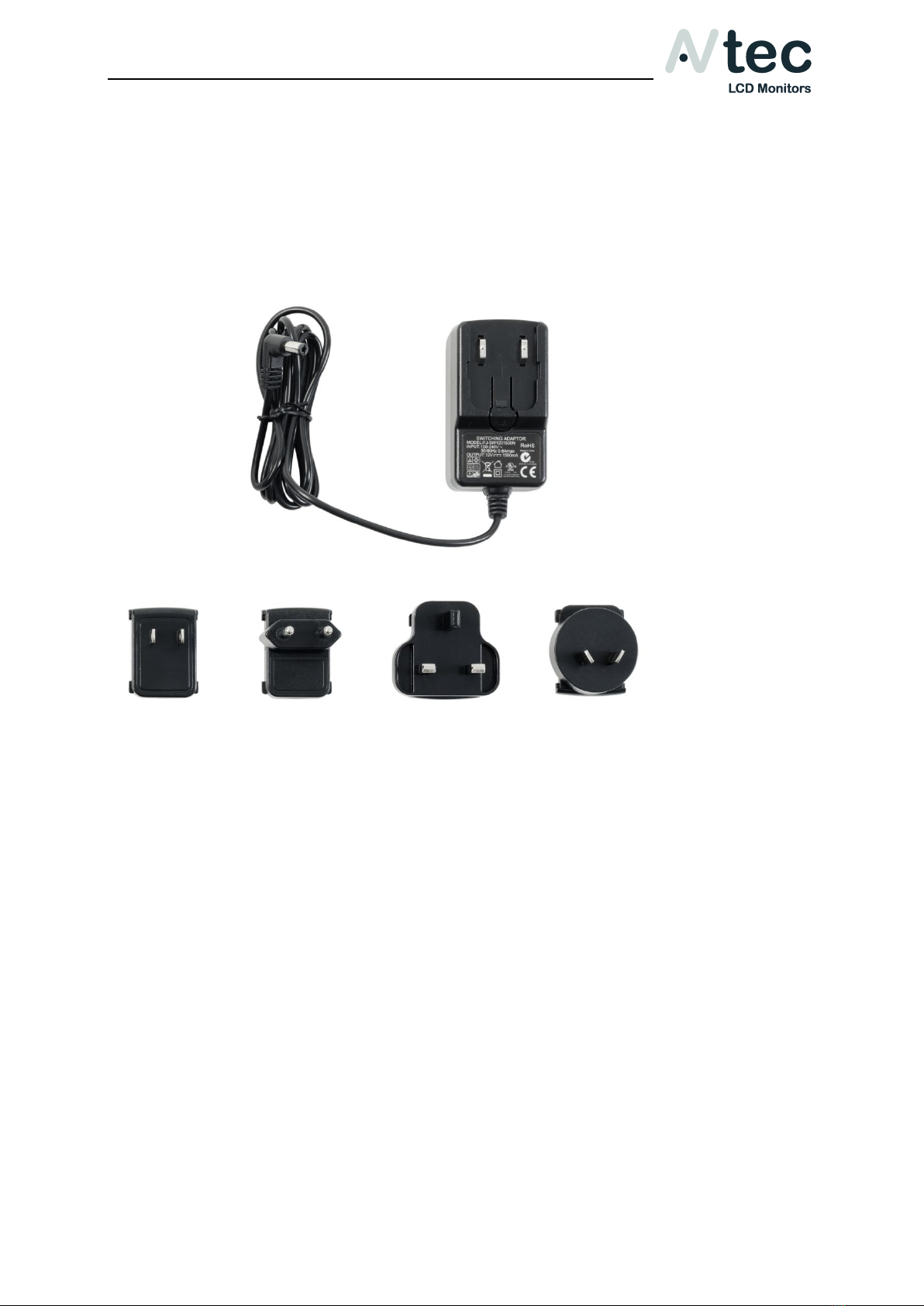

AC/DC Combi adapter
The supplied AC/DC combi adapter (100-240V~) supports AC or DC power
and uses wall, vehicle, or airplane power outlets to power your device. Four
power plugs are supplied for EU, US, UK and AU. Slide the selected plug on to
the adapter until you hear a soft click.
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 8/20
3.2 Other included accessories
Sun hood
The firm but flexible plastic sun hood is designed to protect your screen and
reduces strong light reflection. It mounts to the monitor with a strong easy-on-
easy-off construction with hook and loop fasteners.
Ball head
The ball and socket joint of the supplied ball head allows movement on all
axes at the same time and has a single locking screw for easy fixation to your
device. Slide the ball head into a hot shoe and fasten it by turning the wheel on
the bottom of the ball head to the right.
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 9/20
4. Panel & Controls
XFD057
Owner’s Manual_V1.0
AVtec LCD Monitors Page: 10/20
Screw lock installation
