WEATHERPROOF POE SWITCH
QUICK START GUIDE
Products Introduction...............................................................................................................
Hardware Installation ...............................................................................................................
TABLE OF CONTENTS
1
2
Connect Power Supply ............................................................................................................ 3
4
Technical Specifications............................................................................................................
1
WEATHERPROOF PoE SWITCH | AVN-W10-2P08W96G | PRODUCT INTRODUCTION
Lorem ipsum
Products Introduction
AVN-W10-2P08W96G
Thank you for purchasing our networking products.
This product is an outdoor weatherproof full Gigabit PoE switch, equipped with
8 x 10/100/1000 Mbps RJ45 PoE ports and 2 x Gigabit SFP ports, ensuring full-speed
forwarding for all ports. It features an ABS plastic outdoor weatherproof shell and is
designed for pole installation. Its excellent performance makes it suitable for a wide range
of applications, including wireless and surveillance systems.
Power LED: The Power LED lights up when the switch is
connected to a power source.
Link/Act indicator: the light indicates the network connection
through the corresponding port. Flicker indicates that the
switch is sending or receiving data
PoE indicator: constant brightness indicates that the PD device
is connected to the corresponding port, and extinguished indi-
cates that the port is not powered or no PD device is found.
The back is composed of mounting brackets, which can be used
for wall-mounting and pole-mounting.

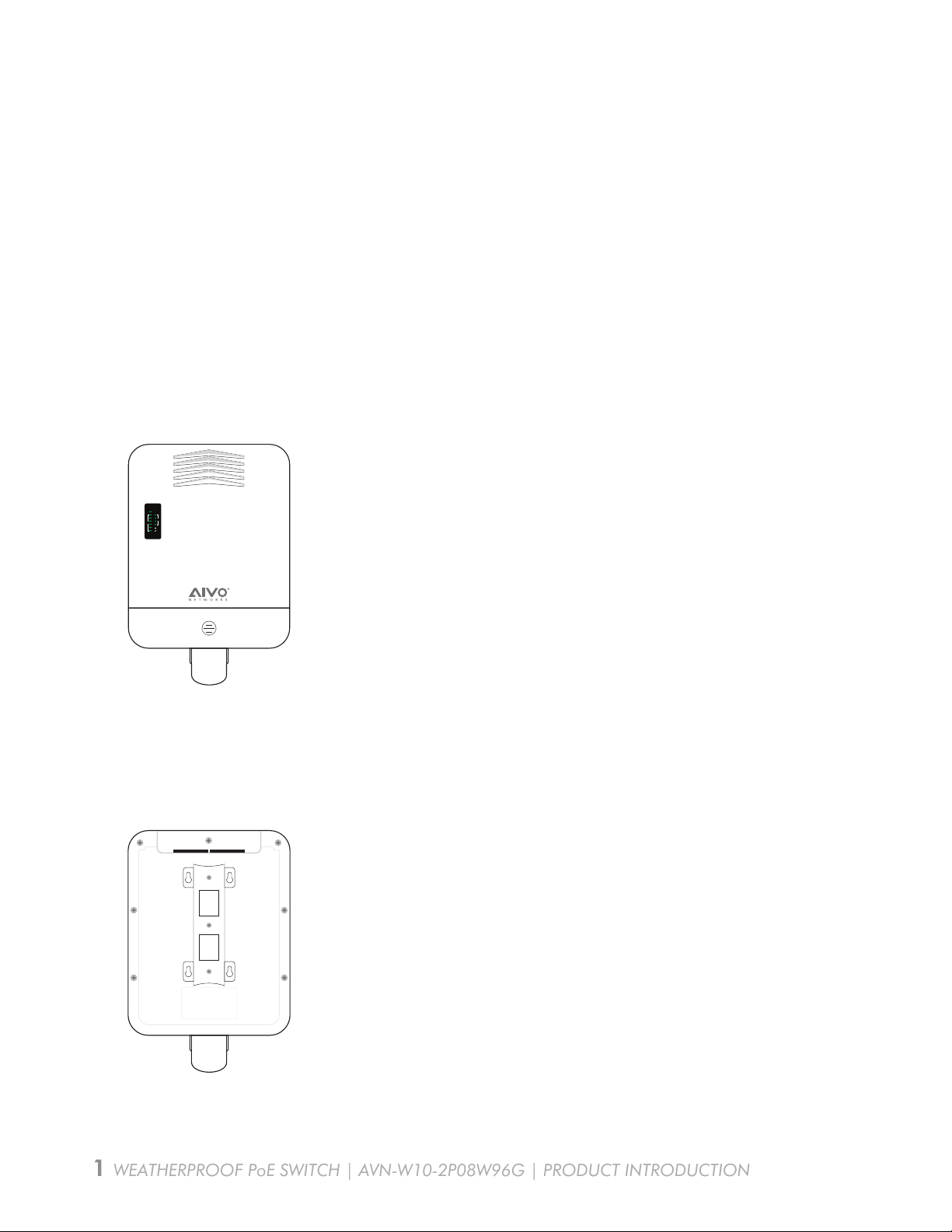

Front Panel
LED Lamp
Rear Panel
PoE
UPLINK
LINK
6
5
4
3
2
1
PWR
2
WEATHERPROOF PoE SWITCH | AVN-W10-2P08W96G | HARDWARE INSTALLATION
Hardware Installation
AVN-W10-2P08W96G
This chapter provides unpacking and installation information for the Switch.
For safe switch installation and operation, it is recommended that you:
Visually inspect the power cord to see that it is secured fully to the AC power connector.
Switch 1pcs
Open the shipping carton and carefully unpack its contents. Please consult the packing list
located in the User Manual to make sure all items are present and undamaged. If any item is
missing or damaged, please contact the local reseller for replacement.
Open a Seal

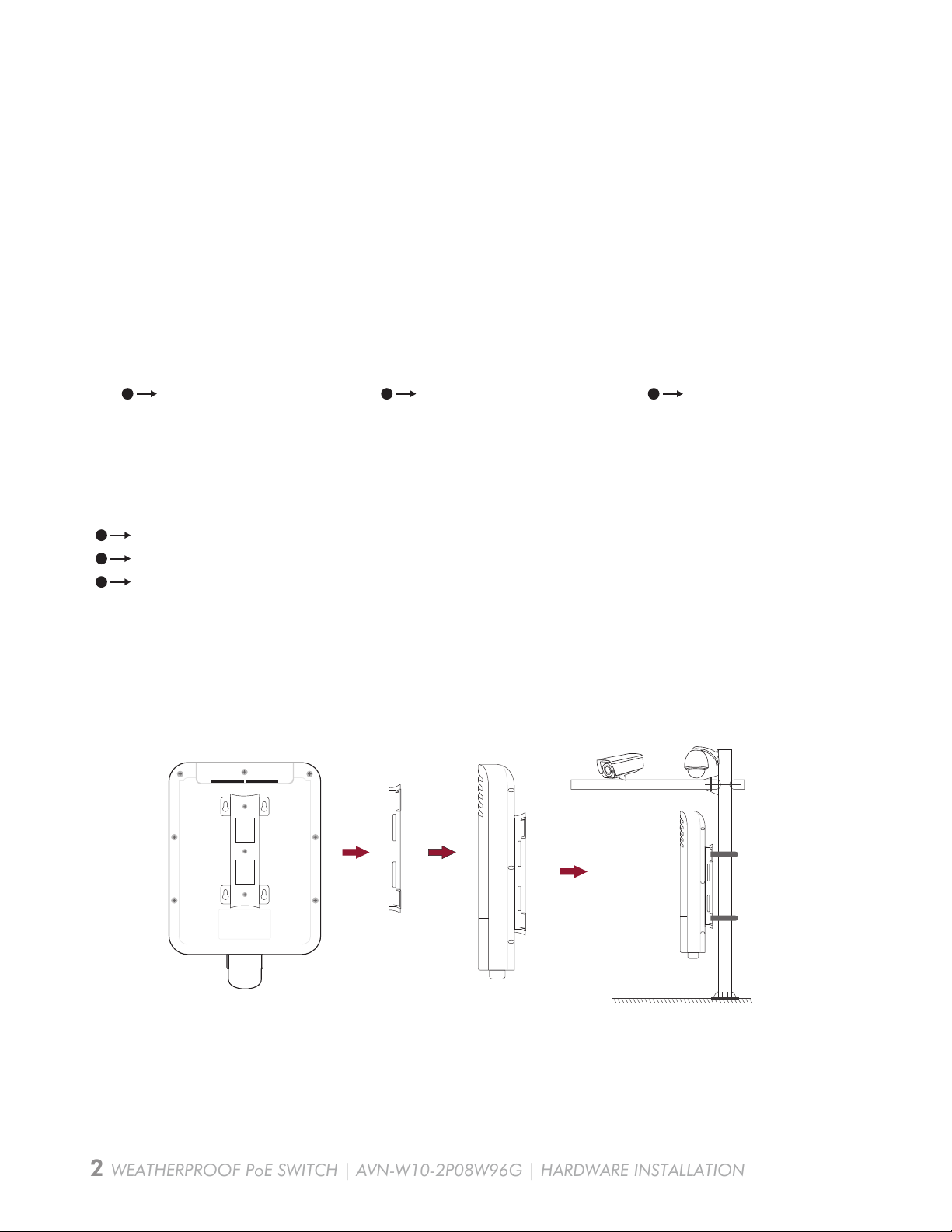

Switch Installation
Pole Mount Installation
Make sure that there is proper heat dissipation and adequate ventilation around the switch.
Do not place heavy objects on the switch
User's manual 1pcs Power cord 1pcs
3
WEATHERPROOF PoE SWITCH | AVN-W10-2P08W96G | CONNECT POWER SUPPLY
The terminal block connector the of is used for power input. Please follow the steps
below to insert the power wire:
1: Insert two power lines into the hole at the end side of the connection.
2:Tighten the screw above the connection end clockwise with a screwdriver, for preventing
the power line from loosing
3: The other end of the power line is connected to the power supply system.
Power Input: Supports input voltages 100-240VAC, 50/60Hz.
Grounding:usespecializedgroundleadconnect
Connect Power Supply
123
Ground
The wire gauge for the
terminal block should be in
the range between 12 ~ 24 AWG.
NC N NCL
4 5
LN NC
NC
21 4
3567 8
9
10
The power connection uses a quick-plug terminal block connector. It is recommended that
the user use a cable with a current capacity of more than 6A.
Warning: When connecting to the power supply system, please pay
attention to the polarity marks of the interface avoid connection
errors.
1 2 3 4 5
AVN-W10-2P08W96G
4
WEATHERPROOF PoE SWITCH | AVN-W10-2P08W96G | TECHNICAL SPECIFICATIONS
Project Describe
Networking Interfaces
Packet Buffer Memory
8 x 10/100/1000 Mbps RJ45 Ethernet Ports
2 x 1Gbps SFP Ports
LED Indicators Power, Link/Act, PoE
2 Mbit
Switching Capacity 20 Gbps
Forwarding Capacity 14.88 Mpps
Dimensions 295x206x50mm
Operating Temperature 0 to 40°C
Storage Temperature 0 to 75°C
Operating Humidity 5 to 95% Noncondensing
Power Method
100~240VAC, 50/60Hz
Power Consumption
10W
Power Method
ABS Plastic
Installation
Holding pole installation
Forwarding Mode Store and Forward
MAC Address Table 4K
Attributes
Performance
Physical
Power Over Ethernet
PoE Ports
8
PoE Standard
IEEE802.3af / IEEE802.3at
Max. PoE Wattage per Port
PoE Voltage
PoE Pin Assignment
PoE Power Budget
96W
30W
52V
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6)
Technical Specifications
AVN-W10-2P08W96G
1
phone: 949-752-7606
email: [email protected]
social: @avycon_aivo
website: avycon.com
Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice.
