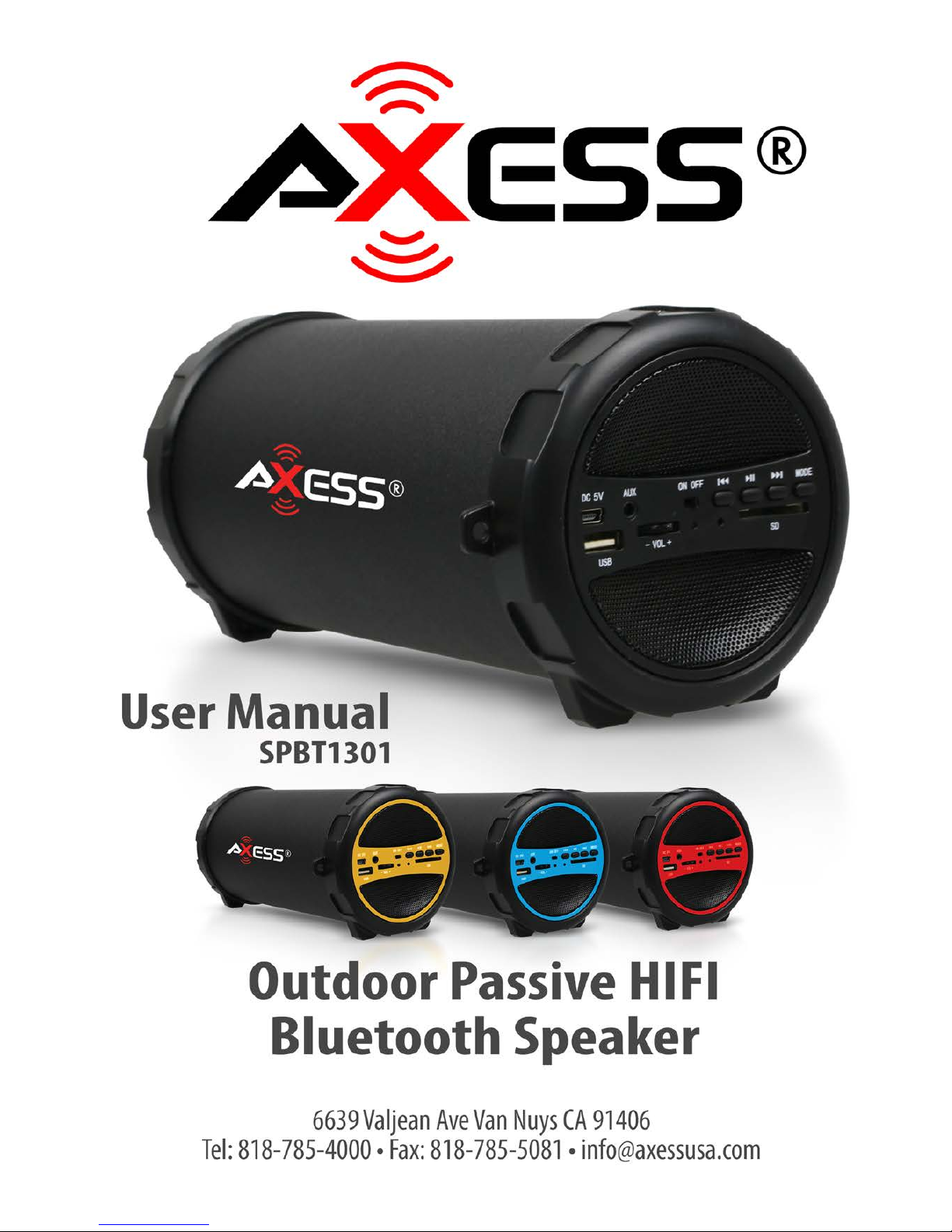

Axess SPBT1301 Bedienungsanleitung

SPBT1031 Manual

For proper operation, please read this manual carefully before using. Please note

that any content revisions will not be declared, and we are not responsible for any

consequence caused by fault or oversight of this manual.

FEATURES:

1. 2.1 Outdoor Passive Bluetooth Speaker with 3-inch Subwoofer.

2. Output has very clear sound and heavy bass, as well as dynamic sound effects.

3. With A2DP Bluetooth, wirelessly stream music from any Bluetooth-enabled device

such as your mobile phone, notebook, iPhone or iPad.

4. Secure simple pairing for user-friendly operating.

5. 10-meter operating range.

6. With USB and SD card support.

7. With FM radio.

8. With Line-in function, suitable for PC, MID, TV and other audio devices.

9. Side panel control for volume.

10. Built-in Lithium rechargeable battery (1000 mAh).

11. With strap for easy portability.

SPECIFICATION:

Horn Size: 2-inches

Subwoofer Size: 3 inches

Horn output: 2W x 2, 4Ω

Subwoofer output: 5W, 4Ω

Battery Capacity: 1000 mAh

Frequency Response: 100-20Khz

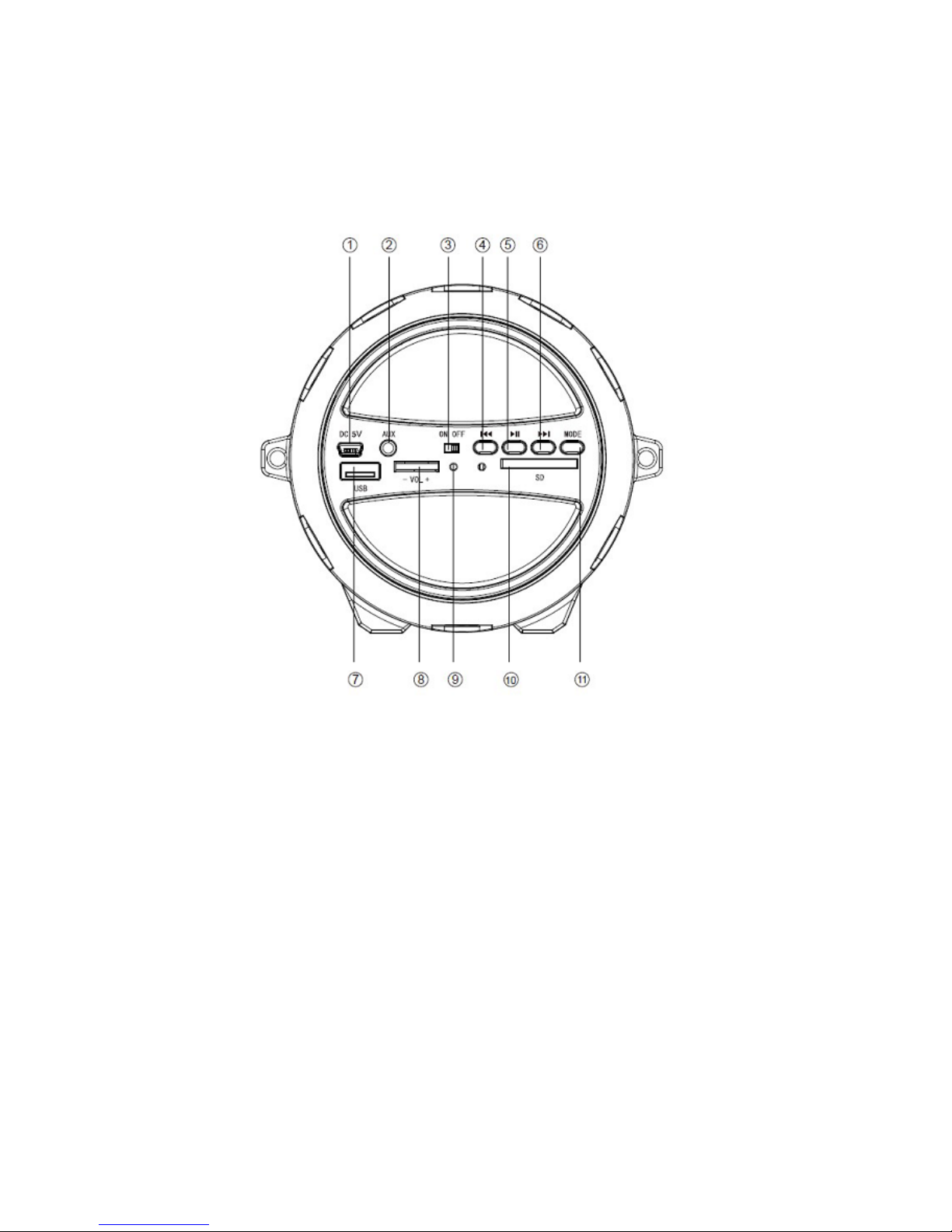

APPEARANCE AND KEY INSTRUCTIONS:

1. Charging jack 2. Aux-in jack 3. ON/OFF button

4. Forward 5. PLAY/PAUSE 6. Backward

7. USB port 8. Volume Gear 9. LED indicator

10. SD slot 11. Mode (Bluetooth switch, USB, SD, FM and AUX-IN modes)

Bluetooth:

1. Turn the ON/OFF button to “ON”. The LED light will turn blue, flash quickly, and

beep twice.

2. Activate Bluetooth of your mobile device and search for the device name “BT

speaker”, and then connect it. The blue LED light will flash slowly and beep three

times once connected successfully.

3. Play the music from your mobile device and enjoy.

4. Press the LAST or NEXT button on your mobile device to select songs.

5. Press the PLAY/PAUSE button on your mobile devices to play or pause.

6. Use the “Volume Gear” to adjust volume up and down. Or adjust volume via your

mobile device.

Playing music from USB disk & SD card:

1. Turn the ON/OFF button to “ON”.

2. Insert the SD card or USB device into slot. The music stored will be played

automatically, and the blue LED light will continuously flash.

3. In PLAY mode, tap the FORWARD or BACKWARD button to select songs you like;

hold down the FORWARD or BACKWARD button to fast forward or backtrack the

song.

4. Press the PLAY/PAUSE button to play or pause.

5. Please turn the ON/OFF button to “OFF” when the speaker is not in use.

Note: In Bluetooth PLAY mode, inserting a SD card or USB device will automatically

disconnect the Bluetooth and switch to the USB device or SD card. You can press the

MODE button to switch back to Bluetooth mode.

FM Radio:

1. In FM radio mode, the audio cable provided serves as an antenna. Please insert

the audio cable to get the best FM radio signal before use.

2. Turn the ON/OFF button to “ON” and press the “MODE” button to switch to FM

radio mode.

3. In PLAY mode, tap the “PLAY/PAUSE” button to auto-search the FM stations and

store them automatically.

4. Press the LAST or NEXT buttons to change the stored FM stations.

AUX-IN:

For all other compatible external music devices or MP3/MP4 players: Please use the

supplied audio line cable to connect from your external device’s “LINE OUT” jack to

the “AUX IN” jack of this device. Then press the “MODE” button to switch to the

AUX-IN state. Enjoy!

When using an external device, all functions will be controlled by the external device

except for the “PLAY/PAUSE” button.

Notes:

1. Press the MODE button to toggle between different modes: Bluetooth, SD, USB,

FM radio, and AUX-IN.

2. Turn the ON/OFF button to “OFF”, to shut off the power supply while not in use.

Charging Instructions:

1. Power off the unit, and put the provided charge cable into the charge slot of unit.

Connect the other end to a PC or other charger with 5V output (not included). Once

connected properly, the red charging indicator light should keep flashing.

2. Charge time is approximately 3-5 hours. When fully charged, the red charging

indicator light will switch off.

3. In order to prolong the life of the battery, please do not charge more than 8 hours
