SBC81205 Series Quick Installation Guide

Version A2 Dec 2009

Printed in Taiwan

94181205020E

V. Board Layout

Please refer to the SBC81205 Series Product Information CD for complete User’s Manual, drivers and utilities.

SBC81205 Series Quick Installation Guide

Version A2 Dec 2009

Printed in Taiwan

94181205020E

I. Checklist

9SBC81205VGG LGA775 PICMG 1.0 Full-

sized SBC x 1

9Quick Installation Guide x 1

9Product Information CD x 1

92-pin Mini Jumper Caps x 12

9SATA Signal Cable x 2

9FDD Flat Cable x 1

9COM + Printer Cable x1 (with

Bracket)

Note: Please contact your local vendors if any damaged or missing items.

DO NOT apply power to the board if any damaged components.

II. Jumper Settings

Before applying the power to SBC81205 Series, please make sure

all jumper settings are defaulted as the following table:

Jumper Description Jumper Setting Jumper Setting Jumper Setting

RS-232

(Default)

JP1

JP2

JP3

RS-422 JP1

JP2

JP3

COM2

RS-485

JP1

JP2

JP3

Jumper Description Jumper Setting Description Jumper Setting

Clear CMOS

Normal

(Default) JP5

Clear CMOS JP5

Please refer to the SBC81205 Series Product Information CD for complete User’s Manual, drivers and utilities.

SBC81205 Series Quick Installation Guide

Version A2 Dec 2009

Printed in Taiwan

94181205020E

III. Connectors

Connectors Label Connectors Label

FRONT PANEL CN1 USB 1 CONNECTOR USB1

AXIOM ACPI CN2 USB 2 CONNECTOR USB2

ATX 4 PIN 12V IN

CONNECTOR CN4 USB 3, 4 CONNECTOR USB3

LAN2 Ext. Speed LED CN5 USB 5,6 CONNECTOR USB4

LAN2 Ext. Link/ACT LED CN6 SYSTEM FAN1 CONNECTOR FAN1

LAN1 Ext. Speed LED CN8 SYSTEM FAN2 CONNECTOR FAN2

LAN1 Ext. Link/ACT LED CN7 CPU FAN CONNECTOR FAN3

RJ-45 PORT 1 LAN1 COM1 PORT COM1

RJ-45 PORT 2 LAN2 COM2 PORT COM2

LGA775 SOCKET CPU1 MOUSE CONNECTOR MS1

S-ATA PORT 1 SATA1 KEYBOARD CONNECTOR KB1

S-ATA PORT 2 SATA2 VAG PORT VGA1

S-ATA PORT 3 SATA3 PARALLEL PORT PRN1

S-ATA PORT 4 SATA4 FLOPPY PORT FDD1

Intel®HD Audio Digital

Header HDA1

-- End of Connectors Table --

Please refer to the SBC81205 Series Product Information CD for complete User’s Manual, drivers and utilities.

SBC81205 Series Quick Installation Guide

Version A2 Dec 2009

Printed in Taiwan

94181205020E

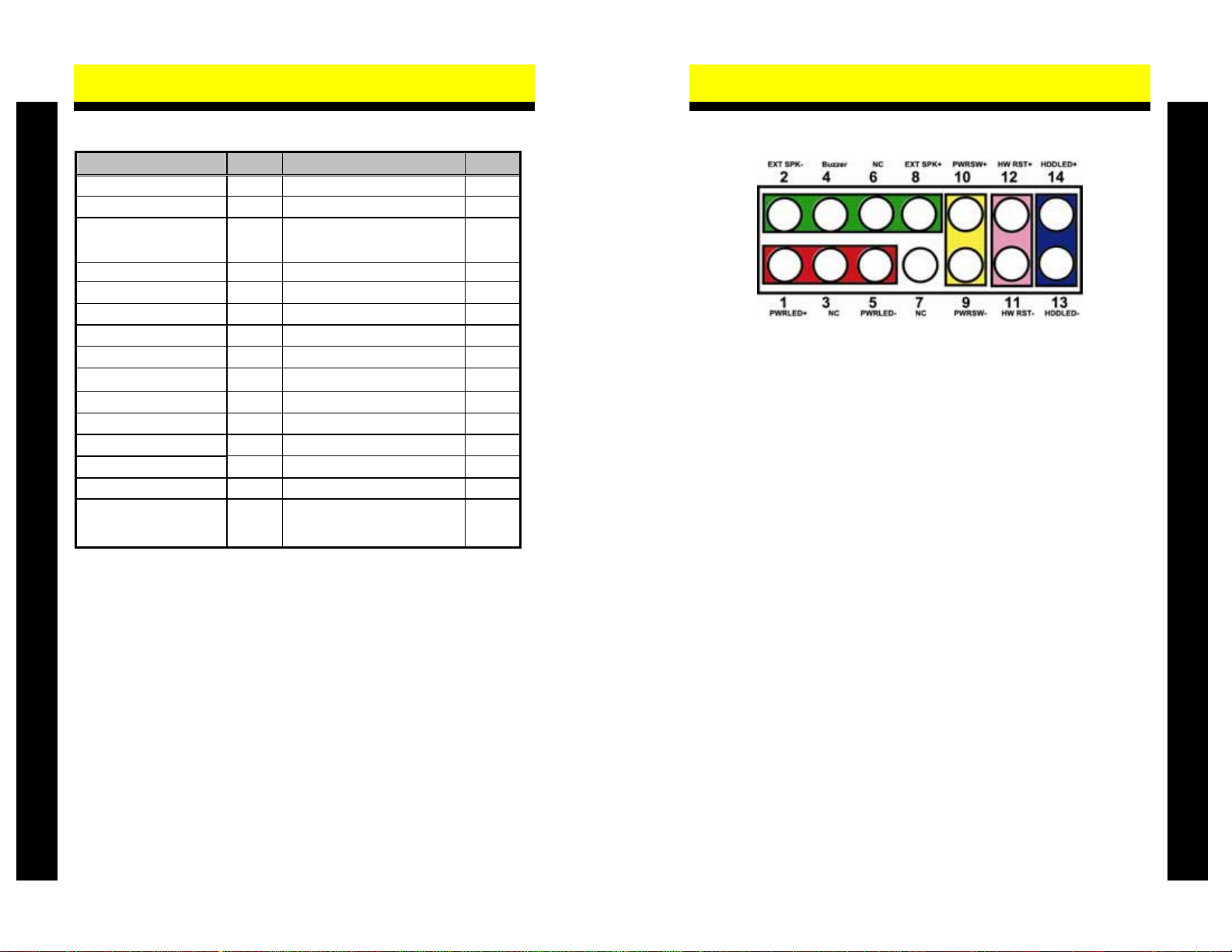

IV. Front Panel Connectors (CN1)

Power LED

Pins 1, 3, 5 connect the system power LED indicator to its respective switch on

the case. Pin 1 is +, and pin 5 assigned to -. Pin 3 is defined as NC.

External Speaker and Internal Buzzer Connector

Pins 2, 4, 6, 8 can be connected to the case-mounted speaker unit or internal

buzzer.

Power Button

Pins 9 and 10 connect the front panel’s ATX power button to the card.

Hardware Reset

Pins 11 and 12 are designed for Hardware Reset.

HDD Activity LED

This connector extends to the hard drive activity LED on the control panel. This

LED will flash when the HDD is being accessed. Pins 13 and 14 can be

connected to the hard disk drive and front panel HDD LED.

Please refer to the SBC81205 Series Product Information CD for complete User’s Manual, drivers and utilities.
