AXIOMTEK GOT3K Series Bedienungsanleitung
GOT315W-521 Quick Installation Guide
©Copyright 2020 Axiomtek Co., Ltd.
Version A1 Sep 2020
Printed in Taiwan
1
Packing List
1 x GOT315W-521
1 x Driver CD
1 x Phoenix connector
1 x Panel mount kit
Do not try to apply power to the system if any damaged components.
Dimensions
Front dimensions: 396.8 mm (15.6") (W) x 53 mm (2.08") (D) x 247.1 mm (9.73") (H)
GOT3K Series GOT315W-521
©Copyright 2020Axiomtek Co., Ltd.
Version A1 Sep 2020
Printed in Taiwan
2
I/O Outlets
The following figures show I/O location of the GOT315W-521.
Bottom view of the GOT315W-521
No.
Note.
No.
Note.
1
Power button
8
2x USB3.0
2
Phoenix Small type
connector
9
2x RJ-45 for Giga Ethernet
3
Grounding hole
10
1x COM for RS232/422/485
4
Remote power switch
11
1x DP out
5
AT/ATX switch
12
1x HDMI out
6
1x 9-pin D-sub / Via
cable(option) for RS232
13
1x Line out
7
2x USB2.0
14
1x VGA
©Copyright 2020 Axiomtek Co., Ltd.
Version A1 Sep 2020
Printed in Taiwan
3

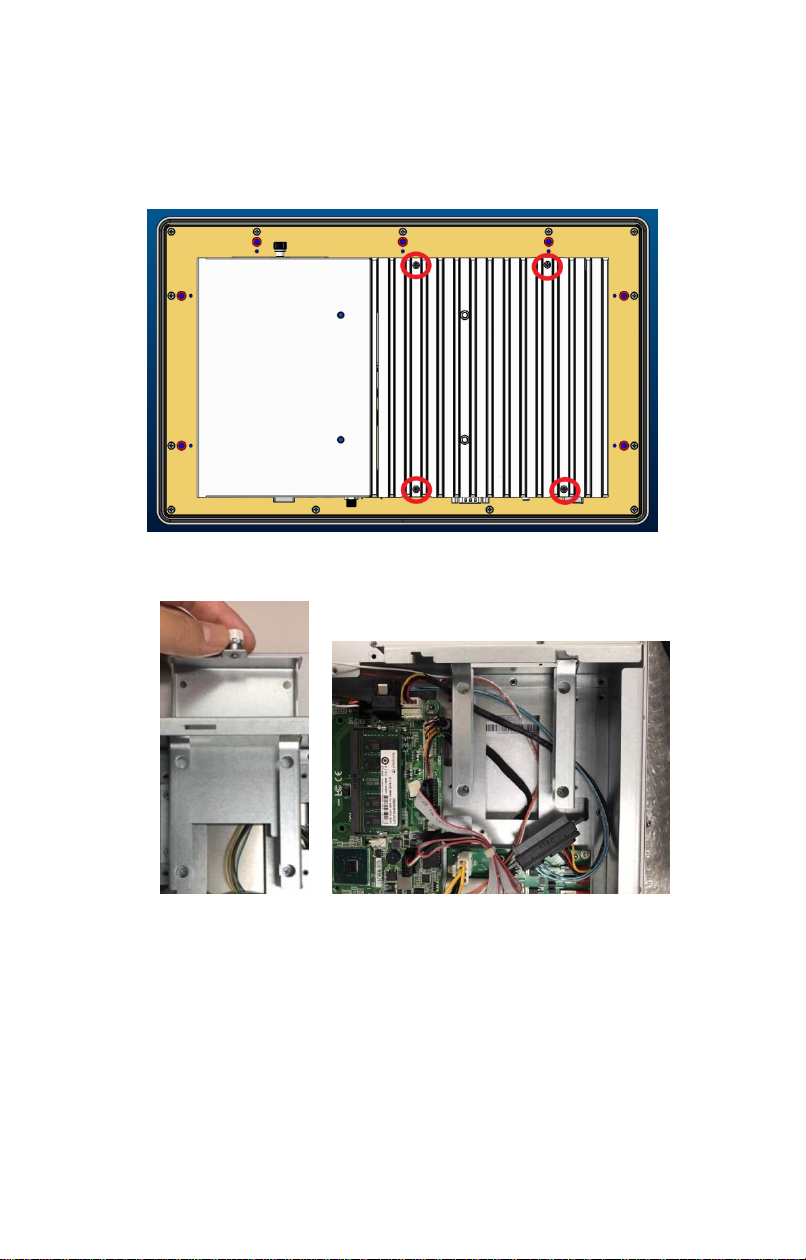

Installation of Hard Disk Drive
Step 1 Turn off the system, and unplug the power adaptor.
Step 2 Unscrew 4 screws on the back cover.
Step 3 Open the bottom cover.
Step 4 Unfastening the screw to slide open.
©Copyright 2020Axiomtek Co., Ltd.
Version A1 Sep 2020
Printed in Taiwan
4
Step 5 Take 2.5”HDD on the bracket and fasten the four screws in
the other side. And plug the “SATA + Power”connector to
complete the installation. Completing installation by
fastening the screw.
©Copyright 2020 Axiomtek Co., Ltd.
Version A1 Sep 2020
Printed in Taiwan
5
Installation a DRAM
Step 1 Turn off the system, and unplug the power adaptor.
Step 2 Unscrew 4 screws on the back cover.
Step 3 Locate the DIMM socket (as shown in Figure 2-9) on
mainboard .
Step 4 Insert a RAM into the DIMM socket, and then push it down
firmly until it is clipped with the socket
©Copyright 2020Axiomtek Co., Ltd.
Version A1 Sep 2020
Printed in Taiwan
6
Installation a CPU
The CPU socket type on main board that support 8th Gen Intel® Core™
processor up to 35W
CPU
- Coffee Lake-S i5-8500T Tj 100°C
- Coffee Lake-S G5400T Tj 100/88°Cr
Step 1 Move the iron bar
Step 2 Open the cover
Step 3 Put CPU in the socket
Step 4 Re-chuck the iron bar
Note:: If user took off the CPU protective cover, please put it back
protect the socket pin when the system need to RMA shipping.
Note: Please refer to the user’s manual to get more detail information.
Iron bar
