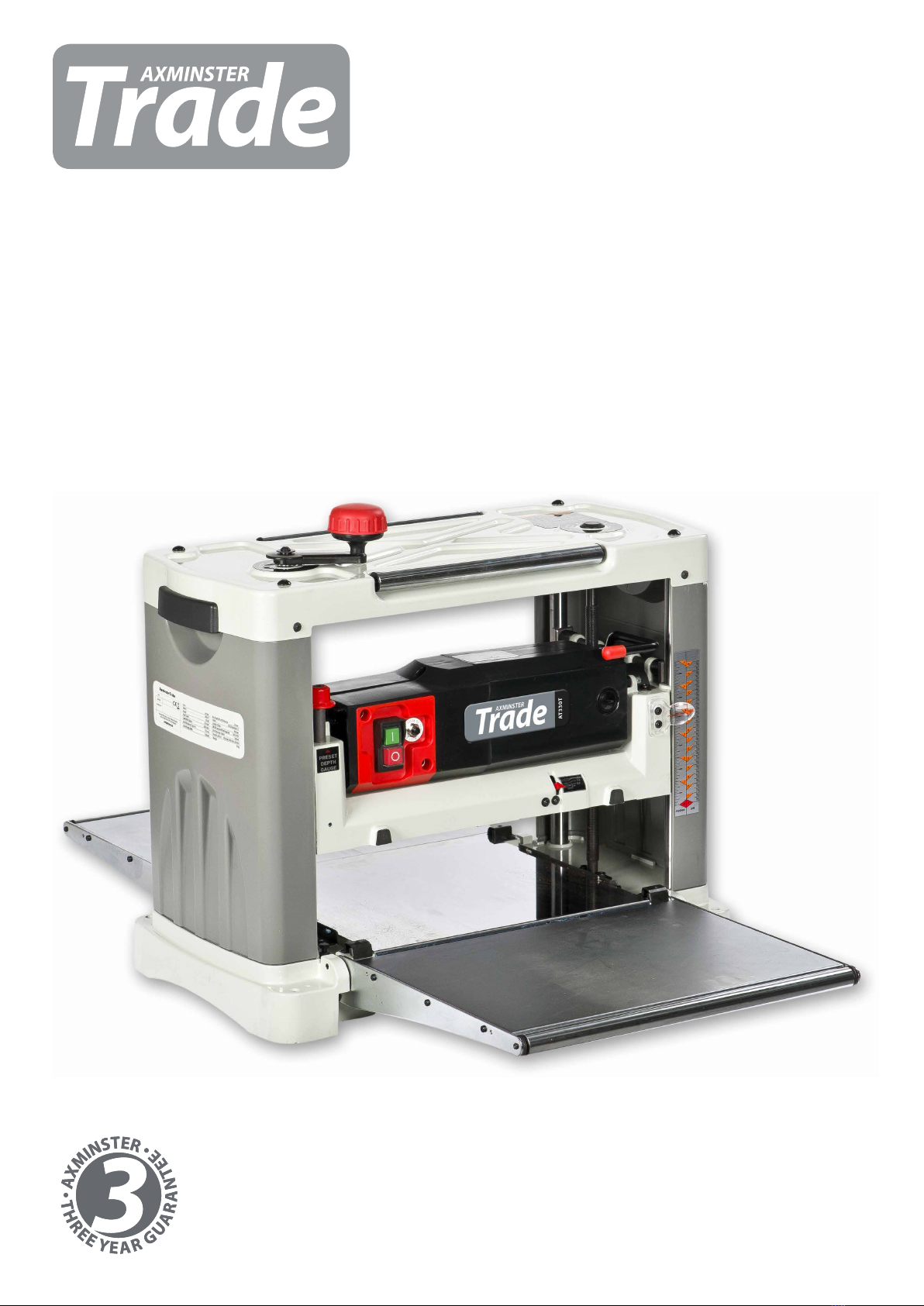

Axminster Trade AT330T Bedienungsanleitung

AT330T, AT330ST

Thicknesser

AT330TCode 501207

AT330ST Code 105070

Original Instructions

AT: 18/09/2020

BOOK VERSION: 02

CONTENTS

GENERAL SAFETY RULES FOR POWER TOLLS ........................................................................ 2

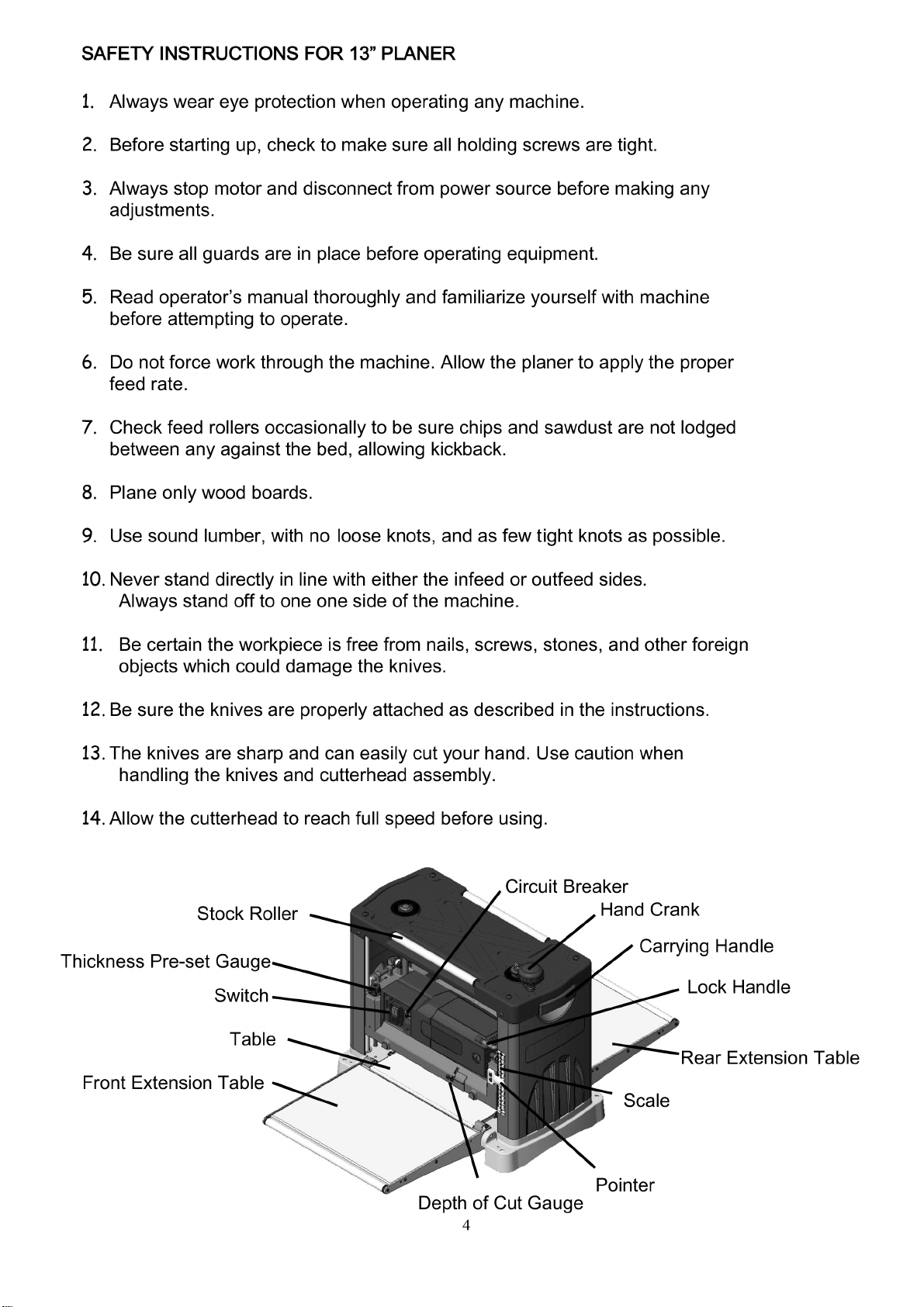

SAFETY INSTRUCTIONS FOR 13” PLANER.................................................................................. 4

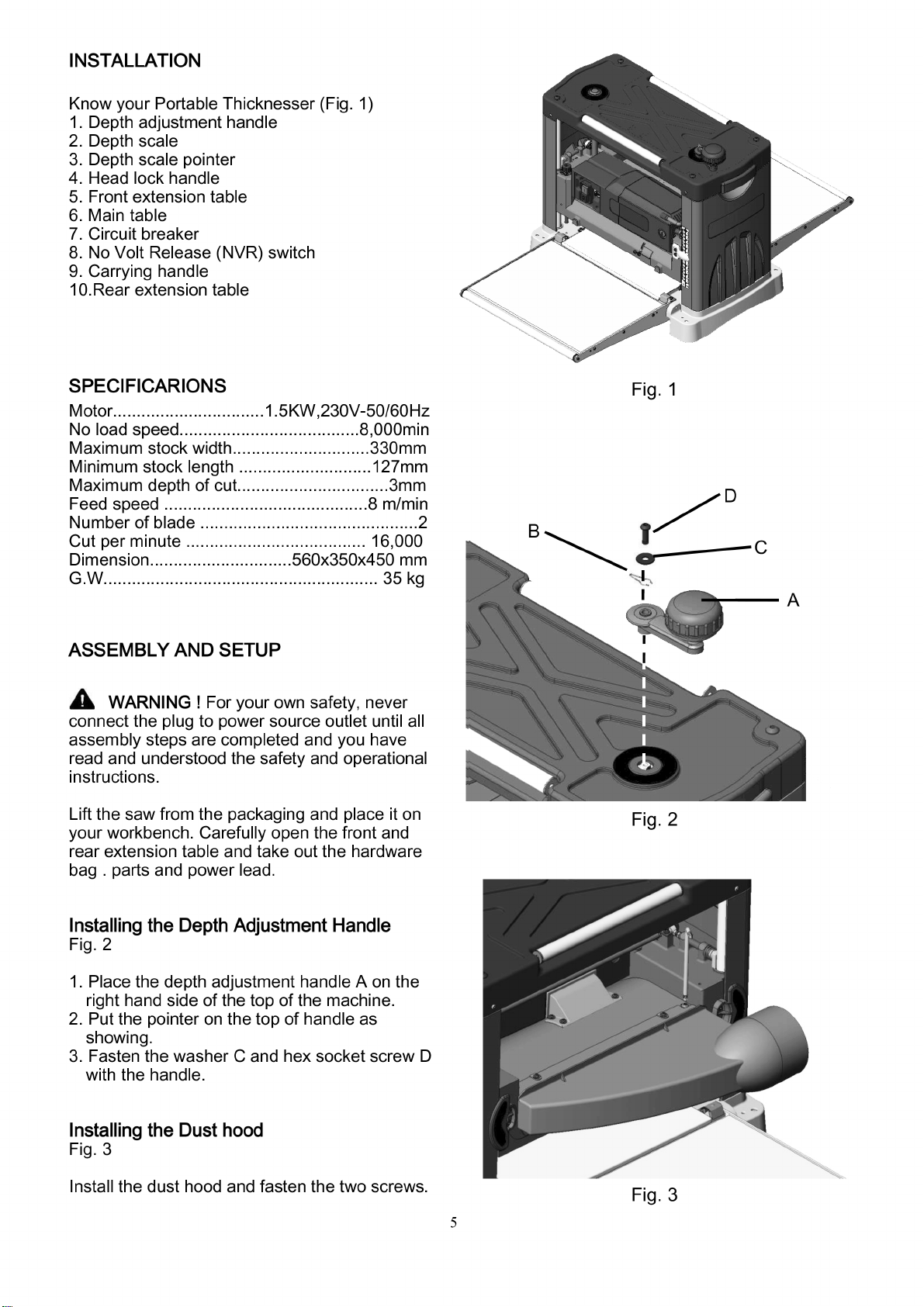

INSTALLATION...................................................................................................................................... 5

SPECIFICARIONS ................................................................................................................................ 5

ASSEMBLY AND SETUP .................................................................................................................... 5

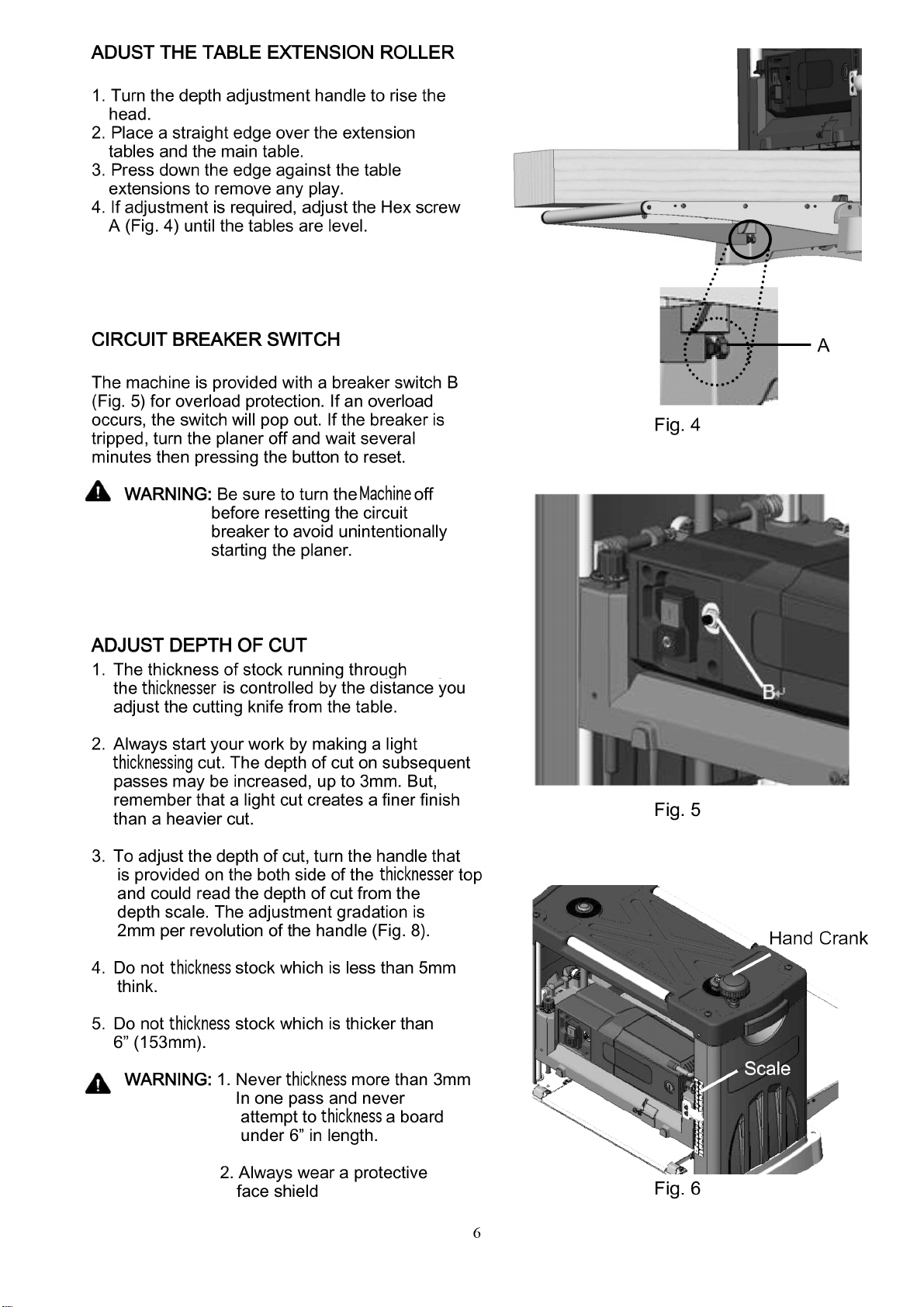

ADUST THE TABLE EXTENSION ROLLER .................................................................................... 6

CIRCUIT BREAKER SWITCH............................................................................................................. 6

ADJUST DEPTH OF CUT.................................................................................................................... 6

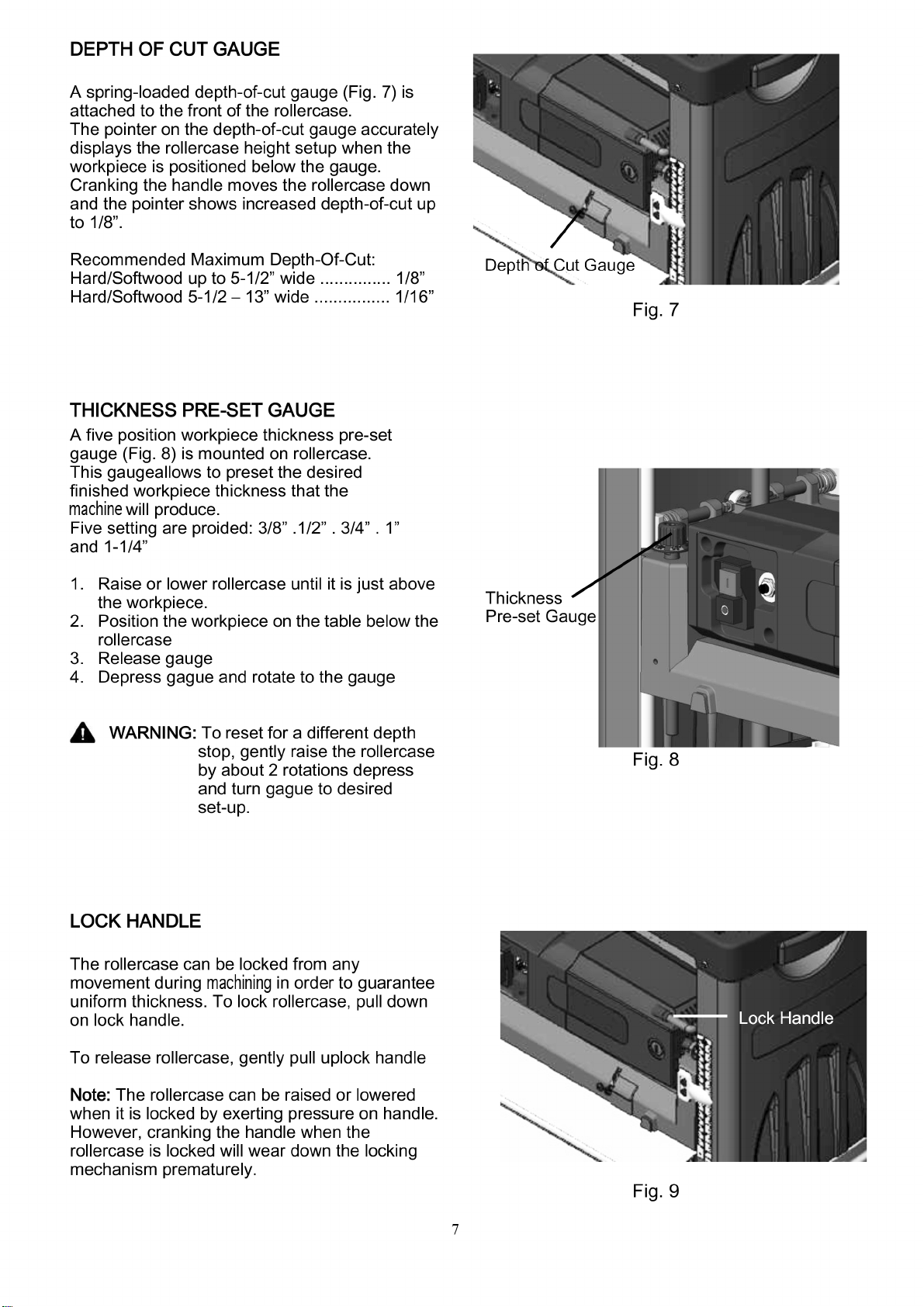

DEPTH OF CUT GAUGE..................................................................................................................... 7

THICKNESS PRE-SET GAUGE ......................................................................................................... 7

LOCK HANDLE...................................................................................................................................... 7

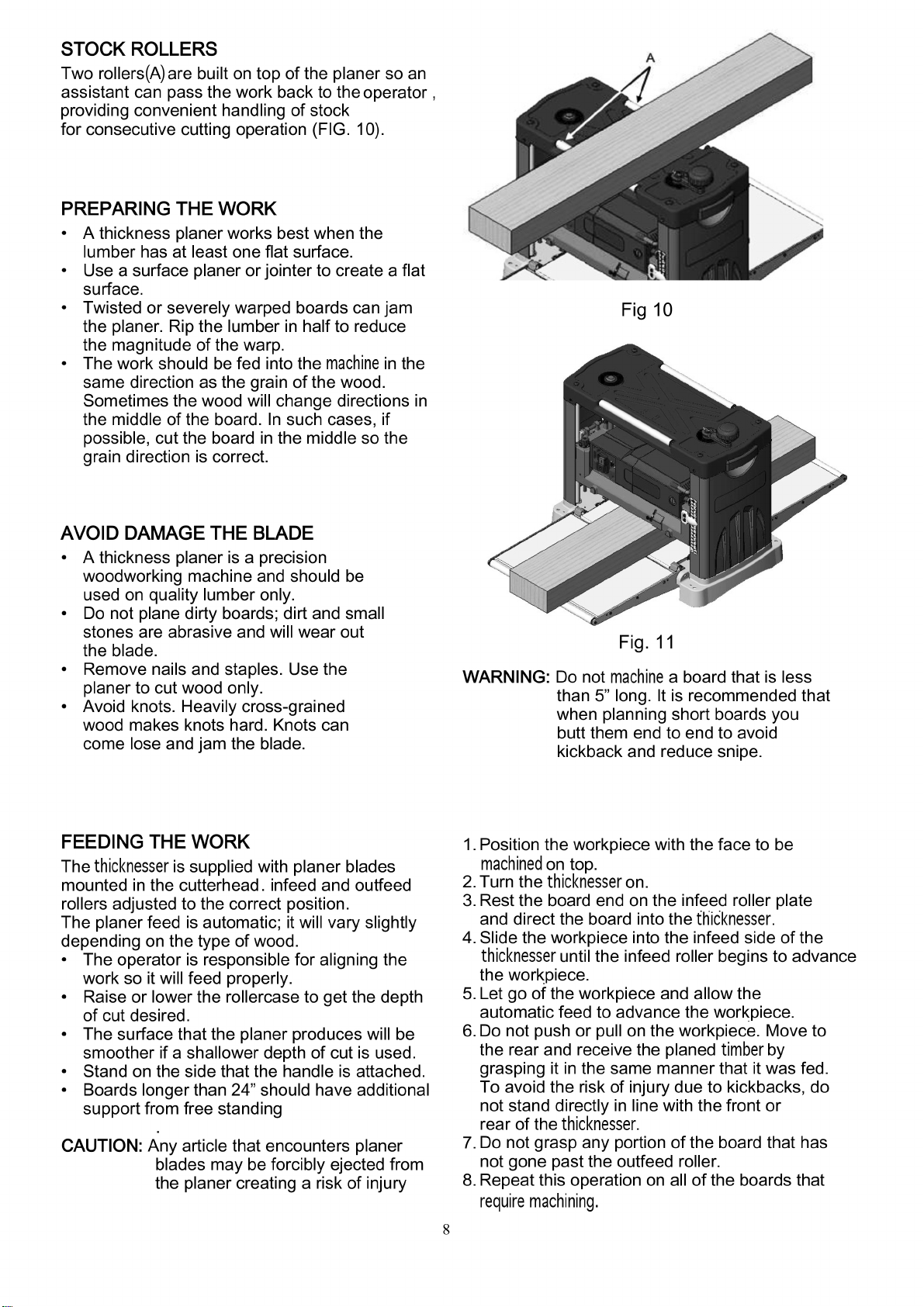

STOCK ROLLERS ................................................................................................................................ 8

PREPARING THE WORK.................................................................................................................... 8

AVOID DAMAGE THE BLADE............................................................................................................ 8

FEEDING THE WORK.......................................................................................................................... 8

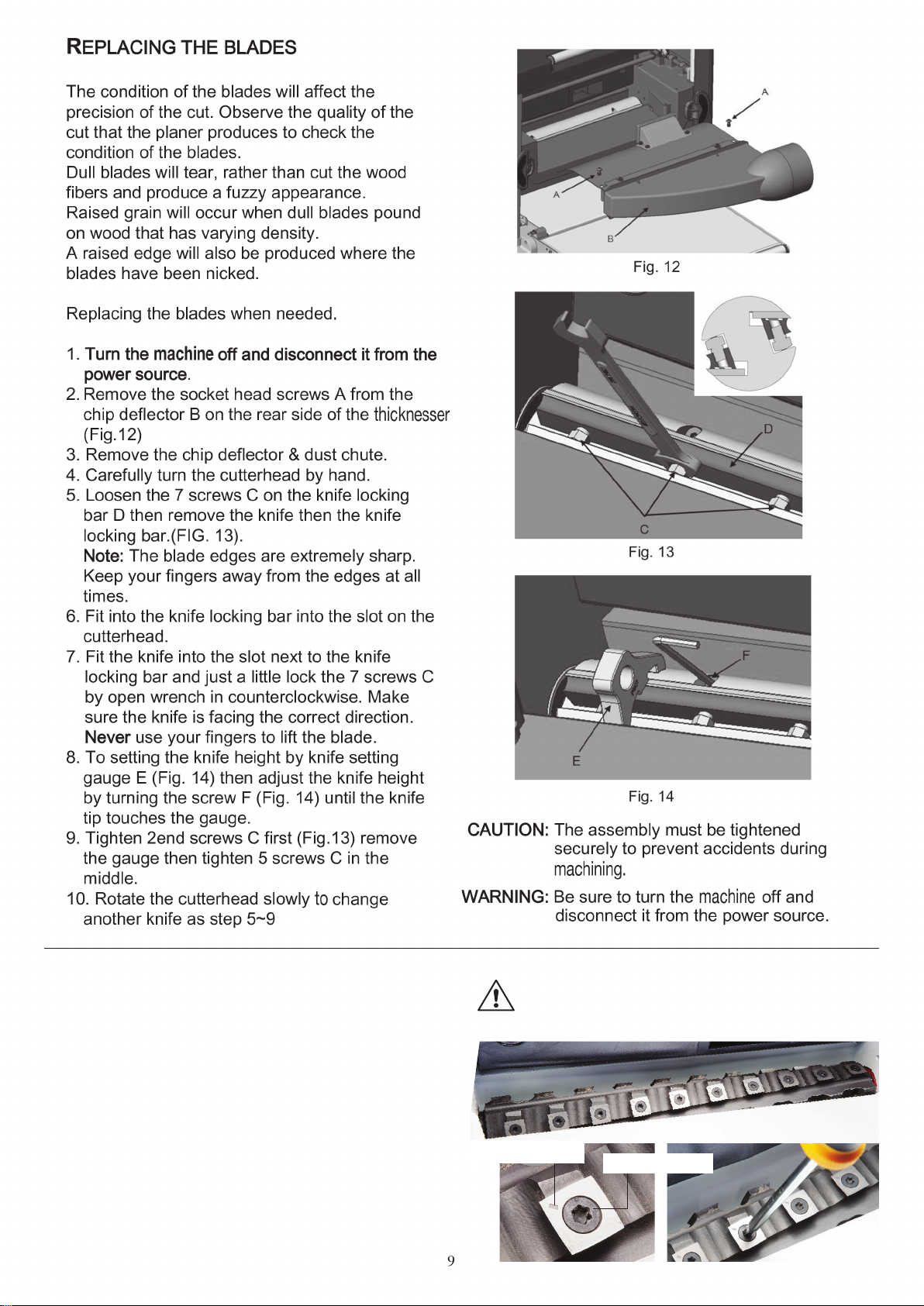

REPLACING THE BLADES................................................................................................................. 9

REPLACEMENT CARBON BRUSH................................................................................................. 10

REPLACEMENT V-BELT................................................................................................................... 10

LUBRICATION ..................................................................................................................................... 10

TROUBLE SHOOTING....................................................................................................................... 11

EXPLODED VIEW............................................................................................................................... 13

PART LIST............................................................................................................................................ 16

GENERAL SAFETY RULES FOR POWER TOLLS

WARNING: Do not attempt to operate until you have read thoroughly and understand

completely all instructions, rules, etc. contained in this manual. Failure to comply

can result in accidents involving fire, electric shock, or serious personal injury.

Keep this owner manual and review frequently for continuous safe operation.

1. Know your machine. For your own safety, read the owner’s manual carefully.

Learn its application and limitations, as well as specific potential hazards pertinent to this

machine.

2. Make sure all tools are properly grounded. If the tool electrical plug has three

prongs. If should used with a three-hole electrical socket. If a three-prong to two-prong

adapter is used, the adapter lug must be properly grounded. Do not remove or otherwise

disable the third plug.

3. Keep guards in place and in working orders. If a guard must be removed for

maintenance or cleaning, make sure it is properly reattached before using the tool again.

4. Remove adjusting key and wrenches. Form habit of checking to see that keys

and adjusting wrenches are removed from the machine before turning it on.

5. Keep work area clean. Cluttered areas and workbenches increase the

likelihood of an accident.

6. Do not use in dangerous environments. Do not use power tools in damp or

wet locations, or expose them to rain. Keep work area well illuminated.

7. Keep children away. All visitors should be kept at a safe distance from work

area.

8. Make workshop childproof. With padlocks, master switches, or by removing

starter keys.

9. Do not force the machine. It will do the job better and be safer at the rate for

which it was designed.

10. Use the right tools. Do not force the machine or attachments to do a job for

which they were not designed. Contact the manufacturer or distributor if

there is any question about the tool’s suitability for a particular job.

11. Wear proper apparel. Avoid loose clothing, gloves, neckties, rings, bracelets,

or jewelry

which could be caught in moving parts. Nonslip footwear is recommended. Wear

protective hair covering to contain long hair.

12. Always use safety glasses. Also use face or dust mask if operation is dusty.

Everyday eyeglasses only have impact resistant lenses. They are NOT safety glasses.

13. Secure work. Use clamps or a vise to hold work when practical. It is safer

than using your hand and frees both hands to operate the tool.

14. Do not overreach. Keep proper footing and balance at all times.

15. Maintain machine in top condition. Keep machine clean for best and safest

performance. Follow instructions for lubricating and changing accessories.

16. Disconnect machine from power source. Before servicing and when

changing accessories, or when mounting and remounting motor.

17. Avoid accidental starting. Make sure switch is in the “off”position before

plugging in power cord.

18. Use recommended accessories. Consult the owner’s manual for

Recommended accessories.

19. Check damaged parts. Before further use of the machine, a guard or other

part that is damaged should be carefully checked to make sure that it will operate

properly and perform its intended function. Check for alignment of moving parts,

binding of moving parts, breakage of parts, mounting, and any other condition

that may affect its operation.

Guards or other parts that are damaged should be properly repaired or replaced.

20. Never leave machine running unattended. Turn power off. Do not leave the

machine until it comes to complete stop.

21. Do not use any power tools while under the effect of drugs, alcohol, or any

medication.

22. Always wear a face or dust mask if operation creates a lot of saw dust and or

wood chips. Always operate the tool in a well ventilated area and provide for proper dust

removal. Use a wood dust collection system whenever possible.

23. Provide for adequate space surrounding work area and non-glare, overhead lighting.

24. Keep the floor around the machine clean and free of scrap material, oil and grease.

25. Keep visitors a safe distance from the work area. Keep children away.

26. Make your workshop child proof with padlocks, master switches or by removing

starter keys.

27. Give your work undivided attention. Looking around, carrying on a conversation and

“horse-play” are careless acts that can result in serious injury.

The spiral cutter block has four rows of square cutters running

around its circumference.There is a blade machined to each

side of the square cutter allowing the cutter to be rotated to a

clean sharp edge if one side has been damaged or has become

blunt, see ﬁg 14A.

The square cutter has an embossed position marker to one

of its four corners, once this mark has gone round one fall

rotatation it is time to replace the square cutter.

To rotate the cutter, loosen the Torx head screw and rotate

until the new edge is in alignment with the other cutters.

Re-tighten the Torx head screw to lock the cutter in place.

WARNING! BE VERY CAREFUL WHEN TURNING THE

CUTTERS AS THE BLADES ARE EXTREMELY SHARP.

DO NOT OVERTIGHTEN TO AVOID THE SCREW HEAD

FROM GETTING DAMAGED!

Spiral Cutter Block (AT330ST)

Fig. 14A

Position marker Torx head screw
