User's Manual

XP-M5S661FX

Intel®Pentium ®4 LGA775 Processor Motherboard

Motherboard

XP-M5S661FX

Aug. 17, 2005

XP-M5S661FX

Motherboard

reproduced, copied, translated, or transmitted in any form or by any means without express

permission from Gigatrend Technology. Companies and product names mentioned in this

document are trademarks or registered trademarks of their respective owners.

Legal Disclaimer

The information and content of this document is provided "as is", without warranty of any kind,

express or implied, including but not limited to the warranties of merchantability, fitness for a

particular purpose and non-infringement. Gigatrend Technology assumes no responsibility for

errors or omissions in this document or other documents which are referenced by or linked to

this document. The content of this document are subject to change without prior notice.

Gigatrend Technology may make improvements and/or changes in the product described in

this publication at any time and without prior notice. In no event shall Gigatrend Technology be

liable for any special, incidental, indirect or consequential damages of any kind arising out of

or in connection with the use or performance of this document. If you are uncertain about any

installation procedures, please consult a qualified computer technician.

To avoid unnecessary errors of operation, please consult the user manual prior to hardware

installation. For more up-to-date information, please link to our company website at http://

www.axper.com.tw

Prior to beginning installation procedures, please make sure that your computer turned of f and

is connected to a grounded power outlet. If your system is not turned of f during installation,

this could result in harm or damage to the motherboard, the components as well as to the

user.

Contents

Motherboard Layout ...........................................................................4

1. Product Introduction ....................................................................5

1.1. Feature Summary ..........................................................................5

1.2. I/O Back Panel and Connectors & Jumper Setting ........................6

1.2.1. I/O Back Panel .....................................................................................6

1.2.2. Connectors & Jumper Setting ............................................................6

2. Hardware Installation ...................................................................9

2.1. Installation of a LGA775 Pentium 4 CPU and Fan Sink ...............10

2.1.1. Installation of a LGA775 CPU ...........................................................10

2.1.2. Installation of Fan Sink .......................................................................11

2.2. Installation of Memory ..................................................................12

2.3. Installation of the Graphics Card .................................

................12

3. BIOS Setup ..............................................................................13

4. Driver Installation .......................................................................13

5. Installation of SATA RAID Disks .................................................14

5.1. Configuring the System BIOS for the SATA Channel ....................14

5.2. Creating RAID 0 ...........................................................................14

5.3. Creating RAID 1 ..

.........................................................................15

5.4. Making the SATA RAID Driver Disk ..........................

......................15

5.5. Loading the SiS 964 Serial A TA Driver ..........................................15

English

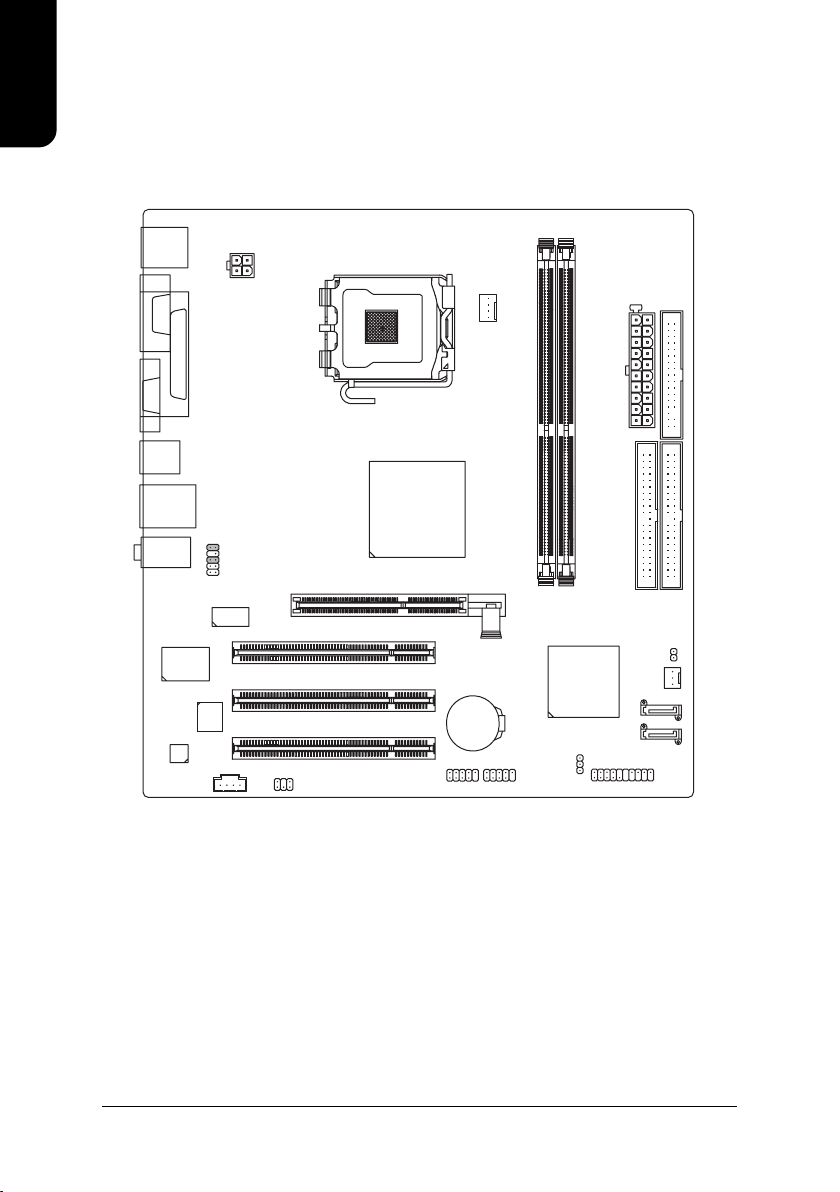

Motherboard Layout

XP-M5S661FX

KB_MS

COMA

ATX_12V

CD_IN

F_AUDIO

F_PANEL

BATTERY

SiS 964

SiS 661FX

LGA 775

CPU_FA N

ATX FDD

IDE2

PCI1

PCI2

PCI3

DDR1

CODEC

IT8705AF

BIOS

VGA

IDE1

CLR_CMOS

F_USB1 PWR_LED

USB

LAN

DDR2

LPT

ICS1883

AGP

SYS_FAN

AUDIO

R_USB

SUR_CEN

SATA1

SATA0

F_USB2

English

C P U LGA775 for Intel ®Pentium®4 Processor

Intel®Pentium ®4 800/533MHz FSB

L2 cache depends on CPU

Chipset North Bridge: SiS ®661FX

South Bridge: SiS ®964

Memory 2 184-pin DDR DIMM sockets, supports up to 2GB DRAM (Max.)

Supports DDR400/DDR333/DDR266 DIMM

Supports only 2.5V DDR SDRAM

Slots 1 A G P slot support 4X/8X(1.5V) device

3 PCI slots support 33MHz & PCI 2.2 compliant

On-Board IDE 2 IDE controllers provide IDE HDD/CD-ROM(IDE1, IDE2) with PIO,

Bus Master (Ultra DMA33/ATA66/ATA100/ATA133) operation modes

Can connect up to 4 IDE devices

On-Board SATA 2 Serial ATA ports

On-Board Floppy 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and

2.88M bytes

On-Board Peripherals 1 Parallel port supports Normal/EPP/ECP mode

1 VGA port, 1 Serial port (COMA)

8 USB 2.0/1.1 ports (4 x Rear, 4 x Front by cable)

1 Front Audio connector

1 PS/2 Keyboard

1 PS/2 Mouse

On-Board VGA Built-in SiS ®661FX Chipset

On-Board LAN Built-in ICS1883 chip

1 RJ45 port

On-Board Sound Realtek ALC655 CODEC

Support 2 / 4 / 6 channel

Line Out / Line In / Mic In

CD In connection

BIOS Licensed A W ARD BIOS

Supports BIOSNow!

I/O Control IT8705AF

Hardware Monitor System voltage detect

CPU temperature detect

CPU/System fan revolution detect

Form Factor Micro-ATX form factor, 24.4cm x 23.0cm

1.1. Feature Summary

1. Product Introduction

The user manual provides steps related to quick installation. If you wish to view complete

product information, please select the " ", Open User Manual button located on the driver

CD or link to our website at http://www.axper.com to received the most up-to-date information.

English

1.2. I/O Back Panel and Connectors & Jumper Setting

1.2.2. Connectors & Jumper Setting

FDD (Floppy Disk Drive Connector)

The FDD connector is able to connect a single floppy disk drive via a FDD cable. Usually one

edge of the FDD cable is marked in red, please attach this marked edge to position 1 on the

connector.

IDE1 / IDE2 (IDE1 and IDE2 Connectors)

The IDE connector is able to connect two IDE devices via an IDE cable and requires checking

of the IDE jumper setting. It is recommended that the hard drive be connected to the first IDE

connector while the optical drive be connected to the second IDE connector.

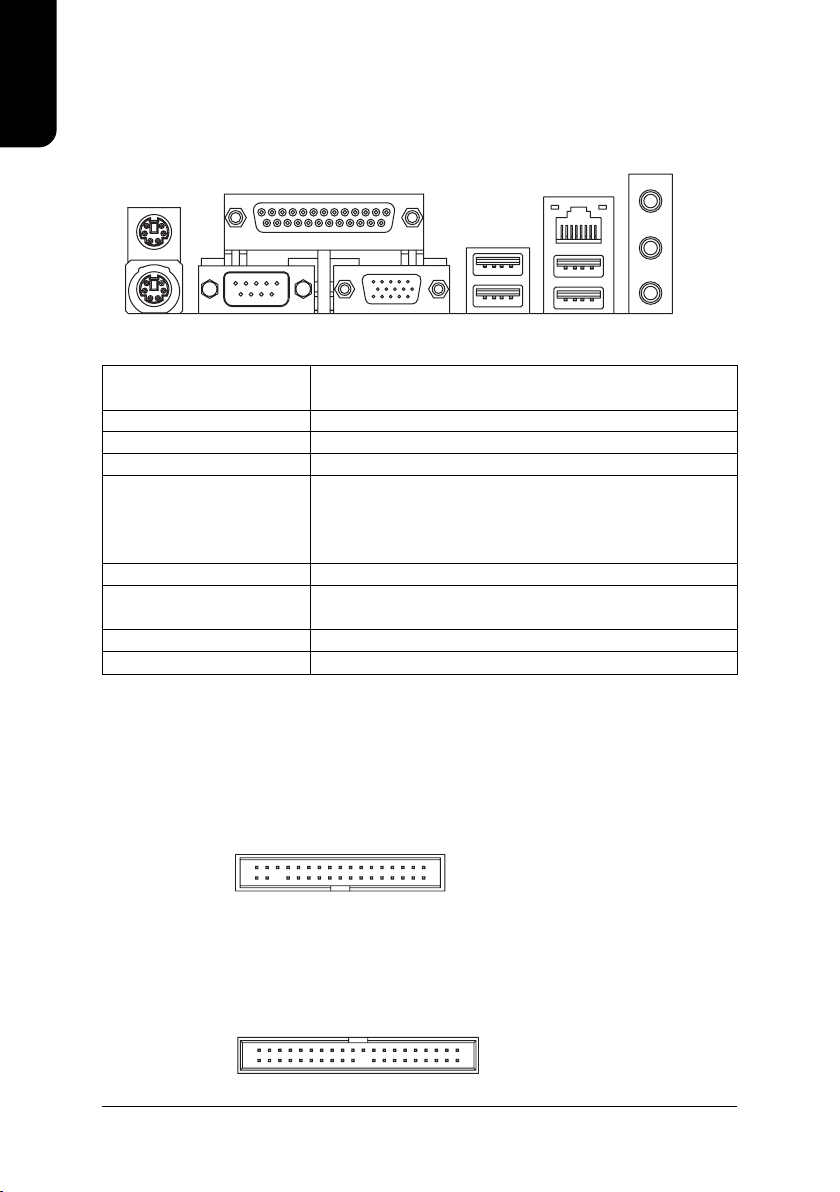

1.2.1. I/O Back Panel

PS/2 Keyboard Connects PS/2 standard keyboard and PS/2 standard

PS/2 Mouse connector mouse

Parallel port (LPT) Connects to printer

COMA (Serial port) Connects to serial-based mouse or data processing devices

VGA Port Connects to 15-pin D-Sub device such as a monitor

U S B Prior to use, please make sure that your system as well

(Universal Serial Bus Port) as the connected attachments support the USB interface.

If driver installation is required, please consult the USB

section of the user manual.

LAN (RJ45 LAN Port) Internet connection with speed of up to10/100Mbps

Line In Connects to optical devices, CD players and other audio

input devices

Line Out Connects to speakers or headphones

Mic In Connects to microphone

342

40 2

39 1

PS/2

Keyboard

PS/2

Mouse

VGA

Parallel Port

COMA

LAN

USB Line Out

Mic In

Line In

USB

English

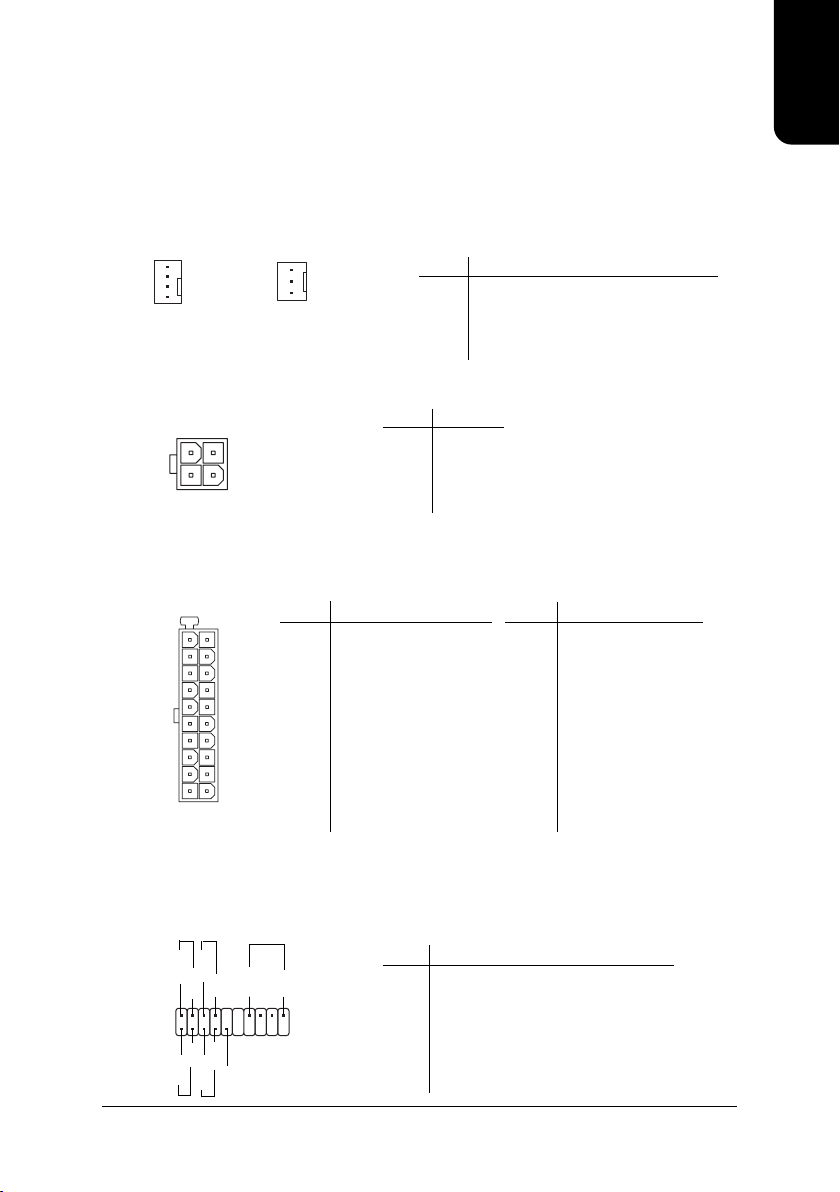

A TX_12V (+12V Power Connector)

The A TX_12V power connector provides power to the CPU. If this connector is not attached,

the system will not start.

A TX (ATX Power Connector)

The A TX power connector provides power to the motherboard. Prior to connection, please

make sure that the power supply is disconnected.

F_PANEL (Front Panel Control Connector)

The F_Panel Control Connector connects to certain connectors on the front panel of the

system casing such as IDE Hard Disk Active LED, speaker, reset, and power on/of f connectors.

Y ou can use the schematic diagram below as the basis for connection.

PIN SIGNAL

1 GND

2 GND

3 +12V

4 +12V

PIN SIGNAL

H D IDE Hard Disk Active LED

S P K Speaker Connector

R E S Reset Switch

P W Power Switch

M S G Message LED/Power/Sleep LED

NC NC

PIN SIGNAL

1 3.3V

2 3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 Power Good

9 5VSB (stand by +5V)

10 +12V

PIN SIGNAL

11 3.3V

12 -12V

13 GND

14 PS_ON (soft on/off)

15 GND

16 GND

17 GND

18 -5V

19 +5V

20 +5V

HD-

HD+

RES+

RES-

SPK-

MSG-

MSG+

PW-

PW+

SPK+

SYS_FAN

CPU_FAN (CPU Fan Power Connector); SYS_FAN (System Fan Power Connector)

The cooler fan power connector supplies a +12V power voltage via a 3-pin/4-pin(only for CPU_FAN) power

connector and possesses a ful-proof connection design. Most coolers are designed with color-coded power

connector wires. A red power connector wire indicates a positive connection and requires a +12V power

voltage. The black connector wire is the ground wire (GND). Please remember to connect the power to the

cooler to prevent system overheating and failure.

Caution!

Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.

CPU_FAN

PIN SIGNAL

1 GND

2 +12V

3 Sense

4 Speed Control (Only for CPU_FAN)

English

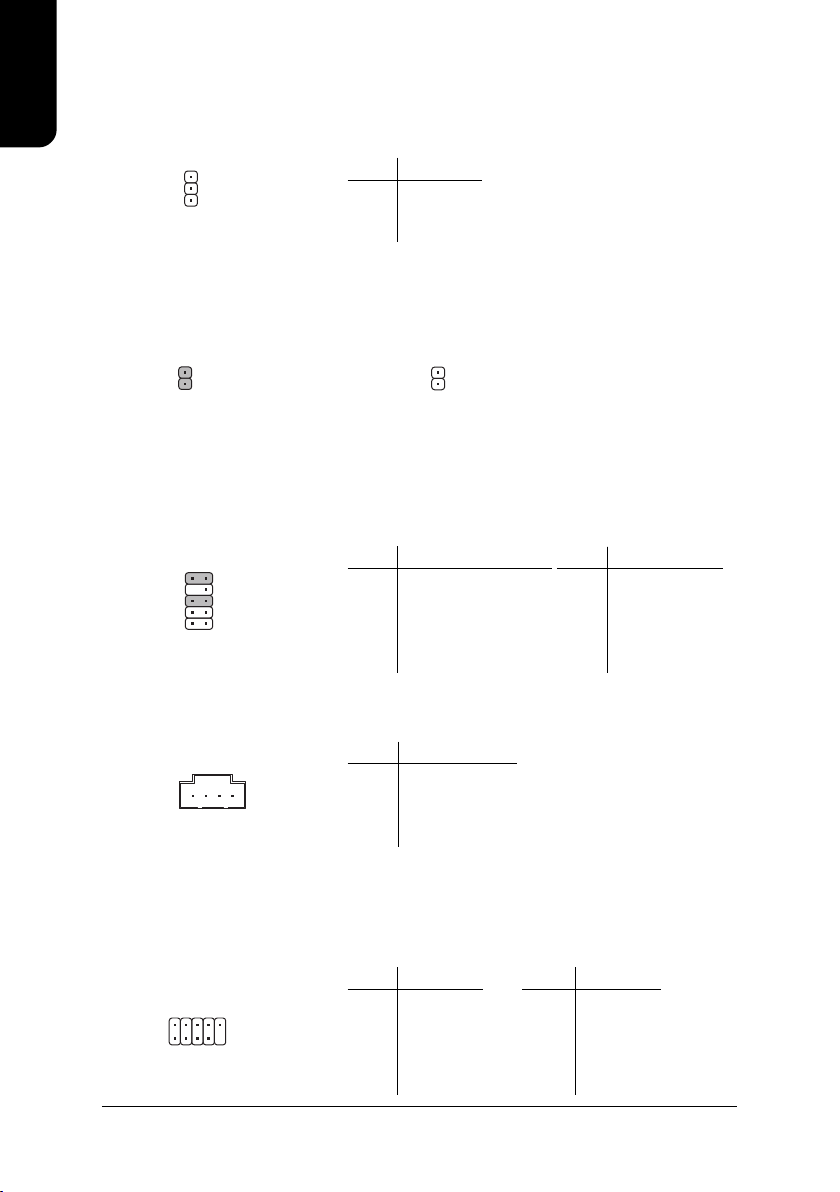

F_AUDIO (Front Audio Connector)

Connects to the audio connector located on the front panel of the system casing (dependent

on case design). When use of the front panel audio connector is required, please remove the

5-6 pin, 9-10pin jumper. Please note that use of only the front panel audio connector or the

rear panel audio connector is permitted.

CD_IN (Optical Drive Audio Connector)

Connects CD-ROM or DVD-ROM audio connector.

PIN SIGNAL

1 MIC

2 GND

3 MIC_BIAS

4 POWER

5 Front Audio (R)

PIN SIGNAL

6 Rear Audio (R)

7 Reserved

8 NO PIN

9 Front Audio (L)

10 Rear Audio (L)

PWR_LED

Connects to the system power LED indicator whereby the power is indicated as ON or OFF.

However, the indicator will flash when the system is suspended.

PIN SIGNAL

1 MPD+

2 MPD-

3 MPD-

PIN SIGNAL

1 CD_L

2 GND

3 GND

4 CD_R

CLR_CMOS (Clear CMOS)

Y ou can clear the motherboard CMOS with the jumper to return your system to its initial

status. T o prevent improper usage, the jumper does not include the jumper plug. If you wish to

use the Clear CMOS function, please short circuit the 1-2Pin.

Open : NormalShort : Clear CMOS

F_USB1/F_USB2 (Front USB Connector)

Connects to the USB connector located on the front panel of the system casing (dependent on

case design). Note: Please make sure that each USB connection matches its designated

position. If connections are made incorrectly, the result can lead to inability to use the function

or even damage.

210

PIN SIGNAL

6 USB Dy+

7 GND

8 GND

9 NO PIN

10 N C

PIN SIGNAL

1 POWER

2 POWER

3 USB Dx-

4 USB Dy-

5 USB Dx+

10 9

English

The improper removal of the battery can result in harm. When replacing a

battery, please make sure you use one that is of similar brand and model

number.

For information related to battery specifications and precautions, please refer

to the manufacturer instructions.

If you wish to delete the data stored in the CMOS, please follow the steps

below:

1. Please turn of f your computer and unplug the power.

2. Remove the battery from the motherboard.

3. W ait 10 minutes and then replace the battery onto the motherboard.

4. Plug in the power supply and turn on your system.

B ATTERY

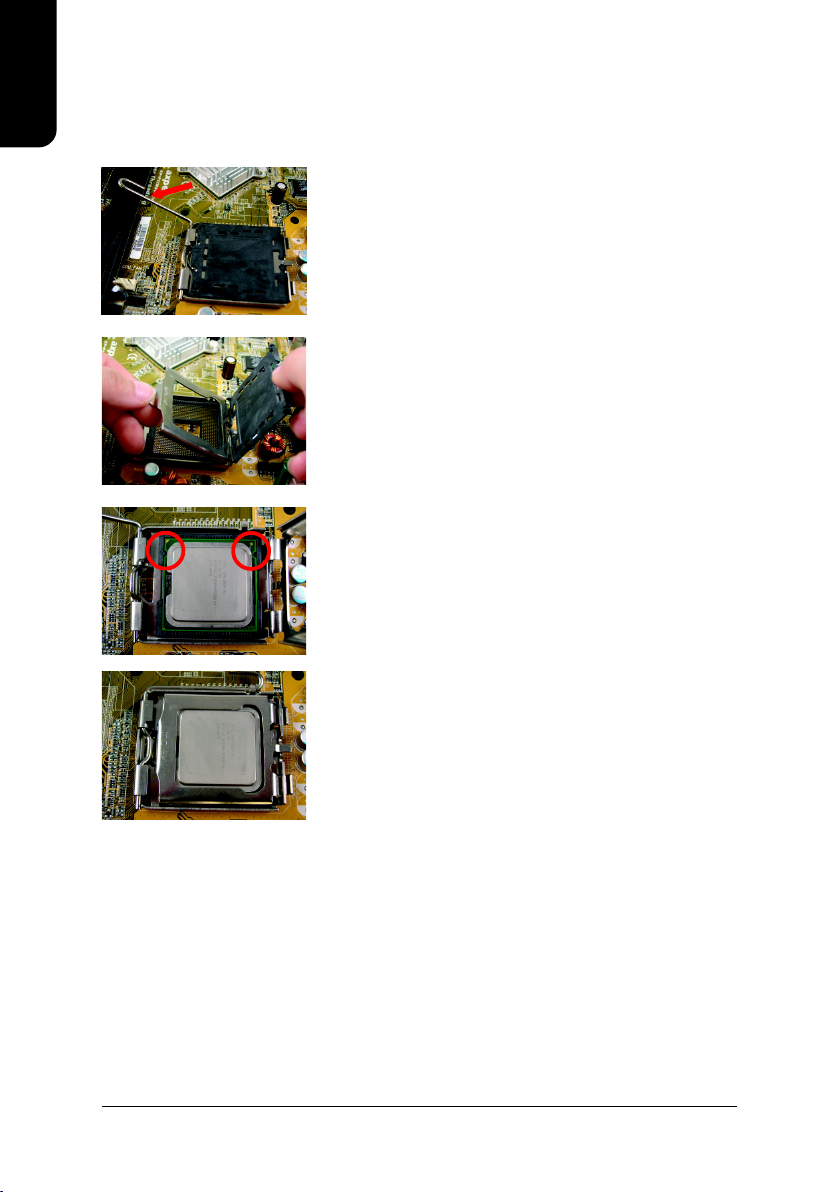

1. Please make sure that the CPU used is supported by your motherboard.

2. Please be aware of the placement position of the CPU. If the CPU does not

insert properly, do not apply force but check the placement position.

3. Please make sure that an even layer of heat sink paste is added between the

CPU and the fan sink.

4. Please do not turn on the power prior to installing the fan sink. Doing so can

result in overheating and lead to permanent damage to the CPU.

5. Please follow the CPU specifications when setting the frequency. It is not

recommended that system speed settings exceed that of hardware

specifications. If you wish to set your system speed to exceed the

recommended specifications, please check your hardware specifications eg:

CPU, graphics card, memory, hard drive

The following must be supported to allow the use of Hyper-Threading Technology:

- an Intel Pentium 4 CPU with HT

- a motherboard supporting HT

- HT selection feature within BIOS

- an operating system supporting HT

2. Hardware Installation

SUR_CEN (Surround Center Connector)

Connects to the optional surround center cable.

PIN SIGNAL

1 SUR OUTL

2 SUR OUTR

3 GND

4 No Pin

5 CENTER_OUT

6 LEF_OUT

English

2.1. Installation of a LGA775 Pentium 4 CPU and Fan Sink

2.1.1. Installation of a LGA775 CPU

3. Hold the CPU with your thumb and index fingers (do not

touch the bottom of the CPU when holding it).

Align notchs on the two sides of the CPU with the small

sockets of the CPU socket and place the CPU straight

down.

2. Open the load plate and gently remove the plastic cover.

1. Push the socket lever arm down and away from the

CPU socket and raise it up completely.

4. Make sure the CPU is properly installed and then close

the load plate. Lower the socket lever and engage it to

lock the CPU in place.

Inhaltsverzeichnis

Andere Axper Hauptplatine Handbücher

Axper

Axper XP-M5S661GX Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
