AYR 758 Bedienungsanleitung
758
DIGITAL DOOR VIEWER with ALARM
USER MANUAL
Versión del manual - 141221
3
WARNING!
DO NOT PUT THE BATTERIES
until the peephole is
fully installed at the door
4
Correct assembly
When tting the door bell camera, rst unscrew the camera barrel and then
peel off the 3M sticker from the back of the camera (Fig. 1).
Stick the camera to the outside of the door making sure the door bell is at
the bottom (Fig. 2).
Incorrect assembly
DO NOT t the door bell camera without sticking to the door using the 3M
sticker. This would cause the door bell to rotate and will damage the cables
and may cause the unit to fail (Fig. 3).
WARNING!
Make sure you assemble the doorbell camera
carefully.
IF THE CAMERA WIRE IS PULLED OR FOLDED,
this could damage the product.
5
1. Package list ���������������������������������������������������������������������� 5
2. Installation instructions ���������������������������������������������� 6
3.Installation and replacement of batteries ����������� 7
4. Button functions ��������������������������������������������������������� 8,9
5. Memory Card Installation ���������������������������������������� 10
6. Adjust settings ������������������������������������������������������������� 10
7. Vibration alarm function �������������������������������������������� 13
8. Quick guide ������������������������������������������������������������������ 14
9. Specifications���������������������������������������������������������������� 15
Index
USER MANUAL
WARNING:
1. Please READ THIS USER MANUAL CAREFULLY before
using the product.
2. CONSERVEZ et utilisez ce manuel.
3. TO AVOID DAMAGE to the product or injury to the user,
never attempt to repair or change the product or its acces-
sories by yourself.
4. BATTERIES: Any abandoned batteries should be dispo-
sed according to local environment protection rules and
regulations.
5. ANY ACCIDENTAL FACTOR such as being struck by
lightning or any incorrect operation could cause a memory
loss on the SD card. Keeping copies of the videos is stron-
gly recommended in case of memory loss. We are not res-
ponsible for any loss of data.mations.
6
1 LCD Screen
1 ixing screw
4 x AAA batteries
1 Holding plate
1 Camera
3 Locking barrel
1 Tightening tool
1
2
3
4
5
6
7
1. Package list:
2
7
4
1
3
56
Before install:
Before installation, unscrew the re-
tainer plate from the bottom of the
visor and remove the adhesive pro-
tector.
Make sure that the thickness of the
door where the peephole will be ins-
talled is appropriate.
Please note that for some doors the
thickness in the center may be diffe-
rent than other parts.
7
Replace the existing door viewer or drill a 14mm hole in the door at the
required height. Peel off the 3M sticker top layer and then insert the ca-
mera from the outside . Ensure the door bell button is under the camera
and adjust the camera vertically to the ground(FIG.1)
Warning: It is very important to peel off the label so that the camera is
perfectly attached to the door(FIG. 1).
1.
Peel off the 3M sticker top layer on the holding plate and fit the holding
plate over the end of the camera wires on to the back of the door. Make
sure the arrow on the holding plate points upwards. Then screw up the
locking barrel on to the back of the camera.This will hold the plate to
the door(FIG.2)
2.
When inserting the camera wire into the socket ,ensure you match the
connectors correctly.(FIG. 3) If inserted incorrectly, this can damage the
camera cables. The excessive wire should be gently placed into the
groove at the back of the screen.
Warning: it is very important that the connector is perfectly connected
and in the position indicated.
3.
2. Installation instructions
FIG. 1 FIG. 2
FIG. 3
8

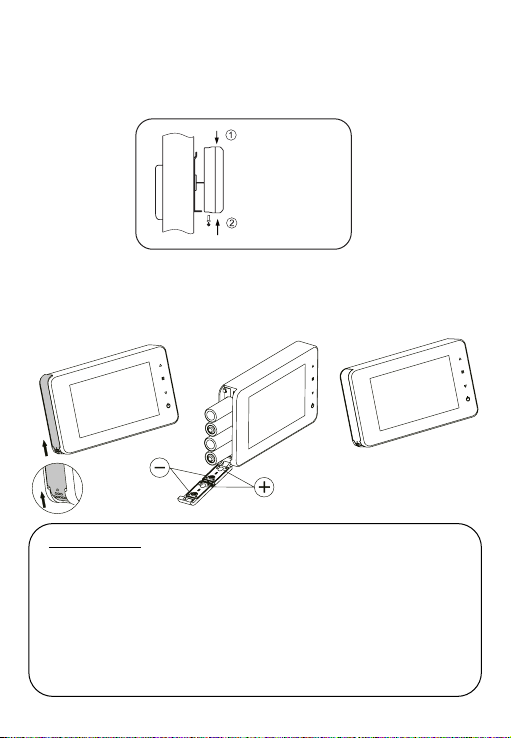

Hook the screen over the bracket at the top of the holding plate and
secure with one small screw through the hole at the bottom of the
screen.(FIG. 4).
4.
FIG. 4
HANG
SCREW
DOOR
3.Installation and replacement of batteries:
1. Slide the lid upwards to open, as shown in diagram.
2. Put in the batteries according to the “+” “-” sign on the lid.
3. Take the reverse steps to close the lid.
WARNING:
1. DO NOT force when opening and closing the lid to avoid lid
damage.
2. DO NOT press the lid to the opposite direction when opening to
avoid any lid damage.
3. When the low battery indicator is on, please replace all batteries to
avoid any damage to this product by battery weeping.
4. Use AAA, LR03 1.5V alkaline battery.
5. WARNING! DO NOT use rechargeable batteries.
8
9
4. Button functions:
6 SD card socket
1
2
3
4
5 camera data wire connector
menu
Scroll down
On / off
Scroll up Select les
Option conrmation
take photos
6
5
Nº
Alarm activation/deactivation
Basic function Other functions
Nº button multi functions
1
-In home page, press UP button to
enter picture browse mode;
-After enters picture browse mode,
press UP button to browse pictures
backwards;
-In setting mode, press Up button to
adjust the item you selected;
2
-In picture browse mode, press
Down button to browse pictures
onwards;
-In setting mode, press Down button
to adjust the item you selected;
-In home page, press Down button
to take picture.
3
-Press Menu button to enter menu
page;
-When deleting pictures, press
Menu button you can then choose
to delete the current photo;
-In picture browse and setting mode,
press and hold the menu button to
exit the current page.
4-After installing new batteries, press
and hold power button to start.
10
