Ayra DigiCon-1 Bedienungsanleitung

DigiCon-1

Desktop MIDI Wing for (Lighting) Software

User Manual

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Introduction

Thank you for purchasing the Ayra DigiCon-1. This console, also known as a playback wing, is a device

equipped with various buttons and faders that enable you to ore easily control software. In this user

anual, you can find all the infor ation needed to use the device.

Before unpacking the contents of the box, we advise that you read this user anual in its entirety so that you

are fa iliar with all of the functionality that this product has to offer. Please be sure to check that all of the

parts and accessories listed below under 'box contents' are included in the package. In the event that the

product does not function properly, or if you have any issues while operating it, please re ove the plug fro

the power socket and contact your retailer for assistance.

ox contents:

- Ayra DigiCon-1 console

- Power cable, IEC C13 to Schuko, 1.5 ²

- USB Cable, USB-A to USB-B

Please inspect the device and the included accessories.

Should you discover that either the device or any of the included parts have been da aged or rendered

defective while in transit, please contact your retailer directly.

Please note that the product seen in the images included in this user manual serve illustrative purposes only

and may differ slightly from the actual product.

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Safety Instructions

Da age caused by isuse and/or odifications ade to the device are not covered by the warranty.

This device does not contain any parts that can be repaired or replaced by the user. Should aintenance or

repairs be necessary, they ust be handled by a qualified technician.

The light source of this device is not replaceable. If the light source no longer functions, the entire device

needs to be replaced.

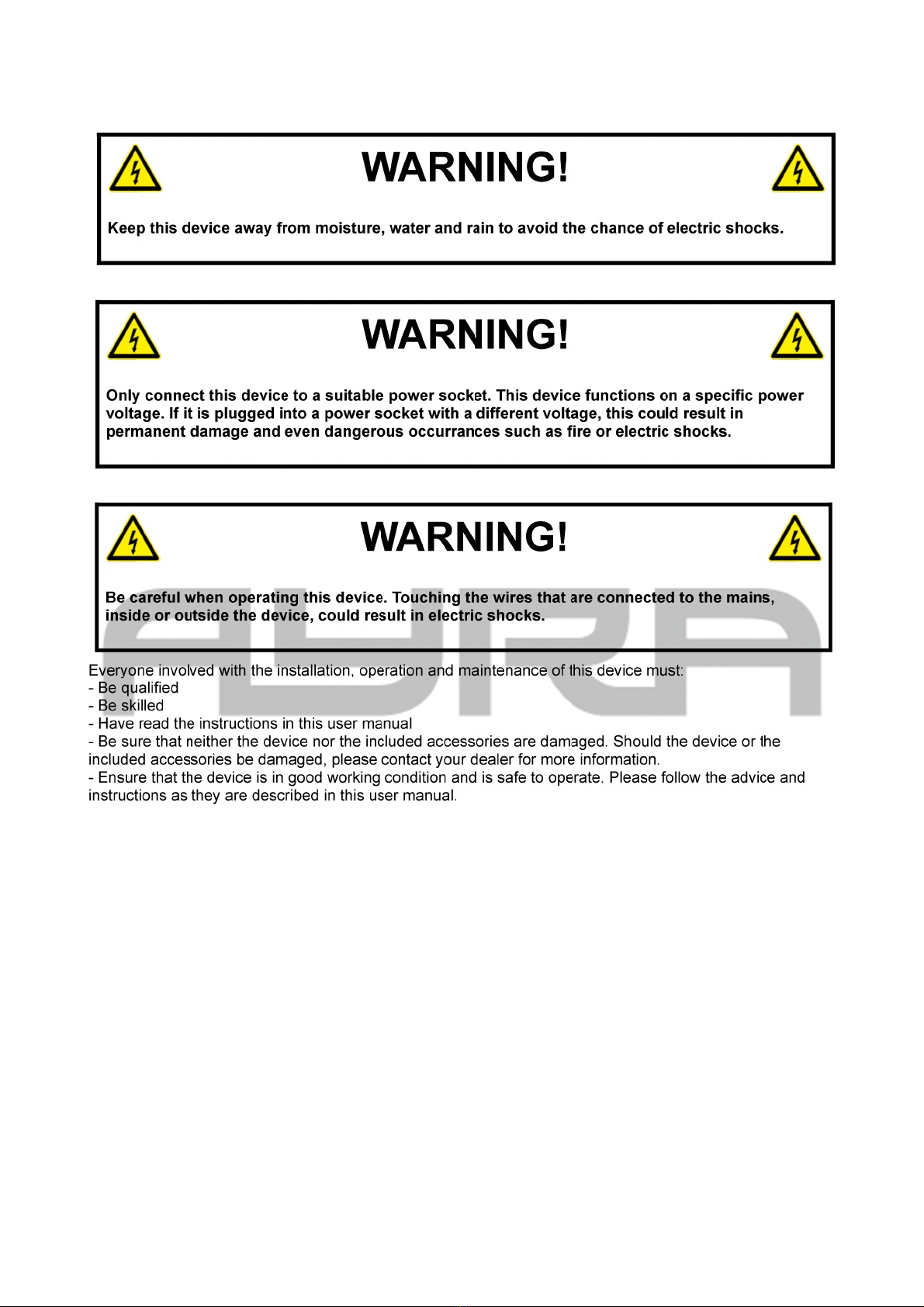

Important information regarding health and safety:

- Do not re ove any labels or stickers fro this device.

- Do not leave any cables lying around.

- The device should not be opened up, and any hardware or software that ay be present should not be

odified.

- To achieve opti al perfor ance, inputs on the device should not be fed with a signal higher than

necessary.

- The device should only be used indoors; contact with water, rain and oisture should always be avoided.

Do not place any objects containing liquid on top of the device.

- Re ove the device fro any nearby fla es or heat sources; do not place it near fla able fluids, gasses

or objects.

- Disconnect this device fro a power source if it will not be used for a long periods of ti e, if aintenance is

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

necessary, or if it needs to be cleaned.

- Do not pull on a cable to re ove a plug, as this ay cause da age.

- Do not use any cables other than the ones described in this anual. Do not use defective cables. Please

contact your dealer if the included or necessary cables do not function properly with this device.

- Only use this device with a stable AC power supply.

- Only use this device with power fro a grounded power source.

- In the event that the device is exposed to extre e te perature changes (e.g. exposed transferred fro a

cold outdoor environ ent to a war indoor environ ent), it should not be turned on until it has reached roo

te perature. This is necessary to prevent condensation fro for ing in the device, which could lead to

electric shocks.

Guidelines and operation of this device:

- This device is intended for use by professionals on stage, in theatres, in clubs, and in si ilar entertain ent

locations.

- This device is not suitable for use by children, and should always be operated by an adult.

- This device ay only be used in a suitable environ ent where no da age to the device can occur. Do not

use the device in oist or dusty environ ents such as:

- indoor swi ing pools where chlorine is used

- beaches where there is sand and salt

- outdoors

- indoors in spaces where intense heat sources are present, or where it reaches te perature levels

that would be considered unco fortable for a person.

- Avoid i pact and collisions during use and transport. Do not transport the device while it is in use. Avoid

using excessive force when installing and operating the device.

- The user should beco e fa iliar with the functions of this device before using it.

- The user should be able to stop the device's power supply in case of e ergencies. At least one of the

following should therefore be accessible at all ti es:

- the power cable connector on the back of the unit

- the power socket the cable is plugged in to

- the power socket switch or extension cable switch

- Should the device not be used in the anner described in this user anual, da age or even injuries ay

occur. Ayra cannot be held responsible for any injury or da age that occurs as a result of i proper use of

this product.

Storage and transport:

- This product is designed for obile use. Please only transport the device in the original packaging, or in a

flight case with a suitable foa inlay.

- This device was not designed for per anent (24/7) use. Regularly turning the device off will not affect the

expected lifespan of the device. Disconnect the device or turn off the power when it is not actively in use.

- If the device will not be used for a long period of ti e, it should be disconnected and stored in a dust-free

environ ent.

- Do not expose the device to extre e te peratures.

Housing

- Frequently inspect the device housing, and always just before use. Avoid operating the device if there are

large dents or cracks, or if screws are issing. Do not use the device if the housing is not in good condition.

Contact your local retailer or a qualified technician if you are unsure about the state of the device.

- Check the device and the screws for corrosion. Corrosion ust not be present on this device. Contact your

local retailer or a qualified technician if you find any corrosion on the screws.

Every power and signal socket should be securely attached. Do not use the device if the sockets are not

secure.

- Avoid the build up of dust and dirt. Clean the device once a onth by disconnecting it fro the power

supply and wiping it down with a dry or slightly oist cloth. If the device is used frequently, it should be

cleaned ore frequently.

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Symbol explanation:

WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE

(Waste Electrical and Electronic Equip ent) directive. The require ents of this directive apply

to all anufacturers and producers of electronic devices in the EU. Do not throw this product

away with regular rubbish. Please contact your local authority for ore infor ation about how

to recycle and dispose of these products in your region. By recycling this product in the proper

anner, we can work together to ensure that we can continue to enjoy these kinds of

products and still protect the environ ent as uch as possible fro pollution. CE: The CE

logo indicates that this product eets the European nor s and require ents to which it ust

legally confor .

CE: The CE logo indicates that this product eets the European nor s and require ents to

which it ust legally confor .

Only suitable for indoor use: this product was only designed for indoor use. The axi u

environ ental te perature ust not exceed 40 degrees Celsius (104 degrees Fahrenheit).

Contact:

Ayra Professional Lighting Products

Verrijn Stuartweg 18

4462 GE Goes

The Netherlands

Please do not send any products to this correspondence address.

Should you wish to send in a product for repairs or for a refund, please contact your retailer for an RMA

re uest (Return Merchandise Authorisation).

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Overview of the Digicon-1

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Using the Digicon-1

The Ayra DigiCon-1 is a versatile controller (or wing), and offers lighting technicians various options for

sending standard MIDI signal co ands to supported software.

This eans that the DigiCon-1 is not a stand-alone lighting controller and as such, should be considered a

kind of keyboard that can be used to control specific software functions.

The Digicon-1 operates using MIDI signals only. Developed in the 1980s, MIDI is a co unication standard

that’s used by usical instru ents and usic production gear. Since the MIDI protocol is relatively

straightforward and supported by countless software progra es, it’s the perfect ethod of co unication

for progra able wings like the DigiCon-1.

The DigiCon-1 offers native support for the following software (developers):

- Nicolaudie – Sunlite Suite 3

- ...

Native support for other relevant software ay be added in the future. In the eanti e, it’s possible to

anually ‘ ap’ the device to prepare it for use in co bination with other MIDI-co patible software that

supports custo appings.

The table below lists the MIDI essages which can be used to anually ap the console.

Ple ase note: The DigiCon-1 features bank functionality for the playback section on the left side of the control

panel (the buttons and faders fitted to the left of the TAP and Black-Out controls). It’s possible to directly

activate a different bank via the Bank 1-8 buttons and use the sa e buttons to control different para eters

than the ones assigned in the previous bank.

Whenever a different bank is activated, the buttons continue to send out the sa e MIDI signals, but these

are now sent across different MIDI channels. This eans that all buttons and faders of Bank 2 trans it

signals over MIDI channel 2; all buttons and faders of Bank 6 trans it signals over MIDI channel 6; etc.

This ensures that the relatively li ited yet clear lay-out of the physical controls (16 buttons + 8 faders)

technically offers you full control over as any as 128 buttons and 64 faders.

Bear in ind however that this functionality ay not be supported by your software or it ight need to be

unlocked first. Ayra does not provide support for installing or configuring this functionality in co bination with

third-party software.

The DigiCon-1 does not feature any physical feedback ele ents such as status LEDs, which keeps its

control lay-out clear and ensures easy software integration.

Overview:

- Playback button A: Bank button

- Playback button B: Flash button

- Playback button C: Go button

NAME MIDI code UTTON AND MESSAGE TYPE MIDI CHANNEL MIDI INDEX

Playback1 button A 1D BTN NOTE 1 OFF = 00, ON = 7F

Playback1 button B 1E BTN NOTE 1-8 OFF = 00, ON = 7F

Playback1 button C 1F BTN NOTE 1-8 OFF = 00, ON = 7F

Playback2 button A 20 BTN NOTE 2 OFF = 00, ON = 7F

Playback2 button B 21 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback2 button C 22 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback3 button A 23 BTN NOTE 3 OFF = 00, ON = 7F

Playback3 button B 24 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback3 button C 25 BTN NOTE 1-8 OFF = 00, ON = 7F

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

NAME MIDI code UTTON AND MESSAGE TYPE MIDI CHANNEL MIDI INDEX

Playback4 button A 26 BTN NOTE 4 OFF = 00, ON = 7F

Playback4 button B 27 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback4 button C 28 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback5 button A 29 BTN NOTE 5 OFF = 00, ON = 7F

Playback5 button B 2A BTN NOTE 1-8 OFF = 00, ON = 7F

Playback5 button C 2B BTN NOTE 1-8 OFF = 00, ON = 7F

Playback6 button A 2C BTN NOTE 6 OFF = 00, ON = 7F

Playback6 button B 2D BTN NOTE 1-8 OFF = 00, ON = 7F

Playback6 button C 2E BTN NOTE 1-8 OFF = 00, ON = 7F

Playback7 button A 2F BTN NOTE 7 OFF = 00, ON = 7F

Playback7 button B 30 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback7 button C 31 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback8 button A 32 BTN NOTE 8 OFF = 00, ON = 7F

Playback8 button B 33 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback8 button C 34 BTN NOTE 1-8 OFF = 00, ON = 7F

Playback Fader 1 01 VR CC 1-8 00-7F

Playback Fader 2 02 VR CC 1-8 00-7F

Playback Fader 3 03 VR CC 1-8 00-7F

Playback Fader 4 04 VR CC 1-8 00-7F

Playback Fader 5 05 VR CC 1-8 00-7F

Playback Fader 6 06 VR CC 1-8 00-7F

Playback Fader 7 07 VR CC 1-8 00-7F

Playback Fader 8 08 VR CC 1-8 00-7F

TAP 57 BTN NOTE 1 OFF = 00, ON = 7F

Blackout 58 BTN NOTE 1 OFF = 00, ON = 7F

Master 09 VR CC 1 00-7F

button 1 35 BTN NOTE 1 OFF = 00, ON = 7F

button 2 36 BTN NOTE 1 OFF = 00, ON = 7F

button 3 37 BTN NOTE 1 OFF = 00, ON = 7F

button 4 38 BTN NOTE 1 OFF = 00, ON = 7F

button 5 39 BTN NOTE 1 OFF = 00, ON = 7F

button 6 3A BTN NOTE 1 OFF = 00, ON = 7F

button 7 3B BTN NOTE 1 OFF = 00, ON = 7F

button 8 3C BTN NOTE 1 OFF = 00, ON = 7F

button 9 3D BTN NOTE 1 OFF = 00, ON = 7F

button 10 3E BTN NOTE 1 OFF = 00, ON = 7F

button 11 3F BTN NOTE 1 OFF = 00, ON = 7F

button 12 40 BTN NOTE 1 OFF = 00, ON = 7F

button 13 41 BTN NOTE 1 OFF = 00, ON = 7F

button 14 42 BTN NOTE 1 OFF = 00, ON = 7F

button 15 43 BTN NOTE 1 OFF = 00, ON = 7F

button 16 44 BTN NOTE 1 OFF = 00, ON = 7F

button 17 45 BTN NOTE 1 OFF = 00, ON = 7F

button 18 46 BTN NOTE 1 OFF = 00, ON = 7F

button 19 47 BTN NOTE 1 OFF = 00, ON = 7F

button 20 48 BTN NOTE 1 OFF = 00, ON = 7F

button 21 49 BTN NOTE 1 OFF = 00, ON = 7F

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

NAME MIDI code UTTON AND MESSAGE TYPE MIDI CHANNEL MIDI INDEX

button 22 4A BTN NOTE 1 OFF = 00, ON = 7F

button 23 4B BTN NOTE 1 OFF = 00, ON = 7F

button 24 4C BTN NOTE 1 OFF = 00, ON = 7F

button 25 4D BTN NOTE 1 OFF = 00, ON = 7F

button 26 4E BTN NOTE 1 OFF = 00, ON = 7F

button 27 4F BTN NOTE 1 OFF = 00, ON = 7F

button 28 50 BTN NOTE 1 OFF = 00, ON = 7F

button 29 51 BTN NOTE 1 OFF = 00, ON = 7F

button 30 52 BTN NOTE 1 OFF = 00, ON = 7F

Wheel 1 Left 0E BTN NOTE 1 7F

Wheel 1 Right 0D BTN NOTE 1 7F

Wheel 1 press in 0F BTN NOTE 1 OFF = 00, ON = 7F

Wheel 2 Left 11 BTN NOTE 1 7F

Wheel 2 Riht 10 BTN NOTE 1 7F

Wheel 2 press in 12 BTN NOTE 1 OFF = 00, ON = 7F

Wheel 3 Left 14 BTN NOTE 1 7F

Wheel 3 Right 13 BTN NOTE 1 7F

Wheel 3 press in 15 BTN NOTE 1 OFF = 00, ON = 7F

Wheel 4 Left 17 BTN NOTE 1 7F

wheel 4 Right 16 BTN NOTE 1 7F

wheel 4 press in 18 BTN NOTE 1 OFF = 00, ON = 7F

pad 1 1 BTN NOTE 1 OFF = 00, ON = 7F

pad 2 2 BTN NOTE 1 OFF = 00, ON = 7F

pad 3 3 BTN NOTE 1 OFF = 00, ON = 7F

pad 4 4 BTN NOTE 1 OFF = 00, ON = 7F

pad 5 5 BTN NOTE 1 OFF = 00, ON = 7F

pad 6 6 BTN NOTE 1 OFF = 00, ON = 7F

pad 7 7 BTN NOTE 1 OFF = 00, ON = 7F

pad 8 8 BTN NOTE 1 OFF = 00, ON = 7F

pad 9 9 BTN NOTE 1 OFF = 00, ON = 7F

pad 10 OA BTN NOTE 1 OFF = 00, ON = 7F

pad 11 OB BTN NOTE 1 OFF = 00, ON = 7F

pad 12 OC BTN NOTE 1 OFF = 00, ON = 7F

Since the DigiCon-1 is equipped with its own power transfor er, it doesn’t require USB power. This counters

the use of weaker USB outputs that would only have a negative effect on its perfor ance. The USB port of

the DigiCon-1 should only be used to power a s all USB la p or any other s all gadget.

Most of the buttons fitted to the DigiCon-1 feature echanical switches, including the Flash Section buttons.

This way, there’s physical feedback that lets you know that the buttons have been properly activated.

The endless rotary encoders (the four knobs) can be infinitely rotated and send out +1 or -1 essages. The

encoders also have an assignable push-button (on/off) function for controlling and fine tuning para eters like

pan/tilt.

Use with Other Software

Due to its universal design, the DigiCon-1 can be used to perfor specific, as well as ore general tasks;

the possibilities are endless.

For certain software, it’s essential that the buttons of the Digicon-1 are ‘ apped’ before use. This is to let the

software know which signal co ing fro the controller needs to converted into which specific action.

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Ayra does not offer MIDI apping support for specific (third-party) software.

Changing MIDI Messages

Since the DigiCon-1 uses fixed MIDI essages via fixed channels/outputs, its MIDI essages cannot be

altered. This also eans that it’s not possible to adjust the in/ ax values of any of the para eters.

However, it ay be that your software includes options that offer ore possibilities.

Rack Mounts

The DigiCon-1 can be used as a desktop device or ounted in a rack or flight case. Re ovable rack ounts

have been pre-installed. If you’d prefer to re ove the rack ounts, it’s reco ended that you re-secure the

screws to ake sure they can’t be lost.

Installation Requirements

In ter s of rack installation, the DigiCon-1 takes up six units (6U) and requires 68 of installation depth.

Please be advised that extra space should be reserved behind the DigiCon-1 in case you need to install

other equip ent nearby. In ost cases, it’s not possible to ount equip ent with a deep housing directly

behind the DigiCon-1. This also applies when the DigiCon-1 is ounted at the top of your rack or case. As a

rule of thu b, it’s advisable to leave an e pty space of 1U above the DigiCon-1, which could then be

covered with a blind panel or ventilation panel.

Mounting other rack gear near the front of the DigiCon-1 is less restrictive since there will be no inputs,

outputs and any connecting cables in the way.

These installation guidelines also apply when ounting the unit into a prepared desktop rack- ount or a

custo cut-out in a work surface.

Fuse

The console features a built-in fuse that cannot be replaced by the end-user since replacing the fuse requires

opening the housing. Given the specifications of the device and the very low energy consu ption, if you

suspect that the fuse has blown, the device ust first be properly inspected by a specialist.

US Port

The DigiCon-1 is outfitted with a USB port that can be used to power a s all LED la p for enhanced

visibility in dark surroundings. The output capacity of the USB output is 5 V / 1 A, which is enough for

powering s all la ps or other gadgets.

It’s not advisable to use the USB port for charging s artphones, power-banks or any si ilar devices due to

the li ited power output capacity of the port. Always use the original charger that ca e with the device you

want to charge or use the USB port of a different device provided it has enough output capacity.

The information in this user manual is subject to change at any time without notice.

Version: 1.0 Date of creation and author's initials: 02-12-2020 RV Revision date and author's initials: -

Inhaltsverzeichnis

Andere Ayra DJ-Equipment Handbücher

Ayra

Ayra TDC Disco Base Bedienungsanleitung

Ayra

Ayra ERO Hexabeam Bedienungsanleitung

Ayra

Ayra ITA100 MKII Bedienungsanleitung

Ayra

Ayra ITA 350RG Bedienungsanleitung

Ayra

Ayra ERO 706 Bedienungsanleitung

Ayra

Ayra ALO 030 MKII Bedienungsanleitung

Ayra

Ayra ERO 150BSW Bedienungsanleitung

Ayra

Ayra OSO SCENE 48 Bedienungsanleitung

Ayra

Ayra TDC 4 LED Bedienungsanleitung

Ayra

Ayra ERO Micro Beam FX Bedienungsanleitung

Ayra

Ayra ITA 320RB Bedienungsanleitung

Ayra

Ayra ERO 506 Bedienungsanleitung

Ayra

Ayra TDC Burst 6 FX Bedienungsanleitung

Ayra

Ayra ERO 406 Bedienungsanleitung

Ayra

Ayra ComPar KIT 1 MKII Bedienungsanleitung

Ayra

Ayra ERO 704 Bedienungsanleitung

Ayra

Ayra TDC Seawave Bedienungsanleitung

Ayra

Ayra ERO 540 Bedienungsanleitung

Ayra

Ayra ERO 075 Bedienungsanleitung

Ayra

Ayra Compar Kit FX1 Bedienungsanleitung

Ayra

Ayra ALO 019 Bedienungsanleitung

Ayra

Ayra oso 240b mkii Bedienungsanleitung

Ayra

Ayra ERO Twister Wash Bedienungsanleitung

Ayra

Ayra ERO 101 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
