Azumi A45S Bedienungsanleitung

WELCOME

Congratulations on your purchase of the Azumi mobile phone. Your phone provides many functions which are

practical for daily use, such as a hands-free loudspeaker, camera, MP3 player, Ultra clear video , WIFI and GPS.

You can read the manual to understand how to use Azumi mobile phone and experience the well-established

functions and simple operation method. Please use the original accessory in order to achieve the best use of effects.

Azumi shall not be responsible for any damage in machinery due to use of non-original components.

YOUR PHONE-FRONT VIEW

YOUR PHONE-BACK VIEW

CHARGE THE BATTERY

Connect this end to phone’s USB port.

Tip:Be sure to charge your phone’s battery completely after inserting it in the phone for the first time.

INSERT SIM AND MicroSD CARD

Please insert the SIM card according to the label on the phone. Make sure that the clipped corner of the SIM card and

the metallic contacts are facing the correct direction. Slide the SIM card into the slot until it doesn't move up any

further.

On the right upper corner is the micro SD card slot. The direction in which the microSD card has to be inserted into

the designated slot is shown by an label on the phone.

Tip: For additional media storage insert a microSD card.

TURN THE PHONE ON& OFF

Hold down the power button to turn on/off the phone.

DIM LOCK & WAKE THE PHONE

When the power is on and you want to dim the screen, press the power button.

When the screen is dimmed

and you want to wake the

phone, press the power

button and then drag the

lock to the right.

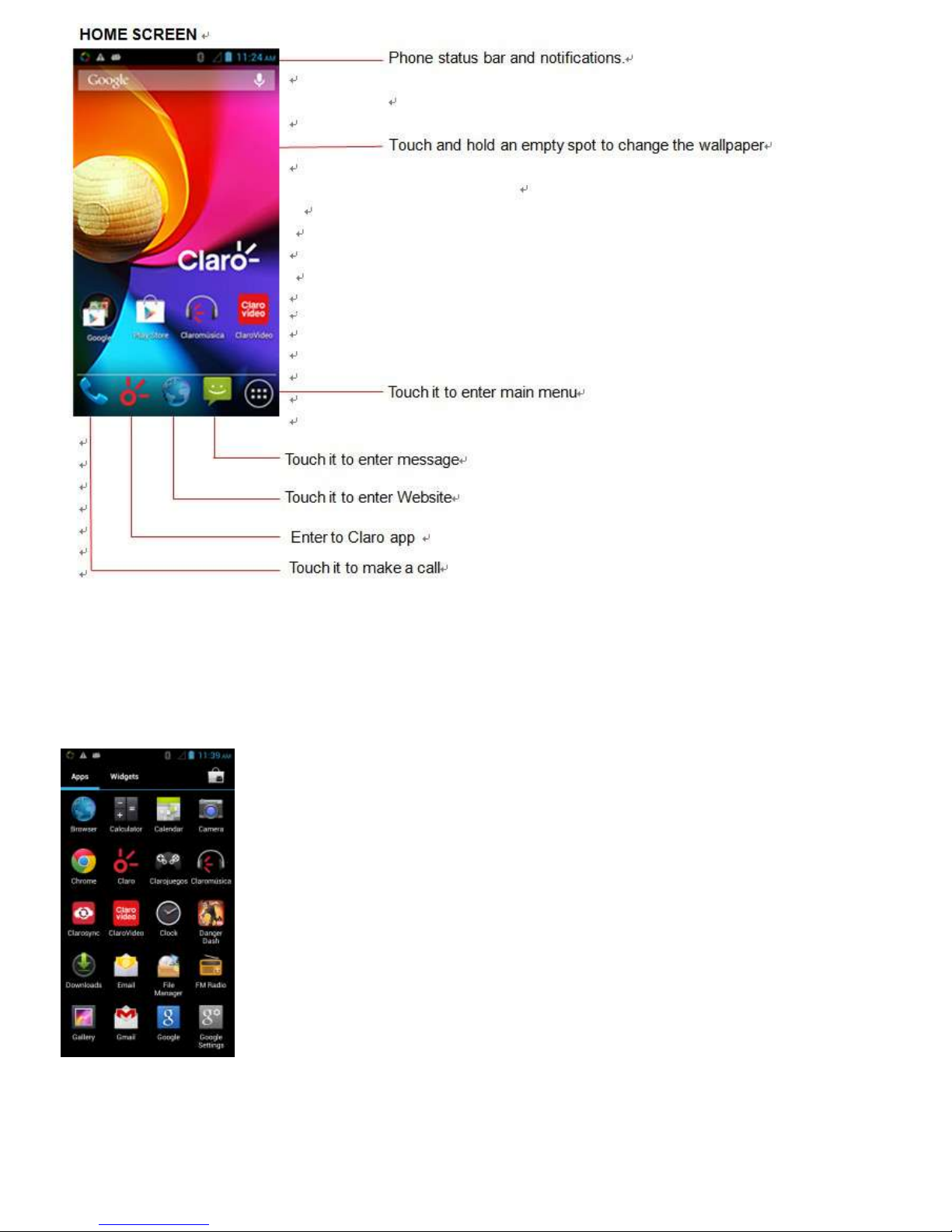

APPS

2.Touch an app to launch it

STATUS BAR

The status bar shows your phone’s status and notifications. (Notifications are described on the next page.)

Status icons

The following status icons may appear on your screen:

1.Touch it to enter app tray.

Icon

Statement

Icon

Statement

SIM Network signal level

Headset is inserted

Indicates battery capacity

Bluetooth is activated

Unread messages

Wi-Fi is connected

Missed calls

Airplane mode is activated

Alarm is activated

USB is connected

NOTIFICATION PANEL

The notification panel is your center for new events:like new e-mail,voicemail,updates,and more.

Drag down to display

notifications

Touch a notification to respond

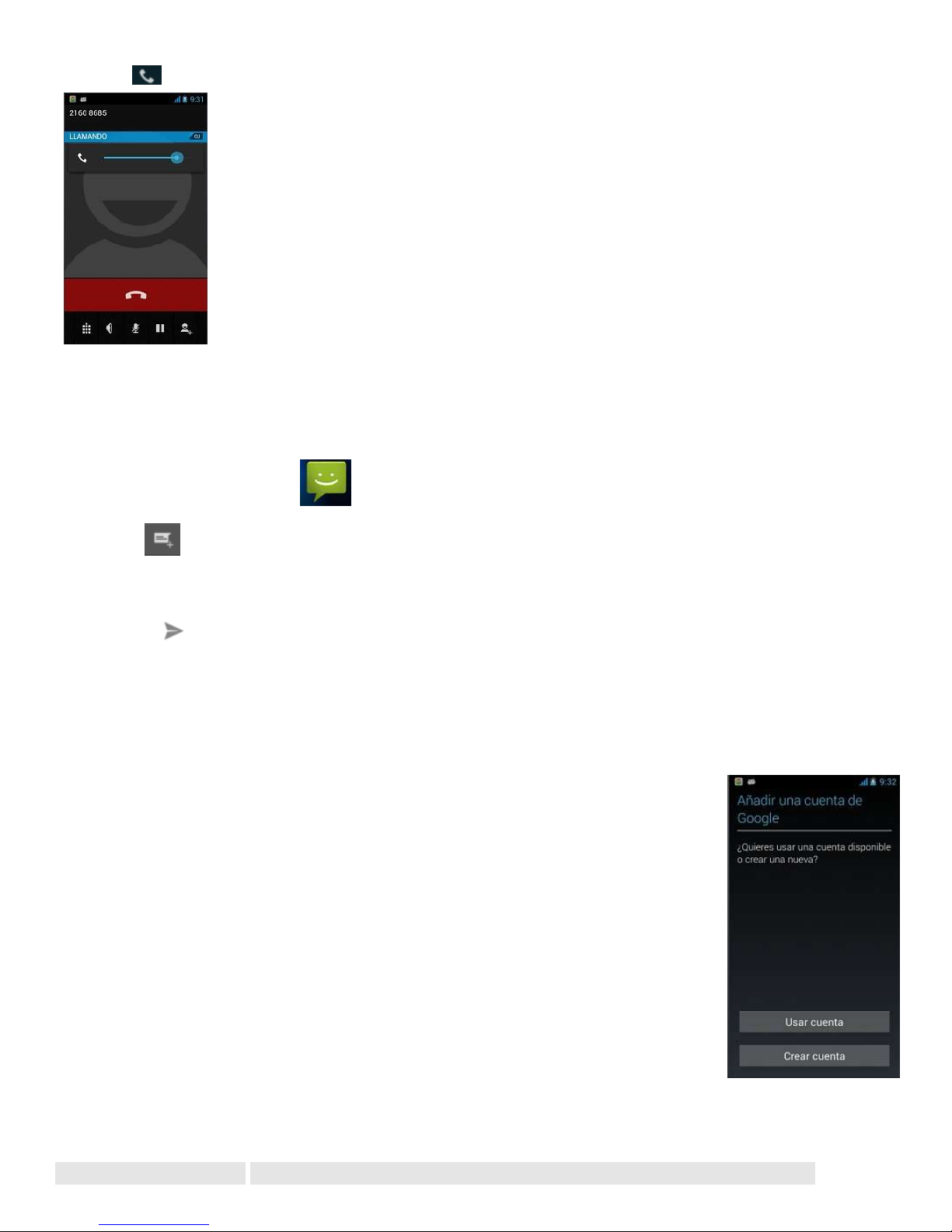

MAKE & ANSWER A CALL

1.From the Hom screen.touch

2.Dial a number using the dial pad.

3.Touch to initiate the call

VOLUME CONTROL WHEN CALLING

Volume key is at the right side of the phone. During a conversation, you can press the volume key to tune the sound

volume.

SEND A TEXT

1. From the Home screen,touch

2. Touch

3. Touch the To field,then enter a recipient.

4. Touch the Type message field,then enter a message

5. Touch Send the message

ADDING EMAIL ACCOUNTS

The first time you open Email, you are prompted to set up an email account. After that, you can configure Email to

send and receive email from additional accounts.

To add an email account: Open the Accounts screen. Touch menu icon and touch Add

account. In the Setup Email screen, enter your email address and password. Touch Next. Or,

if you need to enter email account settings the wizard can’t configure for you, touch Manual

setup, you’re prompted to enter your email account details. Enter any other information

requested by the type of account you’re adding and touch Done. Enter a name for the

account and touch Done. Email starts downloading your email messages and you can start

using it to send and receive messages using the new account.

SETTINGS

Get to know the settings in your phone so that you can personalize them to your own requirements. Go to Settings to

configure how your phone looks, sounds, communication, privacy, and operations in a variety of ways:

Dual SIM settings

Set preferences on how you use SIMs inserted in your phone.

Wireless &

networks

Manage your wireless connections and connections settings. Let you

configure and manage connections to networks and devices by Using Wi-Fi,

Bluetooth, and mobile networks.

Call settings

Let you configure phone call settings, such as call forwarding, call barring, and

other special features offered by your carrier.

Audio profiles

Configure how your phone rings, vibrates, or alerts you in other ways when

you receive communications, etc.

Display

Let you set the screen brightness, select to switch orientation when you rotate

your phone, and configure other screen settings.

Location & Security

Set location preferences. Protect your phone by setting up different locks and

passwords.

Applications

Manage installed applications.

Accounts & sync

Let you add, remove and manage supported accounts.

Privacy

Let you manage your personal information, restore your settings and other

data when you install an application, and erase all of your personal data from

internal phone storage.

Storage

Let you check out available space on your phone’s internal storage and on

your T-Flash card.

Language & keyboard

Let you select the language for the text on your phone and for configuring the

onscreen keyboard.

Voice input & output

Configure the voice input feature to enter text by speaking.

Accessibility

Enable your installed accessibility applications and adjust related settings.

Data & time

Let you choose preferences such as format and time zones.

Timer Switch Machine

Schedule automatic powering on/off of the phone.

About phone

View information about your phone, such as system updates, status, and

battery use.

SET A RINGTONE

Press , select the profiles you want to set, you can customize the ringtone and volume of

incoming call, notification ringtone in this interface.

FM RADIO

1. Pull out the telescopic antenna or insert earphone, then Tap the Power icon to stop or play FM.

2. Tap the forward by 0.1 MHz or scroll the knob icon to change channel frequency. Press volume key to adjust the

volume.

3. Tap Auto search, Settings, Record and Favorites icon to adjust.

MUSIC PLAYER

Controls

Play/Pause

Touch /

Previous/Next

Touch /

Rewind/Forward

Touch and hold /

Volume adjust

Press side key

Now playing: Touch to open the current playlist.

Touch

Shuffle: Touch to shuffle the current playlist.

Touch

Repeat: Touch to repeat the current playlist; touch again to

repeat the current track.

Touch

TAKE A PICTURE

1. Launch the camera by pressing the camera icon on the home screen.

2.In the camera app,tape the screen to focus on a specific area.

3.Press the camera button all the way down to take a picture.

SHOOT A VIDEO

1. Press and hold the camera button until it vibrates then release.

2. In the Camera app,select video

3. Press the camera button to begin filming,and press again to stop filming.

USE AS MODEM VIA USB

You can connect your phone to a computer with a USB cable, to transfer music, pictures,

and other files between your phone’s SD card and the computer.

CONNECT TO Wi-Fi NETWORKS

Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100 meters,

depending on the Wi-Fi router and your surroundings.

Touch Settings>Wireless & networks > WLAN settings. Check Wi-Fi to turn it on. The phone scans for available Wi-Fi

networks and displays the names of those it finds. Secured networks are indicated with a Lock icon.

A45S

Corriente eléctrica encendido

200-550MA

Corriente eléctrica pantalla

120-190mA

Voltaje Pantalla

2.8V

Corriente eléctrica Llamada

180-280mA

Voltaje Llamada

3.6-4.2

Voltaje celular apagado

3.5V

Voltaje de teléfono

3.6-4.2V

Cargador de corriente

ca/cc

Entrada

100-240V 50/60HZ 150mA

Salida

5.0V 600mA

5.FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
