AZZA DIBX4 Bedienungsanleitung

DIBX4

Pentium II/III

Celeron

Twin Processor

Intel 440BX ATX MAINBOARD

( VER. 1.x )

USER’S MANUAL

DOC. NO. UM-DIBX4-E1 …………………………………………………..……………..……..…………. PRINTED IN TAIWAN

Ultra 440BX ATX Mainboard TABLE OF CONTENTS

TABLE OF CONTENTS

CHAPTER & SECTION PAGE

1.INTRODUCTION 1-1

1.1 OVERVIEW.......................................................................................1-1

1.2 MAINBOARD LAYOUT..................................................................1-2

1.3 SPECIFICATIONS............................................................................1-3

2. INSTALLATION 2-1

2.1 UNPACKING.....................................................................................2-1

2.2 AMAZING WAYS TO POWER ON THE PC SYSTEM................2-2

2.3 POWER OFF THE PC SYSTEM .....................................................2-4

3. HARDWARE SETUP 3-1

3.1 INSTALLATION OF CPU................................................................3-1

3.2 INSTALLING THE DRAM MODULES.......................................3-2

3.3 CONNECTORS..................................................................................3-3

3.4 JUMPERS...........................................................................................3-14

3.5 INSTALLATION OF DEVICE DRIVERS ......................................3-19

3.6 INSTALLATION OF THE ATA/66 IDE INTERFACE..................3-20

4. AWARD BIOS SETUP4-1

4.1 GETTING STARTED.......................................................................4-1

4.2 MAIN MENU ....................................................................................4-1

4.3 CONTROL KEYS.............................................................................4-2

4.4 STANDARD CMOS SETUP ...........................................................4-2

4.5 BIOS FEATURES SETUP...............................................................4-3

4.6 CHIPSET FEATURES SETUP.......................................................4-6

4.7 POWER MANAGEMENT SETUP.................................................4-11

4.8 PNP/PCI CONFIGURATION..........................................................4-16

4.9 INTEGRATED PERIPHERALS .....................................................4-19

4.10 LOAD SETUP DEFAULTS.............................................................4-22

4.11 SUPERVISOR PASSWORD............................................................4-23

4.12 USER PASSWORD...........................................................................4-24

4.13 IDE HDD AUTO DETECTION.....................................................4-26

4.14 SAVE & EXIT SETUP....................................................................4-27

4.15 EXIT WITHOUT SAVING.............................................................4-28

Ultra 440BX ATX Mainboard

SOMETHING IMPORTANT !

¶TRADEMARKS

All trademarks used in this manual are the property of their respective owners.

¶LOAD SETUP DEFAULTS

“LOAD SETUP DEFAULTS” is the function which will have the BIOS default

settings loaded into the CMOS memory, these default settings are the best-case values

which will optimize system performance and increase system stability This function

will be necessitated when you receive this mainboard, or when the system CMOS

data is corrupted. Please refer to the Section 4.8 for the procedures.

¶DISCHARAGE CMOS DATA

Whenever you want to discharge the CMOS data or open the system chassis, Make

sure to disconnect the AC power first because there is always the 5V standby voltage

connected to the ATX form-factor mainboard. Without disconnecting the AC power

connector from the PC system, the mainboard can be damaged by any improper

action .

¶WAKE ON LAN

In order to support the Wake On LAN feature, the system requires a special SPS

(Switching Power Supply), Such power supply must be able to provide at least 700

mA of driving capability on the “5V standby” voltage. Please refer to the Section 3.3

for pin assignment.

¶WARNING !

The "Static Electricity" may cause damage to the components on the mainboard, In

order to avoid the damage to the mainboard accidentally, please discharge all static

electricity from your body before touching this mainboard.

¶NOTICE

Information presented in this manual has been carefully checked for reliability;

however, no responsibility is assumed for inaccuracies. The information contained in

this manual is subject to change without notice.

Ultra 440BX ATX Mainboard INTRODUCTION

1-1

1. INTRODUCTION

1.1 OVERVIEW

This Mainboard is a high performance personal computer mainboard. It is the ATX

form-factor mainboard with both Slot 1 and Socket 370 on the board for various

purposes. The Intel® 82440BX AGPset™ and Winbond® I/O chipset are chosen

as the core logic of the mainboard to give the most outstanding performance and

reliability. It is designed for 233, 266, 300 , 333, 350, 366, 400, 433, 450, 466,

500, 550MHz and higher speed Pentium™ II , Pentium™ IIIand Celeron™

processors

There are four IDE ports on this mainboard and it allows you to connect maximum

eight IDE devices. (There are only two IDE ports on the DIBX2+ mainboard)

Each IDE interface supports the master/slave connection mode and they support

the IDE, EIDE and Ultra DMA (Ultra-ATA) standards. Two of the IDE ports

support the ATA/66 protocol and it makes the data transfer rate of the connected

IDE device amazingly fast.

In order to support the popular devices which will be installed in the PC system,

there are one Floppy Disk control port, two high speed Serial ports (UARTs), one

multi-mode Parallel port, one PS/2™ mouse port, one IR port and two USB ports

designed on the mainboard. When you are connecting the devices like PS/2 mouse,

external modem, printer, floppy disk drive, USB devices .. etc. You don't have to

purchase another interface card. Simply have the related devices connected to the

appropriate interface.

Pentium™ II, Pentium™ IIIand Celeron™ are the 64-bit processorswith RISC

technology, which offers several key features such as built-in 512K/256/128K L2

cache, 12-stage super-pipeline architecture, out of order execution … etc. In order

to optimize of its capabilities and performances, the 32-bit Operating System (such

as Windows® NT and OS/2™) and 32-bit applications are recommended.

Ultra 440BX ATX Mainboard INTRODUCTION

1-2

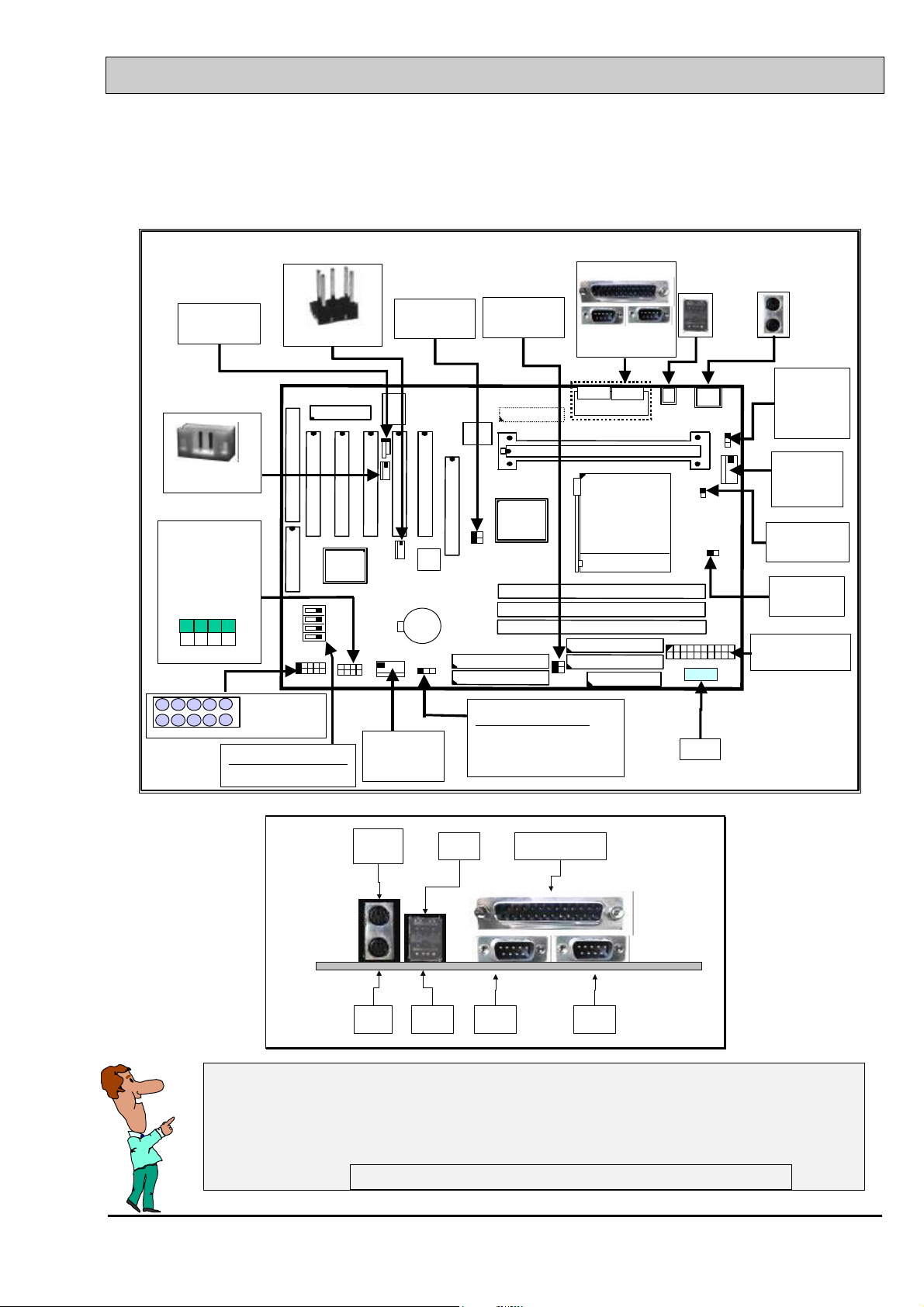

1.2 MAINBOARD LAYOUT

CN15

Power Connector

USB 1

USB 2

PS/2 Mouse

PS/2 K/B

CN3

COM 1 CN4

COM 2

CN5 Parallel Port

1 2 3 4

1 2 3 4 PWR-LED

SPK

CN13

CPU Fan

“G”= Ground

G G G G

1 1 1

RS (Reset Button)

HL (HDD LED)

SL (Sleep LED)

PW (Power SW)

JP9 Clear CMOS

1-2: Normal Setting

2-3: Clear CMOS

SW ( optional)

Select CPU clock ratio.

CN17

Chassis Fan

CN16 WOL

CN11 SB-Link

DIMM3

SLOT1 CPU

AGP SLOT

BIOS

Socket 370

CPU

CN10 IDE 2

CN9 IDE1

DIMM2

DIMM1

BAT1

CN8 FDC

CN4 CN3

CN5

JP9

CN17

CN16 WOL

CN11

SB-Link

JP1

JP11

JP100

CN29 IDE 4

CN28 IDE3

JP11

Vcore Adj.

JP12

Vcore Range.

JP1

KB/Mouse.

Power On

Sel.

JP100 JP133

CN12

IR Port

K/B

PS/2

Mouse

USB2

USB1

COM1 COM2

Parallel Port

IMPORTANT NOTICE:

There are two CPU sockets on the mainboard - the Slot 1 for

Pentium II/III and slot type Celeron Processors. The Socket

370 is designed for socket type Pentium III and Celeron

Processors.You can only install one CPU on this mainboard.

Ultra 440BX ATX Mainboard INTRODUCTION

1-3

1.3 SPECIFICATIONS

¥CPU

Intel® Pentium™ II, Pentium™ IIIor Celeron™ (for Slot and Socket type ) 233,

266, 300, 333. 350, 366, 400, 433, 450, 466, 500MHz and higher speed processors

¥CPU VCC

Switching Voltage Regulator circuits on board, supports +1.30V DC through +3.5V

DC CPU Core Voltage.

Note : The CPU Core Voltage will be Detected and adjusted automatically by the

VID-pin on the CPU, so there is no manual-adjustment required to select the CPU

voltage. Simply plug in the CPU and start immediately.

¥WORD SIZE

Data Path :8-bit, 16-bit, 32-bit, 64-bit

Address Path :32-bit

¥PC SYSTEM CHIPSET

BX mainboard: Intel® 82440BX AGPset™ (82443BX, 82371EB)

¥SUPER I/O CHIPSET

Winbond® W83977EF-AW

¥FRONT SIDE BUS FREQUENCY

66 MHz and 100MHz selectable.

¥MEMORY

BX mainboard:Three 168-pin DIMM sockets, Maximum 384 MB with ECC.

¥BIOS

AWARD System BIOS. 256KB x 8 Flash ROM

(Supports Plug & Play, ACPI, DMI and Green functions).

¥EXPANSION SLOTS

AGP Slots :One 32-bit AGP Slot (Supports 1x or 2x AGP graphics cards)

ISA Slots :One 16-bit ISA slot.

PCI Slots :Four or Five 32bit PCI slots.

(When High Point HPT366 is designed on the board, there will be

four PCI slots, because one of the IRQ will be used by the ATA/66

interface.)

¥WOL PORTS

One WOL connector supports Wake-On-LAN (WOL up-designed)

Ultra 440BX ATX Mainboard INTRODUCTION

1-4

¥SB-LINK PORTS

One SB-LINK feature connector to support PCI sound cards. (such as Creative™

Labs EMU8008 sound chip)

¥USB PORTS

Two Universal Serial Bus (USB) ports.

¥IDE PORTS

Two Ultra DMA/33 (ATA/33)IDE ports and two Ultra DMA/66 (ATA/66) IDE

ports, which will support up to 8 IDE devices like IDE hard disk, ATAPI CD-ROM

and LS-120/ZIP-100 devices.

¥SUPER I/O PORTS

1. Two high speed NS16C550 compatible serial ports (UARTs).

2. One parallel port, supports SPP/EPP/ECP mode.

3. One Floppy Disk Control port.

¥IR PORT

One HPSIR and ASKIR compatible IR transmission connector (5-pin).

One Consumer IR transmission connector (4-pin, optional).

¥MOUSE AND KEYBOARD

One PS/2™ mouse connector, One PS/2™ keyboard connector.

¥HARDWARE MONITORING (optional)

Winbond W83783S (please refer to U2on page 1-2) is designed on the board to

monitor hardware healthy status like system voltage, system temperature, and

cooling fans. When the CPU temperature is too high, the system BIOS will tell the

system board to give a series of beeping alarm and slow down the CPU speed

(throttling speed) so that you can take proper action to prevent your system from

damage. When you hear the beeping alarm, turn the power off and check on the

mainboard components to see whether it is working properly or not. If you don’t

know how to handle it, send the PC system to your dealer for technical support.

There is the hardware monitoring program in the CD which comes with this

mainboard. You can use it to monitor the system healthy status. When you find

there is the W83783S installed on U2, you can run the hardware monitoring

program and then it will monitor the system healthy status all the time.

Ultra 440BX ATX Mainboard INTRODUCTION

1-5

¥ACPI

Advanced Configuration and Power Interface (ACPI) function is strongly

recommended by PC’98 because it will let you have many additional features and

that will make your PC system becomes very friendly and convenient. Followings

are the ACPI features designed on the board:

1. On Now: power on the system by panel-switch, Keyboard, PS/2™ Mouse,

Modem ring-in, RTC alarm or LAN signal.

2. Power off (soft-off) by OS or Panel-switch.

3. Resuming of PC system. (such as Modem ring-in, RTC alarm, .... etc.)

4. Supports Full-On/Doze/Standby/Suspend operating modes.

¥DIMENSION

1. Width & Length :305 mm x 210 mm.

2. Height :2 1/2 inches with CPU Retention Mechanism.

3. PCB Thickness :4 layers, 0.05 inches normal.

4. Weight :18 ounces.

¥ENVIRONMENT LIMITATION

1. Operating Temperature :10?to 40?. (50?to 104?)

2. Required Airflow :50 linear feet per minute across CPU.

3. Storage Temperature :- 40?to 70?. (- 40?to 158?)

4. Humidity :0 to 90% non-condensing.

5. Altitude :0 to 10,000 feet.

Ultra 440BX ATX Mainboard INSTALLATION

2-1

2. INSTALLATION

2.1 UNPACKING

The mainboard contains the following components. Please inspect the following

contents and confirm that everything is there in the package. If anything is missing or

damaged, call your supplier for instructions before proceeding.

lThis mainboard.

lOne USER‘S MANUAL.

lOne Cable set for IDE and Floppy devices.

lOne Pentium™ II Processor Retention Mechanism (RM).

lOne CD diskette for device driver and utility programs.

lOne floppy diskette for Ultra ATA/66 device driver.

This mainboard contains electrostatic sensitive components and it can be easily

damaged by static electricity. So please leave it sealed in the original packing until

when installing.

A grounded anti-static mat is recommended when unpacking and installation. Please

also attached an anti static wristband to your wrist and have it grounded to the same

point as the anti-static mat.

After the opening of the mainboard carton, please observe the mainboard carefully to

make sure there is no shipping and handling damage before you can start to install the

PC system.

Having finished all the procedures above, you are now ready to install the mainboard to

the chassis. Please make sure that the chassis is the ATX type so that the mounting hole

will match with this mainboard.

Ultra 440BX ATX Mainboard INSTALLATION

2-2

2.2 AMAZING WAYS TO POWER ON THE PC SYSTEM

When the mainboard has been installed successfully, there are several ways to

power on the system. Please read the following description for all the details.

POWER BUTTON

The power button can be programmed by COMS setup program and it has different

features. Please refer to page 3-12 for detail function description.

Note: This power button can not be used to power-on the PC system if the

”Password“ is selected in the "Power On Function" to power on your system.

(please refer to Section 4.9 for the “INTEGRATED PERIPHERALS“ in the

CMOS setup.) However, you can always use the power button to turn off the

power.

¨KEYBOARD (PASSWORD OR HOT KEY)

This mainboard allows you to use your personal password or a combination of hot

key to power on your PC system. When the jumper setting on JP1 is “Enabled”,the

keyboard OnNow function will be activated. Under this circumstance, this

mainboard will keeps scanning the keyboard status waiting for the correct password

or hot key input even when the system power is off (the stand-by 5V is still working

and the power LED on the keyboard is still active). If you have selected the

Password to power on the PC system in the BIOS setup program, the only way to

power on the PC system will be the correct password. ( you can not use the power

button on the front panel to power on the PC system.) When you have selected the

keyboard hot key to power on the PC system, you will be able to use keyboard hot

key to power on the PC system. ( you can use the power button to power on the PC

system as well.) (Please refer to Section 4.9.-"Power On function")

When the “Password” and “Hot KEY” is selected, you will have to reboot the PC

system to activate the setting, when you see the POST (Power On Self Test) is

completed, the setting is changed and stored in the CMOS memory. Having finished

the procedure, you may turn the power off and then you can use the keyboard to

power-on the PC system afterward.

In case that you forget the “Password” or “Hot Key”, disconnect the AC power for

30-60 seconds then re-connect the AC power to the PC system, the power button will

be activated again and you can use the power button to turn on the system. Input

your personal password again in the BIOS setup program, and then you may use the

new password to power-on the PC system afterward.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere AZZA Hauptplatine Handbücher

AZZA

AZZA PT-5V3T Bedienungsanleitung

AZZA

AZZA 366A-AV Bedienungsanleitung

AZZA

AZZA 845D-AV Bedienungsanleitung

AZZA

AZZA DVAX2+ Bedienungsanleitung

AZZA

AZZA P4XA Series Bedienungsanleitung

AZZA

AZZA 601 Series Bedienungsanleitung

AZZA

AZZA 845E-ANT Bedienungsanleitung

AZZA

AZZA P4X2-AV Bedienungsanleitung

AZZA

AZZA 845S Series Bedienungsanleitung

AZZA

AZZA P4M2-BV Bedienungsanleitung

AZZA

AZZA KT33-BV Bedienungsanleitung

AZZA

AZZA KM266-MVB Bedienungsanleitung

AZZA

AZZA U694 Series Bedienungsanleitung

AZZA

AZZA 6IFB Bedienungsanleitung

AZZA

AZZA P4 Series Bedienungsanleitung

AZZA

AZZA 366 Series Bedienungsanleitung

AZZA

AZZA 6VBD Bedienungsanleitung

AZZA

AZZA P4X4-ALH Bedienungsanleitung

AZZA

AZZA P4X2 Series Bedienungsanleitung

AZZA

AZZA 694AX Bedienungsanleitung

AZZA

AZZA 694TX Bedienungsanleitung

AZZA

AZZA PT-5IT Bedienungsanleitung

AZZA

AZZA U601 Series Bedienungsanleitung

AZZA

AZZA PT-5IV Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
