B-52 DV-8772 Bedienungsanleitung

MOBILE ENTERTAINMENT SYSTEM

INSTRUCTIONS MANUAL

DV 8772

CAR DVD / MP4 PLAYER

BLUETOOTH

www.b52audio.com

INSTRUCTIONS MANUAL 02 - 26

MANUAL DE INSTRUCCIONES 27 - 52

MANUAL DE INSTRUÇÕES 53 - 78

ENGLISH

Notes on Installation 03

Precautions 04

Control panel layout 05

Wiring diagram 06

Basic operation 06

Radio operation 07

DVD, MPEG4, VCD, MP3, CD operation 09

BLUETOOTH operation 10

Remote control layout 12

Remote control operation 13

Setup 18

Installing the front panel 24

Detaching the front panel 24

Cleaning the connector 24

Unit installation 25

Specifications 26

INDEX

NOTES ON INSTALLATION

The unit is designed for 14.4v dc, negative ground operation system only. Before installing

the unit, make sure your vehicle is connected to 14.4v dc negative grounded electrical system.

The negative battery terminal must be disconnected before making connections, incorrect can

reduce damaging to the unit due to short circuit.

Be sure to connect the color coded leads correctly acording to the diagram.

Incorrect connections may cause the unit mal function or damage the vehicle´s electrical system.

Be sure to connect the speaker (-) leads to the speakers (-) terminal. Never connect the left and

right channel speaker cables each other or to the vehicle body. Do not block vents or radiator

panels. Blocking them will cause heat to build up inside and may result in fire.

After the completion of the installation and begin to operate the unit (including replacing the

battery), plase press the reset button on the front panel with pointed objets (such as ball pen)

bo set the unit to initial status.

INSTALLATION

Do not attemp to modify the unit, modifyng the unit may caude an accident.

Stop the vehicle before carrying out any operation that could interfere with your driving.

Do not turn on the unit if the temperature inside the vehicle is out of -20ºc to 60ºc.

This product is designed for one single video output, plase use a splitter if you would like

to connect for multiple video output.

To enjoy optimum sound and vision while playing, handle the disc. as follows:

- Handle the disc by its edge to keep the disc clean, and do not touch the surface.

- Do not use your cds with labels or stickers attached, which may leave

a sticky residue while begining to PEEL OFF.

- Clean the discs with an optiobal cleaning cloth. Wipe each disc from center out.

PRECAUTIONS

Tipo de Disco Etiqueta no disco Material gravado Tamanho do disco

MPEG4/DIVX

Som e filmes

12CM

DVD

Som e filmes

12CM

VCD

Som e filmes

12CM

MP3/ WMA

Somente som

12CM

Somente som

12CM

NOTA: O dis

ositivo é com

atível com DVD, DVD+/-R, VCD 1.0/2.0/3.0, SVCD, CD, CD-R, CD-RW e JPEG.

THIS UNIT CAN PLAY THE FOLLOW DISC ONLY

CONTROL PANEL LAYOUT

FRONT PANEL LAYOUT

1RESET BUTTON

2POWER SWITCH BUTTON

3VOLUME/SEL (LOGO TELEFONO) BUTTON

4PRESET EQ/ (LOGO TELEFONO) BUTTON

5REMOTE CONTROL SENSOR

6BAND BUTTON / ID3 SELECT

7TUNING/SELCTING TRACKS/FW/RW

8EJECT BUTTON

9MODE SWITCH BUTTON

PRESET STATIONS/AMS

11 NUMBER BUTTON

12 DISC SLOT

13 TFT DISPLAY

14 RELEASE BUTTON

15 FLASHING LED

16 USB CONNECTER

17 SD/MMC SLOT

18 AUX IN

19 MO/ST SELECTOR

8 1215

WIRING DIAGRAM

WARNNING

Safety wire. This wire must connet to the ground of car. Otherwise, there are no picture

on the tft screen when playing dvd disc or receiving tv program.

BASIC OPERATION

INITIAL SYSTEM START-UP

Operating the unit for the first time or after replacing the car battery, you should press (14) to

detach the front panel and led (15) will be blinking. Press (1) reset button with a pointed object

(such as a ballpoint) to set the unit initial procedure.

NOTE: When some errors occur in the lcd display, you can also press reset button to resume to normal. And it will

erase the clock setting and some memorized functions.

TURNING THE UNIT ON/OFF

Press power button the unit (3), press "vol+" to increase the sound level and press "vol-" to

decrease the sound level.

VOLUME SELECTOR

For volume button (3), press "vol+" to increase the sound level and press "vol-" yo decrease the

sound level.

BASS/TREBLE/BAL (L-R) FADE SELECTOR

PRESS ·SEL· BUTTON ONCE TO ENTER "AUDIO SETUP" MENU.

PRESS "IMAGEN" BUTTON TO SELECT YOU DESIRED MODE. YOU CAN

ADJUST THE CURRENT LEVEL BY PRESS "VOL+" OR "VOL-" KNOB.

BASS

TREBLE

BALANCE

FADER

LOUD

FLAT

OFF

AUDIO SETUP

NOTE: IF YOU DON´T ADJUST THE KNOB WITHIN 5 SECONDS AFTER SELECTING THE DESIRED, THE UNIT WILL AUTOMATICALLY RETURN TO THE CURRENT MODE BEING DISPLAYED.

RADIO OPERATIONS

SETTING EQ

While listening music, you can set up rock music, popular, classic music or jazz pre-eq by pressing

(4) "eq" button the procedure as follows:

Pop mode is selected when the button is first press and rock indicated on LCD.

Pop mode is selected when press the button for the second tine and rock indicated on LCD.

Classic mode is selected when press the button for the third time and rock indicated on LCD.

Press the button for the forth time to select the jazz pre-eq mode, press the buttom fifth times to

turn off the p-eq system press eq button more than l second is "mute" function.

NOTE: BASS MODE AND treble mode return to initial settings when EQ is on, "bass" and "treble" DISAPPEAR.

MODE SELECTOR

Press "mod" button to select RADIO DVD USB SD card TV AUX MODE. (when the unit

whthout connect anyone function. press mode butoon the unit will skip over this function.)

SENSOR

(5) Receptor for the card remote commander.

ADJUST TIME

AREA USA/EUR SETUP

In radio mode. Press SEL button for several seconds. LCD will be show from DSP OFF/ON

AREA USA/EUR. At AREA USA/EUR. You can use VOL +/- to select the AREA frequency.

RADIO OPERATION

BAND SELECTOR

Press (6) (band) button repeatedly to select band in the following orde:

NOTE: On DVD playing mode, press (6) button to switch to AUTO PAL or NTSC SYSTEM.

MANUAL / AUTOMATIC TUNING

MANUAL TUNING: Press (7) button continuosly to select a station upward or downward respectuvely.

AUTOMATIC TUNING: Press (7) button for more than 3 seconds, the radio automatically

searches a station upward or downward respectively and plays when it find a station.

FM3FM2FM1

AM2(MW2)A M1(MW1)

SCANNING / MEMORIZING STATIONS AUTOMATICALLY

1. Pressing ams button shortly, the radio searches station from the lowest frequency to highest

frequency. when a station strength level is more than thershold level of the stop level. The radio will

holding the station for 5 seconds and the station frequency blinking on the lcd at the same time.

Pressing ams button once again. the radio search will stop on the station.

Pressing anyone preset number button for several seconds, the radio will save the station at the

preset number button.

2. Pressing and holding ams button more then 3 seconds. The radio searches from the lowest

frequency and check the signal strength. When the fiel strength level is more than thershold level of

the stop level. The radio storing the station at the preset number (it can store 3x6 stations for fm and

2x6 stations for am in all) after finishing a circle of search. it will stop searching on the m1.

DVD, MPEG, VCD, MP3, WMA, CD OPERATION

NUMBER BUTTONS

Number buttons can help you store your favorite station by pressing any one of the number

button. You can folow the steps as bellow:

Press and hold any number button (1~6) until "ch" appears in the lcd display when receiving a

station. And now the station is already stored in the corresponding number button.

18FM STATIONS AND 12 AM STATIONS CAN BE STORED

NOTE: Number button 1,2,3,4,5,6 have dual function, while radio mode, it use to store and recall preset stations,

while DVD, VCD, CD, MP3 and wma playing mode, they have other function. For detail. Please refer to corresponding

playing operation.

DVD, MPEG4, VCD, MP3, WMA, CD OPERATION

While listening to (or watching) DVD, MPEG4, DIVX, VCD, MP3, WMA and CD, just insert a disc

(with labeled side up) into the disc slot (12), the mechanism will automatically switch on. While it

is RADIO/AUX mode and a disc was loaded, press (2) mode button to play the disc.

If a ID3 disc is playing. The songs name, artist name and file name will shufft show on LCD.

SELECTING TRACKS / FW / RW

Press (7) to choose your favorite track upward or downward respectively. Press and hold (7)

button to fast forward or rewind the track upward or downeard respectively.

PLAYING TRACKS REPEATLY

Press (11) 3rpt button to perform repeat playing function when you need to repeat playing the

track you like.

Press 3rpt button for the first time, it will repeat playing the same track for CD, VCD, MP3 and

WMA, same chapter for dvd mode RPT appears.

Press 3rpt button for the second time, entire disc will be playing repeatly for VCD and CD

playing. Entire title will be playing repeatly for DVD playing, the entire directory for MP3 and

WMA playing rpt appears on the third time to stop repeat mode for CD, VCD and DVD playing

mode repeat entire disc for MP3 and WMA playing mode.

Press 3RPT button for the forth, time to stop mode for MP3 and WMA playing mode.

SCANNING TRACK AUTOMATICALLY

During CD playback, press "2int" button, to play the first 10 seconds of each track on the disc,

the display will show "int", track number and elapsed time.

Which indicates int function is already activated.

Press "2int" button once again to return to normal playback.

NOTE: Int doesn´t work during playing DVD/MP3/WMA

PLAYING TRACKS IN RANDOM ORDER

During playback, press "4RDM" button, end "rdm" appears on the display, which indicates RDM

function si carried out. The unit plays any track at random. Press rdm once again to return to

normal playback mode.

STOP PLAYING

During playback, press (11) 5 (stop) button stop the playback. LCD will show stop to return to

normal play mode, press 1 button again.

BLUETOOTH FUNCTION OPERATION

1. PAIRING CONNECTED

Turn on your car audio systema, put yhe mobile wich bluetooth device function close to the

car audio unit, soon. The mobile will find the new bluetooth device car audio imput the pairing

passwoed "8888" and click ok, the mobile will prompt the matching successful, when the

pairing conneted is successes, on the tft screen, bluetooth logo " " will stop blinking. The you

may perform the bluetooth operation by press the button on the panel on remote controler.

REMARK: Depend on bluetooth mobile, the bluetooth system support "HSP" "HFP" "A2DP" and AVRCP bluetooth profile.

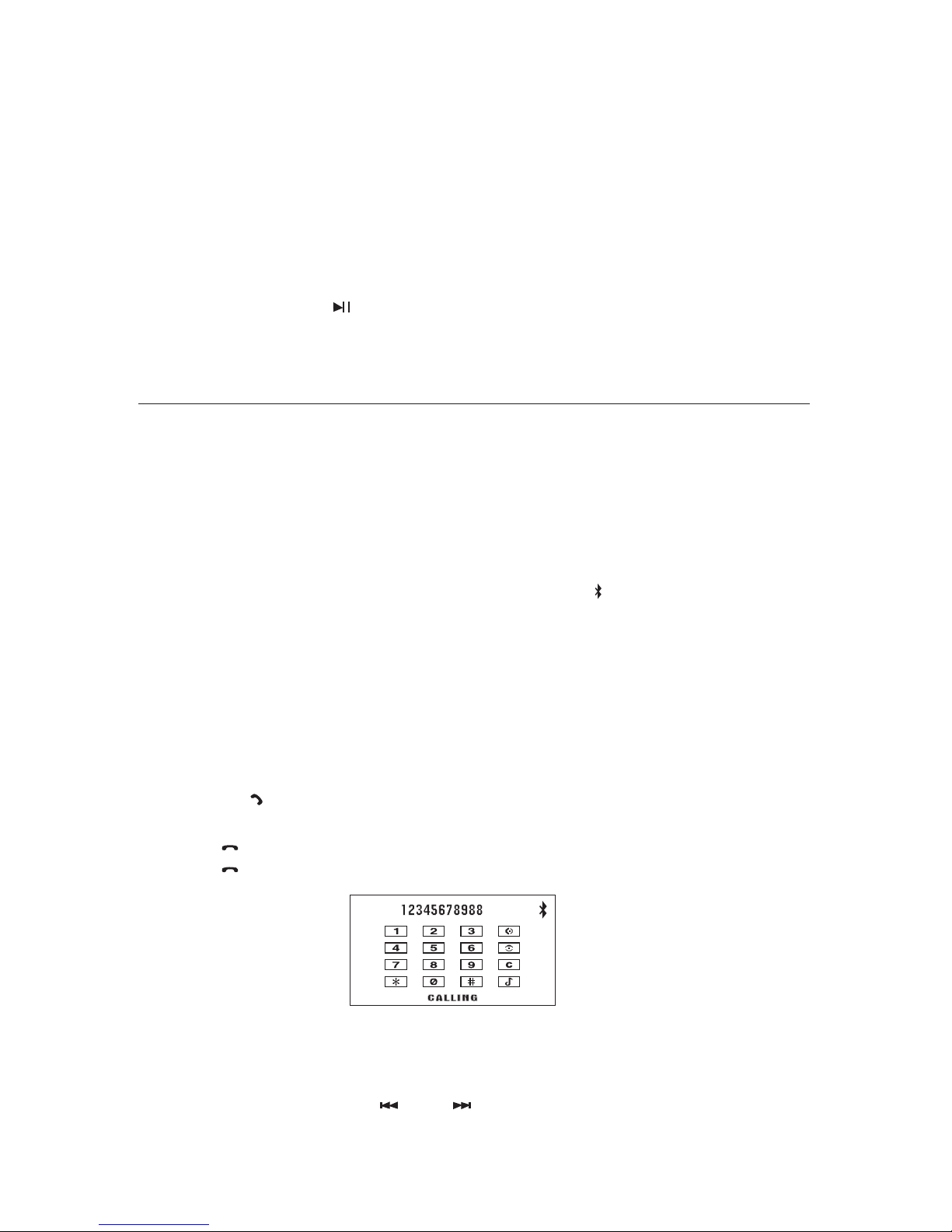

2. HANDSFREE PHONE SERVICE FUNCTION

If your mobile have matched with the car audio system. When a phone is calling in the bluetooth

system will turn the phone´s ring to the car audio speakers automatically, and the calling phone´s

number will indicat on the tft screen.

- Press the sel/ button shortly to accept the call then you can talking with the other

party through the micphone on the front panel.

- Press eq/ button shortly to reject the call when call is comeing.

- Press eq/ button shortly to hand up after you finish the talking

3. PLAYING MUSIC BY A2DP

Throungh the A2DP connected by mobile and unit, when you activated your mobile music player

to play music, sound of the music playing in the mobile music player will turn yo the car audio

system playing, press the button " " and " " can select the music track.

BLUETOOTH
