Baby Jogger Q-SERIES DOUBLE Bedienungsanleitung
Important, Keep for
Future Reference
Assembly
Instructions
Amazing Quick Folding System (Patented)
Q-Series Double
Q-Double (Assem) 12/23/04 10:37 AM Page 1
2
• Important, keep this booklet for future reference.
• Accessories which are not approved by the manufacturer or distributor
should not be used.
• WARNING: Prevent serious injury to your child by always using the
safety harness.
• WARNING: Any load attached to the handle affects the stability of the stroller.
• WARNING: It may be dangerous to leave child unattended.
• Always use your wrist strap – these strollers can really roll, and the
wrist strap gives you control if you should slip or fall down.
• The passenger should remain seated (no standing in the stroller).
• Watch out for cars – never assume that a driver can see you and your child.
• Never use Roller Blades while using a Baby Jogger Stroller.
• Intended for passengers up to five years of age weighing no more
than 100 pounds.
• This Jogger seats two passengers.
• WARNING: Recommended weight for seat pocket is 2 pounds and basket
is 10 pounds. Excessive weight may cause a hazardous unstable
condition to exist.
• It may be unsafe to use replacement parts other than those supplied or
approved by the manufacturer.
For the sake of your precious cargo, please read
these warnings before using your Baby Jogger.
Q-Double (Assem) 12/23/04 10:37 AM Page 2
With a simple lift of the straps, Baby Jogger’s new Q-Series strollers fold in half, which makes
transporting them easier than ever before. Combine that technology with our reputation for
quality and durability and you have the world’s best lineup of high performance strollers.
Frame
Baby Jogger Introduces The
World’s Easiest Folding System!
Simple
Lift & Fold
Yellow
Safety
Straps
Must Be
Released
Before
Folding
1
Q-Double (Assem) 12/23/04 10:37 AM Page 1
2
Frame
• To assemble, simply unfold frame as shown.
12
34
Q-Double (Assem) 12/23/04 10:37 AM Page 2
1 To install front wheel,
lay stroller back so handle
is resting on floor. Open
the caliper by flipping
the caliper lever toward
the rear wheels.
2 Insert the front wheel
into the fork tips by
aligning the axle flats
with the fork tip flats.
3 Tighten by turning the
wheel lever and holding
the opposite side.
4 Close the wheel lever
making sure that it is
facing toward the back
of the stroller.
5 Close caliper by flipping
the caliper lever toward
the fork tips.
Front Wheel
Caliper Lever
Wheel
Lever
3
Q-Double (Assem) 12/23/04 10:37 AM Page 3
4
• To install, gently slide the
wheel’s rear axle into the hole
in the axle end until you hear it
click into place.
• To remove, simply push in
the spring lock while pulling
out the wheel.
Rear Wheels
Q-Double (Assem) 12/23/04 10:37 AM Page 4
5

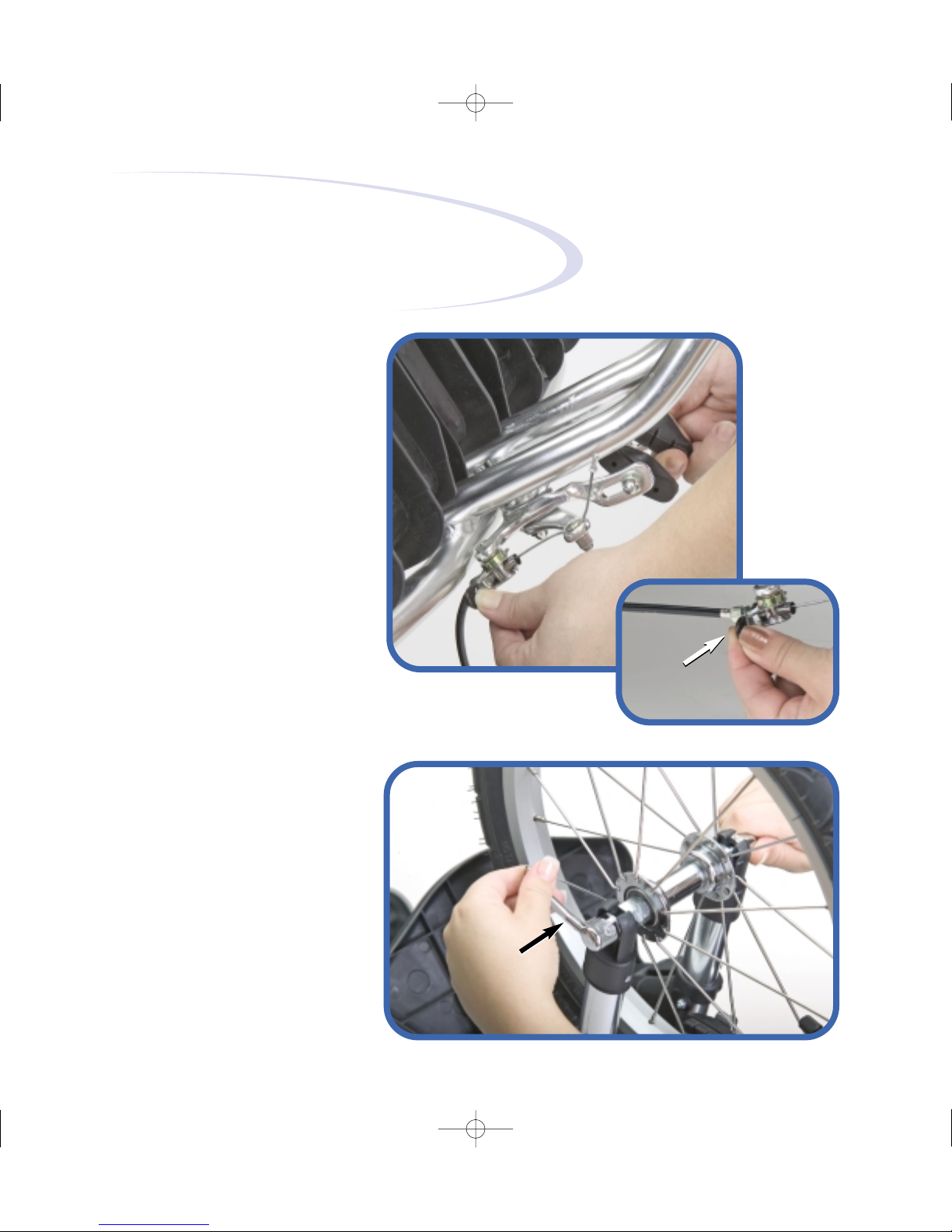

• If you don’t have good braking
action, simply squeeze the brake
handle five or six times. If the
problem persists, loosen the
brake’s cylinder ring to adjust the
small ring, and then move the
small ring away from the handle
to tighten the cable. (Please do
not over tighten!) To lock the
rings, tighten the cylinder ring
against the handle while holding
the small ring in place.
Hand Brake with
Parking Button
• To use the parking button feature, simply squeeze
the brake handle and push the park brake button.
Brakes
Small Ring
Cylinder
Ring
JOGGER IS PACKAGED
WITH THE HAND BRAKE
ASSEMBLY LOOSE.
TIGHTENING IS NECESSARY
FOR SAFE OPERATION!
• Rotate hand brake assembly upward to a comfortable
position then tighten bolt (clockwise) on the hand
brake assembly with supplied allen wrench as shown.
Adjusting the Brake
Rear Wheel
Parking
Brake
• Simply push brake
pedal down to
engage brake and
lift up to release. Brake Pedal
Parking
Button
Q-Double (Assem) 12/23/04 10:37 AM Page 5
6
Adjusting
safety harness:
1 Loosen the shoulder straps from their
plastic guides.
2 Slide the end of each strap through pair of
seat loops closest to your child’s shoulder.
3 Slide the end of the shoulder strap back
into plastic guide.Please note: If you feel
the straps are too tight, you may adjust
their length by sliding the plastic guides
toward the top of the seat.
4 Lock both sides of the strap mechanism
into the center buckle. To adjust the center
strap, move its plastic guide up or down.
Safety Harness
WARNING: Avoid serious injury from falling or sliding out.
Always use safety harness!
Q-Double (Assem) 12/23/04 10:37 AM Page 6
7
1Simply adjust seat
straps to desired
degree of recline.
2Pull on strap when you
want to return the seat
to its upright position.
3Rear flap serves as sun
canopy when seat is in
reclined position.
Reclining Seat
4Jogger is packaged with seat support board and can be easily removed
or inserted into the seat back if additional support is desired.
Be sure to remove the board from the back of the seat before washing.
Q-Double (Assem) 12/23/04 10:37 AM Page 7
8

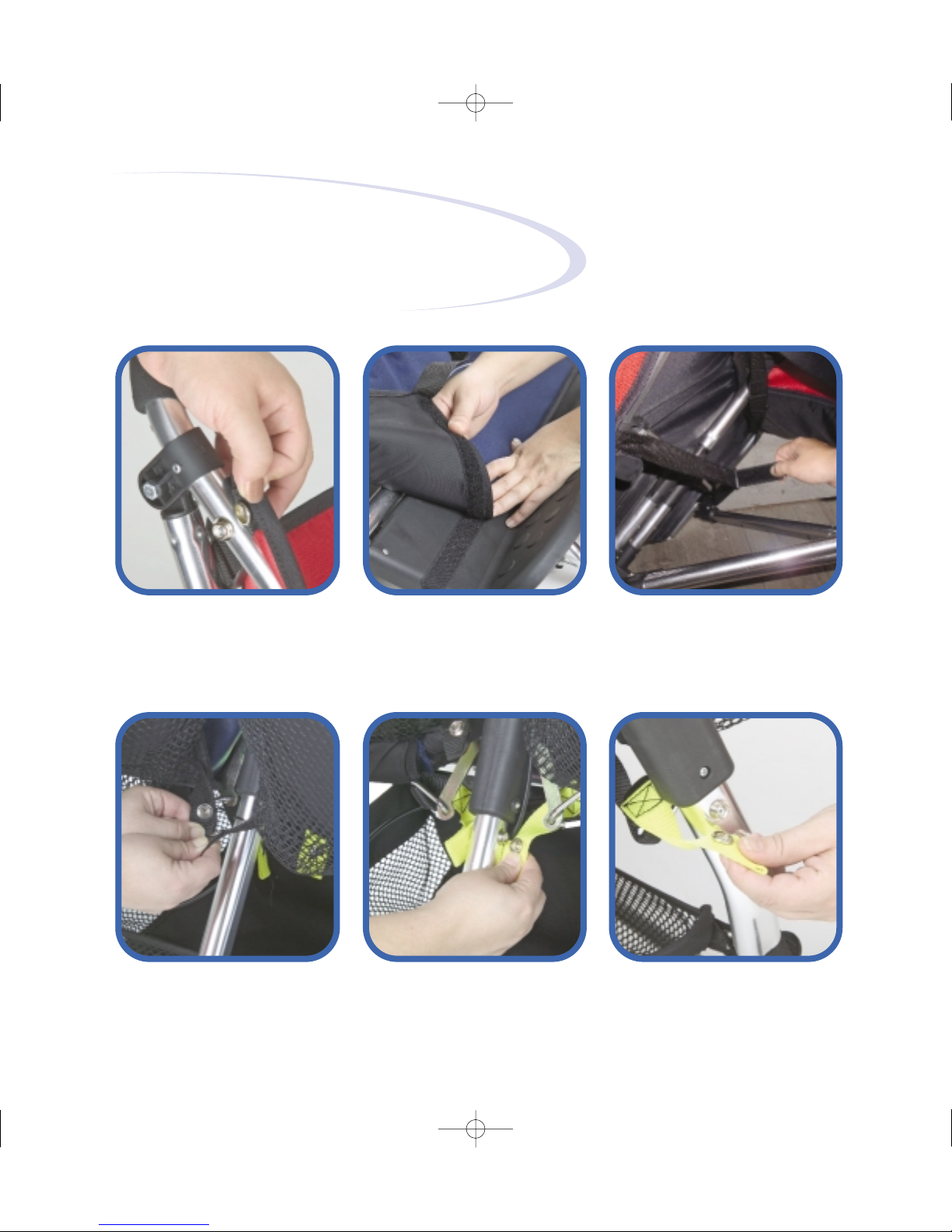

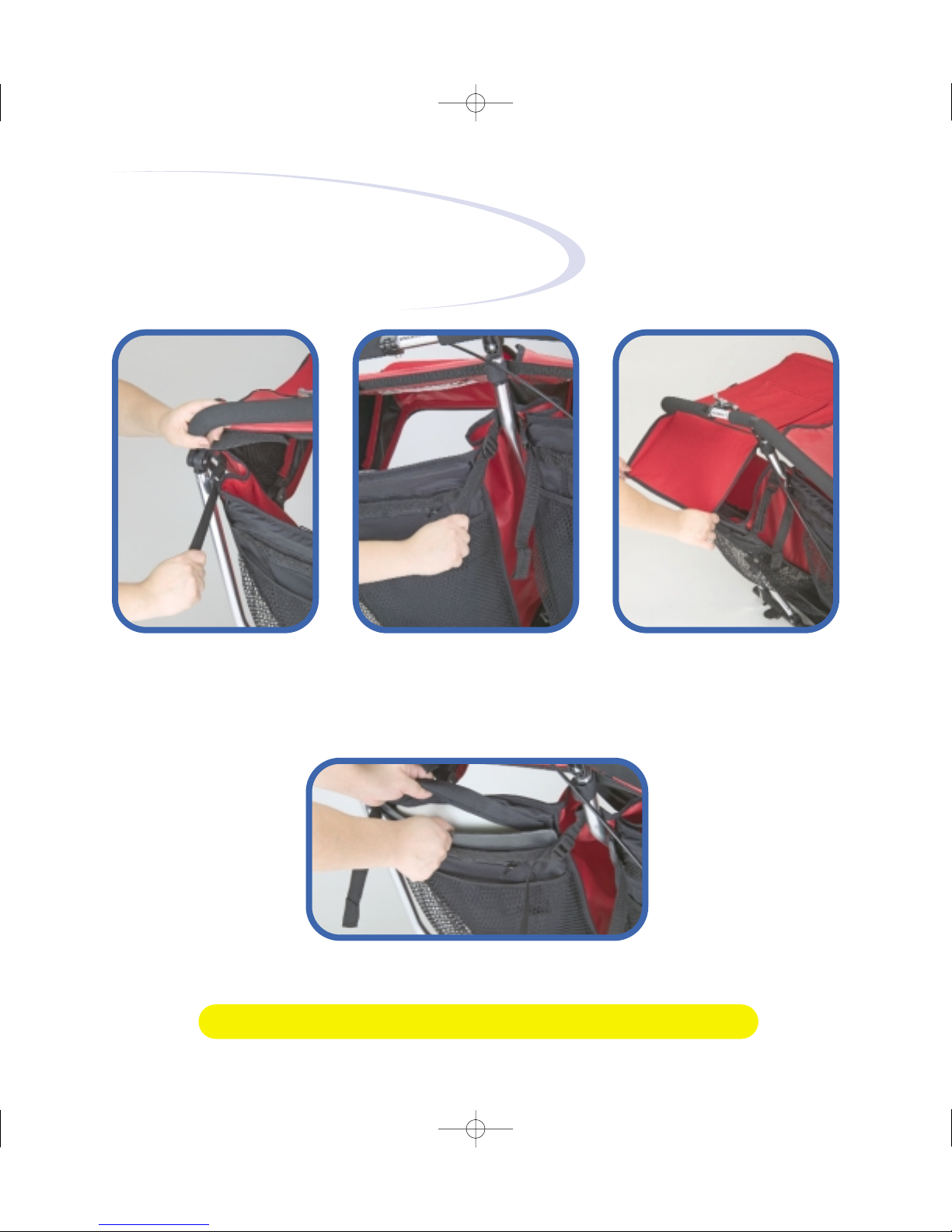

Seat
1 Snap seat to frame. 2 Attach bottom part of seat
to footplate with the Velcro.
3 Wrap bottom straps around
frame, thread strap through
D-ring and secure.
5 Attach seat anchor straps
to rear frame uprights.
6 Snap safety strap to frame.
4 Snap center seat anchor
straps to each other.
Q-Double (Assem) 12/23/04 10:37 AM Page 8
