Baby Jogger Q-SERIES SINGLE Bedienungsanleitung

Important, Keep for

Future Reference

Assembly

Instructions

The Ultimate High Performance Double Jogging Stroller

Q-Series Single

assembly instructions Q- 2004 8/13/04 5:12 PM Page 1

2 1

• Important, keep this booklet for future reference.

• Accessories which are not approved by the manufacturer or distributor

should not be used.

• Warning: Prevent serious injury to your child by always using the

safety harness.

• Warning: Any load attached to the handle affects the stability of the stroller.

• Warning: It may be dangerous to leave child unattended.

• Always use your wrist strap – these strollers can really roll, and the

wrist strap gives you control if you should slip or fall down.

• The passenger should remain seated (no standing in the stroller).

• Watch out for cars – never assume that a driver can see you and your child

• Never use Roller Blades while using a Baby Jogger Stroller

• Intended for passengers up to five years of age weighing no more

than 75 pounds.

• This Jogger seats one passenger.

• Warning: Recommended weight for seat pocket is 2 pounds and basket

is 10 pounds. Excessive weight may cause a hazardous unstable

condition to exist.

• It may be unsafe to use replacement parts other than those supplied or

approved by the manufacturer

For the sake of your precious cargo, please read

these warnings before using your Baby Jogger.

The Q-Series strollers are completely

assembled with the exception on putting

on the wheels... simply pull up on the

handle until you hear a click... attach

the wheels (shown on page 6) and

you’re ready to roll!

With the simple lift of a strap,

Baby Jogger’s new Q-Series strollers fold in

half, which makes transporting them easier

than ever before. Combine that technology

with our reputation for quality and durability

and you have the world’s best lineup of high

performance strollers.

Frame

Baby Jogger Introduces The

World’s Easiest Folding System!

Simple

Lift & Fold

assembly instructions Q- 2004 8/13/04 5:12 PM Page 2

2 3

1. Unsnap seat from frame.

2. Release the two bottom velcro straps.

3. Remove Quick-fold strap from folding

latch by unscrewing triangle shaped

fastener.

4. Unthread folding strap through seat

Seat

Footplate

• Insert the footplate tab into the footplate holder slot and snap down onto Jogger frame.

• Using a phillips head screwdriver, attach footplate to Jogger frame.

You will need to rest the Jogger Handle on the floor in order to get to the

bottom of the footplate.

Seat removal:

123

assembly instructions Q- 2004 8/13/04 5:12 PM Page 2

4 5

• Unsnap rear basket straps from

frame and remove basket.

• Undo basket’s front Velcro strap.

Basket

• Basket removal requires releasing the bottom section of seat as shown on previous page to

reveal velcro strap.

1. Remove canopy by releasing upper velcro straps and unsnapping from Jogger frame.

2. Using a phillips head screwdriver, unscrew brackets from Jogger frame to remove canopy.

Canopy

Canopy removal:Basket removal:

assembly instructions Q- 2004 8/13/04 5:12 PM Page 4

6 7

• To install, gently slide the

wheel’s rear axle into the hole in

the axle end until you hear it

click into place.

• To remove, simply push in

the spring lock while pulling

out the wheel.

Rear Wheels

1. To install front wheel, lay

stroller back so handle is

resting on floor. Open the

caliper by flipping the

caliper lever toward the

rear wheels while pinching

calipers together..

2. Insert the front wheel into

the fork tips by aligning

the axle flats with the fork

tip flats.

3. Tighten by turning the

wheel lever and holding

the opposite side.

Close the wheel lever

making sure that it is

facing toward the back of

the stroller.

4. Close caliper by flipping

the caliper lever toward

the fork tips.

Front Wheel

Caliper

Lever

assembly instructions Q- 2004 8/13/04 5:12 PM Page 6

8 9

Warning: Avoid serious injury from falling or sliding out.

Always use seat belt!

Adjusting safety harness:

• Loosen the shoulder straps from their plastic guides.

• Slide the end of each strap through pair of seat loops closest to your child’s shoulder.

Safety Harness

• Slide the end of the shoulder strap back into plastic guide.

Please note: If you feel the straps are too tight, you may adjust their length by sliding the

plastic guides toward the top of the seat.

• Lock both sides of the strap mechanism into the center buckle. To adjust the center strap,

move its plastic guide up or down.

assembly instructions Q- 2004 8/13/04 5:12 PM Page 8

10 11

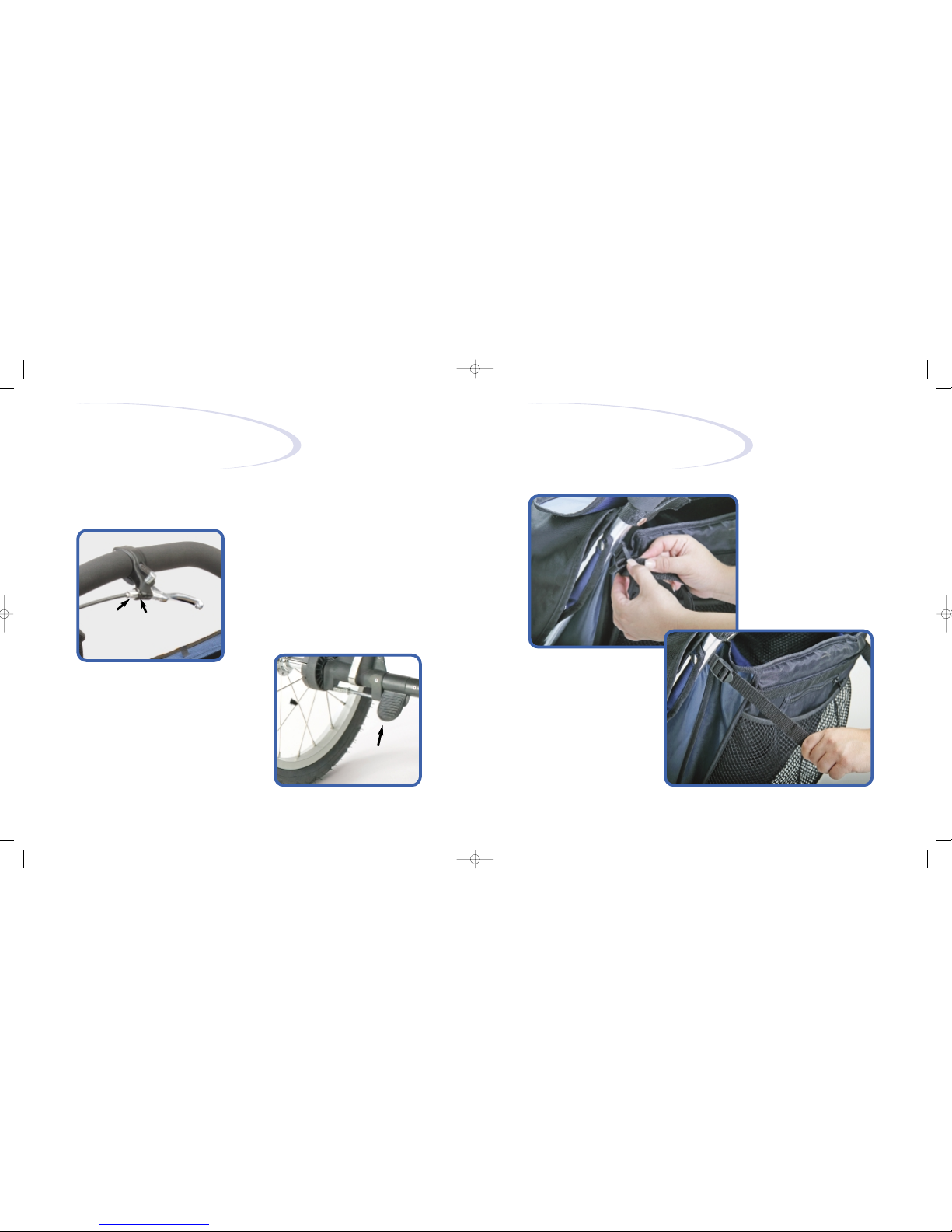

Adjusting the Brake

• If you don’t have good braking action, simply

squeeze the brake handle five or six times. If the

problem persists, loosen the brake’s cylinder ring

to adjust the small ring, and then move the small

ring away from the handle to tighten the cable.

(Please do not over tighten!) To lock the rings,

tighten the cylinder ring against the handle while

holding the small ring in place.

Hand Brake with Parking Button

• To use the parking button feature, simply squeeze the brake handle and push the park brake button.

Rear Wheel Parking Brakes

• Simply push brake pedal down to engage

brake and lift up to release.

Brakes

Brake

Pedal

Small

Ring

Cylinder

Ring

• Simply adjust seat straps to

desired degree of recline.

• Pull on strap when you

want to return the seat to

its upright position.

Reclining Seat

assembly instructions Q- 2004 8/13/04 5:12 PM Page 10

12 13

Washing

• You can machine wash your stroller’s seat in cold water with a mild detergent.

To minimize shrinkage, simply reattach the seat to the frame to dry.

(Please do not put the seat in the dryer!)

• You may clean the stroller frame using a soft, dry cloth, and an occasional spray of

household wax will maintain its healthy glow.

Wheel Care

• Moisture – especially from the beach – can rust the wheel bearing case.

Spraying regularly with a silicone lubricant will keep your wheels looking healthy.

• Also, if you jog massive amounts of miles, your stroller will benefit from a yearly visit to the

bike shop for wheel alignment. Refer to the number on the tire wall for the optimum

pressure for your tires.

Storing

• Sunshine can fade seat fabric and dry out tires, so storing your

stroller indoors will prolong its good looks. However, if you do

store it outside, using a tarp will protect against weather wear.

Stroller Care

Steering

• Steering your stroller is simple: it’s balanced to

turn with just a light touch on the handlebar.

For tighter turns, push down on the handlebar and

raise the front wheel to steer.

Wrist Strap

• Make sure wrist strap is around your wrist whenever

your baby is in the stroller. The Baby Jogger is lightweight

and ready to roll – with or without you – and the wrist strap

helps you gain control over your stroller.

In the Dark

• Since we are concerned about the safety of you and your

baby, we recommend that you not use your stroller at

night. However, if you choose to, please attach

reflective strips to the wheel spokes and the seat.

Bicycle lights can also be mounted on the handlebar.

In Motion

assembly instructions Q- 2004 8/13/04 5:12 PM Page 12

We wish you many happy journeys with your new

Baby Jogger! Your stroller is a great product, and

we are proud to manufacture it. If you have any

questions or comments, please give us a call at.

BJC Q/S 08.10.04

1.800.241.1848

Baby Jogger is a Division of Dynamic Brands

2042 Westmoreland Street • Richmond, VA 23230

T: 800.241.1848 • F: 804.515.1092

www.babyjogger.com

Thank You!
