Backyard Discovery WILLOW 2404014 Bedienungsanleitung
Made in China
INS-2404014-A- WILLOW GREENHOUSE-ENG 12-11-2023
Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS
66762 800-856-4445
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts
Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

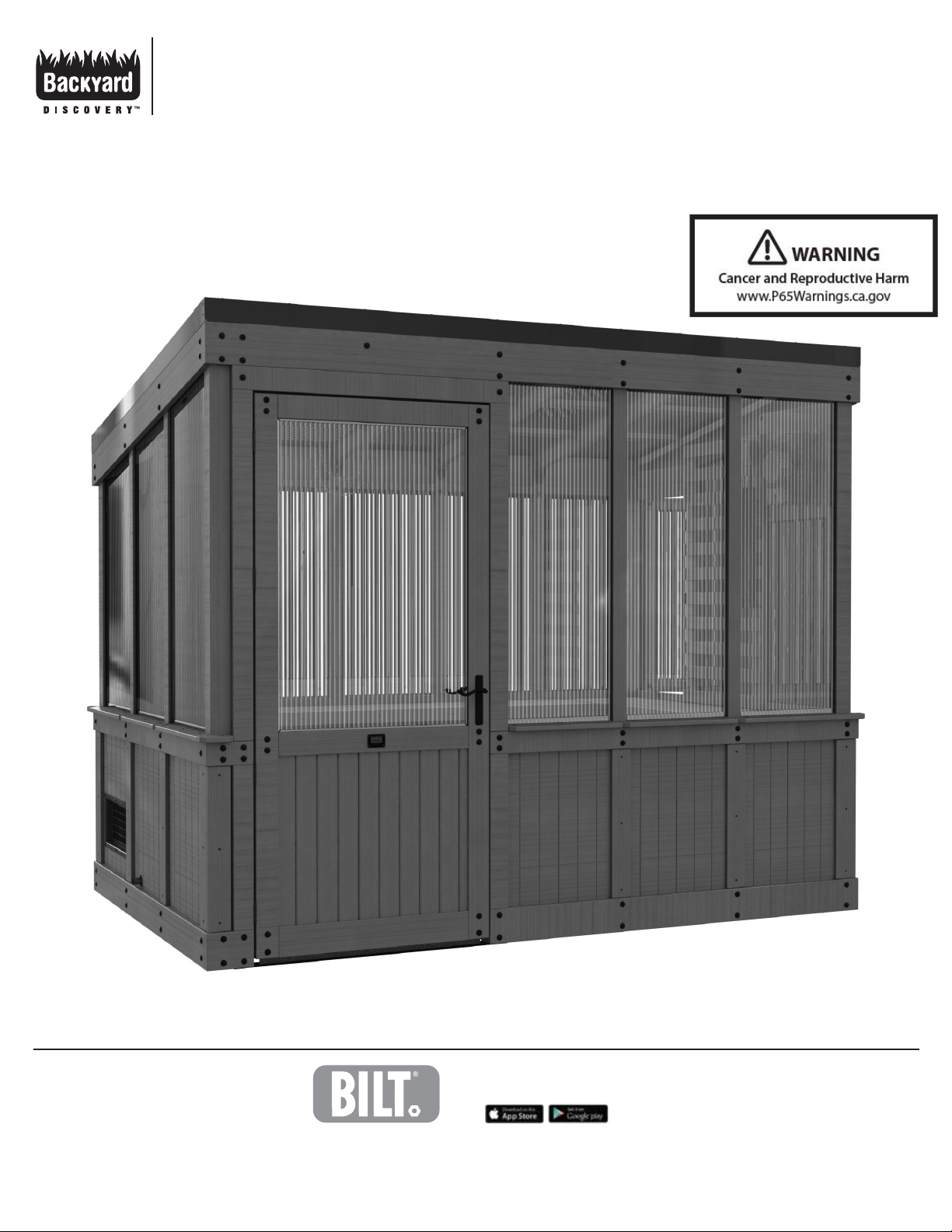

WILLOW GREENHOUSE
MODEL # : 2404014
For Horticulture Use Only
•Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
Using incorrect hardware may result in improper assembly
•Remember to double check for underground utilities and overhead electrical lines
•The hardware to attach the post mounts to the structure is included.
•The hardware to mount the structure permanently to a concrete surface is included.
OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES
It is critically important that you start with square and level footings or concrete pad to
attach your structure
9'-6 1/4"
2902mm
6'-2 3/4"
1899mm
2850mm
9'-4 1/4"
2058mm
6'-9"
7'-10"
2386mm
908mm
2'-11 3/4"
2388mm
7'-10"
2060mm
6'-9"
6'- 3/4"
1847mm
2
8 15/16"
227mm
11 1/8"
282mm
11 1/8"
282mm
10 1/4"
260mm
6"
152mm
6"
152mm
6"
152mm
6"
152mm
m
1
3
2
8
'-
1
6
9
3
m
/8"
7'- 11/16"
2152mm
3155mm
10'-4 3/16"
11 7/16"
3'-4"
1016mm
OWNER'S MANUAL - ANCHORING LAYOUT
3
OWNER'S MANUAL - SITE LOCATION AND PREPARATION
A. Check your local building and city codes for permit requirements or restrictions,
including any HOA restrictions.
B. Select a location with lots of sun, good drainage, and the ability to create a level
firm surface for your greenhouse.
•A firm, level surface is critically important to the longevity of your greenhouse.
•Ensure it is accessible on all sides to clean and conduct annual maintenance
•Consider a site location with a close proximity to both water and electrical
sources
•Make sure site drains well and avoid low lying areas.
•Recommended area for site preparation of the Willow Greenhouse is 10'-4 3/16"
x 7'-11/16" x 7'-10" (3155mm x 2152mm x 2386mm).
C. Before preparing your surface – double check for possibility of any underground
utilities (example: gas, cable, or sprinkler lines)
•Remove any grass, dirt, landscaping to create a level, hard-packed surface
•This may involve some digging to create a level spot, dependent on your site
location.
D. Determine your preferred site pad materials for your greenhouse
•It is NOT recommended to set the greenhouse directly on soil or grass. This will
shorten the lifespan of your greenhouse.
•Site pad options include gravel, patio or brick pavers, concrete pad.
•Anchors are included for either natural surface, such as gravel, or for a concrete
foundation.
•Manufacturer recommends installation on concrete surface or concrete post
pads.
4
5
6
7
8
9
10
