Foreword

Welcome to the Pulsar family!

You are now the proud owner of India’s No.1 sports bike. By No.1 we are talking about

unparalleled performance, superior technology and incredible market leadership that Pulsar today

enjoys. This makes the Pulsar you ride, unbeatable and unchallenged both on and off the road.

Before you ride out, please read this Owner's Manual carefully and familiarize yourself with the

operating mechanism, controls and maintenance requirements of your Pulsar. This will ensure you a

safe and trouble free ownership experience.

To keep your bike in perfect running condition and deliver consistent performance, we have

specially programmed the periodic maintenance services which includes 3 Free and subsequent

Paid services, as per the schedule contained in this booklet. We earnestly advise you to avail all

these services at any of our Bajaj Dealers or Authorised Service Dealers, who are well equipped

with all necessary facilities / genuine parts / oil and trained manpower to ensure the best care for

your Pulsar. Your Pulsar comes with a warranty of 5 Years or 75,000 Kms whichever occurs earlier

from the date of sale. For details please refer to “Warranty : Scope & Limits” given in this manual.

Should you require any additional information feel free to contact us on our helpline numbers or e-

mail us at: [email protected] or visit the Bajaj Auto website www.bajajauto.com

To be a part of the Pulsarmania, visit and join the Pulsar fanpage on www.mypulsar.com

facebook: www.facebook.com/mypulsar

Rev up, shift gears and enjoy the Pulsar experience…

SERVICE DEPARTMENT

BAJAJ AUTO LIMITED

Description

1. Technical Specifications 1

2. Identification Data 3

3. Location of Parts 4

4. Steering cum Ignition lock 5

5. Fuel Tank Cap / Fuel Tap 6

6. Speedometer Details 7

7. Control Switches 8

8. Removal & Fitment of Side Covers 10

9. Removal & Fitment Seat 12

10. Battery / Tool kit 13

11. Daily Safety Checks 14

12. How to ride your Bike 15

13. Safe Riding Tips 19

14. Engine Oil 20

15. Wheels - Tyre 21

16. Periodic Maintenance Information 22

17. Periodic Maintenance & Lubrication Chart 26

18. Free Service Guidelines 31

19. Non Use Maintenance 32

18. Delivery Certificate 33

19. Warranty Scope & Limit 34

20. Battery Warranty Card

Notice:

The description and illustration in this booklet

are not to be taken as binding on the

manufacturers. The essential features of the

type described and illustrated herein remaining

unaltered. Bajaj Auto Limited reserves the

right to carry out at any moment without

being obliged to bring this booklet upto-date

& to do modifications on the vehicle, parts or

accessories as may be convenient and

necessary.

Safety and Warning information :

Table of Contents

Caution : This indicates that a potential

hazard that could result in vehicle

damage. Follow the Advice provided with

the caution.

Warning : This indicates that a potential

hazard or injury to you or other persons &

to the vehicle can happen if advice

provided is not followed.

Pulsar 150

Engine : 4 stroke, Natural air cooled

Bore x Stroke : 56 mm x 60.7 mm

Engine Displacement : 149.5 cc

Compression Ratio : 9.5 +/- 0.5 : 1

Idling RPM : 1400 +/- 100

Max. Net Power : 10.3 Kw (14 Ps) at 8000 RPM

Max. Net Torque : 13.4 Nm at 6000 RPM

Ignition System : DC CDI

Spark Plug : Champion RG4HC, 2 Nos.

Spark Plug Gap : 0.7 to 0.8 mm

Transmission : 5 speed constant mesh.

Front Brake : Disc Brake

Rear Brake : Drum Brake

Fuel Tank Capacity

Full : 15 litres

Reserve : 3.2 litres

Usable Reserve : 2.0 litres

Dimensions :

Length : 2055 mm

Width : 755 mm

Height : 1060 mm

Wheel base : 1320 mm

Ground clearance : 165 mm

Pulsar 180

4 stroke, Natural air cooled.

63.50 mm x 56.40 mm

178.60 cc

9.5 +/- 0.5 : 1

1400 +/- 100

17.02 Ps at 8500 RPM

14.22 Nm at 6500 RPM

DC CDI

Champion RG4HC, 2 Nos.

0.7 to 0.8 mm

5 speed constant mesh.

Disc Brake

15 litres

3.2 litres

2.0 litres

2035 mm

765 mm

1115 mm

1345 mm

165 mm

Pulsar 150 Twin Disc

4 stroke, Natural air cooled.

56 mm x 60.7 mm

149.5 cc

9.5 +/- 0.5 : 1

1400 +/- 100

10.3 Kw (14 Ps) at 8000 RPM

13.4 Nm at 6000 RPM

DC CDI

Champion RG4HC, 2 Nos.

0.7 to 0.8 mm

5 speed constant mesh.

Disc Brake

15 litres

3.2 litres

2.0 litres

2035 mm

765 mm

1115 mm

1345 mm

165 mm

Technical Specifications

Note : • All dimensions are under UNLADEN condition.

• Above information is subject to change without any notice. • This vehicle complies to BS IV standards.

• AHO is government regulation.

Pulsar 150

Tyre Size Front : 2.75-17 41P, Tubeless

: 80/100-17 46P, Tubeless

Rear : 100/90-17 55P, Tubeless

Tyre Pressure Front : 1.75 kg/cm (25 PSI)

Rear (Solo) : 2.00 kg/cm (28.4 PSI)

Rear (Pillion) : 2.25 kg/cm (32 PSI)

Electrical System : 12 Volts DC

Battery : 12V - 4Ah VRLA

Head Lamp : 35/35W, HS1

Pilot Lamp : 5W Each 2 Nos.

Tail /Stop Lamp : LED

Turn Signal Lamp : 10W (4 nos.)

Neutral Indicator : LED

Hi Beam Indicator : LED

Turn Indicator : LED

Side Stand Indicator : LCD

Speedometer Illumination : LCD Amber

Low battery indicator : LED

ABS Indicator : Not applicable

Rear No. Plate Lamp : 3W

Horn : 12V DC

Vehicle Kerb Weight : Non ABS ABS

: 144 kg. Not applicable

Gross Vehicle Weight : 274 kg. Not applicable

Technical Specifications

Pulsar 180

90/90-17, 49P, Tubeless

120/80-17, 61P/S, Tubeless

2.00 kg/cm (28.4 PSI)

2.10 kg/cm (30 PSI)

2.25 kg/cm (32 PSI)

12 Volts DC

12V - 9 Ah MF

35/35W, HS1

5W Each 2 Nos.

LED

10W (4 Nos.)

LED

LCD

LCD Blue

LED for Non ABS, LCD for ABS

LED

12V DC

Non ABS ABS

146 kg.

276 kg.

Pulsar 150 Twin Disc

90/90-17 49P, Tubeless

120/80-17, 61P/S, Tubeless

2.00 kg/cm (28.4 PSI)

2.10 kg/cm (30 PSI)

2.15 kg/cm (30.5 PSI)

12 Volts DC

12V - 4 Ah VRLA

35/35W, HS1

5W Each 2 Nos.

LED

10W (4 Nos.)

LED

LCD

LCD Blue

LED for Non ABS, LCD for ABS

LED

12V DC

Non ABS ABS

144 kg.

274 kg.

Identification Data

The Frame and Engine serial numbers are used to register the motorcycle. They are the unique

alpha-numeric codes to identify your particular vehicle from others of the same model and type.

Frame Number Location

On Side of Steering Tube

(Alpha-Numeric - 17 Digits)

Engine Number Location

On LH Side Crankcase Near Gear

Change Lever (Alpha-Numeric - 11 Digits)

This photograph is of Pulsar 180 Non ABS

Location of Parts

Front Fork

Fuel

Tank

Rear

Shock Absorber

Manual

Choke

Grab

Handle

Pillion

Foot Rest

Engine Oil Level

Inspection Window Front Disc Brake

Rear

Disc Brake

Accelerator

Grip

Steering cum Ignition Lock / Fuel Cock

To Lock the Steering : To lock the steering,

turn the handle bar to the left or right. Push &

release the key. Turn the key to “LOCK”

position and remove the key.

To Unlock the Steering : To unlock steering,

insert the key in steering cum ignition lock &

turn it clockwise to “OFF” or “ON” position.

Key : A common key is used for ‘Steering

cum Ignition lock’, ‘Fuel tank cap’ & ‘Side

cover lock’.

Steering cum Ignition Lock :

It has three positions.

LOCK: Steering locked. Ignition OFF.

OFF: Steering unlock. Ignition OFF.

ON: Steering unlock. Ignition ON.

Fuel Tap

Fuel tap lever has following positions.

OFF : When fuel supply is to be

cut off.

ON : When fuel level is above

reserve position.

RES : When fuel level is below

reserve position.

Fuel Tap

Fuel Tank Cap

• To open the fuel tank cap, open the flap.

Insert the key in the lock and turn it

clockwise and lift fuel tank cap.

• To lock the ‘Fuel Tank Cap’ insert the key

in the lock and turn it clockwise and press

fuel tank cap. ‘Click’ sound ensures cap is

fully locked.

Fuel Tank Cap / ABS System

Fuel Tank

Cap

Precaution :

Dont attach metallic ‘Key chain’ as it may damage

paint of petrol tank.

Single Channel ABS unit for Front brake is fitted on

this vehicle.

ABS System Information:

 Always maintain a safe distance between you and

objects ahead. Vehicle speeds should always be

reduced during extreme road conditions. The braking

distance for motorcycle equipped with an anti-lock

braking system may be longer than for those without it

on rough road conditions. During these conditions the

vehicle should be driven at reduced speeds.

 When you apply Front brake under conditions which

may lock the wheels, you feel a corresponding

sensation (pulsation) in Front brake lever. This is

normal and it means your ABS is active.

 Also it is recommended to use both front & rear brakes

simultaneously.

 Always slow down when cornering. The anti-lock brake

system cannot prevent accidents resulting from

excessive speeds.

ABS Speedometer assembly

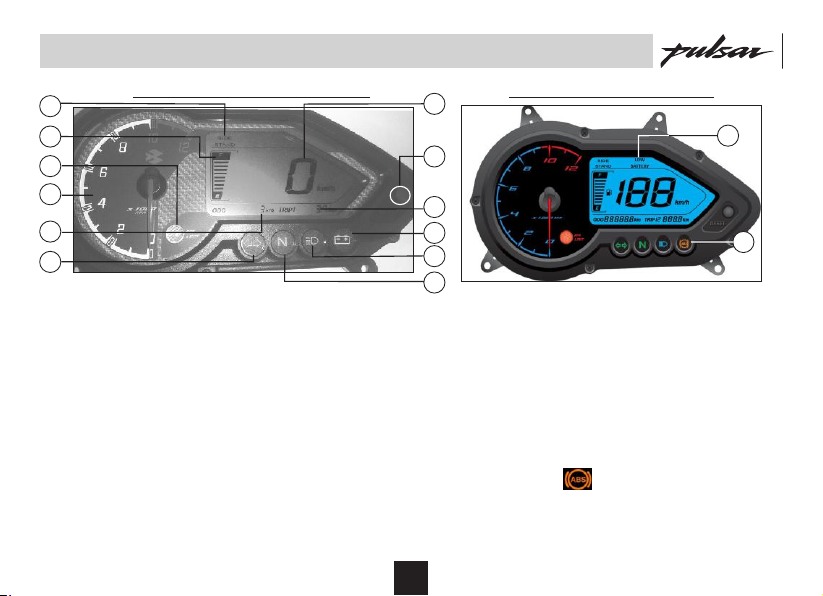

Speedometer Details - ABS/Non ABS

1. Side Stand Indicator : It glows when Side stand is

down & igntion switch is ‘ON’.

2. Fuel Level Indicator : Fuel level indicator shows

available fuel in fuel tank. Tank symbol glows when

petrol level in tank reaches reserve level

3. Engine Rev Indicator :It blinks when engine RPM

cross 9000 RPM mark.

4. Tachometer Dial : It shows engine speed in RPM.

5. Odometer : The Odometer shows the total distance

that the vehicle has accumulated.

6. Turn Indicator (LH & RH) : When Turn signal switch

is turned to L/R, Turn indicator - LH or RH will flash.

7. Speedometer:Vehicle speed will be displayed digitally

8. Trip Meter Reset Button : Both trip meters can be

reset to zero by pressing the button.

9. Trip Meter : The Trip meter shows the distance

traveled since it was last reset to zero.

10. Battery Indicator : It shows battery needs charging

11. Hi Beam Indicator : It glows when Headlight is ‘ON’

& Hi beam is selected with engine running.

12. Neutral Indicator : It glows when transmission is in

Neutral & Ignition switch ‘ON’.

13. Bajaj Logo : Bajaj logo flying ‘B’ glows.

14. ABS Indicator ( ): With Ignition switch ON the

ABS indicator glows. W hen vehicle speed is more than

5 Km/h the ABS indicator goes off, if this indicator

glows while vehicle is running, it means there is

problem in ABS unit.

Non ABS Speedometer assembly

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Bajaj Auto Motorrad Handbücher

Bajaj Auto

Bajaj Auto pulsar NS125 Bedienungsanleitung

Bajaj Auto

Bajaj Auto Boxer BM 100 Bedienungsanleitung

Bajaj Auto

Bajaj Auto Pulsar 135 LS Bedienungsanleitung

Bajaj Auto

Bajaj Auto Pulsar 200 NS Bedienungsanleitung

Bajaj Auto

Bajaj Auto DTS-i Discover 110 CBS Bedienungsanleitung

Bajaj Auto

Bajaj Auto The Invincible V12 Bedienungsanleitung

Bajaj Auto

Bajaj Auto Pulsar RS 200 Bedienungsanleitung

Bajaj Auto

Bajaj Auto CT 100 Bedienungsanleitung

Bajaj Auto

Bajaj Auto CT100B Bedienungsanleitung

Bajaj Auto

Bajaj Auto Chetak 4 stroke 003002CL Bedienungs- und Wartungshandbuch

Bajaj Auto

Bajaj Auto Discover 100 Bedienungsanleitung

Bajaj Auto

Bajaj Auto Boxer BM 150 Bedienungsanleitung

Bajaj Auto

Bajaj Auto Avenger 150 Street Bedienungsanleitung

Bajaj Auto

Bajaj Auto RE 4-stroke Bedienungsanleitung

Bajaj Auto

Bajaj Auto Dominar 400 Bedienungsanleitung

Beliebte Motorrad Handbücher anderer Marken

OHVALE

OHVALE GP-0 Stücklistenhandbuch

Yamaha

Yamaha Star XV19CTSZ 2009 Bedienungsanleitung

KTM

KTM 350 XCF-W USA Bedienungsanleitung

HYOSUNG

HYOSUNG ST7 Bedienungsanleitung

Husqvarna

Husqvarna FC 250 2016 Bedienungsanleitung

Ducati

Ducati SCRAMBLER 800 Gebrauchsanweisung

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Bedienungsanleitung

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Bedienungsanleitung

Yamaha

Yamaha 2006 YZF-R1V Bedienungsanleitung

KTM

KTM Freeride E-XC 2021 Bedienungsanleitung

Fantic

Fantic Enduro 125 Bedienungsanleitung

Ducati

Ducati Supersport 750 desmodue Bedienungsanleitung

MV Agusta

MV Agusta 2008 F4 312RR 1078 Gebrauchsanweisung

Yamaha

Yamaha XVS650A Bedienungsanleitung

Yamaha

Yamaha YZF-R6T(C) Handbuch

Ducati

Ducati 748 monoposto strada Bedienungsanleitung

ATK

ATK 1988 250 Bedienungsanleitung

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Bedienungsanleitung
