REV: 5/2013 IM-268S-11 2013 © Bally Refrigerated Boxes, Inc. 1

SERVICE MANUAL

WALK-IN COOLERS AND FREEZER

IM-268S-11

Routine maintenance 2

Safety Walk Strips 2

Gaskets

Replacing magnetic gasket on hinged Walk-In doors 3

Replacing wiper gasket at bottom of hinged Walk-In door 3

Hinged Walk-In Doors

Replacing the D-1000 touch latch on Walk-In doors 4

Replacing D-1250 spring loaded hinges on Walk-In door panels 5

Shimming Walk-In door hinges 5

Anti-Condensate Heaters

Replacing anti-condensate heater element around door frame of hinged Walk-In doors 6

Reach-In Doors

Replacing magnetic gasket on hinged Reach-In doors 7

Adjusting self-closing hinges on Reach-In doors 7

Replacing hinges on Reach-In door panels 8

Replacing anti-condensate heater element around frame of hinged Reach-In doors 8

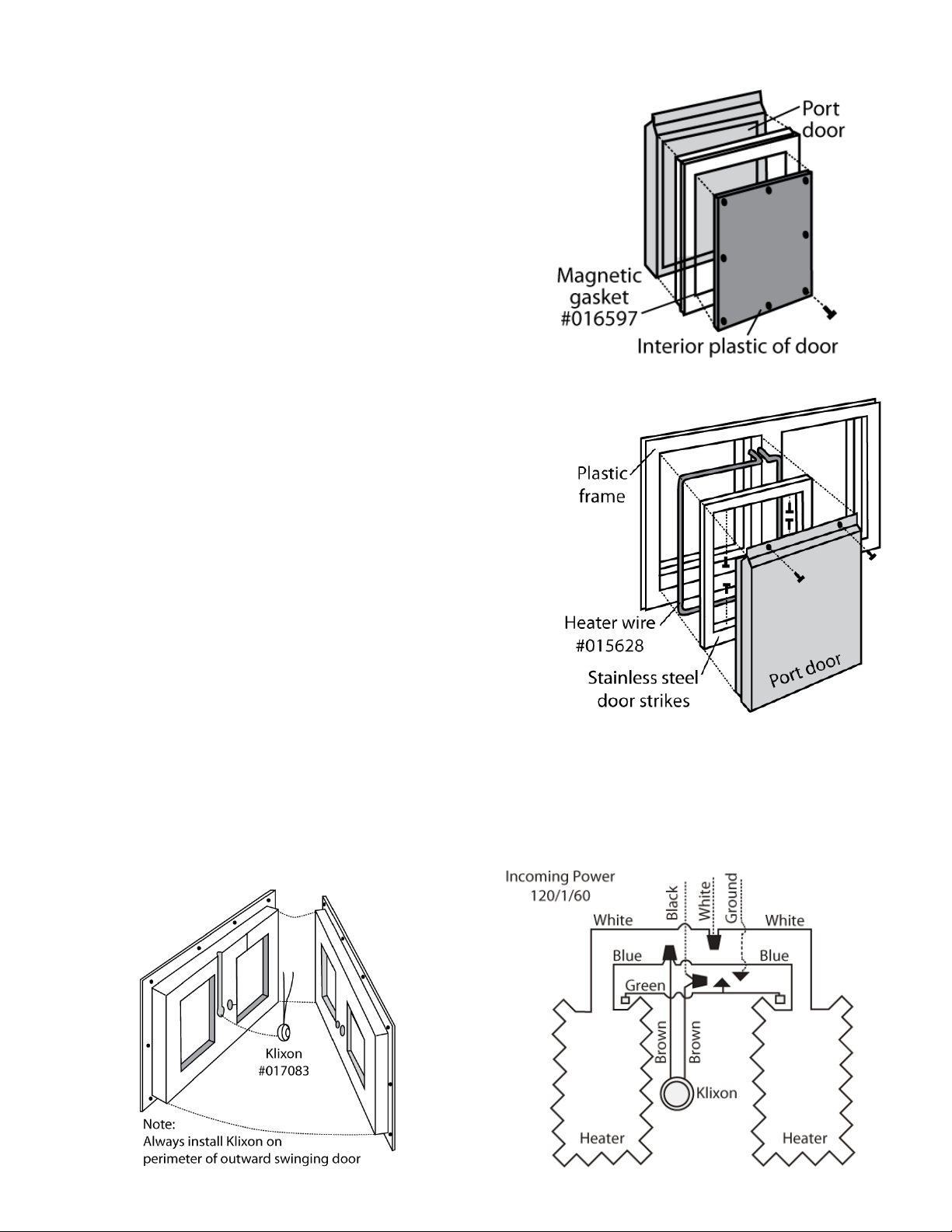

Pressure Relief Port

Replacing klixon on Pressure Relief Port 9

Replacing anti-condensate heaters on Pressure Relief Ports 9

Replacing magnetic gasket on Pressure Relief Ports 9

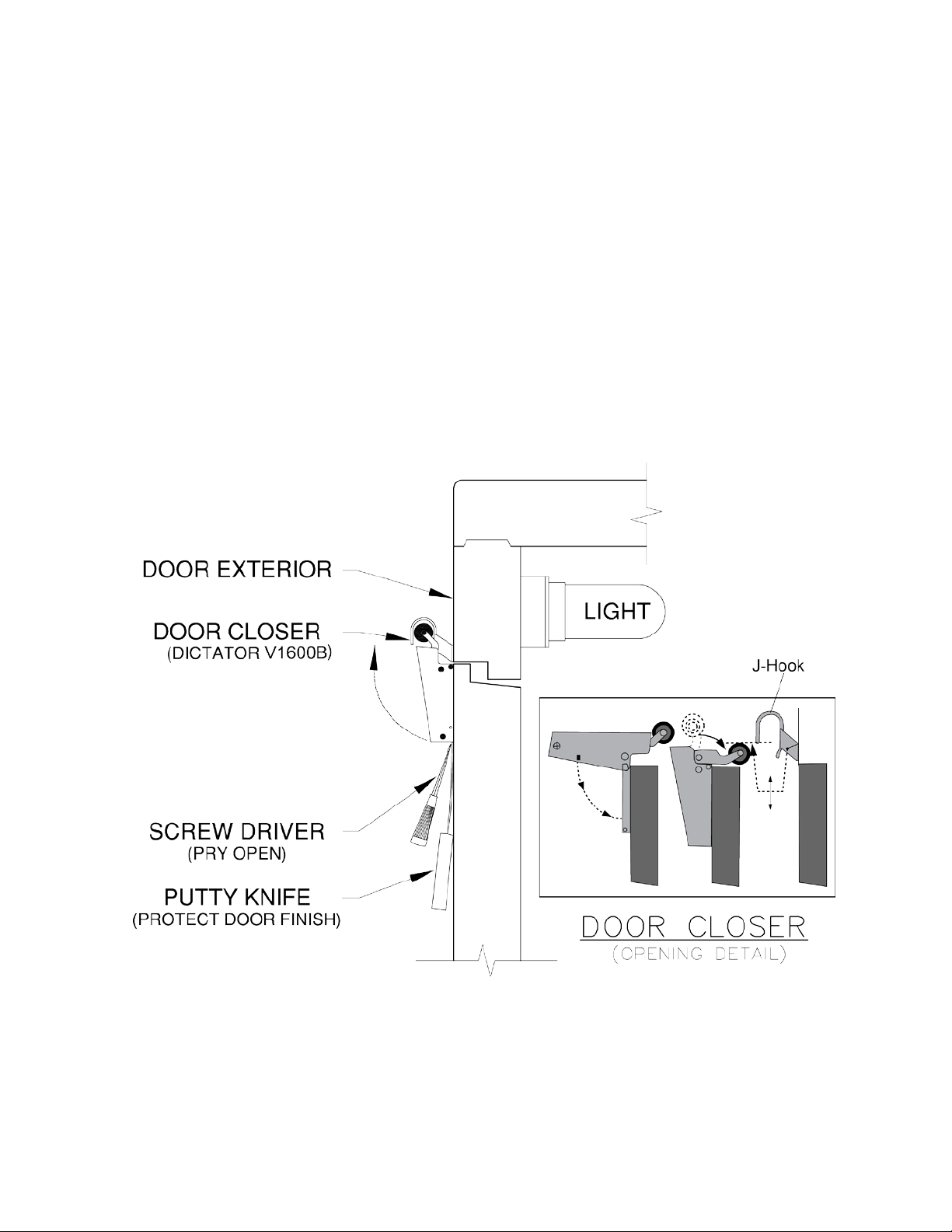

Door Closer

Replacing Door Closer 10

2IM-268S-11 2013 © Bally Refrigerated Boxes, Inc.

ROUTINE MAINTENANCE

A. Keep all walkway surfaces clean and free of spilled liquids and food particles.

B. Walk-In panels and magnetic door gasketing should be periodically wiped clean with a damp cloth. Use

only mild soap to clean the panels: never abrasive pads or powders that could mar the finish. Remove all

soap film and thoroughly dry with a clean cloth. Protect Digital and Electronic Alarms from moisture, or

warranty is null and void.

C. Never flush the inside of the Walk-In with water. Use a clean damp mop or rag when cleaning spills on the

floor.

D. Heater wires should be checked for proper function. Feel for warmth around the door frames on hinged

entrance doors and pressure relief port doors, if applicable. Note: Condensation or Ice buildup around

doors may indicate leakage or heater failure. Contact a serviceman immediately.

E. Keep door gaskets clean with a solution of water and mild soap.

F. Inspect refrigeration units frequently for proper function of evaporator & condenser fan motors, drain pan

heaters, defrost controls, and drain line heaters. Condensate water must never be permitted to drip on the

Walk-In floor. Drain pan or drain line heater failure will result in ice buildup and Evaporator damage. Refer

to the Refrigeration System Instructions for proper drain pan and condensate drain line instructions.

G. Don’t overload the Walk-In with product. Maintain orderly storage to permit good airflow within the unit.

H. Inspect the condition of abrasive anti-skid strips monthly. Replace or add additional strips when necessary.

REPLACING SAFETY WALK STRIPS

A. Remove old worn Safety Walk Strips from Walk-In floor, ramps, or a stepplate. See figure 1.

B. Clean and completely dry areas where new strips are to be placed.

C. Install new strips on to the Walk-In floor pressing them firmly in place.

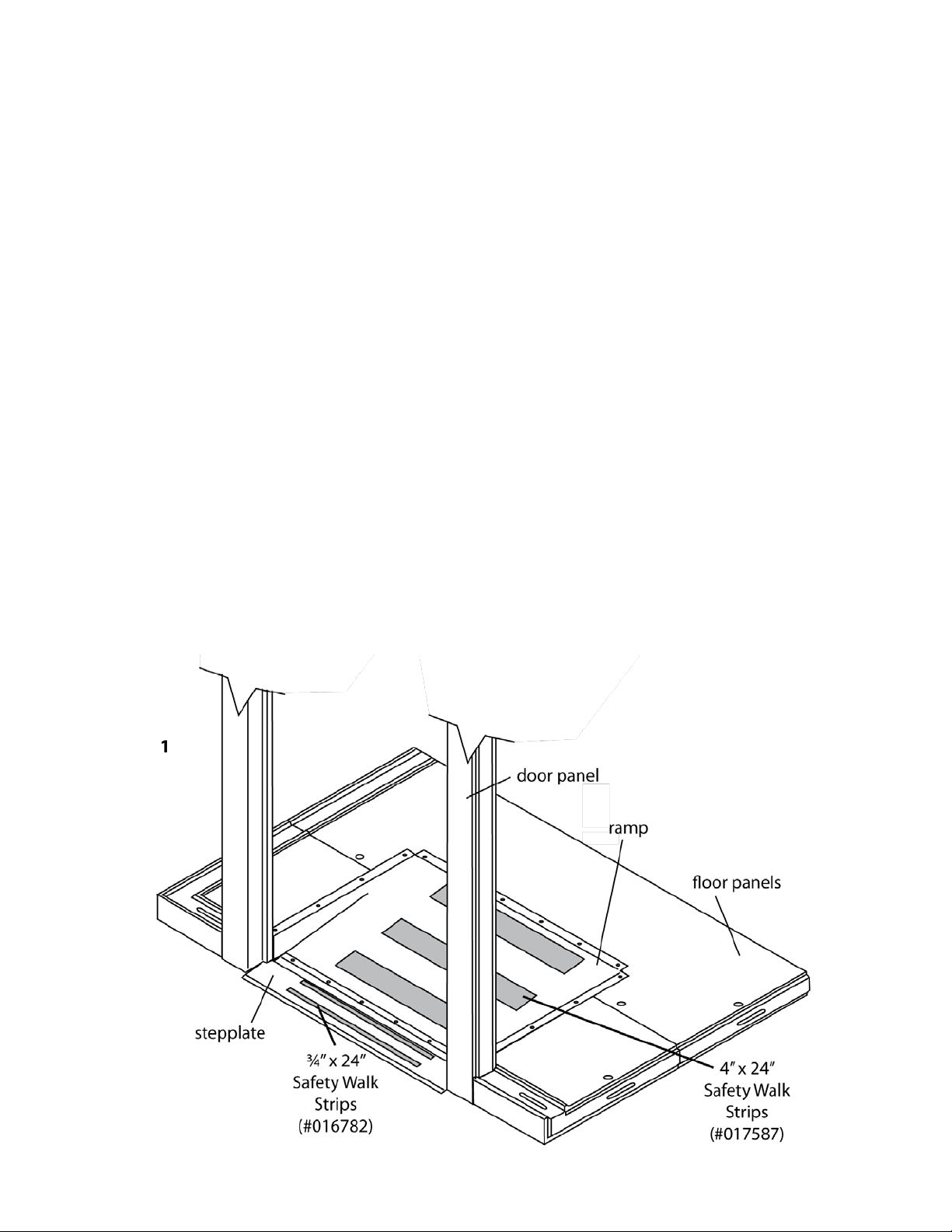

Figure 1

REV: 5/2013 IM-268S-11 2013 © Bally Refrigerated Boxes, Inc. 3

GASKETS

Replacing magnetic door gasket on Hinged Walk-In doors

A. Remove the old gasket and clean the surface

where the new gasket will be placed.

B. Position the new gasket, starting at

the top

corners. Tap it into place with a wood block and

hammer. Do not stretch the gasket to make it fit.

Be sure the gasket lies flat. See Figure 2.

C. Check door for proper operation and seal.

Part Numbers:

#016543 – 24” x 78”

#017402 – 30” x 78”

#017403 – 30” x 84”

#016546 – 34” x 78”

#016547 34” x 84”

#054117 – 36” x 78”

#054119 – 36” x 84”

#032999 – 42” x 78”

#032999 – 42” x 84”

#016548 – 48” x 84”

#016549 – 60” x 84”

A. Open the door 90 degrees.

B. Grasp the old gasket and pull it away from the

interior skin of the door. Clean the surface where

the new gasket is to be placed.

C. Position the new gasket; tap it into place with a

wood block and hammer. Do not force the

gasket into place; excessive force may damage

the door cap.

D. If the gasket binds when the door is closed, the

gasket is too wide. Be sure the gasket is properly

centered, and trim the ends as needed. See

Figure. 3.

Part Numbers:

#016614 – 30” Door

#016611 – 34” Door

#054028 – 36” Door

#016612 – 42” & 48” Doors

#016613 – 60” Door

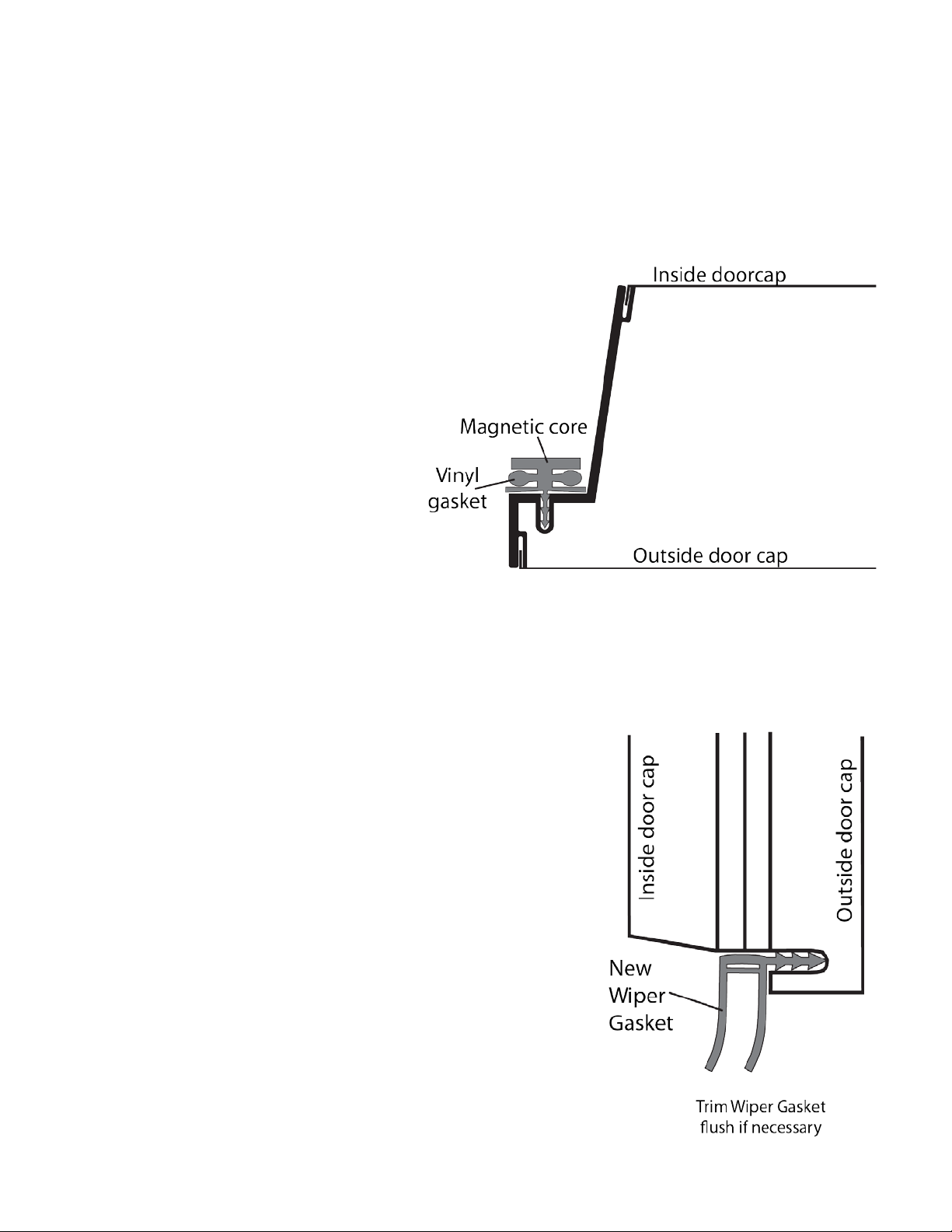

Figure 2

Figure 3

4IM-268S-11 2013 © Bally Refrigerated Boxes, Inc.

HINGED WALK-IN DOORS

Replacing the D-1000 touch latch on Walk-Ins

A. Remove the defective latch assembly. First remove the handle spring clip from under the handle at the

back of the latch base, using a pair of needle-nose pliers. See Figure 4.

B. Using a hammer and punch, drive out and remove the latch handle pin from the handle. Remove the three

¼-20 oval-head machine screws from the latch base and remove the base.

C. From the inside of the Walk-In, drill out the roll pin from the safety release handle and remove the handle.

(Doors prior to 1995) Current production doors are provided with an interior mounted safety knob which

is threaded directly onto the strike bolt. Loosen the allen screw located in the side of the knob using a

5/32 allen key and turn counter clockwise until disengaged from the strike bolt. Pull the strike bolt from

the outside away from the Walk-In wall. The strike plate will fall away.

D. Secure the new D-1000 latch base to the Walk-In door with three ¼-20 oval-head machine screws.

E. Insert the new strike bolt with attached strike plate into the holes on the door jamb panel.

F. Screw the new inside knob onto the strike bolt until adequate tension is applied to the rod to hold the

assembly firmly in place. Tighten the set screw on the side of the knob using a 5/32 allen key to allow for

¼ turn safety release operation Check to be certain that the “T” rod rotates freely when turning the inside

knob.

G. Insert the latch handle spring into the indicated hole on the latch base. Slip the latch handle over the latch

base and align all holes. Be sure the latch handle spring engages the latch handle tab on the underside of

the handle. Insert the latch handle pin through the handle and base. Using needle-nose pliers, insert the

spring clip through the slot in the latch base assembly. Make certain to align the slot in the latch handle

pin with the slot in the base before inserting the clip. This will firmly secure the latch handle in place for

use.

H. Open and close the door several times to assure proper operation of the latch.

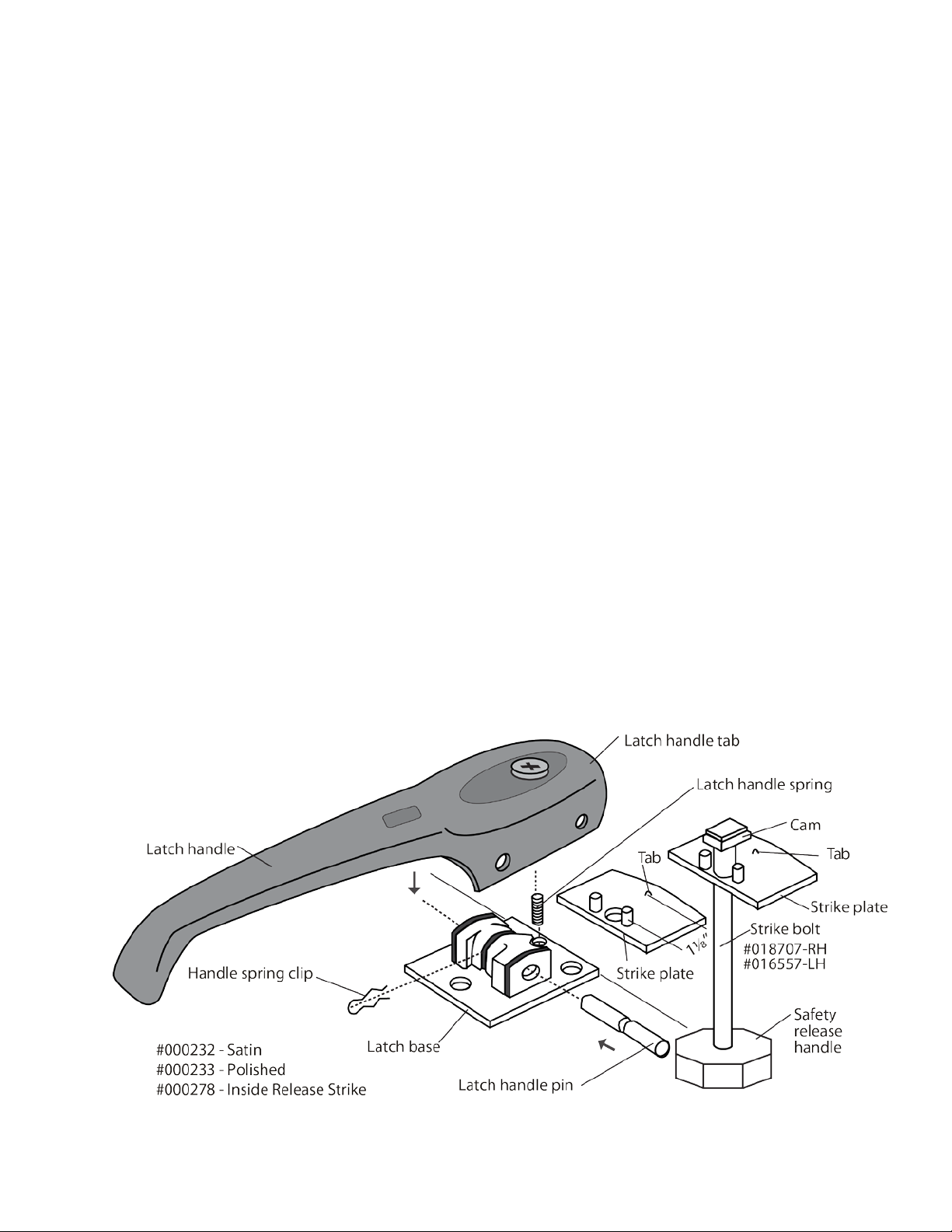

Figure 4

REV: 5/2013 IM-268S-11 2013 © Bally Refrigerated Boxes, Inc. 5

Replacing D-1250 spring-loaded hinges on Walk-In door panels

A. Close the door. Securely hold the door in place by

shimming between the outside doorcap and the door

frame. Remove the slotted machine screws from the

hinge base and blade. If tamperproof screws are used

See Figure 5

. Remove the defective hinge assembly.

Secure the new hinge assembly with a screwdriver by

tightening the machine screws in the same holes.

B. Remove the shims from around the perimeter of the

door frame.

C. Open the door and check for proper operation and seal.

Shimming Walk-In door hinges

A. If the Walk-In door is installed properly, no shimming is

required. Shim only where

misapplication or poor

installation of the door panel have caused the door

cap to seal improperly. If the door cap toes outward at

the top or bottom of the latch side of the panel, shim

the diagonally opposite hinge base outward, forcing

the corner of the door cap back into alignment with

the door frame for a positive seal. See Figure 6.

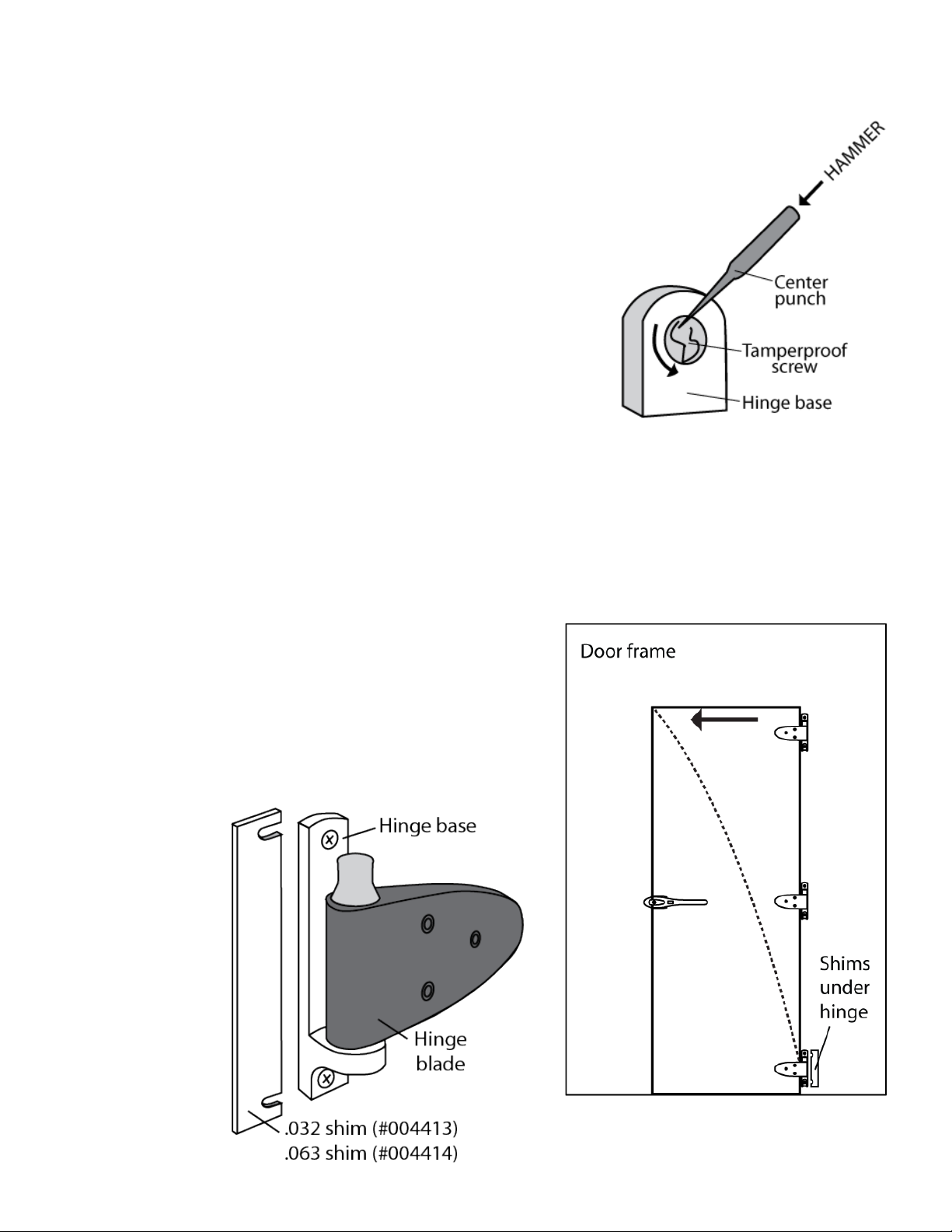

B. To shim hinges on Walk-In doors, loosen the machine

screws on the base of the hinge enough to slip the

required number of shims into place behind the base.

See Figure 7. Where tamper-proof screws are used,

loosen them by tapping the screw head

counterclockwise with a center-punch and hammer as

shown in Figure 5.

C. Retighten machine screws and check door cap for

proper seal.

Figure 7

Figure 6

Figure 5

Bally also offers a screw remover tool.

Call the factory for details.

6IM-268S-11 2013 © Bally Refrigerated Boxes, Inc.

ANTI-CONDENSATE HEATER

Replacing anti-condensate heater element around door frame of hinged

Walk-In doors

A. Disconnect the outside power source leading to the door frame light junction box. Open the door 180

degrees. A large piece of cardboard can be used to close off the open doorway until the heater is replaced.

B. Remove the light switch on the exterior of the door panel. Disconnect the heater wire leads by unscrewing

the wire nuts. Remember how the wires are connected so you can attach the proper leads on the new wire.

C. Remove the screws from the door strikes around the door frame. Remove the strikes. See Figure 8.

D. Remove the screws which secure the stepplate. Remove the stepplate.

E. Remove the defective heater element from the door frame and the grooved hardboard at the base of the

frame. Take note of the position of the heater element in the grooved hardboard before removing it. (For

replacement or updated heaters, a new hardboard will be supplied with an installation diagram.)

F. Apply a small bead of silicone caulking around the perimeter of the door frame to retain the new heater

element until the door strikes can be reinstalled.

G. Guide the leads of the new heater element into the switch box containing the light switch. Note: Only heater

wire leads are to protrude into the switch box-- this will prevent premature heater burnout. Press the heater

element firmly into the corner around the perimeter of the door frame. Locate and press the heater

element back into the grooved hardboard exactly the same way it was removed. When the heaters are first

energized, they will contract. If the wire is not pressed into the corners, it could short out by pulling too

tight against the edges of the strikes and sillplate.

H. Replace and secure the stepplate to the Walk-In floor. Replace the door strikes. Be careful not to pinch the

wires when remounting the hardware.

I. Reconnect the new heater element to the heater wire leads. Recaulk the opening in the door frame where the

heater wire passes through into the junction box. This is very important.

J. Re-energize the outside power source to the door frame light junction box. Check for proper operation.

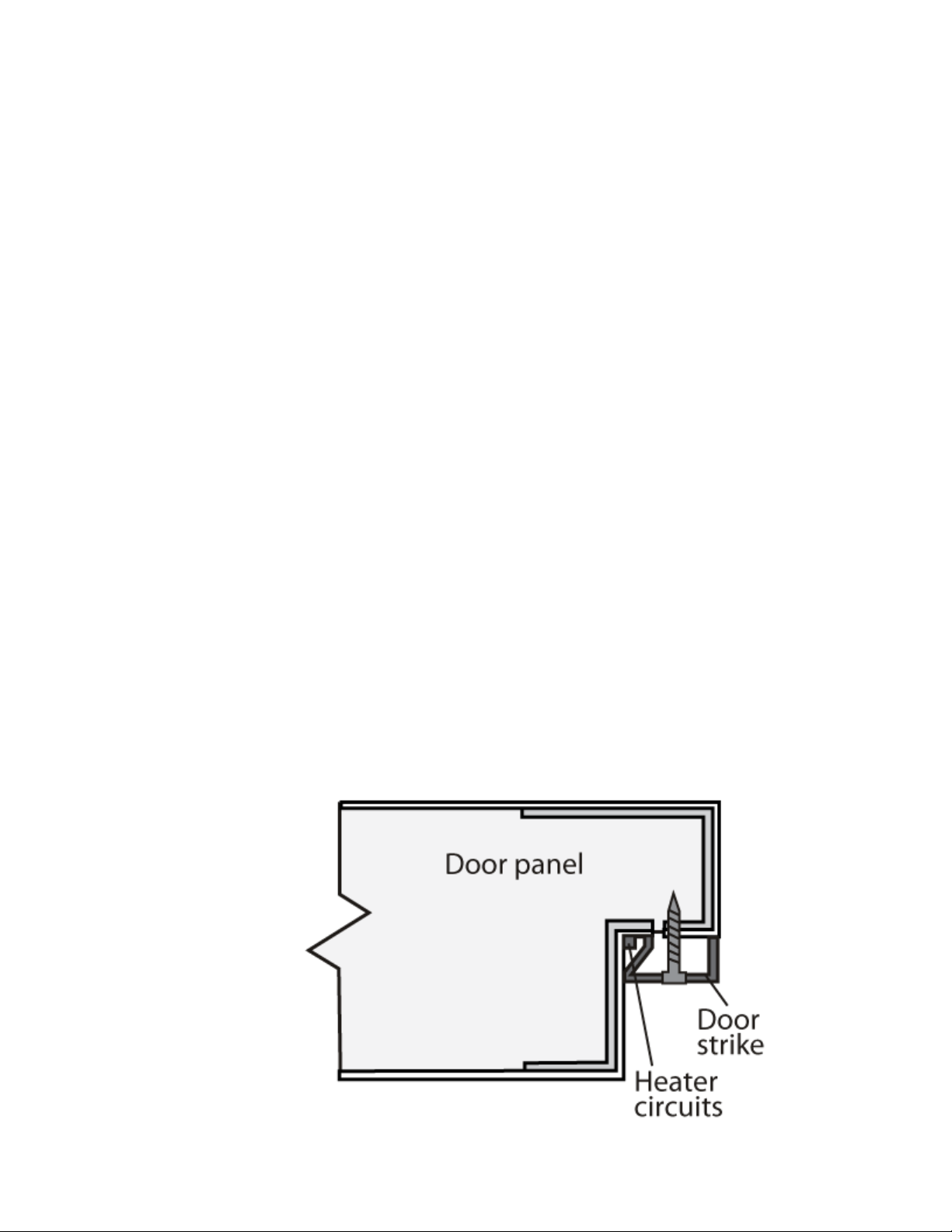

Figure 8

REV: 5/2013 IM-268S-11 2013 © Bally Refrigerated Boxes, Inc. 7

REACH-IN DOORS

Replacing magnetic gasket on Reach-In doors

A. To replace the magnetic door gasket, it may be necessary to remove the door

from the Walk-In. Simply open the door and lift it off the hinge bases. Lay the

door facedown on a flat working surface.

B. Remove the defective gasket and clean the surface where the new gasket will be

placed.

C. Position the new gasket and tap firmly into place with

a wood block and

hammer. Be sure the gasket lies flat. See Figure 2.

D. Place the door back on the hinges. Check the door for proper operation and seal.

Part Numbers:

#016582 – 18½” x 30”

#016584 – 20” x 30”

#016583 – 30” x 30”

Adjusting self-closing hinges on Reach-In doors

A. Do not oil door hinges. If dirt accumulates on the Delrin cams and causes them to bind, apply dry silicone

spray lubricant.

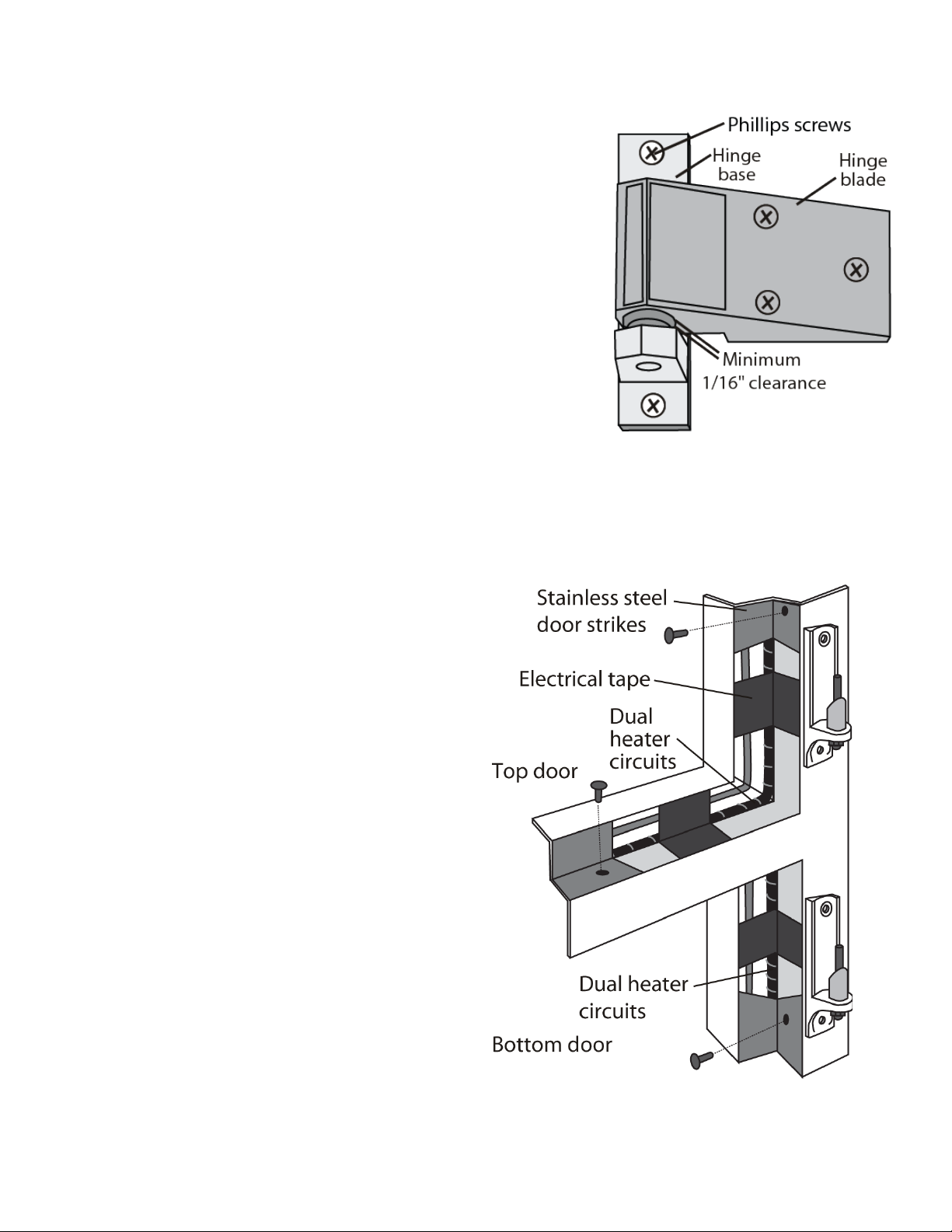

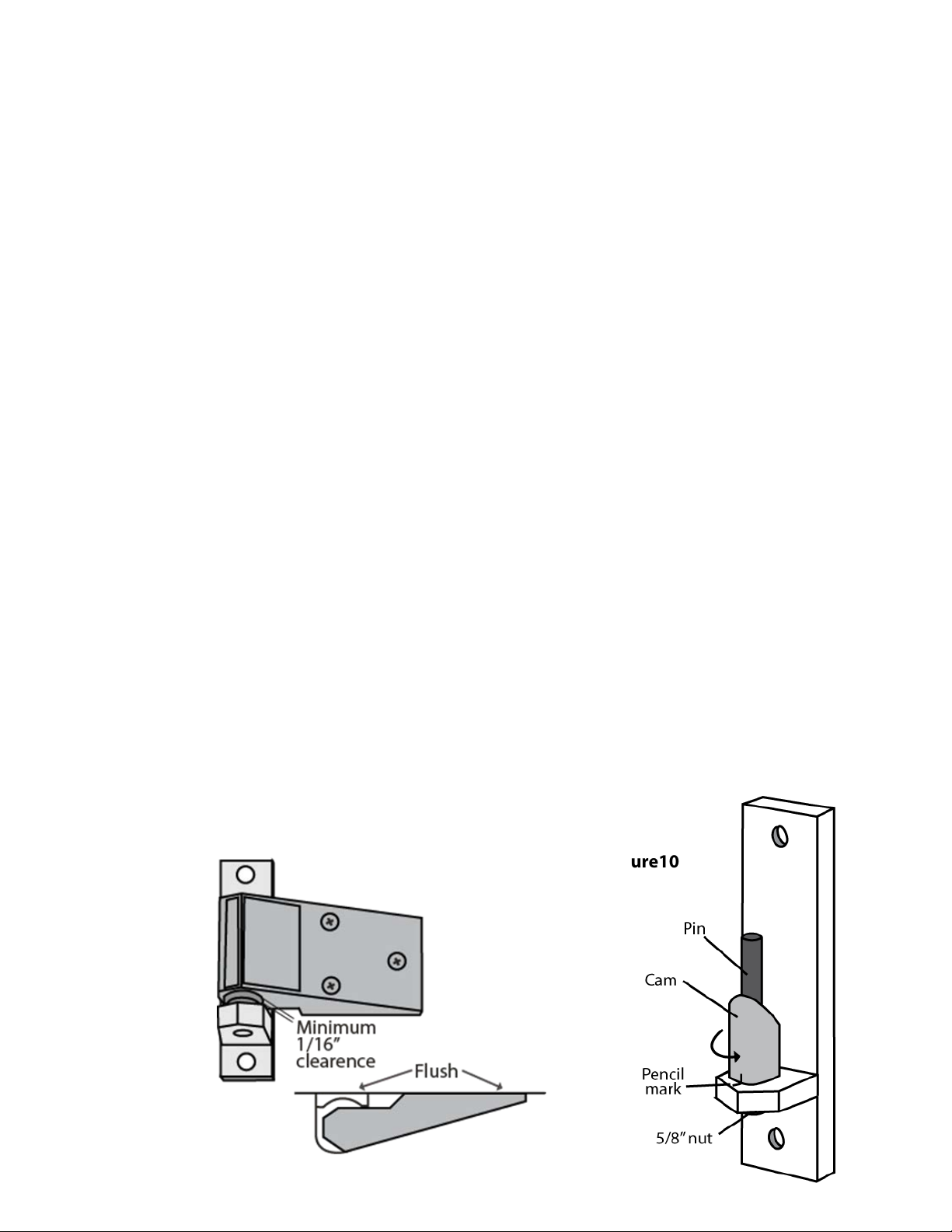

B. Begin by determining whether the hinge is correctly adjusted. When the strap of the hinge is flush with the

flange, there must be clearance as shown in Figure 9. Without clearance, the door may not close. Adjust

the hinge by following these steps:

1. Open the door 90 degrees and lift the door from its hinge bases.

2. Adjust the hinges as shown in Figure 10

a. Put a pencil mark on cam and on hinge; this enables you to see how much the cam is being

turned.

b. Loosen bottom nut and turn half way off.

c. Tap against bottom of nut with a hammer until pin and cam are loose. The reason for this is the

pin has a tapered shaft.

d. Turn cam in direction of the arrow in increase clearance; opposite direction to decrease.

e. Hold cam in position and tighten bottom nut securely.

3. Replace the door on its hinge bases. Check to make sure door operates properly.

Figure 9

Figure10

8IM-268S-11 2013 © Bally Refrigerated Boxes, Inc.

Replacing hinges on Reach-In door panels

A. Close the door and shim the cap securely around the

perimeter of the frame. Remove the slotted machine

screws from the hinge base and blade. If

tamperproof screws are used Refer to Figure. 5.

Remove the defective hinge assembly. See Figure 11.

B. Secure the new hinge assembly using a screwdriver to

tighten the slotted machine screws in the same holes.

C. Remove the shims around the perimeter of the door frame.

D. Open the door and check for proper

Replacing anti-condensate heater element around

door frame of Reach-In doors

A. De-energize the outside power source leading to the

door frame junction box. Open the door a full 180

degrees and lift it from the hinge bases.

B. Remove the screws from the stainless steel door strikes

around the door frame. Remove the strikes. See Figure

12.

C. Remove the cover plate from the junction box on the

inside of the door frame. Locate and disconnect the

defective heater element from the door frame.

D. Remove the defective heater element from the door

frame.

E. Apply a small bead of silicone sealant around the

perimeter of the door frame to retain the new heater

element. Press the new heater element firmly into

the corner around the perimeter of the door frame.

The heater element may also be taped into position

with UL-approved electrical tape.(Remove) See Figure

12. Run the heater leads into the junction box.

F. Reconnect the heater element to the outside power

source. Recaulk the opening in the door where the

heater wire passes into the junction box.

G. Replace the door strikes and junction box cover plate.

(Be careful not to break or pinch the heater element.)

Replace the door on the hinge bases.

H. Re-energize the power source to the door frame

junction box. Check the door for proper operation

and seal.

Figure 12

Figure 11

Pressure Relief Ports (PRP)

Replacing magnetic gasket on PRP

A. Remove the port door by removing the screws from the

poly-hinge at the top of the port door. See Figure 14.

B. Remove the interior plastic panel from the door by

removing the screws around its perimeter beneath the

magnetic gasket.

C. Remove and discard the defective gasket.

D. Position the new gasket (#016597) and the interior plastic

panel on the door; secure with screws.

E. Reinstall the port door.

Replacing anti-condensate heaters on PRP

A. Disconnect the power supply at its source, and remove the

port door by removing the two screws from the poly-

hinge at the top of the door. See Figure 14.

B. Remove the stainless steel door strikes by removing the

two screws in the top and bottom flanges.

C. Disconnect the defective anti-condensate heater in the

junction box at the top of the door. Discard the old

heater.

D. Insert the new heater (#015628) and reassemble the door

strikes. Exercise care not to pinch the heater wire

beneath the door strikes.

E. Replace the port door and refasten the screws.

F. Reconnect the electrical power.

Replacing klixon on PRP

A. Disconnect power at its source, and remove the electrical junction box cover above the port.

B. Remove the screws located in flanges on the exterior of the port, and lift the unit from the panel.

C. Disconnect the appropriate wire nuts in the junction box. Remove and replace the defective klixon (#017083).

See Figure 15.

D. Caulk around the perimeter of the opening, and replace the port. Rewire and replace the junction box cover.

Reconnect electrical power. See Figure 16.

Figure 13

Figure 14

Figure 15

Figure 16

Replacing Door Closer

A. Position a putty knife against the base of the bottom of the closer cover to protect the door surface as

shown. See figure 17. Pry open the cover using a small flat bladed screw driver. The closer cover is

friction fit onto its base and will pry out and upward away from the door.

B. Remove all mounting screws from the closer base on the door and from the “J” hook mounted on the

door frame.

C. Install new closer and “J” hook onto door and frame using the existing holes. If for any reason the

existing holes do not line up with the holes in the new closer you will be required to drill and tap the

door at the location of the holes for the new closer mounting base. Once firmly secured, rotate the

cover back down over the base and snap into place.

D. Adjust the “J” hook, if required, to align the rubber wheel of the closer with the tip of the hook. When

properly aligned the tip of the hook should touch the top of the rubber wheel as the wheel passed into

the hook.

Figure 17

Part Number: #031349 – Dictator Hydraulic Door Closer V1600B

Inhaltsverzeichnis

Andere Bally Gefrierschrank Handbücher

Bally

Bally High Profile Unit Cooler Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
