Using the online User Guide

Sources of information

Overview of Coronis documentation

Document Content

Quick install sheet Gives a short overview of the instal-

lation of a complete system.

Getting started guide

(booklet)

Gives a detailed description of the

installation and connection of a

complete system.

Online user guide

(html file)

Gives a detailed description of how

to operate the display using its local

controls and on-screen display

(OSD). This document is to be con-

sulted on screen.

User manual (PDF file

on CD-ROM)

Contains the same information as

the online user manual, but is laid-

out for printing.

User interface

Items in the navigation frame:

Items in the toolbar frame

Item Description

Contents Shows the complete content of the

help system.

Index Shows the available help topic

entries in alphabetic order.

Search Allows to search for a particular

entry in the help system.

Favorites Allows to add and remove help top-

ics to a list of favorites. (requires

cookies)

Item Description

Synchronize Press this button to show the loca-

tion of the help item in the Con-

tents.

Previous Press this button to move to the

previous help topic.

Next Press this button to move to the

next help topic.

Related topics Press this button to display related

topics (if available).

E-mail Press this button to e-mail the cur-

rent help topic.

Print Press this button to print the current

help topic.

User interface

Bookmark Press this button to bookmark the

current help topic. This topic will

then appear in the web browser’s

Favorites menu. (requires cookies)

Item Description

Graphic board information

BARCO MXRT control panel settings

This chapter describes how to configure the displays in your BARCO

CORONIS Display System using the tools available through the Advanced

button on the Settings tab of the Windows Display Control Panel.

Note: If you purchased Barco Medical Displays only and not a

complete BARCO CORONIS Display System you will need to refer to

the user manual for the display controller you are using.

Accessing the Barco tab

Note: You must have logged on to Windows using an account

with administrator privileges in order to use the Barco portions of

the Windows Display Control Panel to change any display settings.

1. Open the Windows Display Control Panel by one of the two

methods below:

a) Start > Settings > Control Panel > Display

b) Open the “Display Properties Control Panel” by right

clicking in an empty area on the desktop, then select

Properties.

2. Click on the Settings tab.

3. Select the rectangle that represents the Barco Coronis display

whose settings you wish to change.

4. Click on the Advanced button.

5. Select the Barco tab from the Properties screen.

Using the Barco tab

The Barco tab is divided into three sections. The first section provides

information about the graphics controller and allows access to the

graphics controller advanced configuration pages. The second section

BARCO MXRT control panel settings

provides information about the display. The bottom section allows

access to two Barco tools, Barco System Report and MediCal QAWeb.

Aslo, there is a active link to the Barco Medical Imaging Systems web

site.

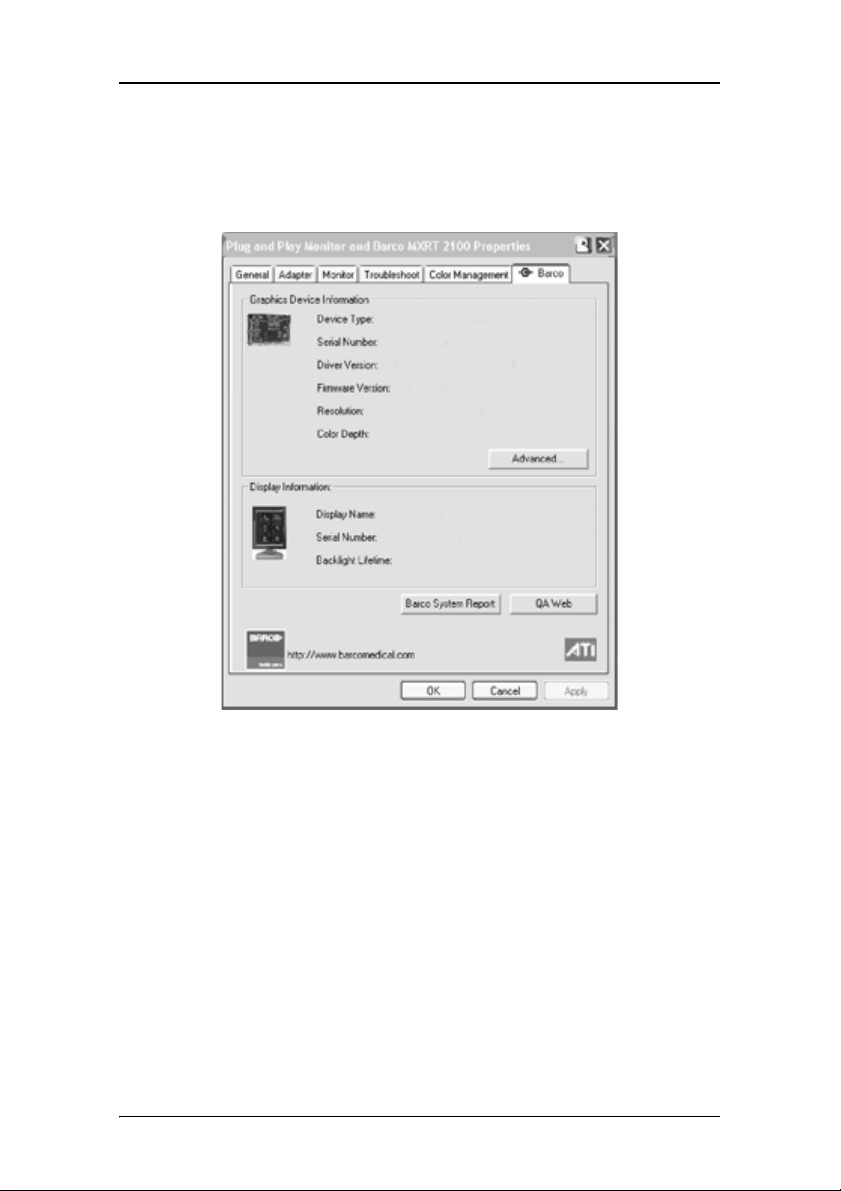

Figure 1: Barco Tab

Barco System Report

The Barco System Report, also known as BarcoMed SelfExam, is a wizard

based tool which collects data about the components that are installed

in your system. This information is used by the Barco MIS Support team

when trying to resolve cusotmer issues.

MediCal QAWeb

Clicking on the MediCal QAWeb button will launch the MediCal QAWeb

application. Please refer to the MediCal QAWeb manual for information

about this application.

BARCO MXRT control panel settings

Advanced Properties

To access the advanced properties configuration pages for the display

controller(s) for your BARCO CORONIS Display System, click on the

Advanced button in the Graphics Device Information section.

MXRT controller advanced configuration

There are four pages accessible from the advanced configuration button.

They are:

•OpenGL

• Direct3D

•Details

• Configuration

•Barco

OpenGL and Direct3D

The OpenGL and Direct3D pages of the Advanced Properties page are

divided into two sections: Main Settings and Custom Settings.

Main Settings

In the Main Settings section there is a slider bar which allows the user

to adjust the OpenGL or Direct 3D settings for optimum performance,

optimum quality or a for a point in between. There is also a checkbox

provided for enabling Custom Settings.

Custom Settings

Note: Barco recommends that you use the default settings,

unless your viewing application vendor provides detailed

information on custom settings.

In the Custom Settings section the user can fine tune the following

options:
