MVGD-1318

18” Medical Video Grayscale

Display

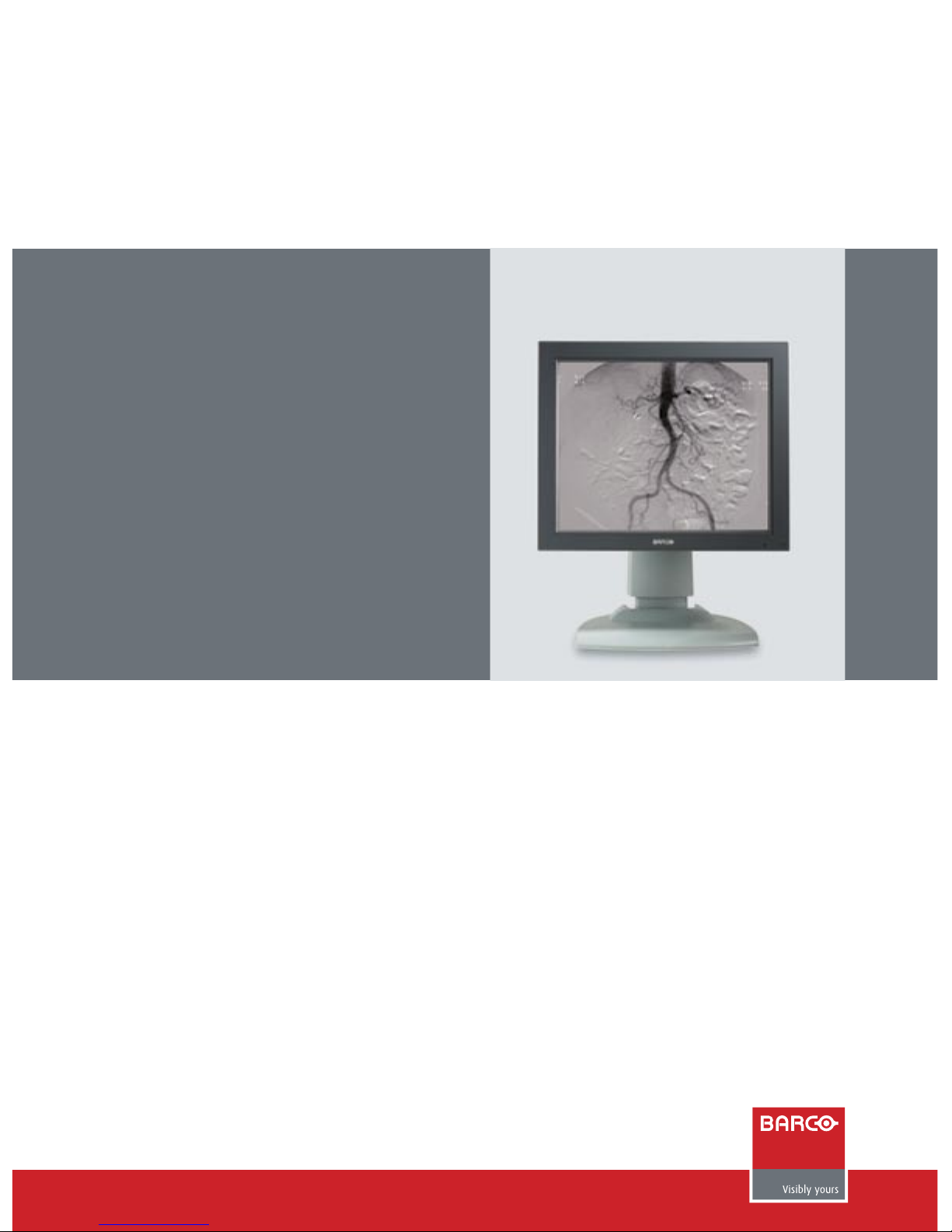

The MVGD-1318, Barco’s 18” grayscale flat panel display with a

native resolution of 1280 x 1024, has been designed to replace

end-of-life CRT displays used in x-ray modality systems.

Its high brightness and excellent viewing angle guarantee

optimum efficiency. User controls are available through an On-

Screen Display. The MVGD 1318 allows easy wall- or ceiling-

mounting and features a built-in power supply with medical

approval. BNC-connectivity enables single composite video

cable connection.

Features & benefits

Plug & play installation

The BlueBase backlight and BNC connection make the

MVGD-1318 the perfect ﬂat panel display replacement for

legacy monochrome CRT displays used in x-ray applications.

Accurate image representation at all times

Automatic DICOM calibration in combination with Barco’s

Backlight Output Stabilization technology (BLOS®) ensure a

calibrated grayscale image representation over the lifetime of

the product.

Flexible for non-standard video

Fully programmable scaling, independent in horizontal and

vertical direction, allows aspect ratio correction for non-

standard video signals.

Ambient light sensor

A calibrated ambient light sensor allows the user to adapt the

luminance output according the ambient light conditions.

Request more information

Europe, Middle East, Africa &

Latin America

Phone: +32 56 233 557

sales.medical.eu@barco.com

North America

Phone: +1 866 302 7939

sales.medical.us@barco.com

Taiwan

Phone: +886 2 8221 6868

sales.medical.apac@barco.com

South Korea

Phone: +82 2 2175 8900

sales.medical.apac@barco.com

China

Phone: +86 21 5465 5501

sales.medical.apac@barco.com

Singapore

Phone: +65-6243.7610

sales.medical.apac@barco.com

Australia

Phone: +61 3 9646 5833

sales.medical.apac@barco.com

Japan

Phone: +81 3 3279 0771

www.barcomedical.com

Technical specifications

Technical specifications are subject to change without prior notice

Visual performance

LCD panel: 18” AMLCD dual domain IPS

Grayscale BlueBase

Light output: Typical 500 Cd/m2

Contrast ratio (dark room): Typical 550:1

Viewing angle: 170° hor. & vert.

Backlight: BlueBase

Input timing parameters

Hor. Frequency: 15 – 110 kHz

Vert. Frequency: 50 – 120 Hz

Max. pixel clock: 165 MHz

Geometry Speciﬁcations

Active area: 5:4 aspect ratio

359.0 x 287.2 mm

(14.1 x 11.3 inch)

External inputs

Analog video input: D-SUB15 HD, 3 x BNC, DVI-A

Digital video input: DVI-D

Serial communication: DDC 2B, USB

Environmental speciﬁcations

Temperature: Operational: 0° to 35° C

Within specs: 15° to 35° C

Storage: -20° to 60° C

Humidity: Non-condensing: 8 - 80%

Approvals and compliance

Safety: CE, UL 60601, c-UL 60601,

IEC 60601

EMC/IEC: FCC-B, EN 55022 limit B

Immunity: CE, EN 55024

General

Power supply: Mains voltage range: 100-240V

Main frequency range: 47-63 Hz

Weight: Unpacked: 8.1 kg (17.9 lbs)

Dimensions (HxWxD): Unpacked: 434 x 362 x 100 mm

(15.9 x 14.3 x 3.9 inch)

Mounting: VESA 100 x 100
