Barco FS35 Montage- und Bedienungsanleitung

www.projectiondesign.com

addendum

This addendum contains a decription of the special features

which are different from a standard type projector. Please

refer to the main user guide of the product for important in-

formation about safety precautions and the set-up and use of

the projector. Make sure to read both the standard user guide

and this addendum carefully before you operate the projector.

Dieser Anhang enthält eine Beschreibung der besonderen

Merkmale, die sich von denen eines normalen Projektors

unterscheiden. Für wichtige Informationen in Bezug auf die

Sicherheitsvorkehrungen und den Aufbau und die Benutzung

des Projektors schauen Sie bitte in die Gebrauchsanweisung

für das Produkt. Lesen Sie bitte die Gebrauchsanweisung und

diesen Anhang aufmerksam durch, bevor Sie den Projektor in

Benutzung nehmen.

Le présent addenda présente les caractéristiques particulières

qui diffèrent de celles d’un projecteur de série. Pour les con-

signes de sécurité importantes et les indications concernant

la conﬁguration et le maniement de l’appareil, reportez-vous

au guide d’utilisation principal. Lisez soigneusement le guide

standard ainsi que cet addenda avant de mette le projecteur

en service.

Esta adenda contiene una descripción de las funciones

especiales que se diferencian de las de un proyector de tipo

estándar. Por favor, remitirse a la guía del usuario principal del

producto, para información importante sobre las precau-

ciones de seguridad y la conﬁguración y el uso del proyector.

Procurar leer detenidamente tanto la guía del usuario estándar

como esta adenda antes de poner en marcha el proyector.

Il presente allegato illustra le caratteristiche speciali differenti

rispetto a un proiettore standard. Fare riferimento alla Guida

dell’utente principale del prodotto per informazioni importanti

sulle precauzioni di sicurezza, la conﬁgurazione e l’uso del

proiettore. Leggere attentamente sia la Guida dell’utente

standard che questo allegato prima di utilizzare il proiettore.

Dette addendumet inneholder en beskrivelse av de egen-

skapene som avviker fra en standard projektor. Sjekk med

produktes komplette brukerveiledning for viktig informasjon

om sikkerhets-tiltak, oppsett og bruk av projektoren. Les både

den komplette brukerveiledningen og addendumet nøye før

projektoren tas i bruk.

IR PROJECTORS

projectiondesign as FS35

WUXGA / WQXGA

Contents

1 Introduction 4

2 Features 4

3 Menus 6

4 Product Use 9

5 Compatibility 10

1 Introduction

The FS35 is a state of the art NVG (Night Vision Goggle) stimulation LED projector which

include a fourth LED light chip that emits infrared light beyond the range visible to the human

eye. The product is capable of visualizing night-time and limited-visibility scenario simulation

as well as visible day-time or pitch black scenarios from the common display engine in order

to have a true-to-life simulation.

The FS35 WQXGA is single channel input and handles the content through one of the input

connectors (HDMI/DVI). The FS35 WUXGA is dual channel input to handle separate content

on IR LED and RGB LED simultaneously. The infrared wavelength is optimized for the perfor-

mance of the optics in the projector and the night vision goggles present in the market today.

The projector’s solid-state light source provides a completely constant light output over time,

eliminating the need for recalibration, reducing maintenance and total cost of ownership to a

minimum.

2 Features

• NVG stimulation by a fourth Infrared LED

• WQXGA 2560 x1600 resolution

• WUXGA 1920 x1200 resolution

• Dimmable to extreme low lumens output of the visible RGB display

• Motorised optical ﬁlter

• Project infrared display only, no visible image to the unaided human eye

• Simultaneous project visible and infrared for limited visibility scenario

• Smear reduction sequence

• Infrared power adjustments

2.1 Measurements

Below are the physical measures of the projector:

82,5

59,5

Ceiling Mount Interface

M6 Threads

111,8

15,5

94,3

LENS RELEASE

PUSHAND HOLD

163,3

123,1

300mm

500mm

279,2

510

376

2.2 Infrared LED

The IR LED is a LED that has a spectral emission at 850nm to emit light in the night vision

stimulated content.

2.3 Motorized Optical Filter

This is the optical ﬁlter part of the illumination system in the base projector. This ﬁlter is motor-

ized and can be moved in and out of the illumination system to improve the dimming resolution

in night time scenery. The ﬁlter is a ND ﬁlter (Neutral Density) which is 6% transmissive for the

visible light (430-690nm) and 95% transmissive for the IR wavelengths (770-850nm).

When the ND ﬁlter is moved into the illumination path the visible light will decrease to 6% of the

total visible light, while passing through 95% of the IR light.

2.4 Single Channel Input

In single channel mode the content goes through one of the input connectors and will be visible

for both the human eye and with NVGs (Night Vision Goggles). The RGB LEDs and IR LED are lit

simultaneously.

2.5 Dual Channel Input

FS35 WUXGA allows dual input so the user can have separate content on IR LED and RGB

LEDs simultaneously. In this mode the IR LED will display the source connected to DVI 1/HDMI

1, while RGB LEDs are used to display source connected to DVI 2/HDMI 2. The RGB LEDs are

turned off when the IR source is displayed to allow best possible night-time or limited-visibility

simulation.

Dual Channel Input allows using two separate channels, resolution up to 1920x1200 @ 60Hz pr

channel. Both channels must have the same resolution. In this mode the EDID will automatically

be changed to 1920x1200 60Hz.

3 Menus

3.1 BrilliantColortm Sequences

There are 5 sequences to choose in the REALCOLOR menu. These displays differently when it

comes to sequence modes for color points versus lumens output.

• Vizsim

• Graphics

• HighBrightness

• SRPTM 6ms (smear reduction)

• SRPTM 8ms (smear reduction)

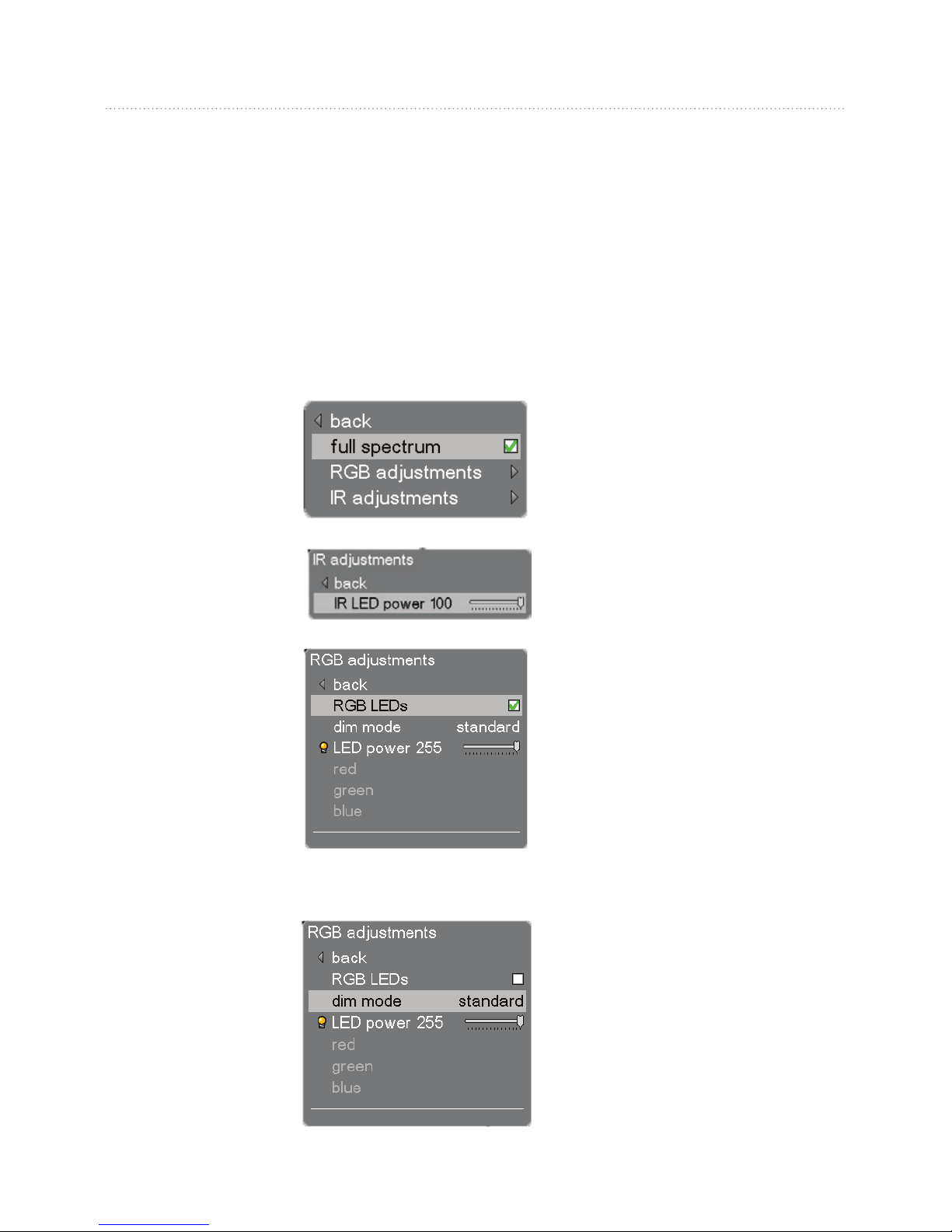

3.2 IR menu WQXGA

A separate IR menu which works with each BrilliantColorTM sequence listed above,

controls the infrared and visual RGB performance.

Full spectrum: Turns infrared LED on/off.

IR LED power: Adjusts the intensity of infrared LED.

RGB LEDs: Turns visible RGB LED’s on/off.

Dim mode standard: Dimming options from full to minimum with color processing turned on

so the white point is kept constant throughout the range. Appropriate use for daytime and even-

ing scenarios.

Dim mode custom: Dimming scheme for limited visibility scenarios, enabling the user to sepa-

rately adjust the values of the R, G and B intensity in order to tune in the low light visibility match-

ing the projected content.

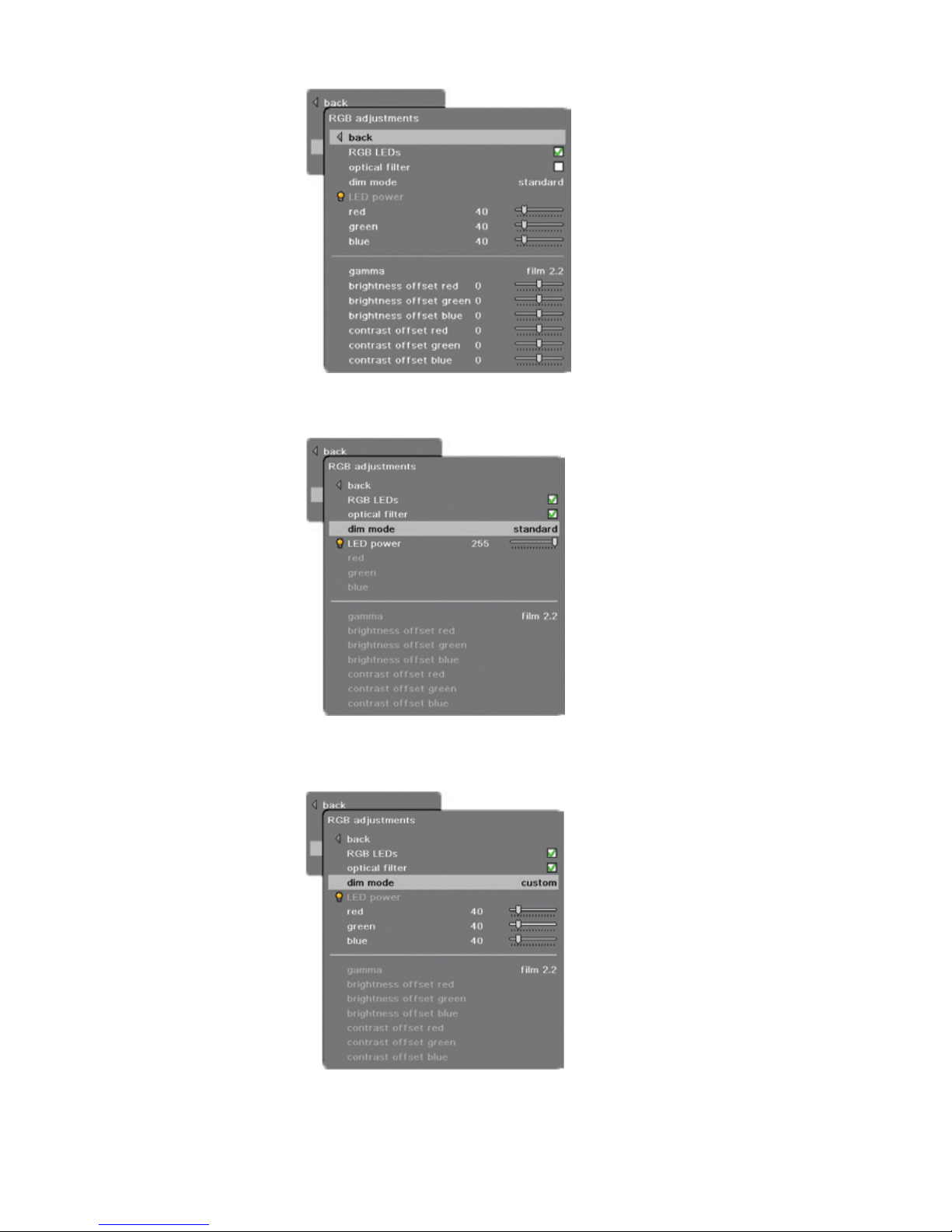

3.3 IR menu WUXGA

A separate IR menu which works with each BrilliantColorTM sequence listed above,

controls the infrared and visual RGB performance.

Full spectrum: Turns infrared LED on/off.

Dual head: Enables dual head input sources to be connected.

IR LED power: Adjusts the intensity of infrared LED.

RGB LEDs: Turns visible RGB LED’s on/off.

Dim mode standard: Dimming options from full to minimum with color processing turned on so

the white point is kept constant throughout the range. Appropriate use for daytime and evening

scenarios.

Dim mode custom: Dimming scheme for limited visibility scenarios, enabling the user to

separately adjust the values of the R, G and B intensity in order to tune in the low light visibility

matching the projected content.

4 Product Use

For basic operations, set-up and safety precautions, please refer to the main user

guide included with the product.

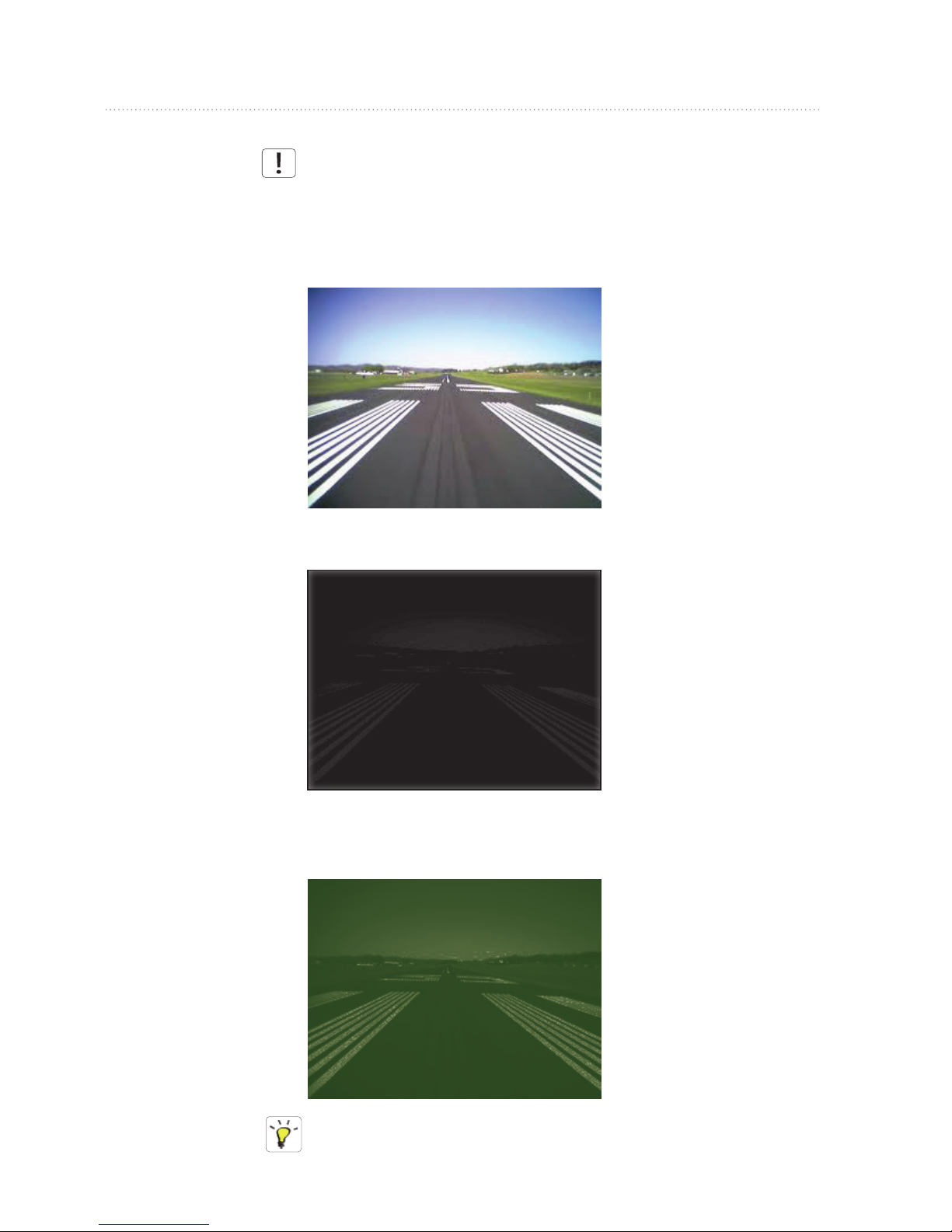

The FS35 is capable of displaying both daytime images, as well as night vision stimulated

content using the fourth infrared chip in the display engine. By operating and adjusting the

dedicated IR Menu options described in the MENU section, the projector is able to display

the full spectrum of the simulation scenarios (see examples below).

• Daytime scenario: Bright scenarios with high lumens output with crisp colors showing all

details. Typically full power to the RGB LED’s and no power to the fourth infrared LED.

• Evening scenario: Low illuminated scenarios at evening/dusk where the picture is dimmed

by adjusting the RGB LED’s. Fewer details are visible to the unaided human eye

compared to daytime scenarios.

• Limited visibility scenario: Night time image, where the visible RGB LED is dimmed to

very low lumens output by using the custom IR menu. Details are barely seen with the hu-

man eye. Using the infrared LED and NV goggles in addition gives full spectrum NV simula-

tion modus. For pitch black scenarios the visible RGB LED’s are turned off, only keeping the

infrared LED showing the content.

If you start in infrared only mode and do not have your NV-goggles available in terms

of being able to see and navigate the menus: Press 4 times on the LIGHT button on

the keypad and the visible RGB ﬁeld turns on.

5 Compatibility

Examples of supported Night Vision-goggles:

(not a complete list, a selection of the most common in the market today)

• Gen 1

• Gen 2

• Gen 2+ Russian

• Gen 2+

• Gen 2 SuperGen

• Gen 2 XD-4

• Gen 2 XD-4 ONYX

• Gen 2 XD-4AG

• Gen 2 XD4AG ONYX

• Gen 2 XR5

• Gen 2 XR5 ONYX

• Gen 2 XR5AG

• Gen 2 XR5AG ONYX

• Gen 3 Commercial

• Gen 3 Premium

• Gen 3 Pinnacle

• Gen 4

• Gen 4 Gated/ IIT
