XDC series
Precise, high-level decision-making requires the right visualization tools. You want to
have the flexibility to display multiple sources at once, you want to engage in high-
resolution videoconferencing, and you want to retain the familiar, user-friendly
working environment you’re used to. Barco’s XDC series is your solution.
The single-projector, Windows-integrated XDC system allows you to visualize a
massive amount of ultra-high resolution content simultaneously. This way, you see
the complete picture, and you are enabled to collaborate faster and make more
accurate, productive decisions. You will not find any product at this level with a better
price to quality ratio.
Single-projector, multi-windowing 10 megapixel display system
Unrivaled
ease of use
Quick access to any type of
source
Barco’s XDC can be easily connected to
any data or video source. You can acti-
vate these sources immediately through
user-friendly Barco software on the
desktop. What’s more, you can update
and change content in source windows
on the fly. Optionally, you can even take
control of remote desktops with your
mouse and keyboard, or share compute
r
content remotely.

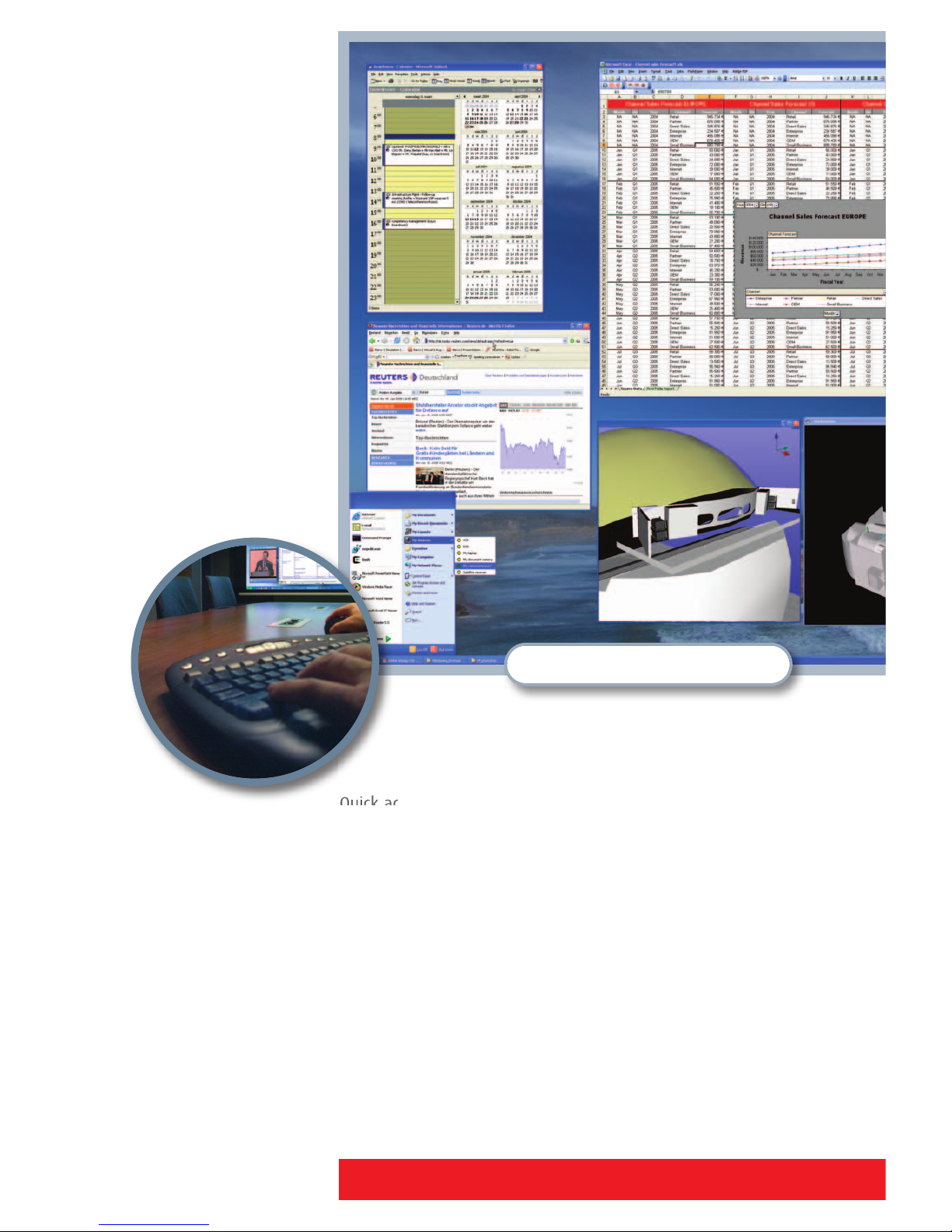

Multi-windowing with
mouse and keyboard
With Barco’s XDC, you can display up to
ten local or networked high-resolution
sources simultaneously. You can freely
move, resize or make these sources
overlap. In addition to the user-friendly
Windows desktop interface, the XDC is
controlled simply with mouse and key-
board. This introduces a completely
stress-free, intuitive way of working
during a meeting.
Razor-sharp detail in
10 megapixel
Thanks to its LCoS display technology,
the XDC attains a state-of-the-art pixel
density. This results in a degree of
image realism that is unparalleled in
the industry. The XDC includes an
innovative, high-contrast ten megapixel
image projector, which allows you to
see the detail you require in complex
spreadsheets, or review design images
as if you were looking at reality. The
XDC’s ten megapixel resolution also
means that each source’s native
resolution is perfectly preserved and
never compromises on quality.

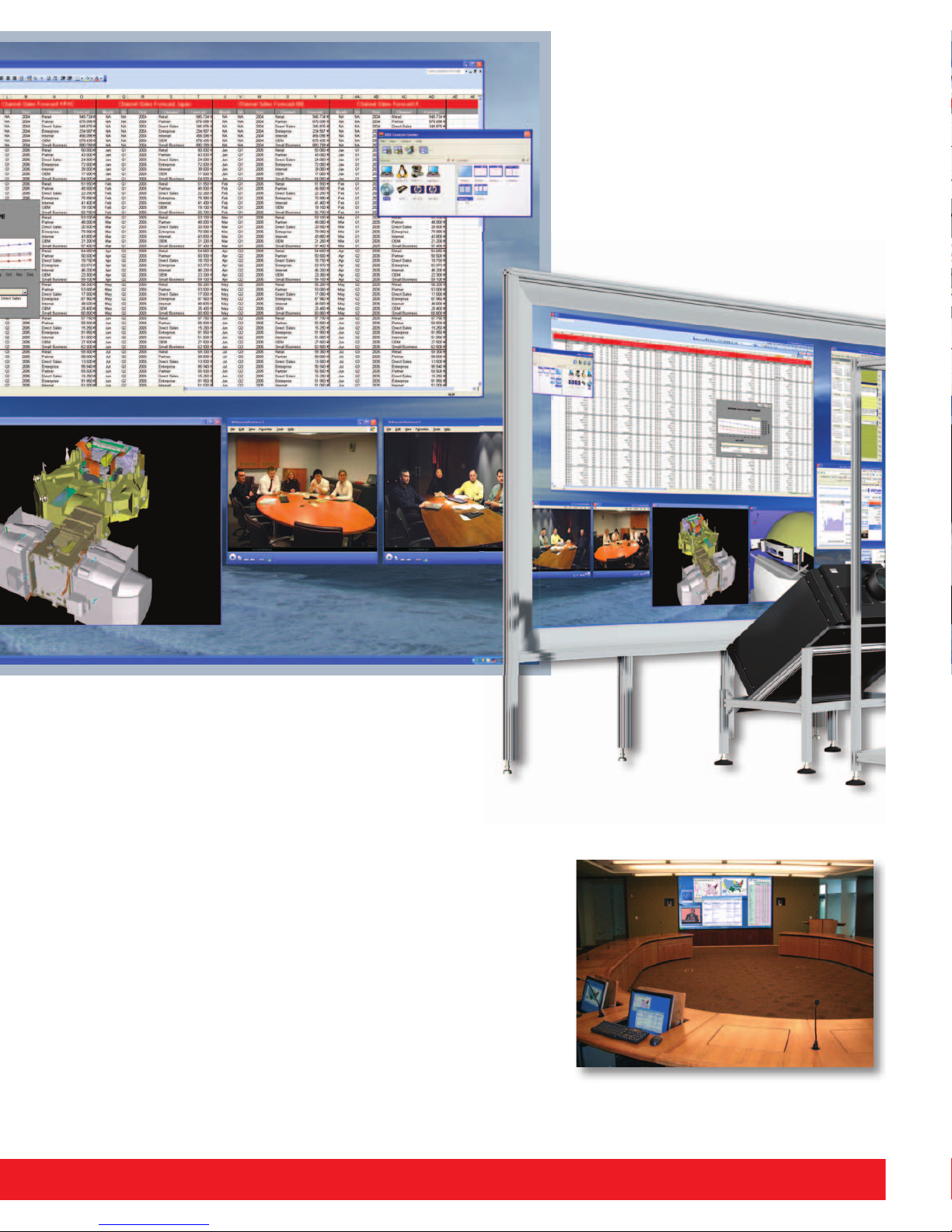

10 megapixel image
A familiar, large-screen Windows environment provides a superior alternative to
meetings where everything is viewed sequentially or partially, with projection
equipment that is hard to use. The XDC also offers complete compatibility with ultra-
high resolution videoconferencing equipment, so you can see remote participants in
lifelike detail, thanks to the XDC’s incredibly high image quality. In addition, its
network access ensures fast decision-making because you have an immediate view
of all sources and information you need to make the best decision. You don’t need to
compromise between videoconferencing, rich data analysis and video display: you
can have it all on one desktop.
Faster decision-making in
the boardroom
Barco’s XDC series is a fully tested, integrated
concept that is easy to install. It includes an LX-5
projector, mechanics, a specially engineered
superflat screen and the award-winning XDS-1000
display management system.
Effective return on investment
Low total cost of ownership
The XDC series is a complete visual system that takes care of every visualization
requirement you have, without the need to invest in unnecessary apparel.
Furthermore, the XDC allows centralized diagnostics and tech support. This eliminates
the need for manual interventions during your meetings and presentations, and
ensures an uninterrupted workflow. Your return on investment is realized quickly,
when you see your margins rise through more efficient collaboration sessions, and
making the right decisions.
The XDC’s brilliant ten megapixel
resolution ensures that every little
detail in finished product designs,
satellite images, automotive and
industrial concepts is accurately
displayed with a stunning level of
realism. Combining this with the XDC’s
multi-windowing features, you can
even compare several designs
simultaneously in their native resolution
without loss of quality.

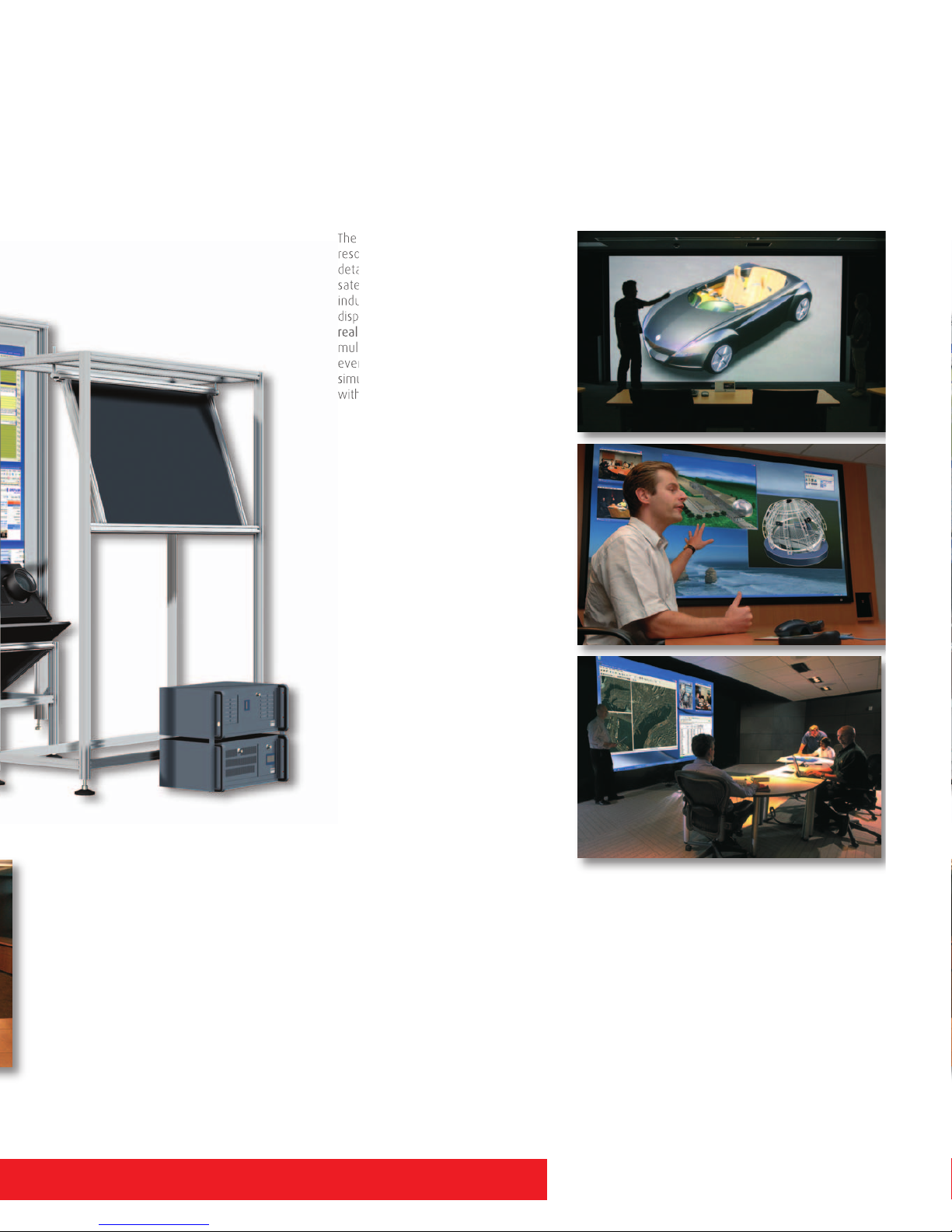

Complete design review and
image analysis

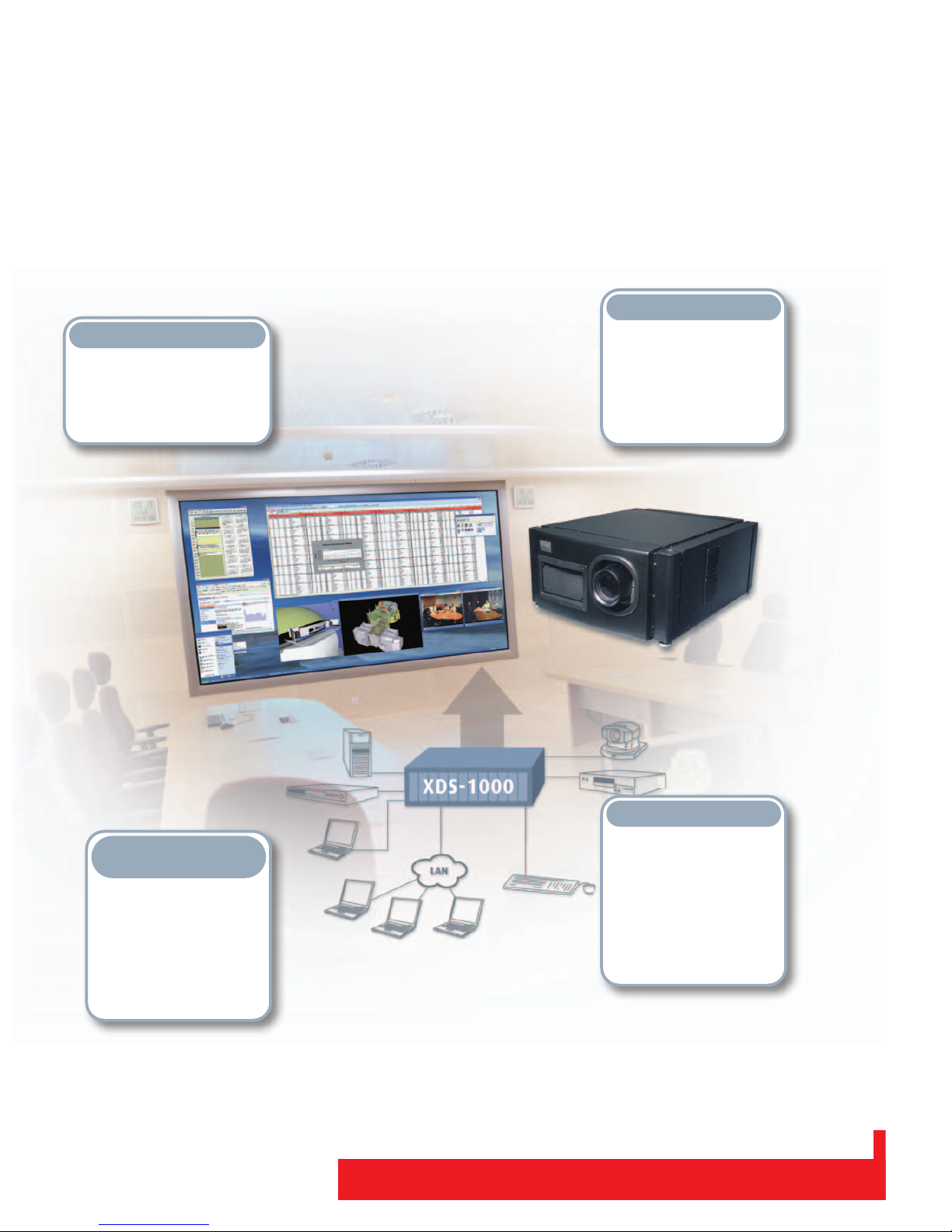

The XDC is a bundle of Barco visualization equipment that meets the most
stringent quality demands. It can even be expanded by Barco’s line of MatrixPRO
source switchers so that you can assume an even greater degree of control over
your content. The XDC typically consists of the following components:
A complete package of Barco technology
Barco’s LX-5 projector
The world’s first 10 megapixel
projector. Based on LCoS
technology with an incredibly
high pixel density, it provides
realistic images on par with the
quality of human eyesight.
Barco’s XDS-1000
The award-winning XDS-1000
display management system
flexibly integrates various
sources on one widescreen
Windows desktop. It allows up
to 6 sources with a native
resolution of as high as WUXGA
(1920x1200) to be connected
and shown simultaneously;
3m wide superflat screen*
This exclusive high-contrast screen
preserves the display’s flawless
image quality and maximizes the
system’s visual capabilities.
* Depending on XDC configuration, see back page
XDS-1000
Barco’s XDS Control
Center software suite
Barco’s multi-windowing
software not only creates the
familiar Windows desktop
experience, but also consists of
all other modules that allow
faster, better and user-friendly
collaboration and decision-
making;
www.barco.com
Ref.no. R5990098 v01 Printed March 2008
The information and data given are typical for the equipment
described. However any individual item is subject to change without
any notice.
EMEA & ROW
Noordlaan 5
8520 Kuurne - Belgium
Tel. +32 56 36 82 11
Fax +32 56 36 85 26
Barco
Presentation & Simulation Division
contact.bps@barco.com
USA
600 Bellbrook Avenue
Xenia, OH 45385-4053
Tel. +1 (937) 372-7579
Fax +1 (937) 372-8645
APAC
7F, FenYang Road 138
200 031 Shanghai - China
Tel. +86 21 5465 5501
Fax +86 21 5465 5502
XDC series technical specifications
LX-5 projector Display management
Available XDC configurations
XDS-1000
Inputs
6x DVI (1920x1200)
Outputs
4x DVI (2048x1200)
Option
Barco MatrixPRO switcher
XDS Conrol Center suite*
Standard
XDS Control Center
Extensions
XDS Networked Desktop Sharing
XDS Extended Mouse & Keyboard Control
XDS Remote Control Center
XDS Remote Administration
XDS Videoconferencing Control
XDC-1000 XDC-3000
LX-5 LX-5
XDS-1000 XDS-1000
XDS Control Center suite XDS Control Center suite
-Barco mechanical structure
-Barco superflat screen
Display capabilities
Light output
up to 4,500 lumens
Contrast
> 10,000:1
Resolution
4,096 x 2,400 pixels
Chip technology
LCoS
Lamps
Lamp
800 W Xenon
Lamp lifetime
750 hrs warranted, max. 1,500 hrs
Dimensions
Weight
50 kg (110 lbs)
Height - width - length
390 x 660 x 830 mm
15.35
” x
25.99
” x
32.67
”
Lenses
Available zoom lenses
TLB HB (1.5 - 1.9:1) standard
Available fixed focal lenses
TLB HB (1:1)
Lens shift range
Horizontal up to +/- 60%
Vertical up to +/- 100%
Compatibility
Computer displays
All computer graphic formats from VGA, SVGA, XGA, SXGA,
UXGA, 1080p HD, QHD up to 10MP
Safety
Safety standards
UL60950
CE compliant
RoHS and WEEE compliant
*Barco’s XDS Control Center software suite runs on the end
user’s own computer platform of choice. For its minimum
system requirements, please check http://www.barco.com.
