2. Pushed twice: effect 6: Fire „Fire“
Button 3: 1. Pushed once: effect 3: „Blob“
2. Pushed twice: effect 7: Lightning „Flash“
Button 4: 1. Pushed once: effect 4: User colour change
2. Pushed twice: effect 8: „Burst“

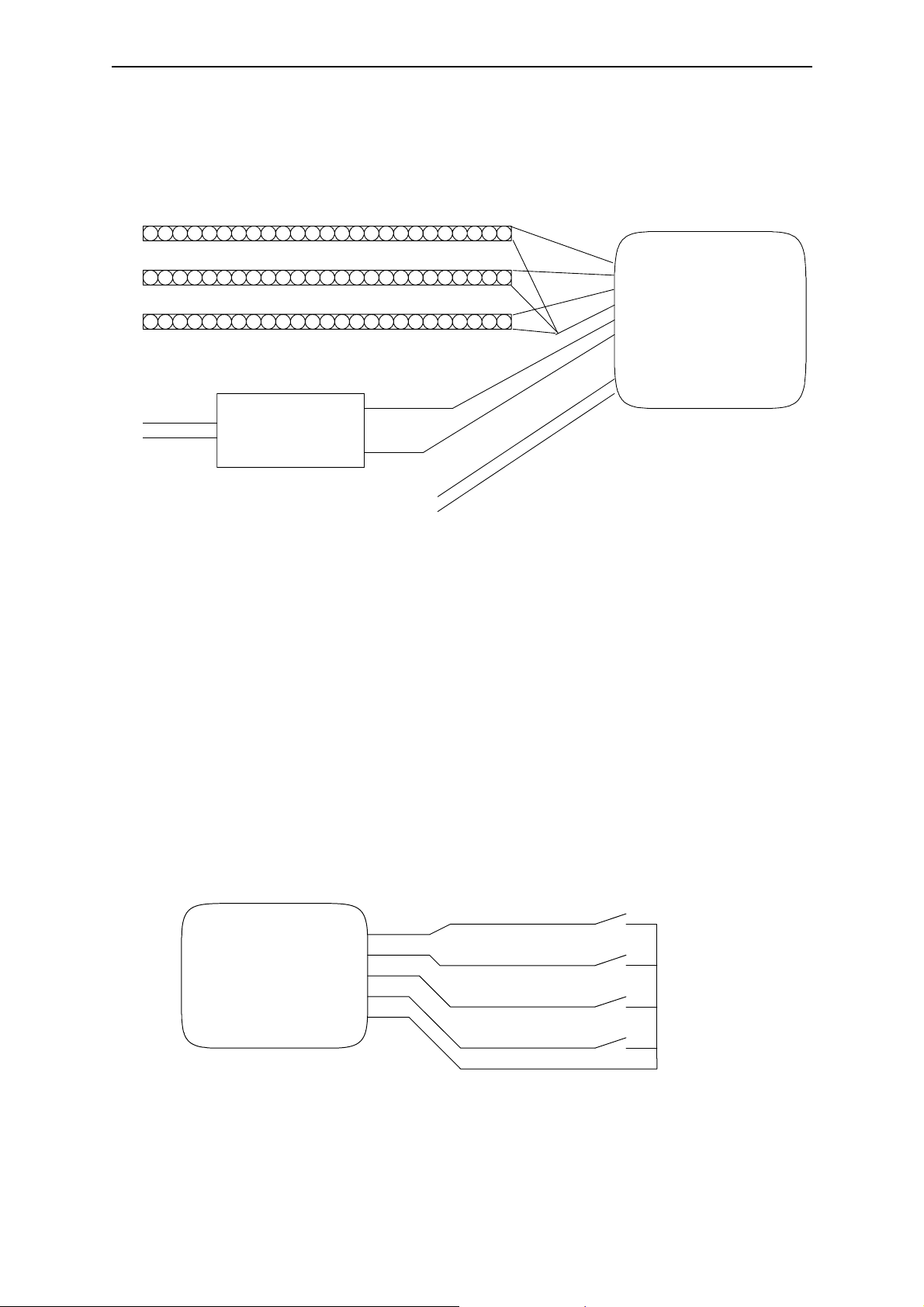

Button 1: 1. Pushed once: effect 1 (normal colour change)
2. Pushed twice: effect 5: „LSD“
Button 2: 1. Pushed once: effect 2 (Soft colour change)
2. Pushed twice: effect 6: Fire „Fire“
Button 3: 1. Pushed once: effect 3: „Blob“
2. Pushed twice: effect 7: Lightning „Flash“
Button 4: 1. Pushed once: effect 4: User colour change
2. Pushed twice: effect 8: „Burst“
Important! Shutdown: if any button is pressed longer than about 3 seconds, all modules are switched
off; any other button will start its assigned effects.
The DIP-Switches - Default-Effects
Some settings (i.e. the default effect after reset or power on) can be preset with the internal DIP
switches. In this case the cover of the module must be opened (see attachment).
Important: Please do not touch any of the electronic components, because of the risk of damage by
electrostatic discharge. We recommend using a small non-conductive tool to change the DIP
switches.
The switches are separated in 3 groups (as imprinted):
DIP 1, 2: These two switches control hold time for effects 1 and 2 (colour changes):
DIP 1 DIP 2 Effect 1 Effect 2
Off Off 5 sec. 30 sec. (default)
On Off 10 sec. 60 sec.
Off On 30 sec. 120 sec.
On On 90 sec. 180 sec.
DIP 3, 4, 5: These switches are for the default effect after reset or power on.
DIP 3 DIP 4 DIP 5 Effect
Off Off Off Effect 1: Standard colour change, colour transition time 2.5 seconds (default)
On Off Off Effect 2: Slow colour change, colour transition time 10 seconds (default)
Off On Off Effect 3: Randomly faded colours „Blob“
On On Off Effect 4: User defined colour change (can by changed by PC software
Off Off On Effect 5: Randomly changed colours „LSD“
On Off On Effect 6: Simulation Fire „Fire“
Off On On Effect 7: Simulation Lightning („Flash“)
On On On Effect 8: Randomly coloured flashes („Burst“)
DIP 6, 7, 8 determine the „Group“ of a module. Because the modules can be connected as a network,
it should also be possible to send commands only to a part of the network. This is what we call a
„Group“. For example, if several modules are used for a pool illumination (ceiling, walls under-water)
these modules could be separated into three groups. Now it is possible to send commands i.e. only to
the modules on the ceiling. More information can be found in the following paragraph „A Pool
Scenario“..
