Device description– 7
Device description
AV-07T has an all-metal milled aluminum body, painted with anodizing, which emphasizes the
natural beauty of the metal and creates the effect of a “live” surface. The model is presented in
two colors: silver-gray and black, so it looks very stylish on different types of building facades
and fits different interiors.
Technical parameters– 8
Technical parameters
General parameters
Panel type:Individual
Screen:No
Matrix size:1/4’’
Angle:122° horizontal x 70° vertical
Matrix resolution:1 MP
Output video:720p (1280x720) H.263, H264, MJPEG
Night backlight:4 IR LEDs
Light sensitivity:0.01 lux
Protection class:IP65
Operating temperature:-40 - +65 °C
Power consumption:6.5 W, in standby – 4 W
Power:+12 V, PoE
Body:Metal
Colors:Silver gray, black
Dimensions for installation:165x108x65 mm
Dimensions of panel:168x115x40mm
Installation: Flush mounting, wall mounting with BR-AV7
Functional capabilities
Interface:WEB-interface
Lock opening:By card, with the monitor
AV-07T access control:Combined contactless card reader: EM-Marin and MIFARE
AV-07B access control:Multiformat UKEY reader (Em-Marin, Mifare, Bluetooth, NFC)
Integration with ACS:Wiegand-26, Wiegand-34 Input / Output
Quick dial buttons: 1 piezoelectric ring button
Number of ringtones:1 polyphonic ringtone
Authentication:A separate password for the settings, WEB-interface
Talking mode:Duplex
Talking time:Up to 30 minutes
Technical parameters– 9
Additional functions
SIP P2P;
TR-069;
2 SIP accounts;
2 relays for connection of 2 locks;
2 contacts for connection of 2 exit buttons;
separate locks control;
3 controlled inputs for alarm;
Motion Sensor;
Gyroscope.
Configuration through web interface– 10
Configuration through web interface
•Login(see page 10)
•Main(see page 11)
•Intercom(see page 12)
•Account(see page 30)
•Network(see page 35)
•Phone(see page 38)
•Upgrade(see page 44)
•Security(see page 47)
Login
Searching the IP address of the outdoor panel

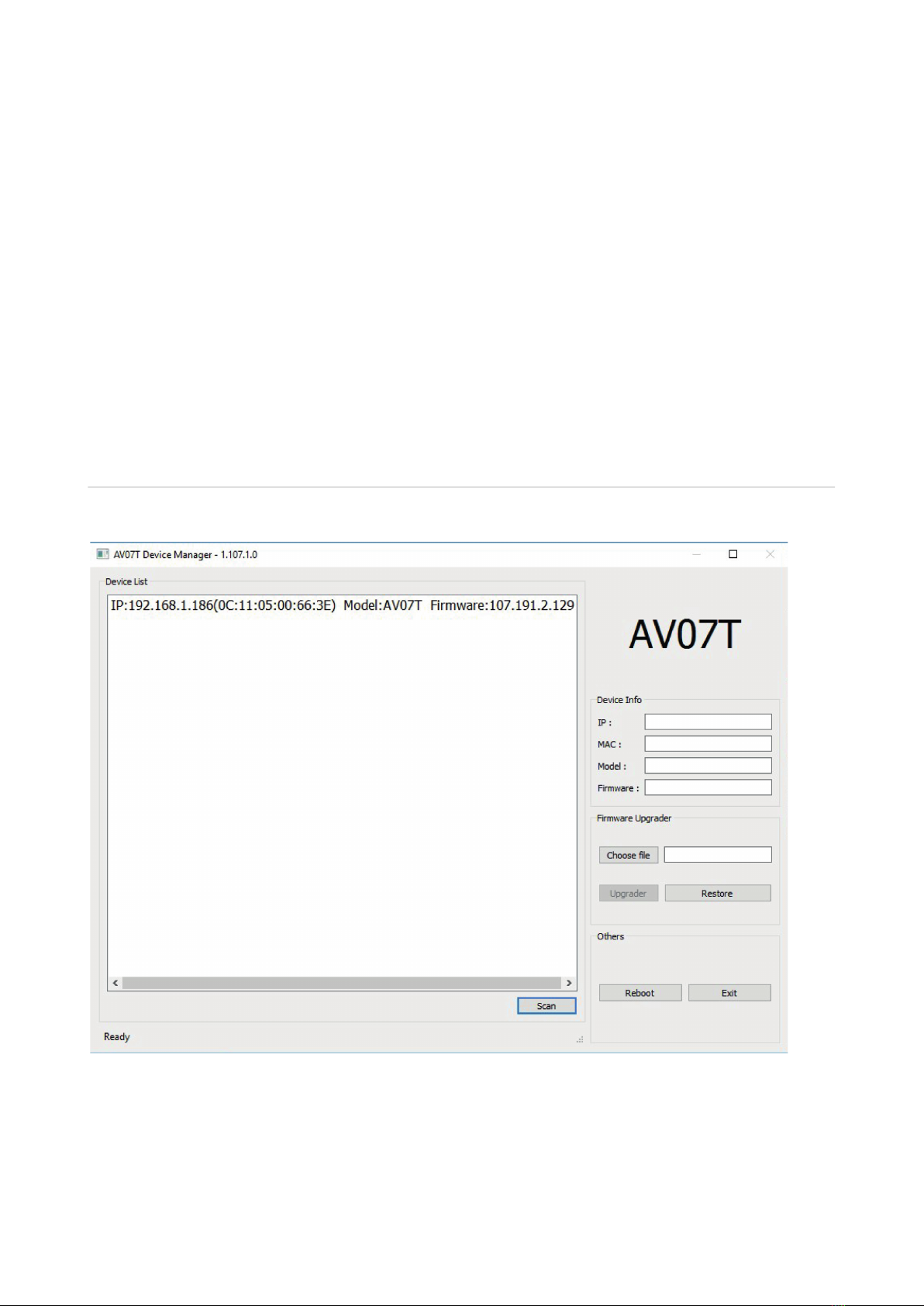

After the outdoor panel and your PC have connected to the same local area network, run the
“AV07T Device manager” to determine an IP address of the outdoor panel:
Press the “Scan” button and program window will display IP addresses of all AV-07T outdoor
panels, which are connected to the local network. It is possible to change the basic network
settings, update a firmware of the outdoor panel and programmatically restart it.
