! POWER !
Before connecting the ribbon cable to this module,
disconnect your system from power! Double-check the
polarity of the ribbon cable and that it is not misaligned
in any direction. The red wire should match the -12V rail,
both on the module and the bus board.
! please make sure of the following
you have a standard pinout eurorack bus board
you have +12V and -12V rails on your bus board
the power rails are not overloaded by current
Although there are protection circuits on this device, we do
not accept any responsibility for damages caused by the
wrong power supply connection. After you’ve connected
everything, double-checked it, and closed your system
(so no power lines can be touched by hand), turn on your
system and test the module.

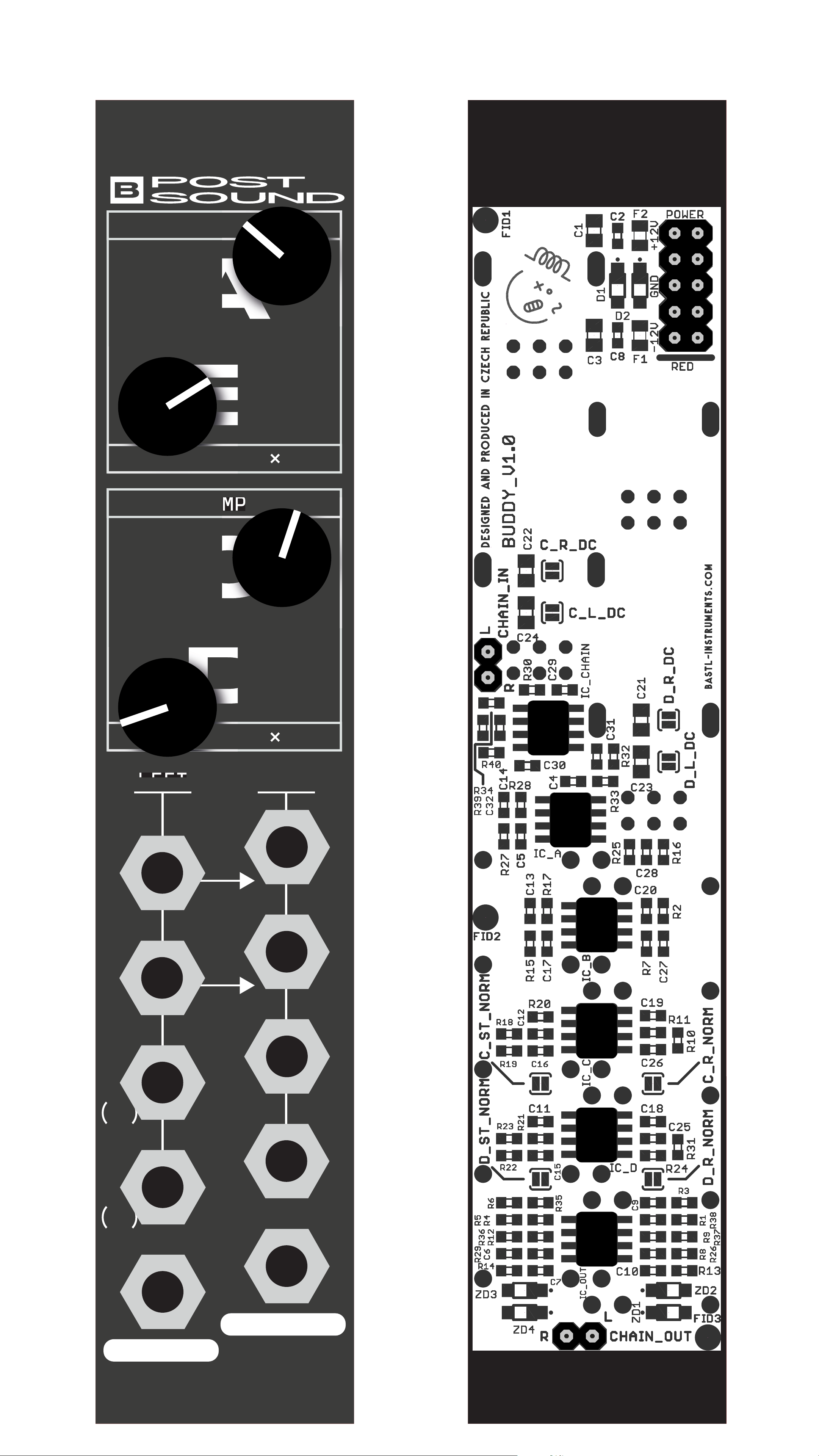

1 Channel A and B
Channels A and B serve for eurorack sources (mono or
stereo) with a slight boost (×2 / +6dB). They are DC coupled
with 100k input impedance and the left input is normalized
to the right input – if only a mono source is connected,
it should be plugged into the left channel, and a copy of
this mono signal goes to the right channel.
2 Channel C and D
Channels C and D are line-level pre-amps that can boost
the signal up to ×10 / +20dB and feature stereo TRS
jack inputs for direct integration with your desktop units
without further adaptors. They are AC coupled with 10k
input impedancel.
