Bauhn AV4254 Bedienungsanleitung

Micro Hi Fi with iPod / iPhone Dock

Instruction Manual Model Number AV4254

After Sales Support

TEL: 1300 663 907

WEB: www.winplus.com.au N14410

After Sales Support TEL: 1300 663 907

XII. Warranty

The product is guaranteed to be t for purpose and free from defects for a period of 24

months from the date of purchase. Defects that occur within this warranty period will be

repaired or replaced under Australian consumer law.

Proof of Purchase

This warranty is valid for the original purchase only and is not transferable. Please keep

your purchase docket or receipt as proof of purchase and as proof of the date on which

the purchase was made. The purchase docket or receipt must be presented with the

product when making a claim under this warranty.

Service during the warranty period

If being returned, please ensure the product is properly packaged so as to ensure that no

damage occurs to the product during transit. Also make sure that you have included an

explanation of the fault.

Extent of Warranty

This warranty does not cover manuals, packaging, lters, bags, seals or other accessories.

This warranty does not cover batteries or any other consumable item.

Warranty Procedure

Return the faulty product with proof of purchase to the original place of purchase or

contact Winplus Australia via www.winplus.com.au.

Normal Wear and Tear

This warranty does not cover normal wear and tear of the product or parts.

Exclusions

This warranty does not cover:

• Any defect caused by lack of reasonable care, unauthorised modication or

attempted repair by an unauthorised person.

• Any product that has not been installed, operated or maintained in accordance with

the instructions provided with the product.

• Any product that has been used for purposes other than domestic use.

• If the product is located outside Australia or New Zealand.

XIII. Further technical support

If you have tried everything in this troubleshooting section but are still having problems

with your Micro Hi Fi, contact us via phone: 1300 663 907.

Warranty Details

Great care has gone into the manufacture of this product and it should therefore

provide you with years of good service when used properly. In the event of product

failure within its intended use over the course of the ﬁrst 2years from date of

purchase, we will remedy the problem as quickly as possible once it has been

brought to our attention. In the unlikely event of such an occurrence, or if you

require any information about the product please contact us via our after sales

support services, details of which can be found in this manual and on the

product itself.

After Sales Support TEL: 1300 663 907

1 14XI. Troubleshooting

No Light On / No Display

• Check that the power is switched on at the power outlet.

No Sound

• Check that the volume control is not set to the minimum setting.

• Check that the device is not set to“MUTE”. Press“mute” on the remote

to unmute the Micro Hi Fi.

• Check that the speakers are plugged into the Micro Hi Fi.

FM Radio Reception is Poor

• Adjust the position of the antenna to get the best signal reception.

Make sure that the antenna is extended to full length.

• Check the radio is correctly tuned into a radio station with a clear signal.

AM Radio Reception is Poor

• Adjust the position of the antenna to get the best signal reception.

Try rotating the antenna to gain better reception.

• The antenna should be placed away from electrical devices such as computers,

refrigerators, power tools or wiring. The antenna should point in the direction of

the transmitter and be positioned to minimise the eect of obstructions such as

trees and buildings.

• Check the radio is correctly tuned into a local radio station with a clear signal.

• Place the antenna as far from the Micro Hi Fi as possible.

Erratic Functioning

• Try the above solutions, and if nothing works, reset the software by unplugging

the unit. Leave the unit unplugged for 2 minutes, and then plug in and switch on.

Remote Control won’t work

• Make sure there are no obstacles obscuring the front of the Micro Hi Fi.

• Check if the battery in the remote control needs replacement. The remote control

uses 2 AAA batteries for correct operation.

• Check polarity (+/–)of the batteries

Micro Hi Fi with iPod / iPhone Dock

Welcome

Congratulations on choosing to buy a BAUHN product.

BAUHN products are manufactured to the highest standards of performance

and safety. As part of our commitment to customer service and satisfaction,

we are pleased to oer a comprehensive 2 year warranty for this product.

We hope you will enjoy using your purchase for many years to come.

Contents

i. General information and safety instructions

ii. Product use

iii. Package contents

iv. Product features

v. Setup

vi. Using the radio

vii. Using the CD player

viii. Playing from iPhone / iPod

ix. Playing from auxiliary input

x. Advanced use

xi. Troubleshooting

xii. Warranty

xiii. Further technical support

213

After Sales Support TEL: 1300 663 907 After Sales Support TEL: 1300 663 907

Alarm clock function

The alarm clock allows the system to turn on automatically and wake you up using the

CD, radio, or iPhone / iPod.

Setting the alarm time

1. Ensure the Micro Hi Fi is in standby mode.

2. Press the“timer” button (2) for 2 seconds to activate the alarm setting mode.

3. The screen will now display the rst two digits of the alarm time ashing.

Use skip up and skip down to set the hour for the alarm. Press the “timer”

button to conrm.

4. The screen will display the second two digits of the alarm time ashing.

Use skip up and skip down to set the minutes for the alarm.

Press the“timer” button to conrm.

5. The screen will display the alarm source ashing. Use skip up and skip

down to set the alarm source. Press the“timer” button to conrm.

6. The screen will display the alarm volume ashing. Use skip up and skip

down to set the alarm volume. Press the“timer” button to conrm.

7. The alarm will play the selected input at the chosen time.

8. To switch o the alarm, press “standby” (5).

If there is no input from the selected source when the alarm sounds, it will default to play

the radio.

Activating the alarm function.

1. To active the alarm function, press the“timer” button (2) repeatedly until the timer

indicator “ ” is shown on LCD display.

2. To cancel the alarm function, press the “timer” button (2) repeatedly until the timer

indicator “ ” disappears.

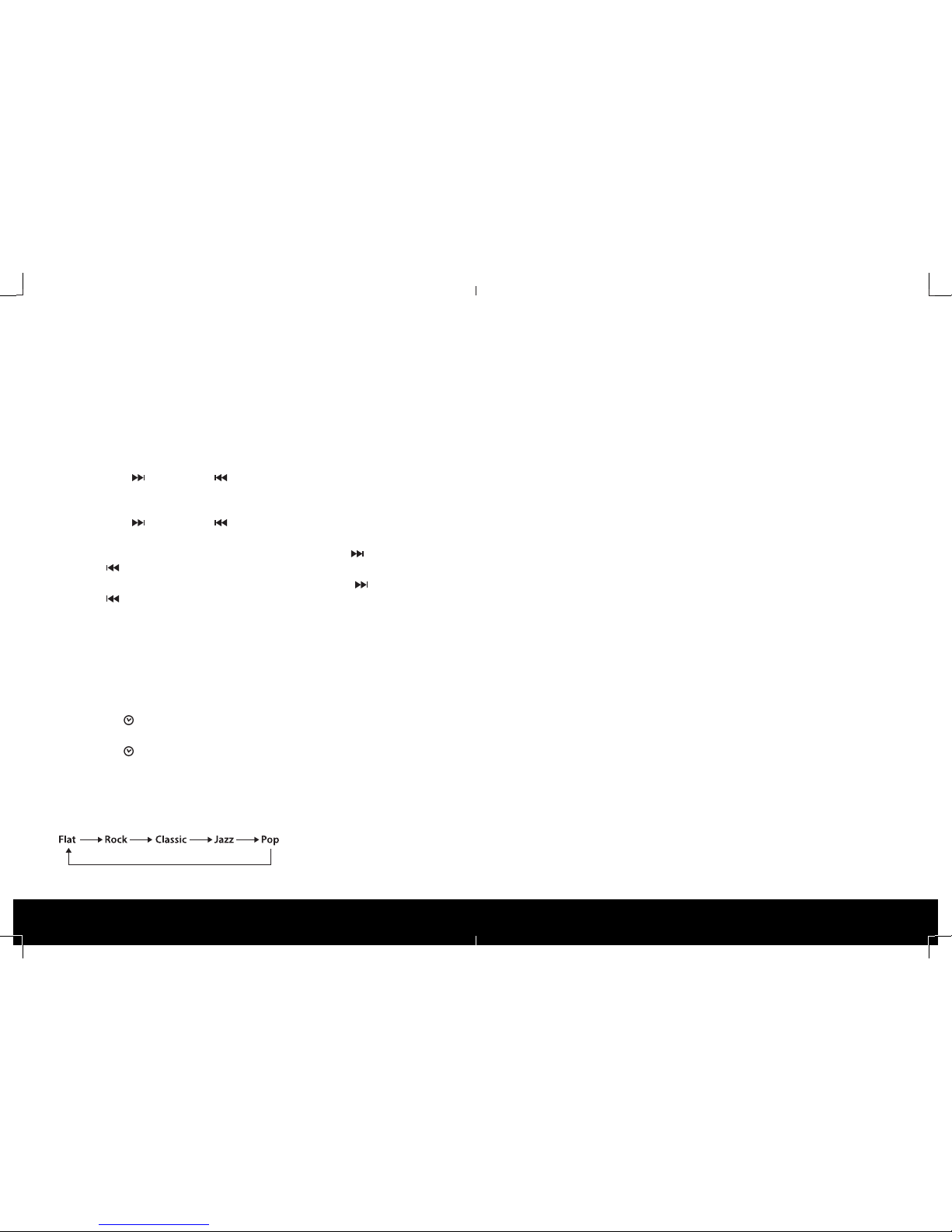

Built in sound equaliser function

The Micro Hi Fi provides 5 dierent sound modes to enhance your listening experience.

You can select the desired eect by pressing the “preset eq ”button (9) repeatedly to

choose from the following equaliser options:

WARNING!

• Indoor use only

• Do not expose to water, heat, or direct sunlight

• Do not install in a conned space. Ensure the equipment is

well ventilated

• Unplug the equipment when unused for a long period of time

• Clean only with a dry cloth and disconnect from the mains power

while cleaning

• Only connect the power adaptor supplied in the pack

• No user serviceable parts – do not open the device housing

12I. General information

and safety instructions

For correct use and safe operation of this product, please read this manual and safety

information carefully and follow all instructions. This product is approved to Australian

standards. Internal manipulation of this product or any modication to this product is

forbidden, due to safety, security and electrical authority approval issues.

If this product is used improperly or if you have opened, altered and repaired the product

yourself, all warranties expire. The warranty is limited to defects in workmanship and

parts. The supplier does not accept responsibility for any consequential loss or damage.

Young children should use the device only under adult supervision. No guarantee or

liability will be accepted for any damage caused due to incorrect use of the equipment

supplied, other than indicated in this owner’s manual and the included warranty card.

If you do have any problems with this product, or are having trouble with set up, please

contact Winplus Australia on 1300 663 907.

After Sales Support TEL: 1300 663 907 After Sales Support TEL: 1300 663 907

Repeat playback

Press the repeat (16) or random (18) button to perform the repeat playback function for

your iPhone / iPod.

Charging

When your iPod or iPhone is docked on the unit, the battery will begin charging.

IX. Playing from Auxiliary input

Connect another audio device to the Micro Hi Fi via a cable with 3.5mm jack plug (not

supplied). You may wish to connect an mp3 player, portable cassette player or computer

input.

1. Connect one end of this cable to the headphone jack on the external device and the

other end to the aux-in jack (23) on the side of the Micro Hi Fi.

2. Press function button (6) to select auxiliary mode. The LCD display will show“AUX”.

3. The Micro Hi Fi will play the input from the connected auxiliary device.

X. Advanced use

Sleep function

Set the timer for your music to stop playing after a given time.

1. Press the“sleep” button (9) and the sleep indicator will be displayed on the LCD.

2. Keep pressing the “sleep”button to adjust the sleep timer. The number of minutes

playing time before switching o will be displayed on the LCD screen. You can set

the timer for up to 90 minutes.

3. When the desired time delay is displayed on the screen, do not press any more

buttons. The system will return to regular playback.

4. The Micro Hi Fi will stop playback and enter standby mode automatically after the

selected time is up.

5. To cancel the sleep function, press “sleep” button until the“sleep“ indicator

disappears from the LCD display.

6. To check how many minutes remain on the sleep timer, press the “sleep” button

once, and the remaining time is displayed on the screen.

411

After Sales Support TEL: 1300 663 907 After Sales Support TEL: 1300 663 907

II. Product use

The Micro Hi Fi with iPod dock will provide great sound when playing your choice of

iPod, iPhone, radio, CD, or an auxiliary input. The built in equaliser allows you to choose

from 5 preset sound modes so you can experience optimised sound performance.

The included remote control lets you control the music, all without leaving the sofa.

III. Package contents

Check that you have received the following parts:

1x Micro Hi Fi

2x Speakers

1x Remote control

2x AAA battery

1x AM antenna

1x Power adaptor

1x Wall mounting template

6x Wall mounting screws

6x Wall mounting lugs

1x Instruction manual

1x Warranty certicate

2x Warranty stickers

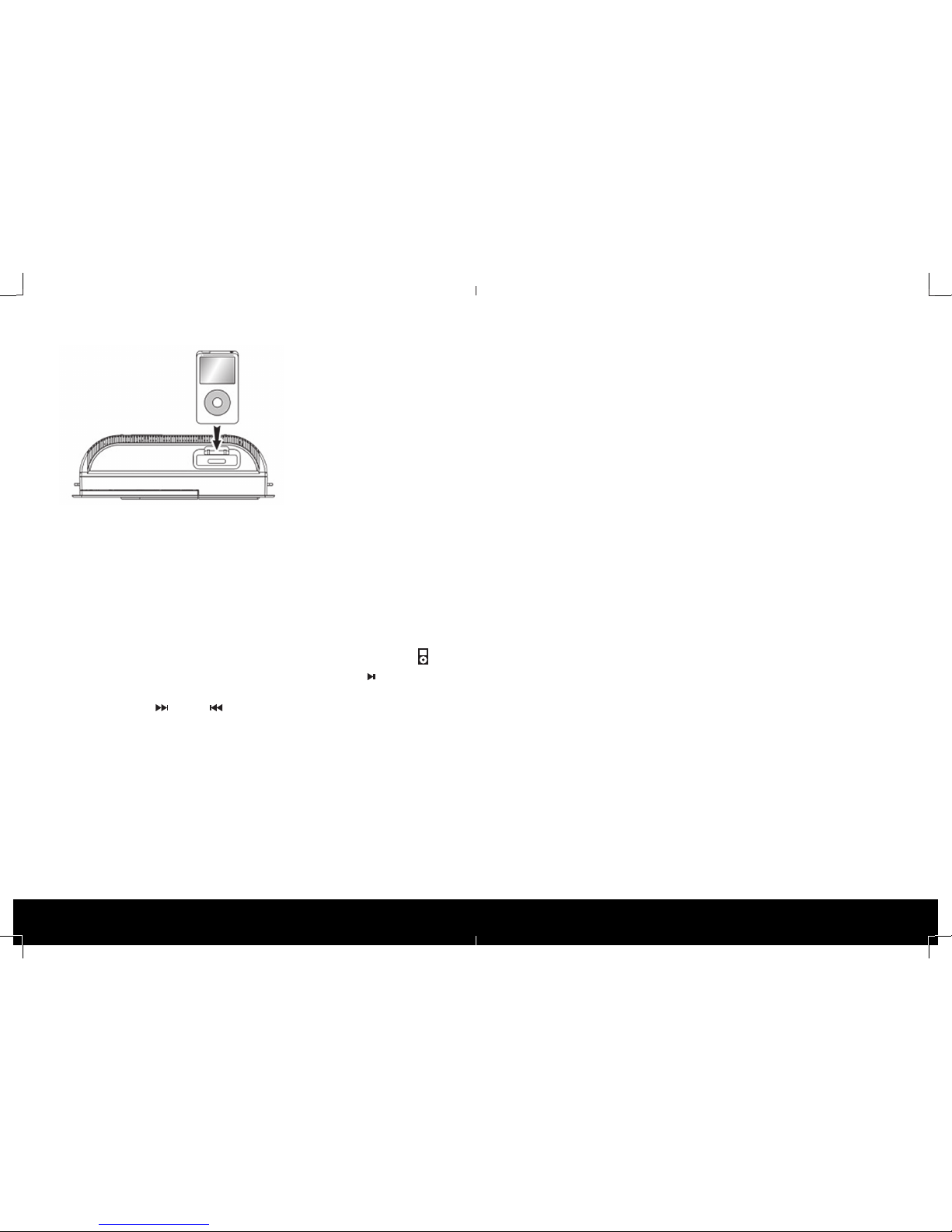

Insert your iPod / iPhone as shown in the diagram.

Take care

• To prevent damage to the dock connector, don’t twist the iPod or iPhone when

inserting or removing it.

• Be careful not to knock over the iPod or iPhone when inserted into the Micro Hi Fi.

• When docking your iPod or iPhone, don’t use with any other accessories, such as

FM transmitters or microphones.

• For extra stability, you may wish to use a dock adaptor tting (not included).

Playback

1. Press function button (6) to select iPod mode. The LCD display will show the icon.

2. The Micro Hi Fi will start playback automatically or you can press (15) to start

playback manually.

3. Press the skip up or down button (13, 19) to select the desired music track

within the current playlist.

4. Adjust volume up/down (8, 4) to the desired volume level.

iPod control function keys (by remote control)

You are able to control the iPod or iPhone by remote control, using the

“i-menu” buttons. Make sure your iPod is unlocked and in iPod mode.

• Use the “i-menu”button to control the iPod / iPhone menu function.

• Use the “i-scroll” buttons to scroll up and down on your iPod / iPhone.

• Use the “i-enter” button to control the enter function of your iPod / iPhone.

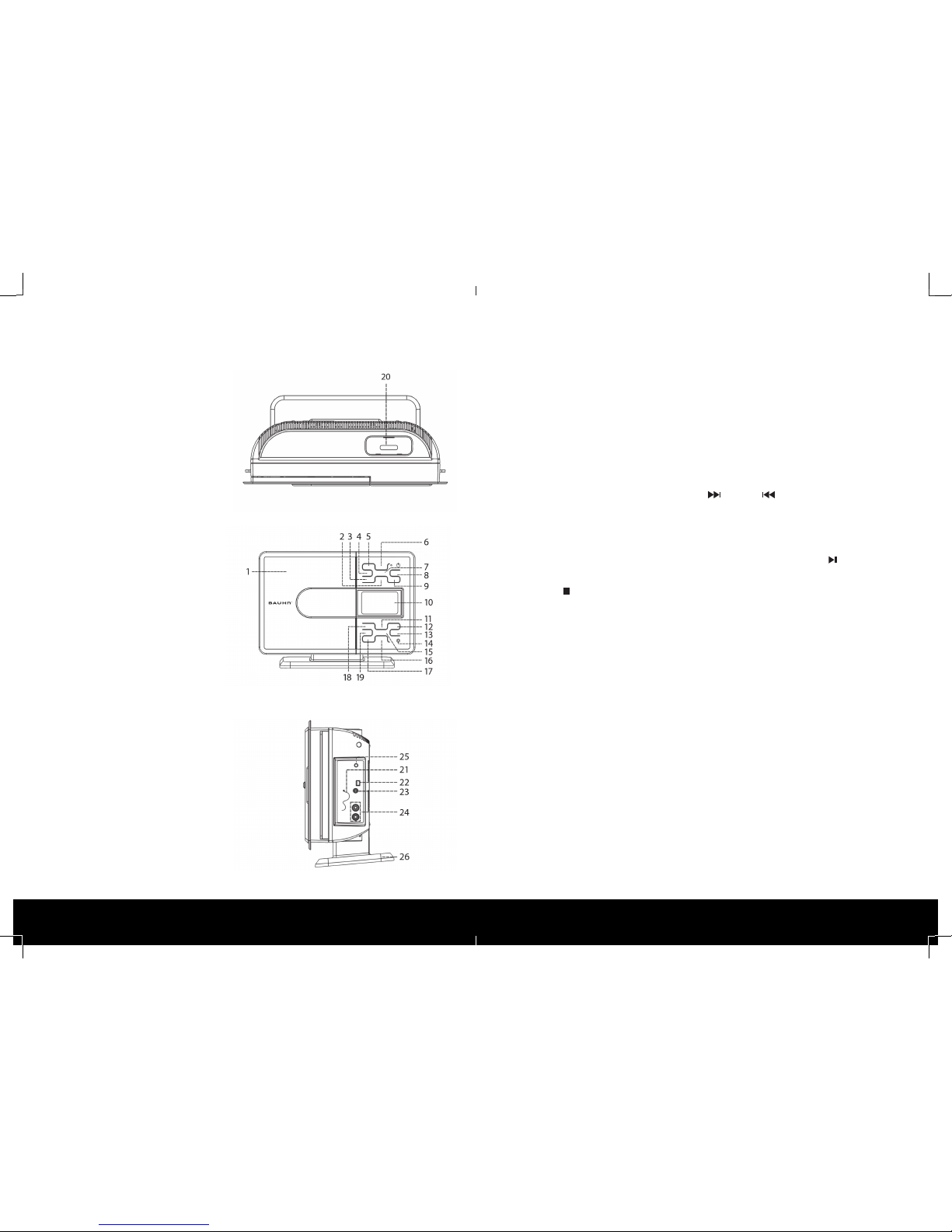

IV. Product features

1. Sliding CD door

2. Timer

3. Mute

4. Volume Down

5. Standby on/o

6. Function

7. Equaliser

8. Volume up

9. Sleep

10. LCD display

11. Stop / ST/ MO

12. Memory / Clock Adjust

13. Skip / Tuning up

14. 3.5mm headphone jack

15. Play & Pause / Up

16. Repeat / Down

17. CD open & close

18. Random

19. Skip / Tuning down

20. iPhone / iPod dock station

21. FM antenna

22. AM antenna socket

23. 3.5mm auxiliary-in jack

24. Speaker jack (L/R)

25. DC power socket

26. Stand

Note: These button and feature labels

will be referred to in the product manual

using the following format: (18)

5 10

After Sales Support TEL: 1300 663 907 After Sales Support TEL: 1300 663 907

Top View

Front View

Side View

Random play mode

Press the“random” button (20) during playback to activate the random play function.

All the tracks on the disc will be played in a random order. The LCD display will show the

“ran” indicator. Press the “random”button again to cancel this function.

CD programming

Up to 20 tracks can be programmed to play from a CD in any order.

1. Select CD mode, and ensure the CD is stopped.

2. Press the“mem/clk-adj”button (12) and “mem”will appear on the LCD screen.

3. Select the desired track by pressing skip up or down button (13, 19).

4. Press the“mem/clk-adj”button (12) to store the track into memory.

5. Repeat steps 3 and 4 to enter additional tracks into the memory in the order that you

wish them to be played.

6. When all the desired tracks have been programmed, press “play/pause ” button

(15) to play the tracks in the desired order.

7. Press “stop ” (11) to clear all tracks from stored memory.

VIII. Playing from iPhone/iPod

Connecting

The Micro Hi Fi is certied to for use with the following Apple iPhone / iPod models.

Made for:

iPod touch (3rd generation)

iPod touch (2nd generation)

iPod touch (1st generation)

iPod classic

iPod nano (3rd generation)

iPod nano (2nd generation)

iPod with video

iPod (4th generation)

iPod mini

iPhone 4

iPhone 3GS

iPhone 3G

iPhone

9 6

After Sales Support TEL: 1300 663 907 After Sales Support TEL: 1300 663 907

V. Setup

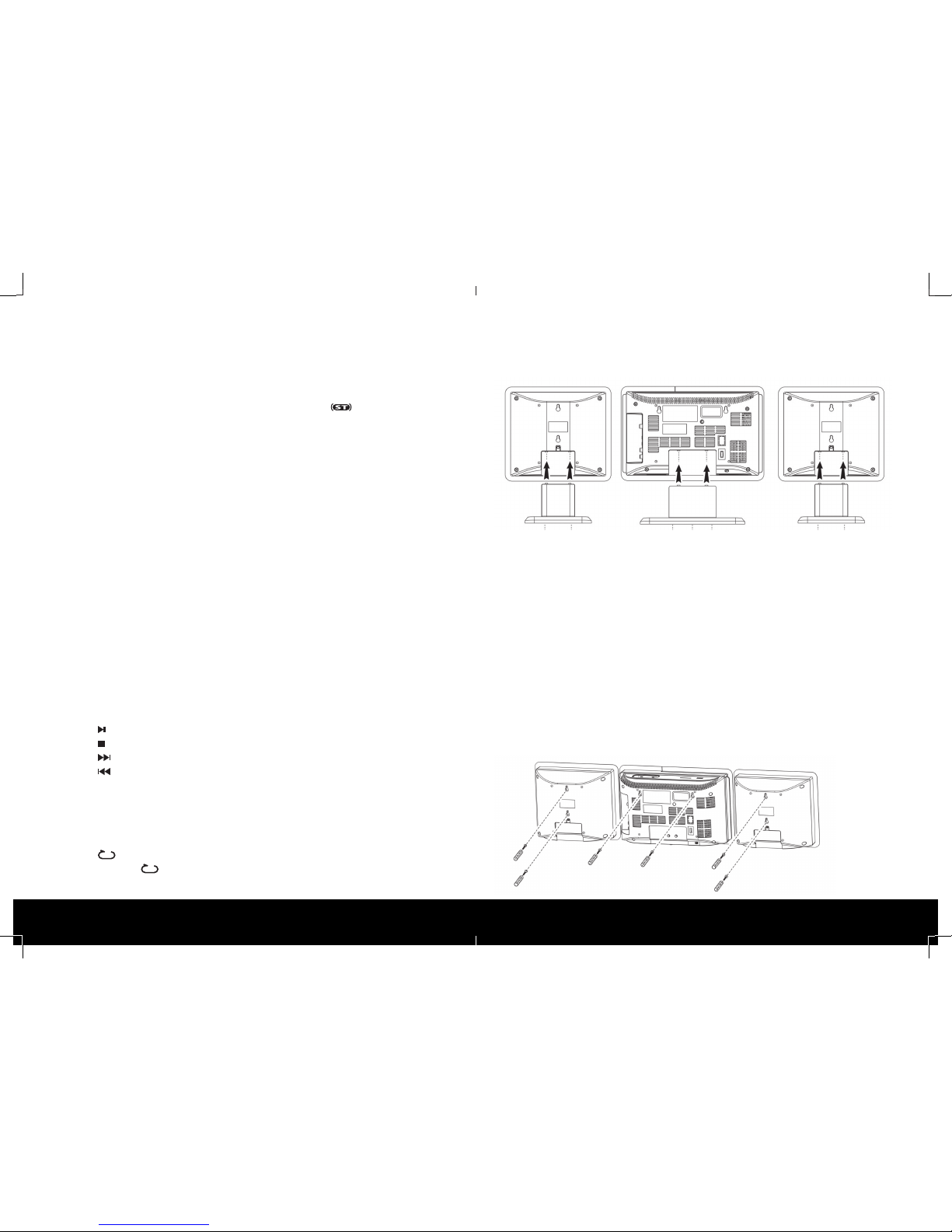

Prepare your Micro Hi Fi for desktop use

1. Ensure the stand is securely fastened to the speakers and the Micro Hi Fi.

2. Place the speakers and Micro Hi Fi upright on the desk.

Preparing your Micro Hi Fi for wall mounted use

1. Use a screwdriver to remove the stand from the speakers and the Micro Hi Fi.

2. Use the wall mounting template to make anchor hole marks on the wall. Use a spirit

level (not included) to ensure the template is level when marking the anchor holes.

3. Use a drill to make ¼” drill bit to make holes where your anchor marks are.

4. Insert the plastic anchors supplied with the Micro Hi Fi, making sure that they are

ush with the wall.

5. Insert the screw into the plastic anchor, and tighten until the screw head is about

4mm away from the wall.

6. Hang the Micro Hi Fi on the screws, as indicated in the Diagram B.

Diagram B

Hints for best reception

• The Micro Hi Fi has a built in FM wire antenna (21). This wire should be unravelled

and fully extended for the best FM reception.

• If FM stereo signal is being received, the stereo indicator will be displayed

on the LCD screen. When a mono signal is received, *ST* will not be displayed.

• In areas of poor reception, you may wish to switch to FM mono mode. Press the

“st/mo” button (15) to switch between stereo mode and mono mode.

• The Micro Hi Fi comes with an AM loop antenna. Connect the AM antenna to the

AM socket (22) on the side of the Micro Hi Fi. If AM reception is poor, rotate and

reposition the loop antenna to improve the reception.

• Position both AM and FM antenna as far from the Micro Hi Fi as possible to reduce

the chance of electronic interference.

• AM reception may be improved by placing the antenna as high as possible, such as

on top of a bookshelf or entertainment unit.

• Radio reception may vary according to the signal strength in your local area.

VII. Using the CD player

Getting Started

1. Press function button (6) to select CD mode.

2. Press“open/close” button (17) to open the CD compartment.

3. Place a CD with the printed side facing towards you inside the compartment.

4. Close the CD compartment by pressing the “open/close”button (17) again.

5. The LCD screen will display the total number of tracks & total playing time.

6. Use the following controls to play the CD.

- Play and Pause (15)

- Stop playback (11)

- Skip forward track (13)

- Skip backward track (19)

Repeat play mode

Press the“repeat” button (16) during playback to select the repeat or random function.

Pressing the“repeat” button several times allows you to cycle through the following

functions::

(ashing) – Repeat a single track

– Repeat entire CD

(no icon) – No repeat

Diagram A

7 8

After Sales Support TEL: 1300 663 907 After Sales Support TEL: 1300 663 907

Cable setup

1. Connect the left and right speaker wires to the speaker jacks on the side of the

Micro Hi Fi. (24)

2. Plug in the AM antenna loop to the right side of the Micro Hi Fi. (22)

3. Unravel the FM antenna to full length.(21)

4. Position the AM and FM antennas away from the Micro Hi Fi to reduce the chance

of interference.

5. Peel o the protective layer of lm over the screen and front panel of the Micro Hi Fi.

6. Connect the power cord to the DC power socket (25) and the power outlet,

and then switch the power outlet on.

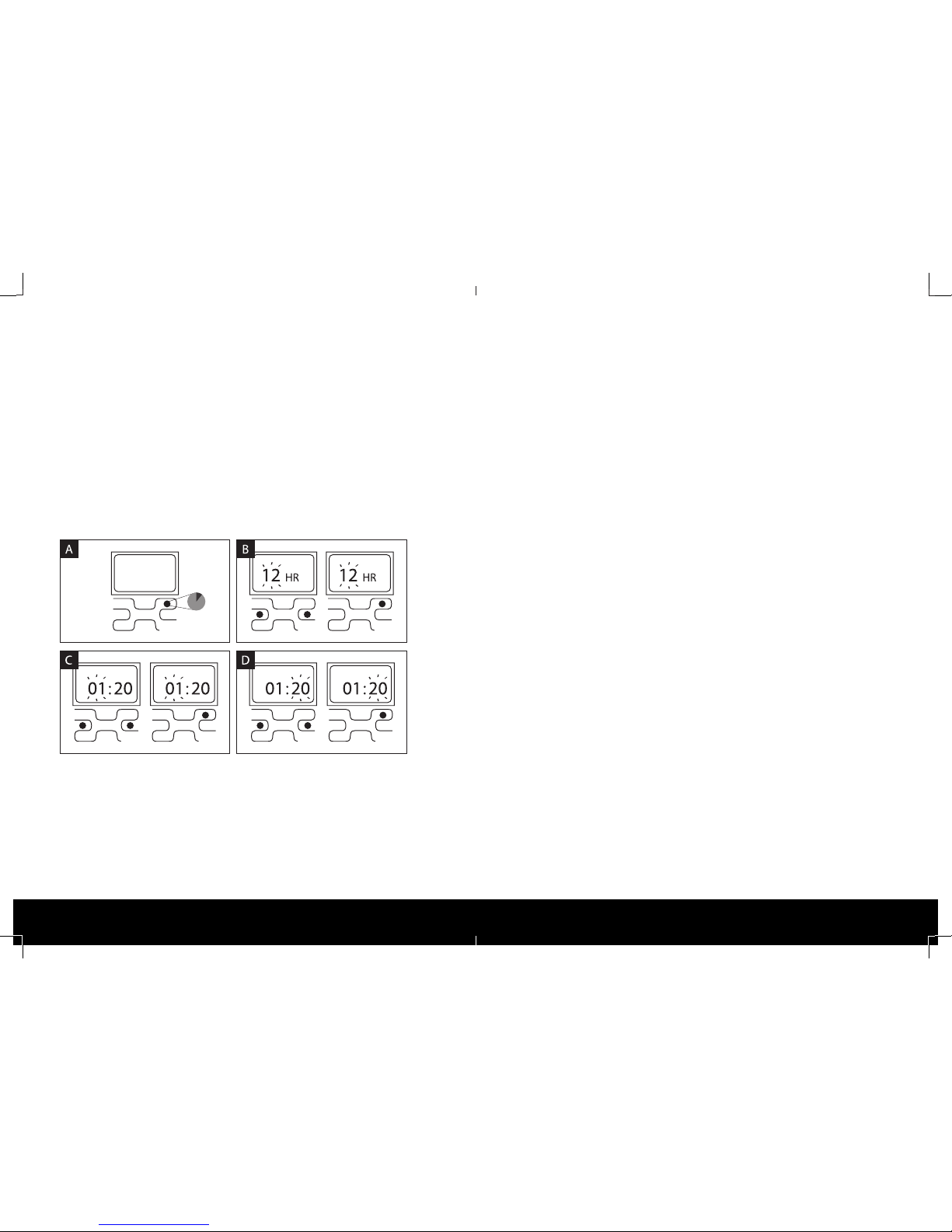

Setting the time

2 SEC

A. In standby mode, press and hold the CLK-ADJ.

B. Scroll between 12 HR or 24 HR format, then press CLK-ADJ to conrm.

C. Scroll to set the hour, then press CLK-ADJ to conrm.

D. Scroll to set the minutes, then press CLK-ADJ to conrm.

Note: The time will be reset completely if the power is disconnected from the mains

power supply.

Note: The clock set mode will reset if there is 3 seconds of inactivity.

VI. Using the radio

Manual tuning

1. Press function button (6) to select “tuner” mode.

2. Press“random” button (18) to select desired band (AM or FM).

3. Tune to the required station by pressing the tune“+” or “−” button (19, 13).

Auto tuning

1. Press function button (6) to select “tuner” mode.

2. Press“random” button (18) to select desired band (AM or FM).

3. Press and hold the tune“+” or “−” button (19, 13) for 1-2 seconds and then release.

4. The unit will start seeking automatically and stop when a radio station is reached.

5. Repeat step 3 & 4 until the desired radio station has been reached.

6. Adjust volume up/down button (8, 4) to the desired volume level.

Preset stations

You can store up to 20 radio stations in the memory (10 AM and 10 FM).

1. Press function button (6) to select “tuner” mode.

2. Turn to the desired radio station. (See manual tuning instructions, above)

3. Press“mem/clk-adj ”button (12) to activate the memory programming function.

“Mem”indicator is show on LCD display.

4. Press up“pre-up”or “pre-dn” button (15, 16) to select the desired memory number.

5. Press“mem/clk-adj”button (12) again to conrm the memory number.

6. Repeat step 2 to 5 to store other stations. You can overwrite a preset station by

storing another frequency in its place.

7. Play any of your preset stations by pressing the up“pre-up” button (15) or “pre-dn”

button (16) when in radio playback mode. This will cycle through your 10 presets.

Note: The preset stations will be reset completely if the power is disconnected from the

mains power supply.

Inhaltsverzeichnis

Andere Bauhn Docking-Lautsprecher Handbücher

Bauhn

Bauhn S1-BT Bedienungsanleitung

Beliebte Docking-Lautsprecher Handbücher anderer Marken

Philips

Philips DS7510/12 Bedienungsanleitung

Philips

Philips AD305 Bedienungsanleitung

Philips

Philips DS7530 Bedienungsanleitung

LG PA36 Bedienungsanleitung

PURE

PURE Contour Bedienungsanleitung

Philips

Philips DS7650/98 Bedienungsanleitung

LG ND8520 Bedienungsanleitung

Maxell

Maxell BT3100 Bedienungsanleitung

Boston

Boston i-DS3 plus Bedienungsanleitung

aqprox!

aqprox! APPSP06X Bedienungsanleitung

iLive

iLive ISD291B Bedienungsanleitung

JBL

JBL on stager III WM Bedienungsanleitung

Philips

Philips Fidelio DS7650/37 Bedienungsanleitung

JAMO

JAMO i200 FM Bedienungsanleitung

AUVIO

AUVIO Auvio 40-294 Bedienungsanleitung

Insignia

Insignia NS-IPSD1 Kurzanleitung

Pioneer

Pioneer XW-NAS3 Bedienungsanleitung

Amethyst

Amethyst A9 iExecutive Bedienungsanleitung
