INSTRUCTION MANUAL

Model Number: AHD-06

Dual Hard Drive Docking Station with USB 3.0

2After Sales Support

Telephone: 1300 886 649

Email: [email protected]

Warranty Details 3

Welcome 4

General Safety Instructions 5

Product Overview 7

Getting Started 8

Instructions 9

Repair and Refurbished Goods or Parts Notice 11

Contents

After Sales Support

Telephone: 1300 886 649

Email: [email protected]

Warranty Details

The product is guaranteed to be free from defects in workmanship and parts for

a period of 12 months from the date of purchase. Defects that occur within this

warranty period, under normal use and care, will be repaired, replaced or refunded at

our discretion, solely at our option with no charge for parts and labour. The beneﬁts

conferred by this warranty are in addition to all rights and remedies in respect of

the product that the consumer has under the Competition and Consumer Act 2010

and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure

and to compensation for any other reasonably foreseeable loss or damage. You

are also entitled to have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major failure.

Dual Hard Drive Docking Station with USB 3.0

4After Sales Support

Telephone: 1300 886 649

Email: [email protected]

Welcome

Congratulations on choosing to buy a BAUHN®product.

All products brought to you by BAUHN®are manufactured to the highest standards

of performance and safety and, as part of our philosophy of customer service and

satisfaction, are backed by our comprehensive 1 Year Warranty. We hope you will enjoy

using your purchase for many years to come.

After Sales Support

Telephone: 1300 886 649

Email: [email protected]

General Safety Instructions

Read this manual thoroughly before use, even if you are familiar with this type of

product. The safety precautions enclosed herein reduce the risk of ﬁre, electric shock

and injury when correctly adhered to.

Keep the manual in a safe place for future reference, along with the completed

warranty card, purchase receipt and carton. Note the product serial number on this

manual, so you always have it ready at hand. If applicable, pass these instructions on

to the next owner of the appliance.

Always follow basic safety precautions and accident prevention measures when using

an electrical appliance, including the following:

Electrical safety and cord handling

• Voltage: Make sure your outlet voltage and circuit frequency correspond to the

voltage stated on the appliance rating label and your outlet socket is earthed.

• Do not immerse: Never immerse the device in water or other liquid.

• Water: Avoid contact with water spray, dripping water and other liquids. Never

operate the device near water. Do not place any objects ﬁlled with liquids such as a

vase or glass with water near the device.

• Damage: In case of damage, do not disassemble, repair or modify the unit yourself.

Contact our after sales support line for advice on repair or replacement, or refer

servicing to qualiﬁed personnel only.

• Repair: Do not open the housing of the power adaptor, it contains no serviceable

parts. By opening the housing you endanger your life through risk of electric shock.

• Lightning storms: Before stormy weather, when there is the danger of lightning,

disconnect the device from the power supply.

• Disconnection

(a) The On/Off switch at the back of the cradle does not fully disconnect the device

from the mains power supply. Furthermore, the device consumes electricity in

standby mode. In order to completely disconnect the device from the mains,

unplug the power adaptor from the wall outlet. For this reason, always position

the cradle in a way that assures unobstructed access to the wall outlet so that

the plug can be immediately pulled out in an emergency situation.

(b) To avoid the danger of ﬁre if the device is not going to be used for a long while

(for example, during holidays), always disconnect the device from the power

socket.

cord.

6After Sales Support

Telephone: 1300 886 649

Email: [email protected]

General Safety Instructions (Cont.)

Usage conditions and restrictions

• Intended use: This device is a consumer electronics device and may not be used

outdoors or in tropical climates.

• Handle with care: Do not subject the device to excessive shocks and vibrations.

• Operating environment: Position the device on a stable, even surface.

• DO NOT use the device in the following conditions:

:In an environment with high temperatures or high levels of humidity (such as in a

bathroom). The operating temperature must be between 5°C and 40°C, and the

maximum humidity below 90%.

:Do not subject the device to sharp temperature changes.

:In places that are excessively dusty or dirty.

:Near direct heat sources such as heaters, direct sunlight or artiﬁcial lighting.

:In the immediate vicinity of magnetic ﬁelds, such as loudspeakers.

:Near open ﬂames such as burning candles or near an open ﬁreplace.

• Maintenance

(a) Servicing is required when this device has been dropped or damaged in any way,

for example, when liquid has entered the product, when the product has been

exposed to rain or moisture, or when it does not work normally. If you notice

smoke, unusual noise or odour, power off the device immediately and do not use it.

(b) Contact our after sales support line to arrange inspection or repair. Never open

the housing of the device, or the accessories, yourself.

• Usage restriction: This product is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning

use of the product by a person responsible for their safety.

• Children: Supervise young children to ensure they do not play with the product.

Children may not comprehend the presence of potential risks.

After Sales Support

Telephone: 1300 886 649

Email: [email protected]

Product Overview (Cont.)

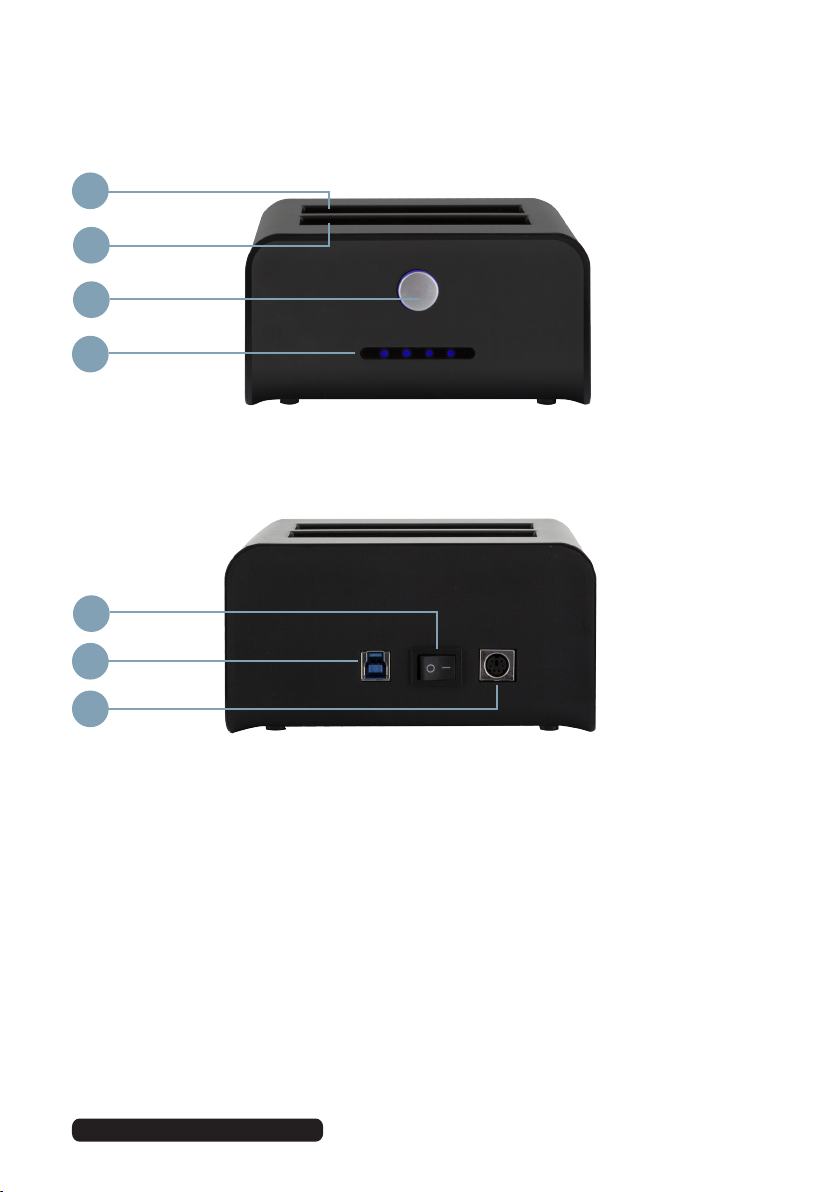

Front view

Back view

1 Hard Drive Slot 2 (Target)

2 Hard Drive Slot 1 (Source)

3 One-Touch Clone Button

4 LED Lights 1 - 2 - 3 - 4

5 ON/OFF Switch

6 USB Port

7 Power Socket

Accessories (not pictured)

1 x Power Adaptor

1 x Power Cable

1 x USB 3.0 Cable

8After Sales Support

Telephone: 1300 886 649

Email: [email protected]

Getting Started

Features

• Supports 2.5”or 3.5” SATA HDDs up to 4TB capacity

• Plug & Play

• Hot swappable

• Back up data from computer or copy data between the two hard disks

• One-touch clone function

• USB 3.0 SuperSpeed and backward compatible with USB 2.0

• LED indicates working status

• Transfer rate: SATA II 1.5G/3Gbps

What you need

• Computer with USB 2.0 or USB 3.0 input port

• Two (or one) SATA I/II hard drives

PC Operating System requirements

Windows XP or above: No drivers are necessary. If the hard drive does not appear

under ‘My Computer’, please check ‘Disk Management’ in your

control panel to partition your hard drive (Start > Control Panel

> Administrative Tools > Computer Management > Storage >

Disk Management)

After Sales Support

Telephone: 1300 886 649

Email: [email protected]

Instructions

Disk installation

• Connect the Dual Hard Drive Docking Station to a power outlet using the provided

power adaptor.

• Connect the Dual Hard Drive Docking Station to the (powered) host computer using

the provided USB 3.0 cable.

• Insert the 2.5” or 3.5” SATA/SATA II drive(s) into the slot, making sure that the SATA

power and data connectors at the back of the drive are properly aligned with the

corresponding connectors inside the docking station.

• Press the power switch on the rear panel of the Dual Hard Drive Docking Station.

Once the hard drive has been inserted, the operating system will detect that it has

been connected and automatically update the drivers for proper operation.

Disk removal

• Follow the appropriate steps (dependent on the operating system) to disconnect

removable storage. For example, in Windows OS click on the ‘Safely Remove

Hardware and Eject Media’ icon located in the system tray. Select the device or

drive from the options provided to disconnect.

• Turn off the power switch on the rear panel of the Dual Hard Drive Docking Station.

• Wait for 10 seconds until the disk stops spinning and pull out the hard drive.

WARNING: Do not remove the hard drive(s) when the disk is reading or writing.

Using the docking station with a PC

• Connect the power cable to the device and connect the USB cable to the device

and the computer.

• Connect the hard drives to be used and power on the device. The hard drives will

be shown in ‘(My) computer’ and are usable as a normal hard drive.

LED behaviour when connected to a PC

• Power on: LEDs 1 & 4 light up to indicate power on.

• Read and write: LEDs 2 & 3 ﬂash to indicate disk activity.

Hard drive cloning: using the device without a PC

• Please note: The source hard drive must be smaller or the same size as the target

hard drive, otherwise the disk clone function will not work.

• When cloning, the drive partition of the source drive will overwrite the partition of

the target drive. This will delete ALL data on the target drive and delete any and all

partitions on it.

10 After Sales Support

Telephone: 1300 886 649

Email: [email protected]

• Please note: If the source drive is smaller than the target drive, the partition size

of the target drive will be the same as the one from the source drive. For example,

if the source drive is 80GB and the target drive is 1TB, the cloning process will

erase all partitions on the target drive and create one that is 80GB, this partition will

contain all the data from the source drive. After the cloning process is complete it is

possible to create a new partition on the target drive so that it is possible to use the

remaining disk space on the 1TB hard drive.

• To start the hard drive cloning procedure, make sure the device is NOT

connected to a PC or another device. Next press and hold the one-touch clone

button at the front of the device until the hard drive starts working. During cloning,

please pay attention to the LED lights at the front of the device.

LED behaviour for cloning function

• LED 4 will light up when the cloning process reaches 25%.

• LEDs 4 & 3 will light up when the cloning process reaches 50%.

• LEDs 4, 3 & 2 will light up when the cloning process reaches 75%.

• LEDs 4, 3, 2 & 1 will light up when the cloning process reaches 100%.

• LEDs 1 – 2 – 3 – 4 – 3 – 2 – 1 light up alternately when cloning is in progress.
