INSTRUCTION MANUAL

Indoor / Outdoor Wi-Fi Range Extender

Model Number: IT144052

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

Indoor / Outdoor Wi-Fi Range Extender

Warranty Details

The product is guaranteed to be free from defects in workmanship and parts for a period of 12

months (dependant on product) from the date of purchase. Defects that occur within this warranty

period, under normal use and care, will be repaired, replaced or refunded at our discretion. The

beneﬁts conferred by this warranty are in addition to all rights and remedies in respect of the product

that the consumer has under the Competition and Consumer Act 2010 and similar state and territory

laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced

if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

SR600EX

USER’S GUIDE

CONTENTS

Welcome ................................................................................... 4

General Safety Instructions 4

LED Indicators............................................................................ 6

Inside Panel ............................................................................... 7

Power over Ethernet (PoE) Adapter .......................................... 8

MOUNTING INSTRUCTIONS ................................................ 9 -11

SETUP GUIDE............................................................................12

Find a Setup Locaon/ Opmal Posioning ............................ 13

Connect your PC to the Pro Smart Repeater ........................... 12

Access Setup Wizard ............................................................... 14

Welcome to the Smart Setup Wizard ...................................... 15

Scan for a Wireless Network ................................................... 16

Connecng to a Secure Network............................................. 17

Repeater Sengs (SSID).......................................................... 18

Repeater Sengs (Security) .................................................... 19

Setup Summary....................................................................... 20

WIRELESS SETTINGS................................................................ 22

Home Network Sengs .......................................................... 22

Extended Network Sengs ..................................................... 23

Wi-Fi Protected Setup (WPS)................................................... 26

Antenna Sengs......................................................................27

Advanced Sengs....................................................................28

SMART FEATURES....................................................................29

Access Schedule.......................................................................30

User Access Control .................................................................31

Wireless Coverage Controls .....................................................32

IP SETTINGS............................................................................. 33

MANAGEMENT FEATURES ......................................................35

Repeater Status .......................................................................36

Network Stascs ....................................................................37

System Clock............................................................................38

System Logs .............................................................................39

Upgrade Firmware ...................................................................40

Save/Reload Sengs ...............................................................42

Password Sengs ....................................................................43

TECHNICAL SPECIFICATIONS 44

DEFAULT SETTINGS..................................................................45

TROUBLESHOOTING

....................................................

.........................................................

..........

Warranty ................................................................................... 2

......................................................

Parts List 5...................................................................................

REPAIR AND REFURBISHEDGOODS OR PARTS NOTICE

- 5346

Warranty.........................................................................................

Welcome........................................................................................

General Safety Instructions..........................................................

Parts List ......................................................................................

LED Indicators..............................................................................

Inside Panel .................................................................................

Power over Ethernet (PoE) Adapter.............................................

SETUP GUIDE

Find a Setup Location/ Optimal Positioning...............................

MOUNTING INSTRUCTIONS

Desktop/Wall/Pole Mounting.......................................................

Access Setup Wizard...................................................................

Welcome to the Smart Setup Wizard...........................................

Scan for a Wireless Network.........................................................

Connecting to a Secure Network.................................................

Extender Settings (SSID).............................................................

Extender Settings (Security)........................................................

Setup Summary............................................................................

Wireless Settings..........................................................................

Extended Network Settings........................................................

Wi-Fi Protected Setup (WPS)......................................................

9-10

11-13

23-25

33-34

40-41

46-53

Antenna Settings........................................................................

Advanced Settings.....................................................................

Smart Features...........................................................................

Access Schedule .......................................................................

User Access Control...................................................................

Wireless Coverage Controls.......................................................

IP Settings...................................................................................

Management Features...............................................................

Extender Status..........................................................................

Network Statistics......................................................................

System Clock.............................................................................

System Logs...............................................................................

Upgrade Firmware.....................................................................

Save/Reload Settings................................................................

Password Settings.....................................................................

Technical Speciﬁcations............................................................

Default Settings.........................................................................

Troubleshooting.........................................................................

Notes..........................................................................................

Repair and Refurbished Goods or Parts Notice.......................

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

Congratulations on choosing to buy a BAUHN® product. By doing so you now have the assurance

and peace of mind that comes with purchasing a product made by one of the leading manufacturers.

All products brought to you by BAUHN® are manufactured to the highest standards of performance

and safety and, as part of our philosophy of customer service and satisfaction, are backed by our

comprehensive 1 Year Warranty. We hope you will enjoy using your purchase for many years to come.

General Safety Instructions

Read this manual thoroughly before ﬁrst use and keep it in a safe place for future reference, along with the

warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of ﬁre,

electric shock and injury when correctly adhered to. Follow all instructions and take notice of all warnings

to reduce the risk of ﬁre or electric shock.

• Do not expose the Wi-Fi Range Extender to extreme temperatures. Follow the instructions provided when

selecting a mounting location to protect the Wi-Fi range extender from extreme weather conditions.

• Do not remove the cover or the back of this product. There are no user-serviceable parts inside this product

• Do not repair the unit yourself. Only have it serviced by qualified personnel

• Supervise young children to ensure they do not play with the product

• Do not expose product to naked ﬂames

• Avoid banging objects against or dropping the Wi-Fi Range Extender

• Do not place or use near magnets

• Avoid using in extremely dusty or extremely humid conditions

• Do not expose to direct sunlight for long periods of time

Welcome

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

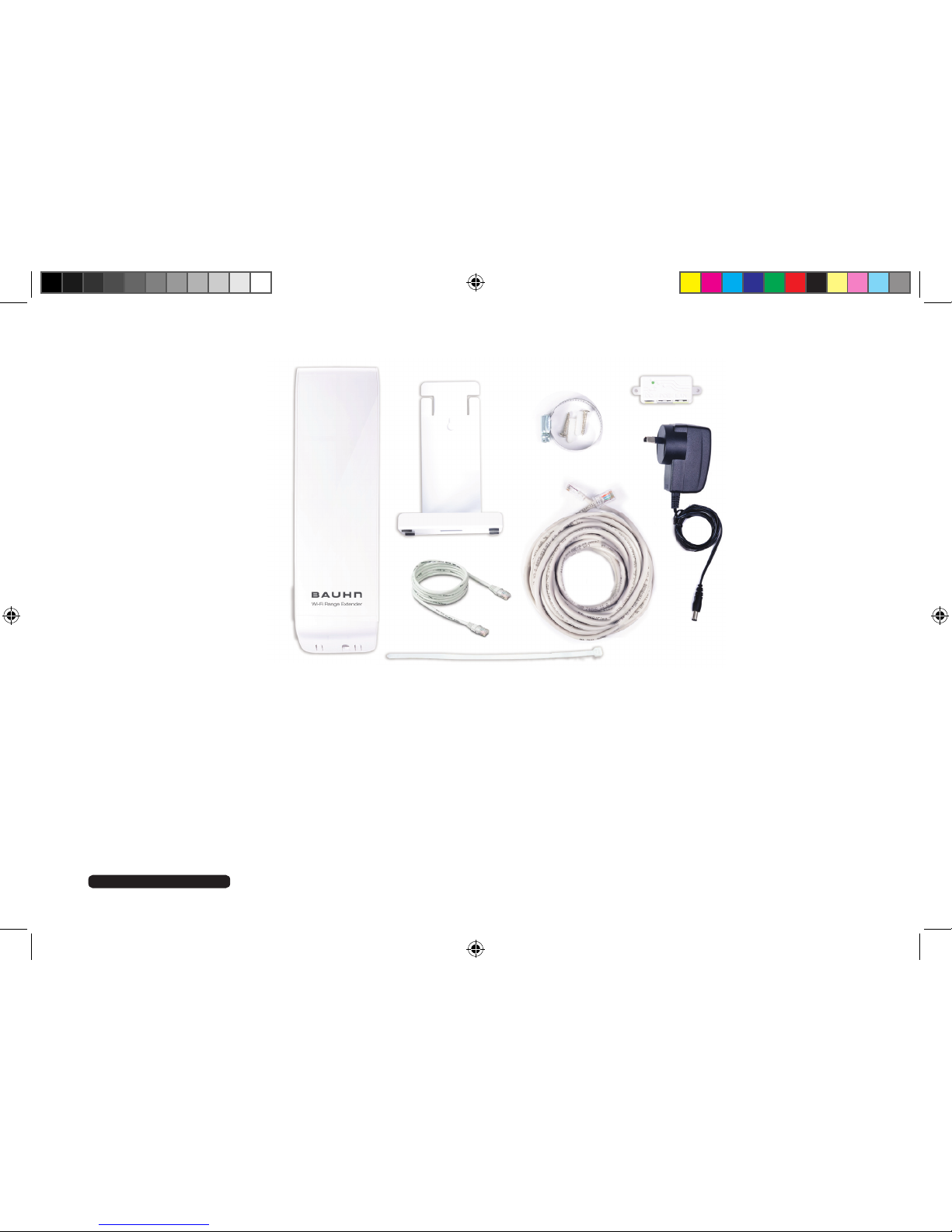

a. 1 x Wi-Fi Range Extender

b. 1 x Stand

c. Metal Pole Clamp

d. PoE Adaptor

e. Power Adaptor

f. 10m PoE Cable

g. 1m Ethernet Cable

h. Plastic Pole Strap

Parts List

a. b. c.

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

SR600EX

USER’S GUIDE

LED Indicators

a) Power: When lit, the power is on.

b) Wireless Activity: Blinks rapidly when wireless data

traﬃc is passing through the

c) LAN: Shows the connecon status and data acvity

of your local network (network devices connected to

the Access Point.

d) POE: Shows the connecon status of the LAN port

on the PoE Adapter

Wi-Fi Range Extender.

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

SR600EX

USER’S GUIDE

Inside Panel

a) Optional External Antenna Port: RJ-SMA antenna

connector. Compable with all antennas with RP-SMA

connectors. Upgradable to high gain antennas for more

range. See the External Antenna conﬁguraon secon

for setup procedures.

b) PoE Port: Power over Ethernet capable RJ-45 port used

to the included PoE

Adapter for power and data connecvity.

c) LAN Port: RJ-45 port used to connect addional network

devices to the Wi-Fi Range Extender..

to connect the Wi-Fi Range Extender

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

SR600EX

USER’S GUIDE

Power over Ethernet (PoE) Adapter

a) Power Adapter Port: Connect the included

power adapter to the PoE adapter port for

b) Repeater Port: Connect a PoE cable between

the PoE Adapter’s Repeater port and the PoE

port on the Wi-Fi Range Extender to provide

power and data to the Wi-Fi Range Extender..

c) LAN Port: Connects to your PC for setup or

other wired networking devices for wired network access.

d) Reset Button: The easy to access reset buon is located on the back of the PoE Adapter. Pressing

the reset buon will reboot the Wi-Fi Range Extender. To reset the Wi-Fi Range Extender to default

sengs, hold the reset buon down for 5 -10 seconds and release.

powering the Wi-Fi Range Extender.

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

SR600EX

USER’S GUIDE

SETUP GUIDE

Find a Setup Location

The locaon of where you install the Wi-Fi Range Extender is very important to how it will funcon. The opmal

setup locaon should be halfway between your wireless router and your wireless dead zone.

SR600EX

USER’S GUIDE

SETUP GUIDE

Find a Setup Location

The locaon of where you install the Wi-Fi Range Extender is very important to how it will funcon. The opmal

setup locaon should be halfway between your wireless router and your wireless dead zone.

When mounng

outdoors, the Wi-Fi

extender must be

mounted under the

eaves of a building,

sheltered from severe

weather condions

and direct sunlight.

Find a Setup Locaon

The locaon of where you setup the Wi-Fi Range extender is very important. The opmal setup locaon should be within 3m of your

router and modem. Once setup is complete the extender can be reposioned halfway between your wireless router and your wireless

dead zone.

When mounng

indoors, choose a

locaon which is high,

and posioned out of

direct sunlight.

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

SR600EX

USER’S GUIDE

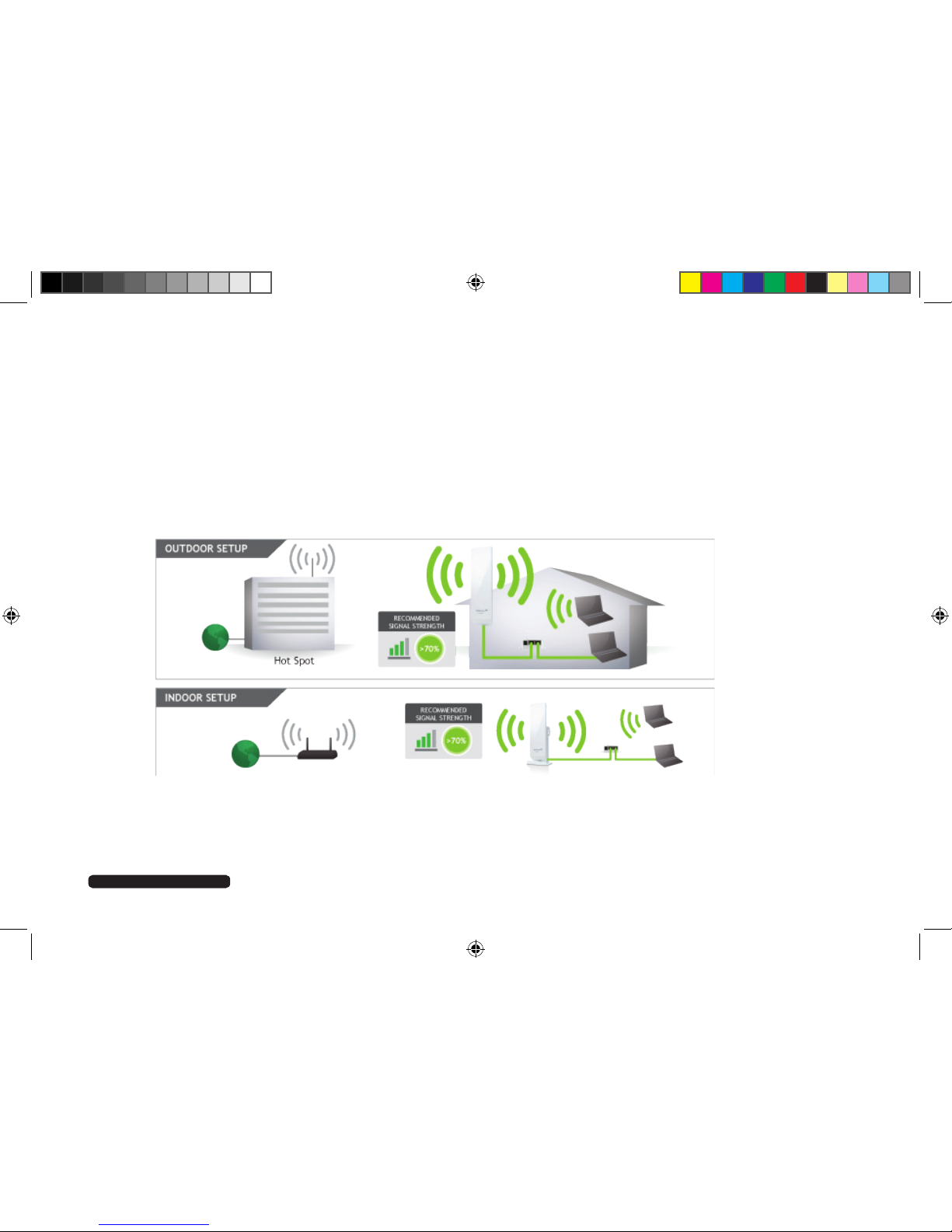

Find the Optimal Position for the Wi-Fi Range Extender

Choose the opon below that best ﬁts your installaon scenario. For best results, the signal strength between

the Wi-Fi Range Extender and the Home Network / Hot Spot should be greater than 70%.

Range Extender

SR600EX

USER’S GUIDE

Find the Optimal Position for the Wi-Fi Range Extender

Choose the opon below that best ﬁts your installaon scenario. For best results, the signal strength between

the Wi-Fi Range Extender and the Home Network / Hot Spot should be greater than 70%.

Range Extender

FRONT NOTE: Antenna strength is direconal. Signal strength from the

front of the extender is very strong. Weaker signal from the back,

weakest signal from the sides.

Face the extender in the direcon you wish to project your

wireless network signal.

BACK

Andere Handbücher für IT144052

Inhaltsverzeichnis

Andere Bauhn Extender Handbücher

Bauhn

Bauhn IT144052 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
